- - 26. OCCCOMPON ENTS

100%1 / 198
- -

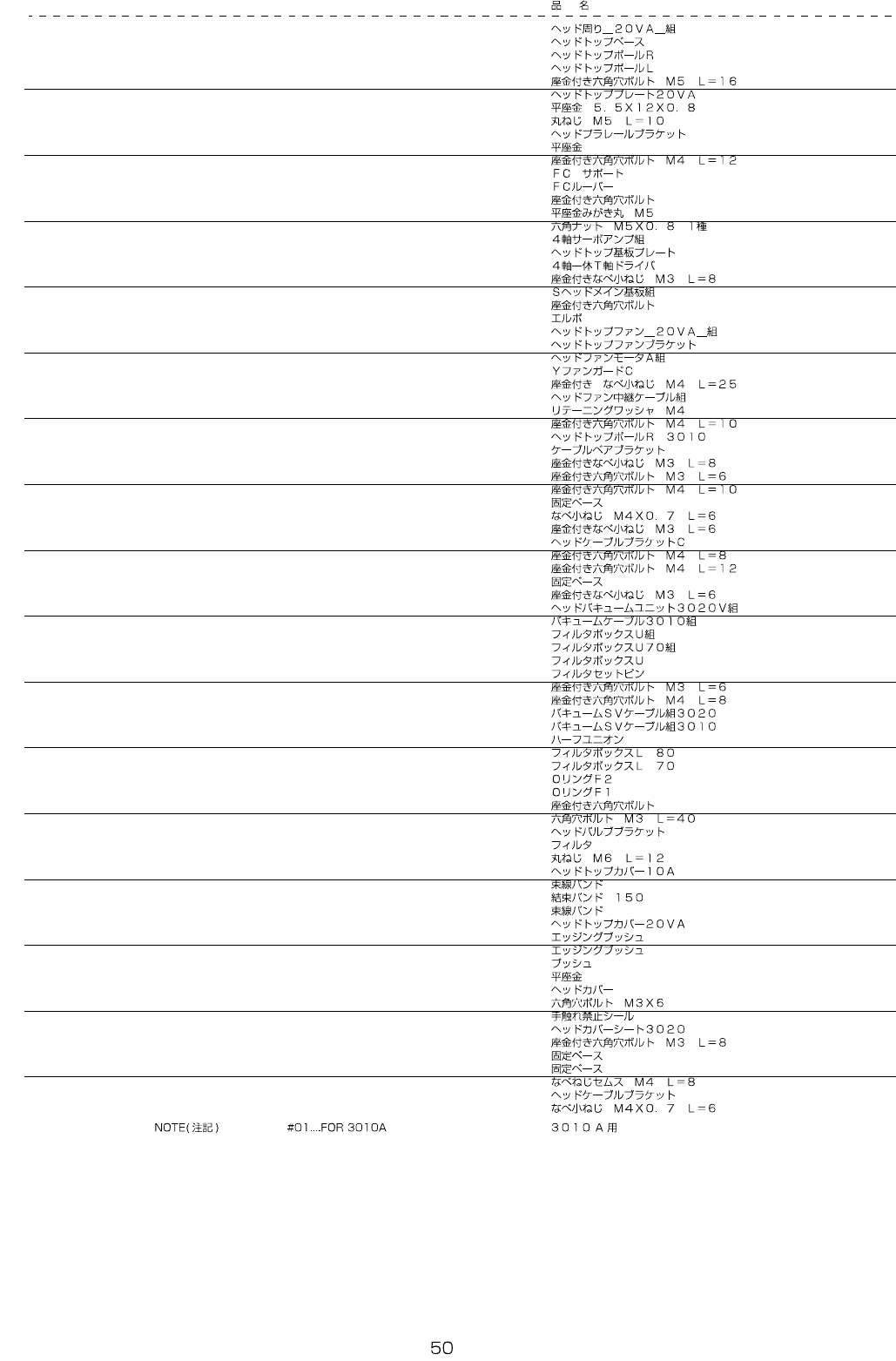

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-46888 HEADRELATED20VAASM 1
2 401-46898 HEAD_TOP_BASE (1)
3 400-71575 HEADTOPPOLER (2)
4 400-71576 HEADTOPPOLEL (2)
5 SL-6051692-TN SCREWM5L=16 (4)
6 401-46899 HEAD_TOP_PLATE_20VA (1)
7 WP-0550836-SC WASHER5.5X12X0.8 (2)
8 SM-3051052-TN SCREWM5L=10 (2)
9 400-71578 HEADPLASTICRAILBR (1)
10 WP-0431005-SP PLAINWASHER (8)
11 SL-6041292-TN SCREWM4L=12 (8)
12 L153E-221-000 FCSUPPORT (1)
13 L153E-321-000 FCRUBBER (3)
14 SL-6051492-TN BOLT (2)
15 WP-0531001-SC WASHERM5 (2)
16 NM-6050001-SC NUTM5X0.8TYPE1 (2)
17 401-46889 4AXIS_SERVO_AMP_ASM (4)
18 401-46900 HEAD_TOP_PCB_PLATE (1)
19 401-29650 4AXISINTEGRALTYPETAXISDRIVER (1)
20 SL-4030891-SC SCREWM3L=8 (9)
21 401-30259 S-HEADMAINPCBASM (1)
22 SL-6032092-TN BOLT (16)
23 PJ-3040800-02 ELBOWUNION (4)
24 401-46890 HEAD_TOP_FAN_20VA_ASM (1)
25 401-46901 HEAD_TOP_FAN_BR (1)
26 401-19461 HEADFANMOTORAASSY (1)
27 400-66152 Y_FAN_GUARD_C (1)
28 SL-4042591-SC SCREWM4L=25 (4)
29 401-46385 HEADFANRELAYCABLEASM (1)
30 400-98346 RETAININGWASHERM4 (2)
31 SL-6041092-TN SCREWM4L=10 (3)
32
#01
401-08816 HEADTOPPOLER3010 (2)
33
#01
401-36796 CABLE_BEAR_BR (1)
34 SL-4030891-SC SCREWM3L=8 (9)
35 SL-6030692-TN SCREWM3L=6 1
36 SL-6041092-TN SCREWM4L=10 2
37 HX-0029400-00 FIXEDBASE 4
38 SM-4040601-SC SCREWM4X0.7L=6 1
39 SL-4030691-SC SCREWM3L=6 3
40 400-94357 HEAD_CABLE_BR_C 1
41 SL-6040892-TN SCREWM4L=8 3
42 SL-6041292-TN SCREWM4L=12 1
43 HX-0029400-00 FIXEDBASE 4
44 SL-4030691-SC SCREWM3L=6 3
45 401-18780 HEADVACUUMUNIT3020VASM 1
46
#01
401-14342 VACUUMCABLEASM3010 1
47 400-60556 FILTERBOXUASM (1)
48
#01
400-64231 FILTERBOXU70ASM (1)
49 400-46519 FILTERBOXU (1)
50 400-60551 FILTERSETPIN (7)
51 SL-6030692-TN SCREWM3L=6 (4)
52 SL-6040892-TN SCREWM4L=8 (4)
53 401-13699 VACUUMSVCABLEASM3020 (1)
54
#01
401-13700 VACUUMSVCABLEASM3010 (1)
55 PJ-3010405-05 HALFUNION (7)
56 400-62188 FILTERBOXL80 (1)
57
#01
400-62187 FILTERBOXL70 (1)
58 400-46059 ORINGF2 (7)
59 400-46058 ORINGF1 (7)
60 SL-6031042-TN SCREW (2)
61 SM-6034002-TN SCREWM3L=40 (2)
62 400-60224 HEADVALVEBRACKET (1)
63 400-46646 FILTER (7)
64 SM-3061252-TN SCREWM6L=12 6
65
#01
401-46908 HEAD_TOP_COVER_10A 1
66 EA-9500B01-00 CABLEBAND 20
67 EA-9500B02-00 CABLEBAND150 30
68 HX-0006500-0B CABLEBAND 5
69 401-46904 HEAD_TOP_COVER_20VA 1
70 HX-0009600-00 EDGINGBUSH 1
71 HX-0009600-0A EDGINGBUSH 1
72 E5348-033-100 CABLEPROTECTOR106MM 0.5
73 WP-0651646-SC WASHER 6
74 400-94360 HEADCOVER 1
75 SM-6030602-TN SCREWM3X6 4
76 E3858-715-000 SEAL 1
77 400-71580 HEADCOVERSHEET3020 1
78 SL-6030892-TN SCREWM3L=8 8
79 HX-0029400-00 FIXEDBASE 8
80 HX-0029400-00 FIXEDBASE 17
81 SL-4040841-SE SCREWM4L=8 1
82 401-46902 HEAD_CABLE_BR 1
83 SM-4040601-SC SCREWM4X0.7L=6 17
- -
26.OCCCOMPONENTS
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-71588 OCCLEFTASM 1
2 SM-3030552-TN SCREWM3L=5 (2)
3 SM-1030501-SC SCREWM3L=5 (1)
4 400-71589 OCCCAMERABRLASM (1)
5 HX-0029400-00 FIXEDBASE (2)
6 PH-0400122-C0 PIN (2)
7 400-47573 CAMERALENSASSY (1)
8 SM-6020302-UZ SCREWM2L=3 (2)
9 400-71590 CCDBR (1)
10 SM-4040801-SC SCREWM4X0.7L=8 (2)
11 SL-6041692-TN SCREWM4L=16 (2)
12 400-71311 OCCLENSBRL (1)
13 SM-6030602-TN SCREWM3X6 (2)
14 400-78050 CAMERABRACKET (1)
15 400-71591 OCCLIGHTASM (1)
16 118-04606 RUBBERPLUG (10)
17 400-43895 LIGHTDIFFUSER (1)
18 400-14037 BEAMSPRITTER (1)
19 400-13943 PRISMCOVER (1)
20 SL-6030692-TN SCREWM3L=6 (3)
21 400-01225 HOLDRUBBER (1)
22 400-15847 OCCCOLLAR (1)
23 E1038-871-000 PLATENLOCKCAMSCREW (2)
24 400-13949 LIGHTFILTERUSUPPORT (1)
25 L154E-821-000 LIGHTBRACKET (1)
26 400-15962 OCCLABEL (1)
27 E1143-721-000 WOOLENCLOTHPAPER (1)
28 SL-6030892-TN SCREWM3L=8 (4)
29 400-14043 PRISMBASE (1)
30 400-47508 OCCALIGHTPCBASM (1)
31 400-14042 PRISM (1)
32 SL-6030892-TN SCREWM3L=8 (1)
33 SM-1020301-SN SCREW (4)
34 400-43896 LENSFILTER (1)
35 400-13948 GUIDEPLATE (1)
36 400-13944 ROTARYBASE (1)
37 SM-1030501-SC SCREWM3L=5 (3)
38 400-47512 OCCCLIGHTPCBASM (1)
39 SL-4030691-SC SCREWM3L=6 (2)
40 400-44028 MIRRORBOX (1)
41 SL-6030692-TN SCREWM3L=6 (3)
42 HX-0034400-00 HARNESSPARTS 4
43 SM-4040801-SC SCREWM4X0.7L=8 4
44
#01
HX-0035400-0D BASEPARTS 4
45
#01
400-14043 PRISMBASE 1
46
#01
HX-0033500-0G SPACER 4
47
#01
400-32433 LOWHEADSCREWM310 4
48
#01
400-47508 OCCALIGHTPCBASM 1
49 SL-6052092-TN SCREWM5L=20 4
50 SL-6041292-TN SCREWM4L=12 2
