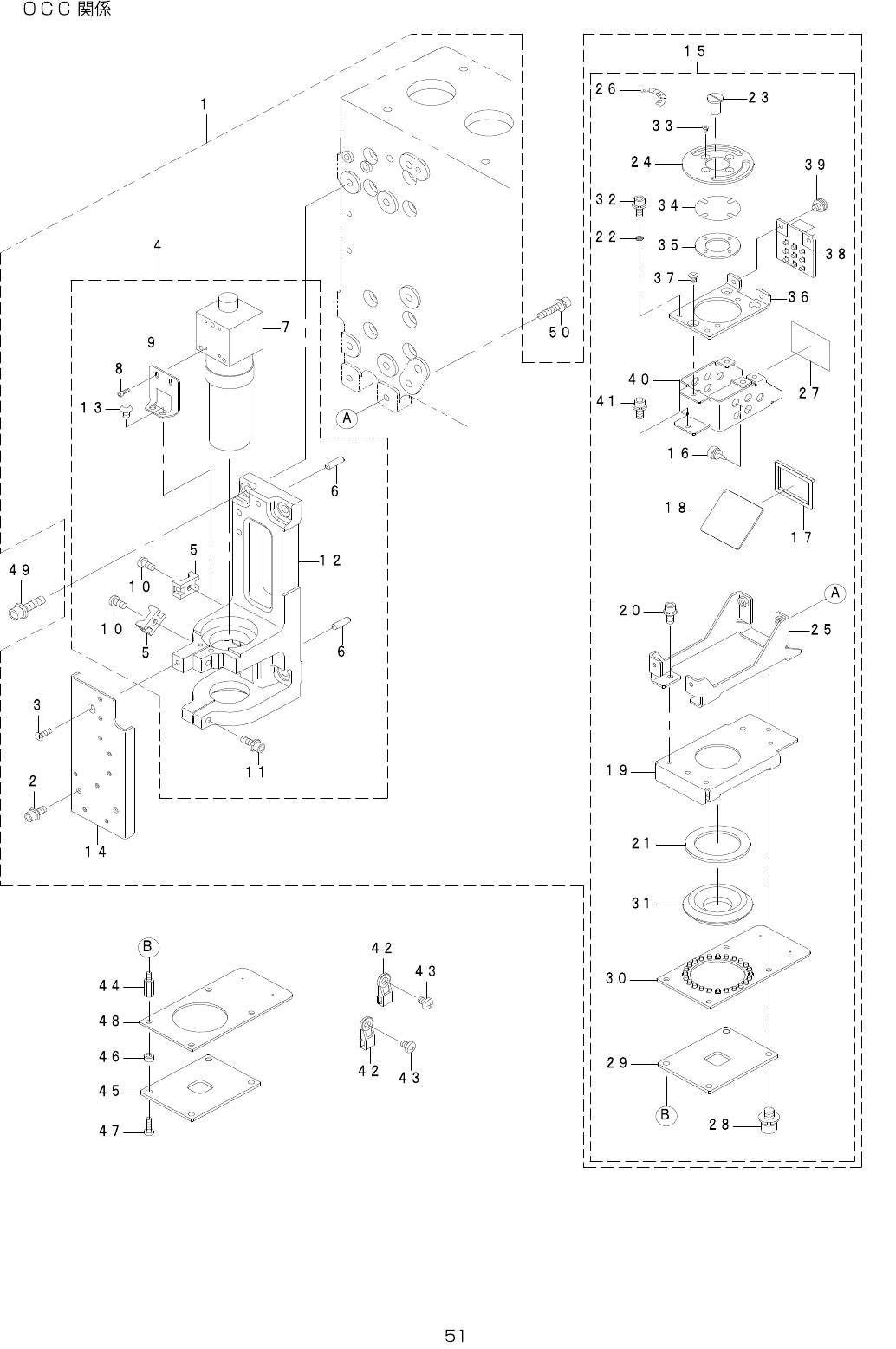

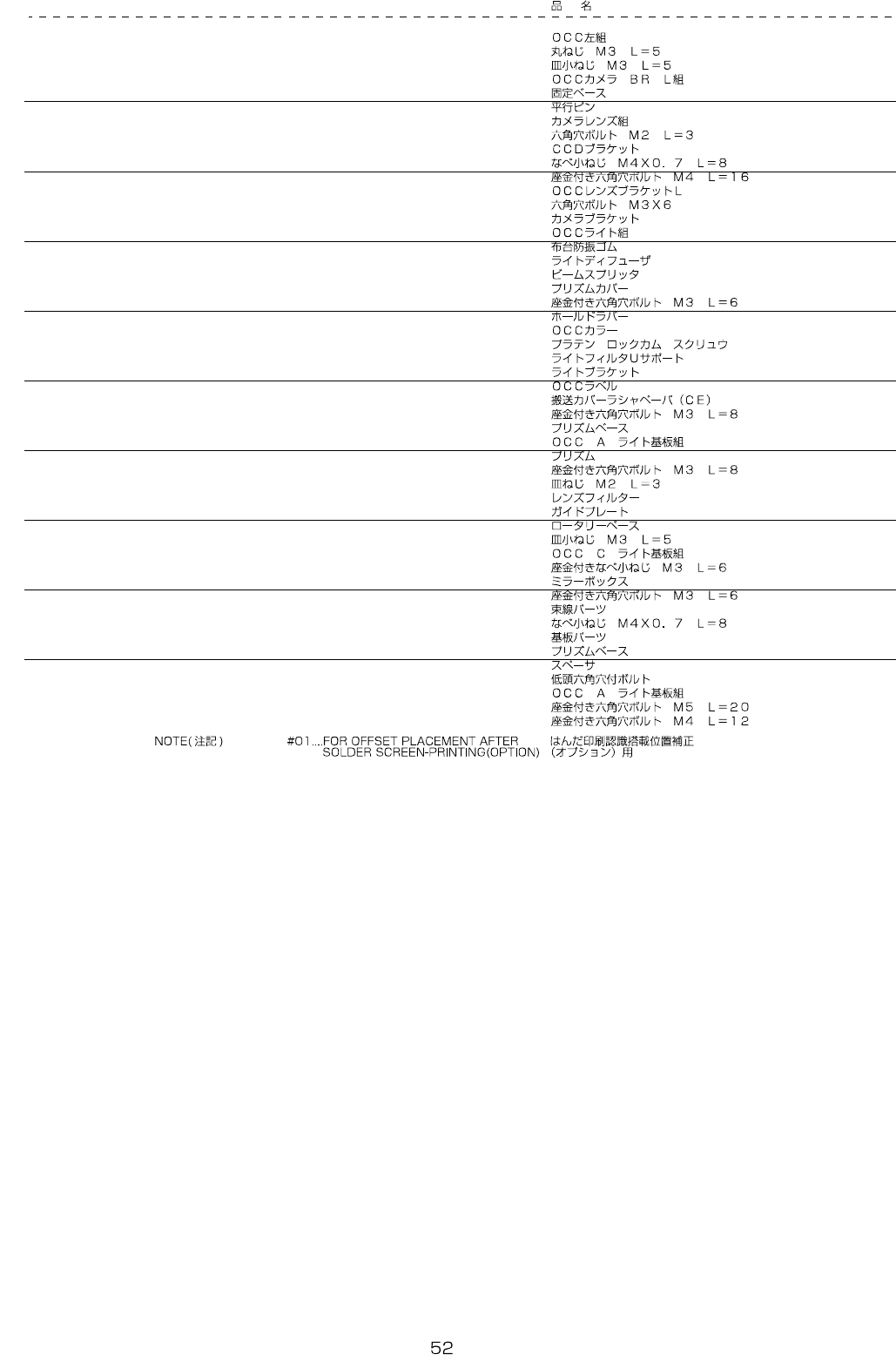

26.OCCCOMPONENTS
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-71588 OCCLEFTASM 1
2 SM-3030552-TN SCREWM3L=5 (2)
3 SM-1030501-SC SCREWM3L=5 (1)
4 400-71589 OCCCAMERABRLASM (1)
5 HX-0029400-00 FIXEDBASE (2)
6 PH-0400122-C0 PIN (2)
7 400-47573 CAMERALENSASSY (1)
8 SM-6020302-UZ SCREWM2L=3 (2)
9 400-71590 CCDBR (1)
10 SM-4040801-SC SCREWM4X0.7L=8 (2)
11 SL-6041692-TN SCREWM4L=16 (2)
12 400-71311 OCCLENSBRL (1)
13 SM-6030602-TN SCREWM3X6 (2)
14 400-78050 CAMERABRACKET (1)
15 400-71591 OCCLIGHTASM (1)
16 118-04606 RUBBERPLUG (10)
17 400-43895 LIGHTDIFFUSER (1)
18 400-14037 BEAMSPRITTER (1)
19 400-13943 PRISMCOVER (1)
20 SL-6030692-TN SCREWM3L=6 (3)
21 400-01225 HOLDRUBBER (1)
22 400-15847 OCCCOLLAR (1)
23 E1038-871-000 PLATENLOCKCAMSCREW (2)
24 400-13949 LIGHTFILTERUSUPPORT (1)
25 L154E-821-000 LIGHTBRACKET (1)
26 400-15962 OCCLABEL (1)
27 E1143-721-000 WOOLENCLOTHPAPER (1)
28 SL-6030892-TN SCREWM3L=8 (4)
29 400-14043 PRISMBASE (1)
30 400-47508 OCCALIGHTPCBASM (1)
31 400-14042 PRISM (1)
32 SL-6030892-TN SCREWM3L=8 (1)
33 SM-1020301-SN SCREW (4)
34 400-43896 LENSFILTER (1)
35 400-13948 GUIDEPLATE (1)
36 400-13944 ROTARYBASE (1)
37 SM-1030501-SC SCREWM3L=5 (3)
38 400-47512 OCCCLIGHTPCBASM (1)
39 SL-4030691-SC SCREWM3L=6 (2)
40 400-44028 MIRRORBOX (1)
41 SL-6030692-TN SCREWM3L=6 (3)
42 HX-0034400-00 HARNESSPARTS 4
43 SM-4040801-SC SCREWM4X0.7L=8 4
44
#01
HX-0035400-0D BASEPARTS 4
45
#01
400-14043 PRISMBASE 1
46
#01
HX-0033500-0G SPACER 4
47
#01
400-32433 LOWHEADSCREWM310 4
48
#01
400-47508 OCCALIGHTPCBASM 1
49 SL-6052092-TN SCREWM5L=20 4
50 SL-6041292-TN SCREWM4L=12 2
- -

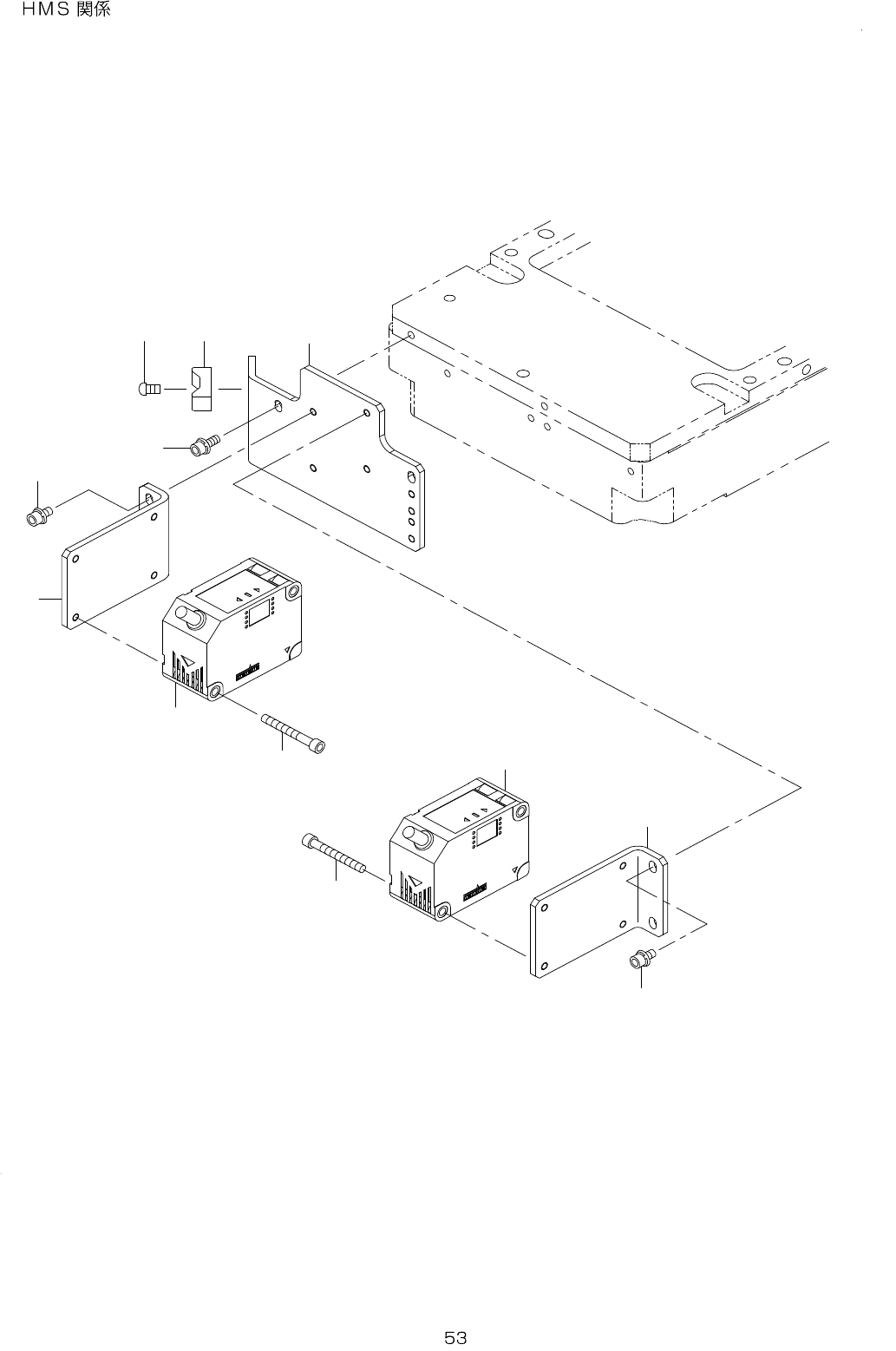

27.HMSCOMPONENTS
1
8
5
3
9
5
3
2
8
4
7 6
