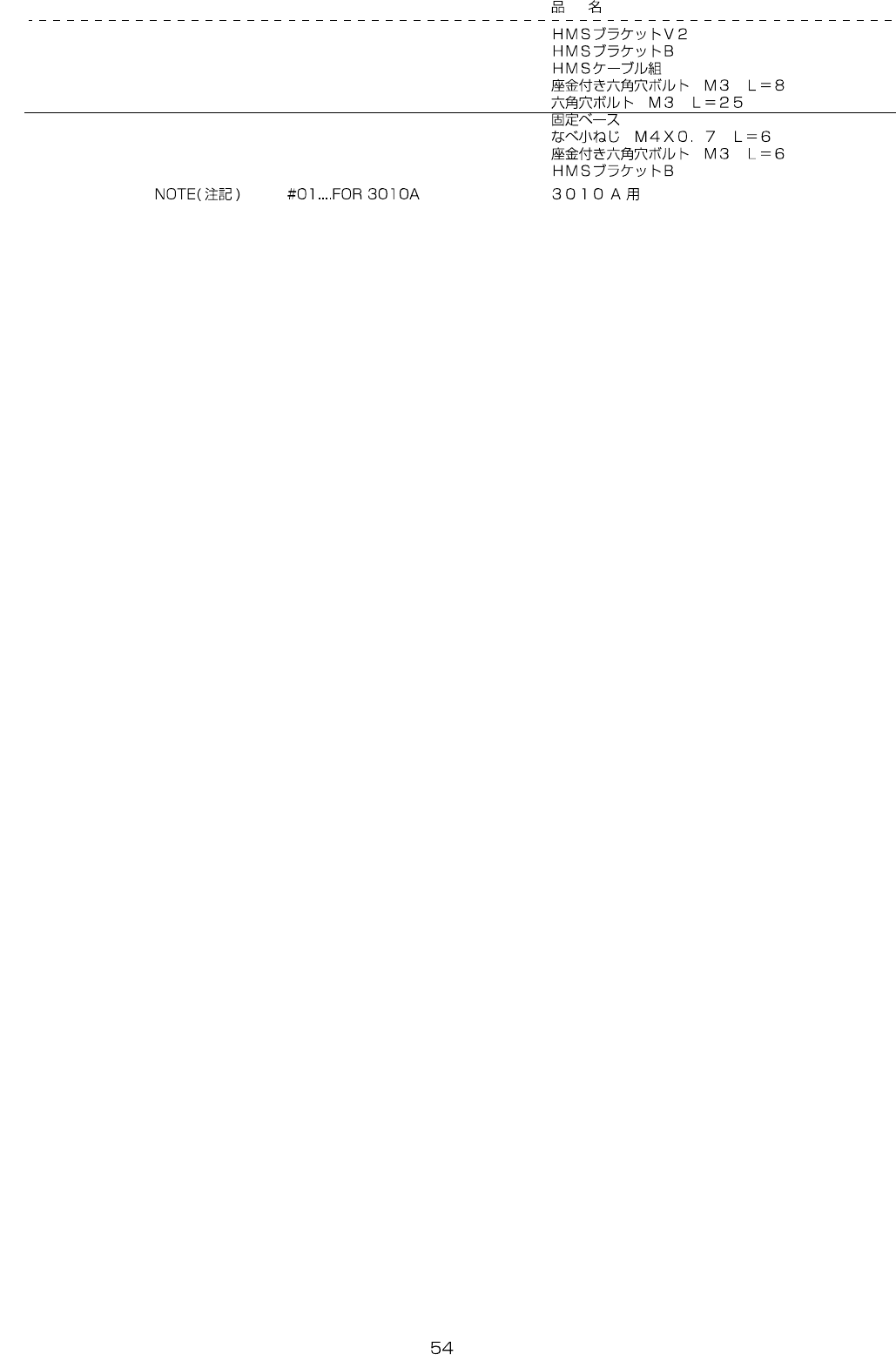

27.HMSCOMPONENTS

7 6

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-08804 HMSBRV2 1

2 401-08805 HMSBRB 1

3 401-46354 HMSCABLEASM 2

4 SL-6030892-TN SCREWM3L=8 2

5 SM-6032502-TN SCREWM3L=25 2

6 HX-0029400-00 FIXEDBASE 1

7 SM-4040601-SC SCREWM4X0.7L=6 1

8 SL-6030692-TN SCREWM3L=6 2

#01

401-08805 HMSBRB 1

- -

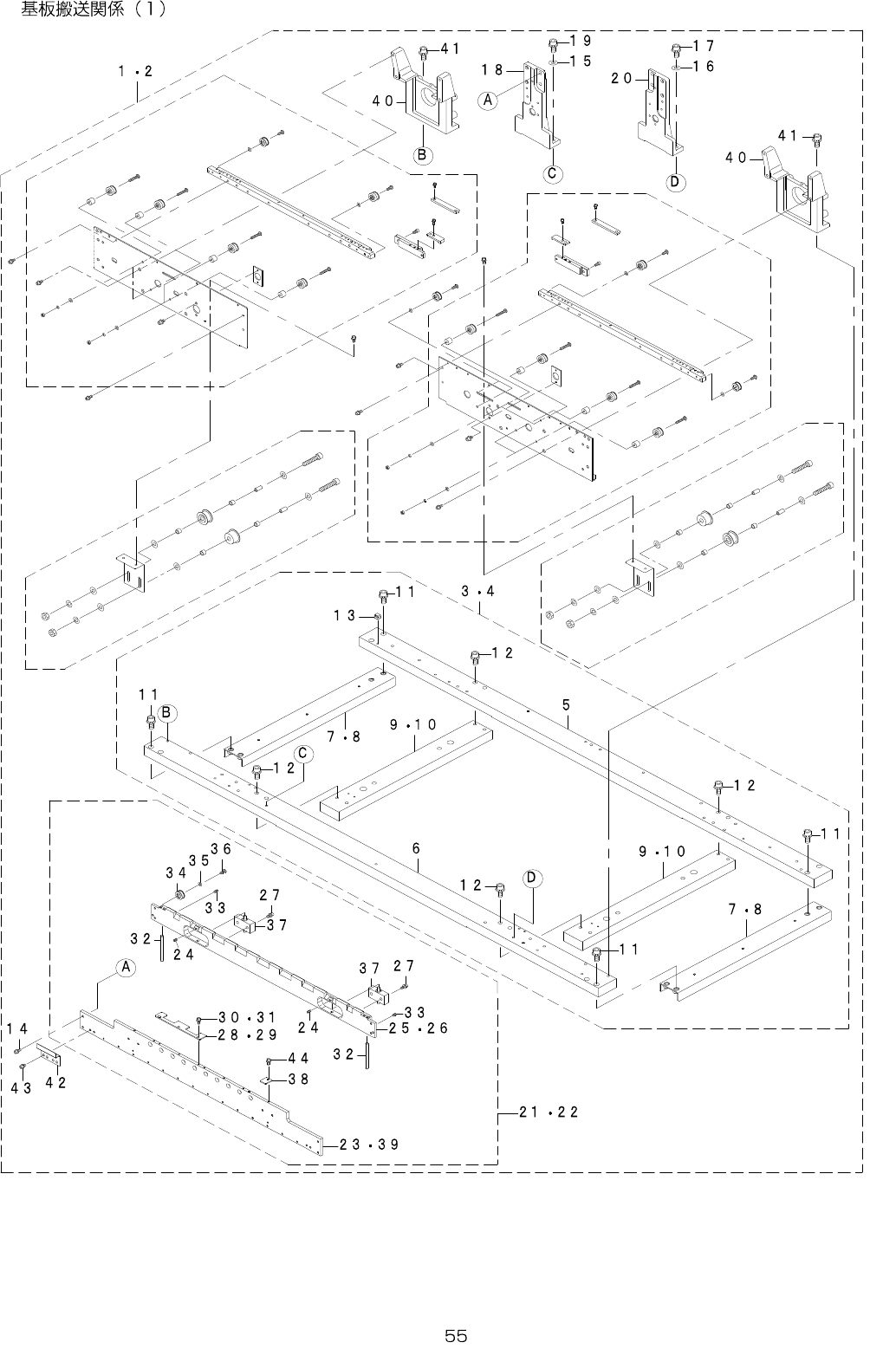

28.PWBCONVEYORCOMPONENTS(1)
