28.PWBCONVEYORCOMPONENTS(1)
- -

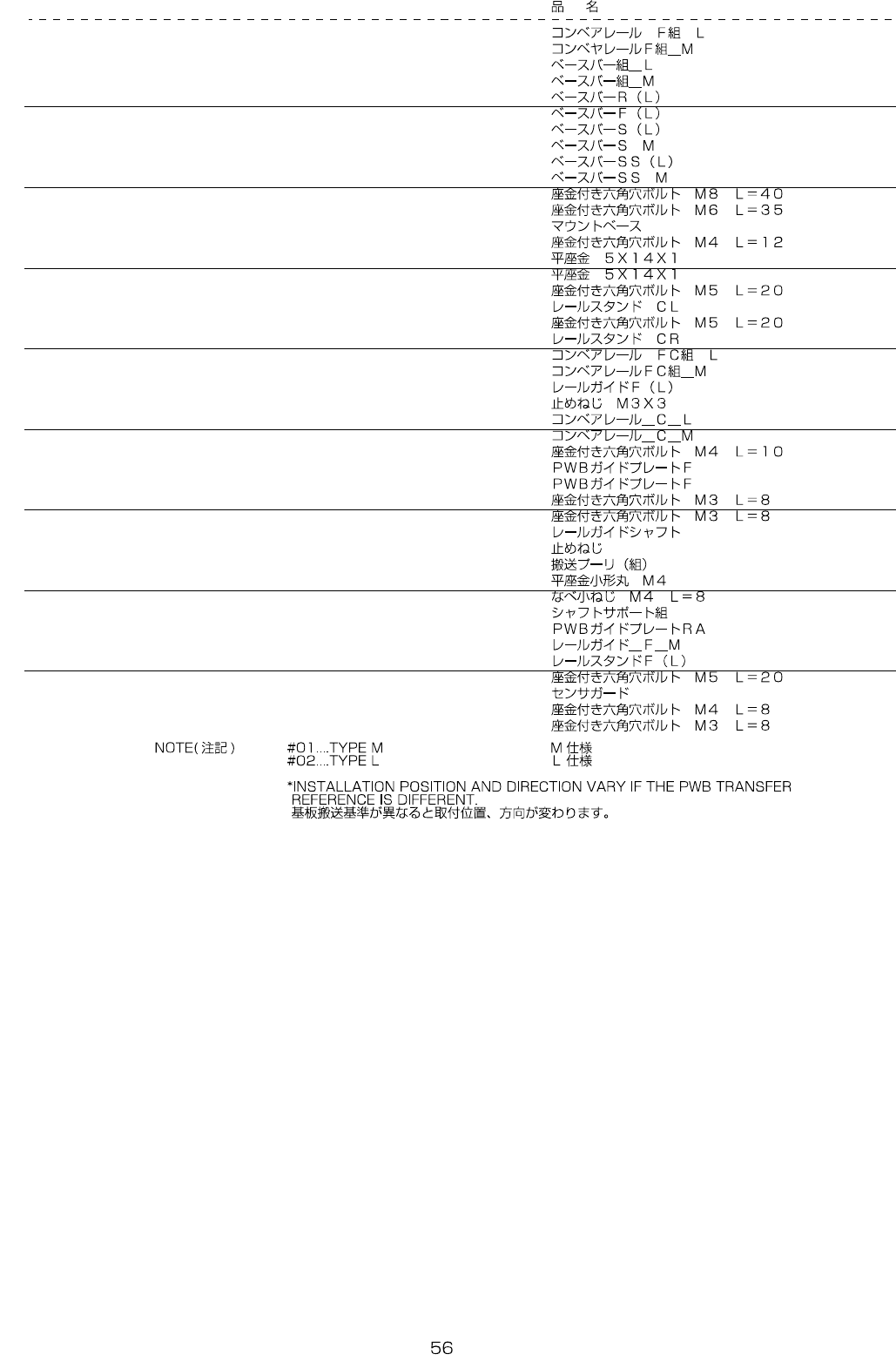

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#02
401-46985 CONVEYOR_RAIL_F_ASM_L 1
2
#01
401-46971 CONVEYOR_RAIL_F_ASM_M 1
3
#02
401-47029 BASE_BAR_ASM_L (1)
4
#01
401-47028 BASE_BAR_ASM_M (1)
5 400-01038 BASEBARR(L) (1)
6 400-01039 BASEBARF(L) (1)
7
#02
400-70087 BASEBARS(L) (2)
8
#01
401-10094 BASEBARSM (2)
9
#02
400-00996 BASEBARSS(L) (2)
10
#01
401-10095 BASEBARSSM (2)
11 SL-6084092-TN SCREWM8L=40 (8)
12 SL-6063592-TN SCREW (8)
13 HX-0070600-0A MOUNTBASE (4)
14 SL-6041292-TN SCREWM4L=12 (4)
15 WP-0501046-SC WASHER5X14X1 (2)
16 WP-0501046-SC WASHER5X14X1 (2)
17 SL-6052092-TN SCREWM5L=20 (2)
18 400-00802 RAILSTANDCL (1)
19 SL-6052092-TN SCREWM5L=20 (2)
20 400-00805 RAILSTANDCR (1)
21
#02
401-46986 CONVEYOR_RAIL_FC_ASM_L (1)
22
#01
401-46974 CONVEYOR_RAIL_FC_ASM_M (1)
23 400-01043 RAILGUIDF(L) (1)
24 SM-8030302-TP SCREWM3X3 (2)
25
#02
401-47010 CONVEYOR_RAIL_C_L (1)
26
#01
401-47009 CONVEYOR_RAIL_C_M (1)
27 SL-6041092-TN SCREWM4L=10 (8)
28
#02
E2123-721-000 PWBGUIDEPLATEF (4)
29
#01
E2123-721-000 PWBGUIDEPLATEF (2)
30
#02
SL-6030892-TN SCREWM3L=8 (12)
31
#01
SL-6030892-TN SCREWM3L=8 (6)
32 400-00812 RAILGUIDESHAFT (2)
33 SM-8040602-TP SCREWM4X0.7L=6 (2)
34 E2111-715-0A0 CONVEYORPULLEYASM. (4)
35 WP-0430800-SC WASHERM4 (4)
36 SM-4040855-SC SCREW (4)
37 E4105-729-0A0 SHAFTSUPPORTBASM. (2)
38
#01
E2124-721-000 PWBGUIDEPLATERA (4)
39
#01
401-46995 RAIL_GUIDE_F_M (1)
40 400-46032 RAILSTANDF(L) (2)
41 SL-6052092-TN SCREWM5L=20 (4)
42
#01
401-14733 SENSORGUARD (1)
43
#01
SL-6040892-TN SCREWM4L=8 (2)
44
#01
SL-6030892-TN SCREWM3L=8 (4)
- -

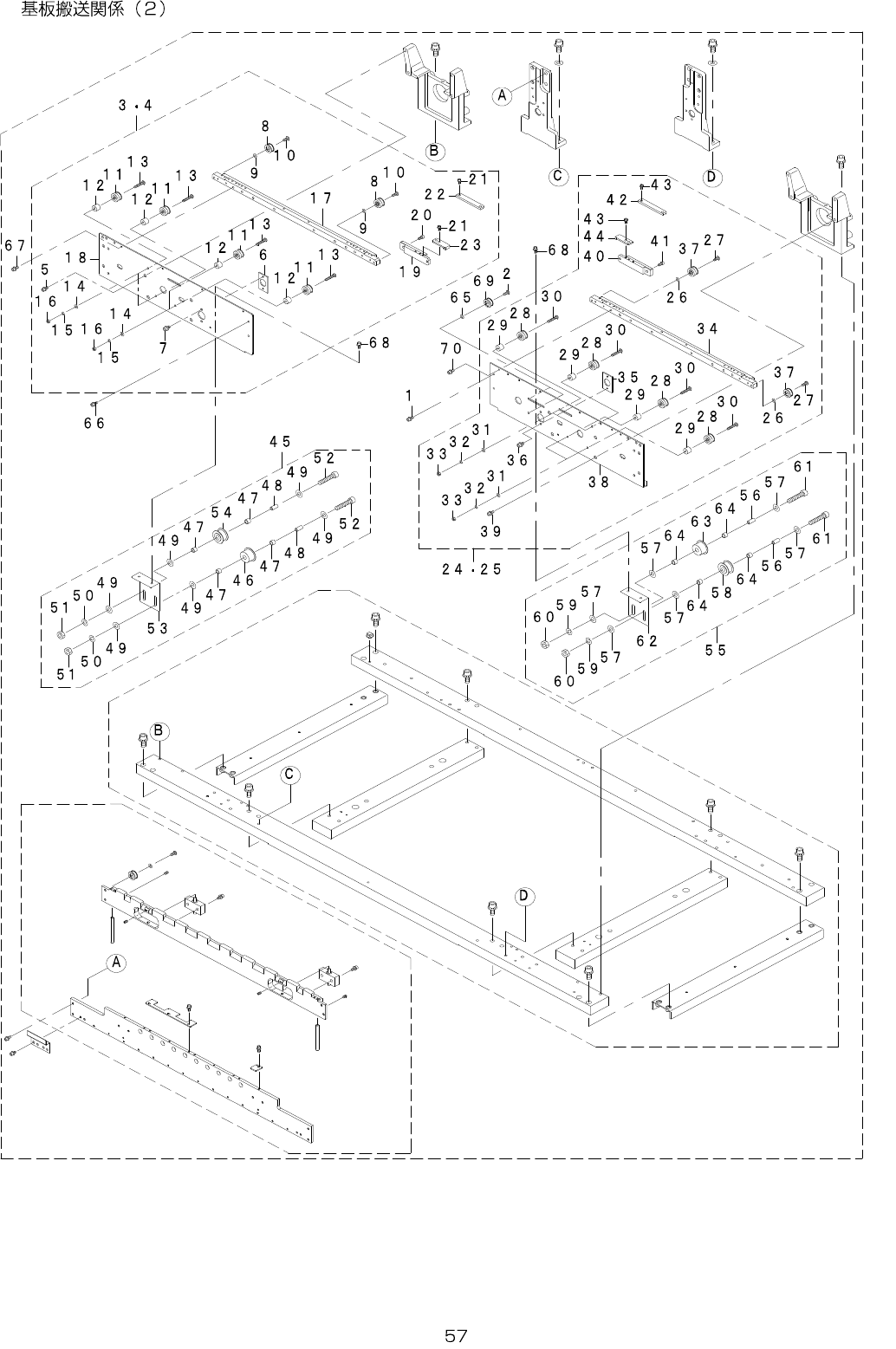

29.PWBCONVEYORCOMPONENTS(2)
