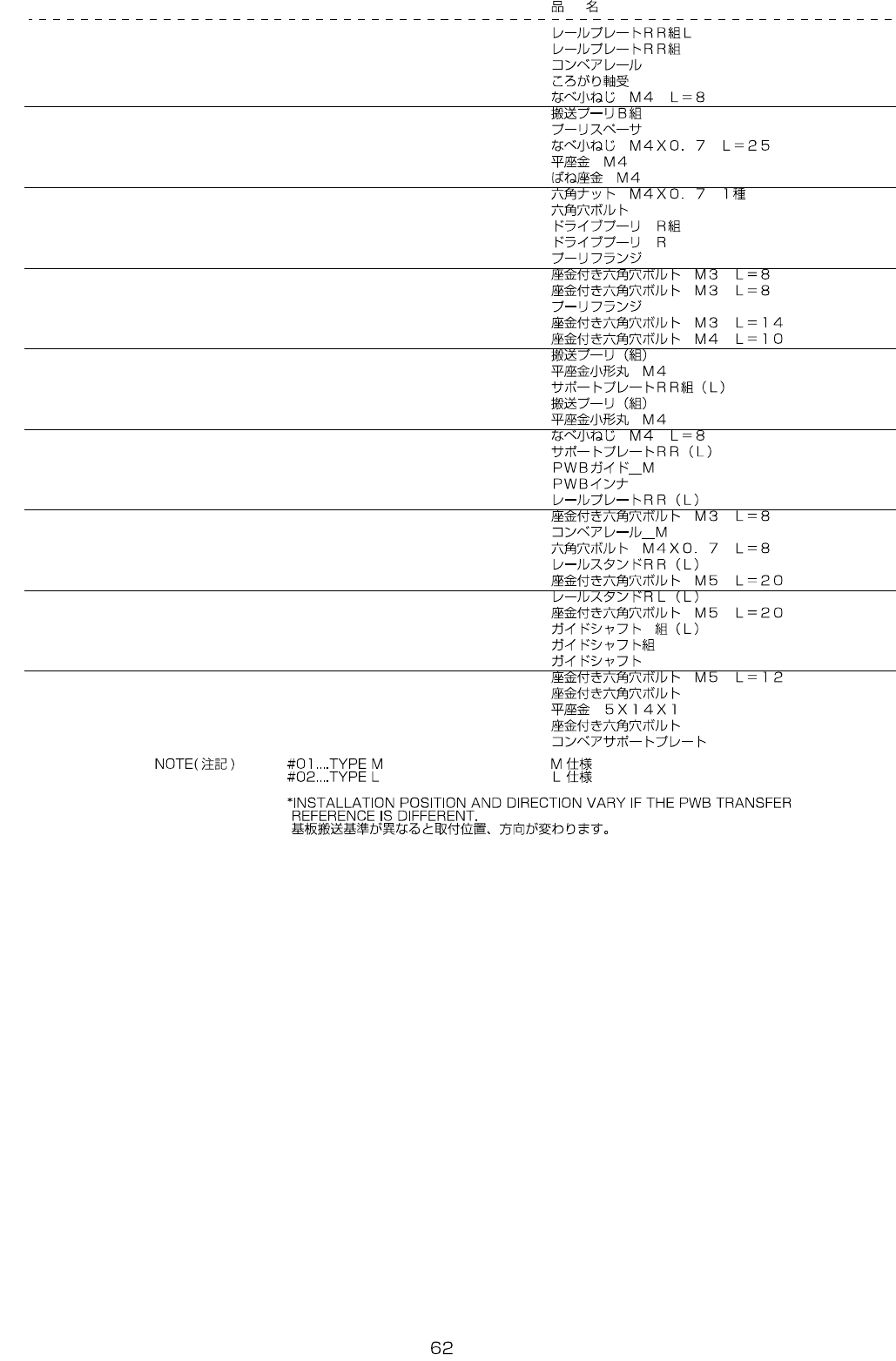

- - 32. PWBCONVEY ORCOMPONENTS (5)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1

#02

401-14267 RAIL_PLATE_RR_ASM_L 1

2

#01

401-46978 RAIL_PLATE_RR_ASM 1

3 400-00828 CONVEYORRAIL (1)

4 SB-8160001-00 BEARING (2)

5 SM-4040855-SC SCREW (2)

6 E2089-721-0A0 CONVEYORPULLEYBASM. (1)

7 E2055-721-000 PULLEYSPACER (1)

8 SM-4042501-SC SCREWM4X0.7L=25 (1)

9 WP-0430801-SC WASHERM4 (2)

10 WS-0410002-KN SPRINGWASHERM4 (2)

11 NM-6040001-SC NUTM4X0.7TYPE1 (2)

12 SM-6041002-TN BOLT (8)

13 400-00839 DRIVEPULLEYRASM (2)

14 400-00840 DRIVEPULLEYR (1)

15 E2160-721-000 PULLEYFLANGE (1)

16 SL-6030892-TN SCREWM3L=8 (3)

17 SL-6030892-TN SCREWM3L=8 (6)

18 E2160-721-000 PULLEYFLANGE (2)

19 SL-6031492-TN SCREWM3L=14 (4)

20 SL-6041092-TN SCREWM4L=10 (2)

21 E2111-715-0A0 CONVEYORPULLEYASM. (2)

22 WP-0430800-SC WASHERM4 (2)

23 400-01062 SUPPORTPLATERRASM(L) (1)

24 E2111-715-0A0 CONVEYORPULLEYASM. (7)

25 WP-0430800-SC WASHERM4 (7)

26 SM-4040855-SC SCREW (7)

27 400-01069 SUPPORTPLATERR(L) (1)

28

#01

401-47008 PWB_GUIDE_M (1)

29 E2046-725-000 PWBINNER (1)

30 400-01061 RAILPLATERR(L) (1)

31

#01

SL-6030892-TN SCREWM3L=8 (4)

32

#01

401-47007 CONVEYOR_RAIL_M (1)

33

#01

SM-6040802-TN SCREWM4X0.7L=8 (1)

34 400-01066 RAILSTANDRR(L) 1

35 SL-6052092-TN SCREWM5L=20 2

36 400-01065 RAILSTANDRL(L) 1

37 SL-6052092-TN SCREWM5L=20 2

38

#02

400-01002 GUIDESHAFTASM(L) 4

39

#01

400-00845 GUIDESHAFTASM 4

40 E2209-725-000 GUIDESHAFT (1)

41 SL-6051292-TN SCREWM5L=12 (1)

42 SL-6052042-TN SCREW (1)

43 WP-0501046-SC WASHER5X14X1 (2)

44 SL-6042092-TN SCREWM4L=20 4

45 401-46998 CONVEYOR_SUPPORT_PLATE 1

- -

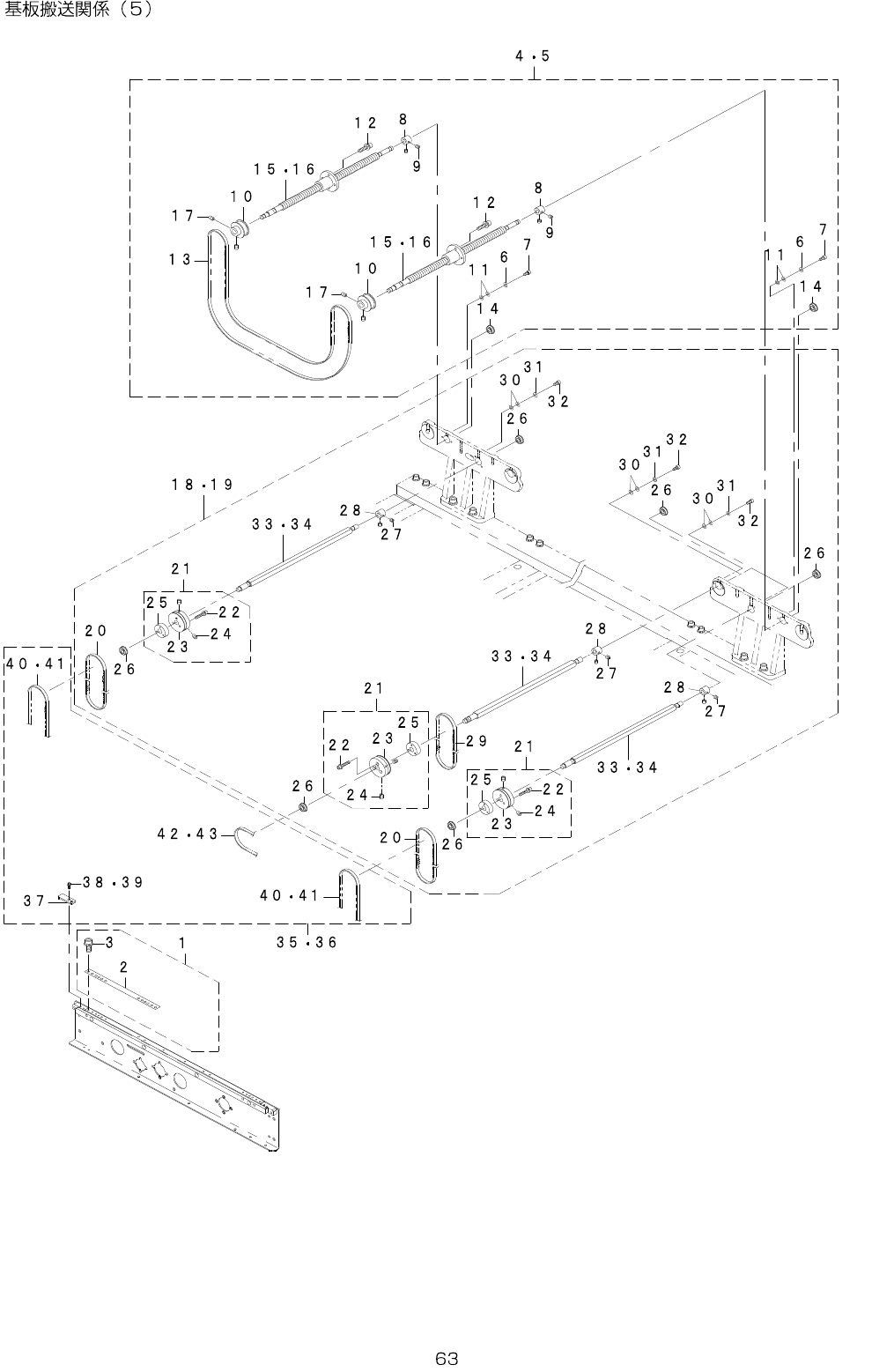

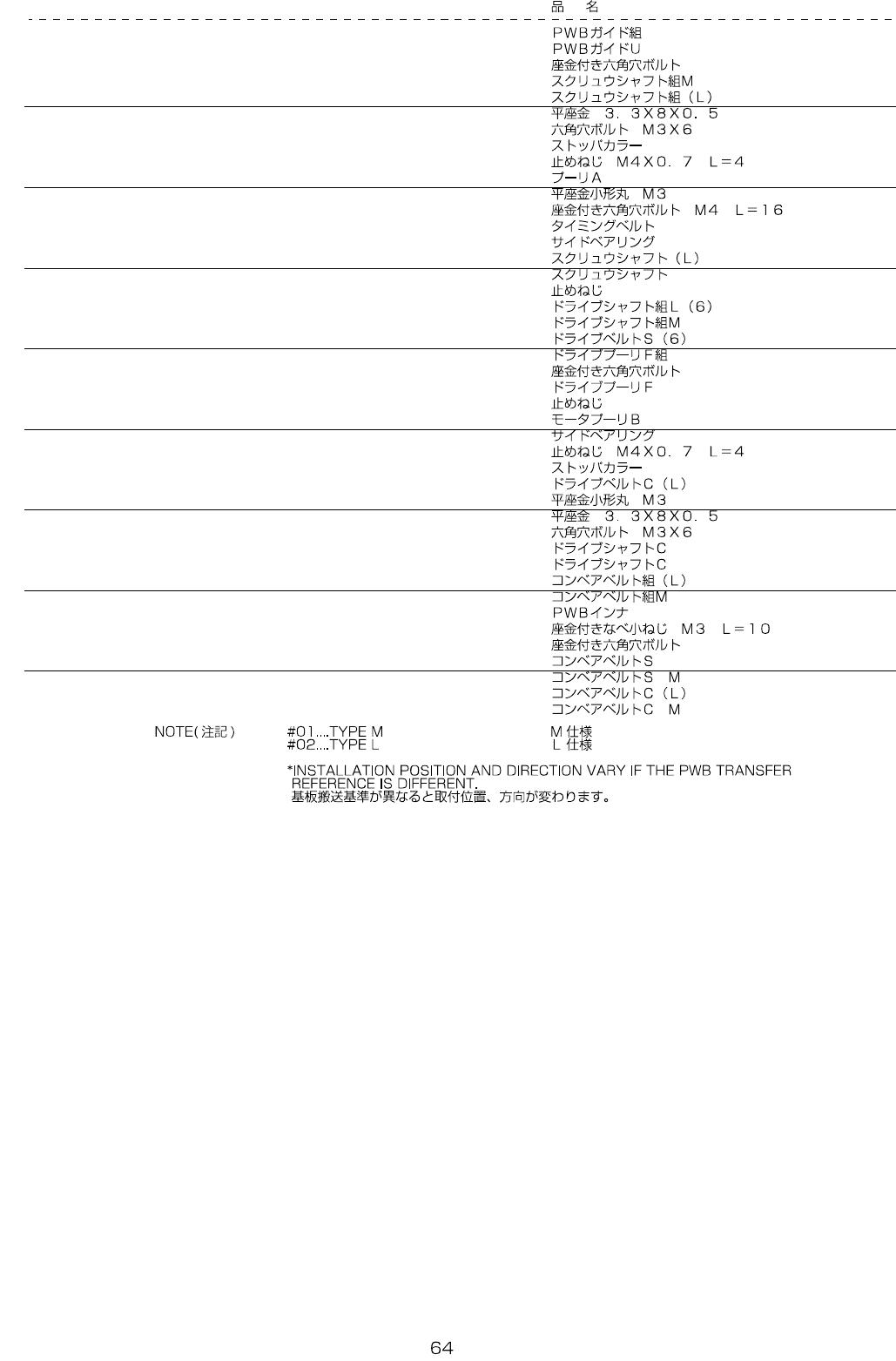

32.PWBCONVEYORCOMPONENTS(5)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-00860 PWBGUIDEASM 1

2 400-00861 PWBGUIDEU (8)

3 SL-6031092-TN SCREW (16)

4

#01

401-10130 SCREWSHAFTASMM 1

5

#02

400-01003 SCREWSHAFTASM(L) 1

6 WP-0330516-SC WASHER3.3X8X0.5 (4)

7 SM-6030602-TN SCREWM3X6 (4)

8 E2141-721-000 STOPPERCOLLAR (2)

9 SM-8040402-TP SCREWM4X0.7L=4 (4)

10 E2156-721-000 PULLEYA (2)

11 WP-0320500-SF WASHER3.2X7X0.5 (8)

12 SL-6041692-TN SCREWM4L=16 (8)

13 E2146-721-000 TIMINGBELT (1)

14 SB-1080002-00 SIDEBEARING (4)

15 400-15578 SCREWSHAFT(L) (2)

16

#01

400-15577 SCREWSHAFT (2)

17 SM-8040602-TP SCREWM4X0.7L=6 (4)

18

#02

400-54803 DRIVESHAFTASML(6) 1

19

#01

401-10194 DRIVESHAFTASMM 1

20 400-46033 DRIVEBELTS(6) (2)

21 400-00849 DRIVEPULLEYFASM (3)

22 SL-6031642-TN SCREW (3)

23 400-00850 DRIVEPULLEYF (1)

24 SM-8040602-TP SCREWM4X0.7L=6 (2)

25 400-00851 MOTORPULLEYB (1)

26 SB-1080002-00 SIDEBEARING (6)

27 SM-8040402-TP SCREWM4X0.7L=4 (6)

28 E2141-721-000 STOPPERCOLLAR (3)

29 400-01005 DRIVEBELTC(L) (1)

30 WP-0320500-SF WASHER3.2X7X0.5 (12)

31 WP-0330516-SC WASHER3.3X8X0.5 (6)

32 SM-6030602-TN SCREWM3X6 (6)

33

#02

E2152-721-000 DRIVESHAFTC (3)

34

#01

E2004-725-000 DRIVESHAFTC (3)

35

#02

400-01068 CONVEYORBELTASM(L) 1

36

#01

401-14259 CONVEYORBELTASMM 1

37

#02

E2046-725-000 PWBINNER (12)

38 SL-4031091-SC SCREWM3L=10 (8)

39

#02

SL-6031092-TN SCREW (16)

40

#02

400-00863 CONVEYORBELTS (4)

41

#01

401-13953 CONVEYORBELTSM (4)

42

#02

400-01070 CONVEYORBELTC(L) (2)

43

#01

401-13952 CONVEYORBELTCM (2)
