KE-3010A_KE-3020VA_KE-3020VRA-Rev15 - 第78页

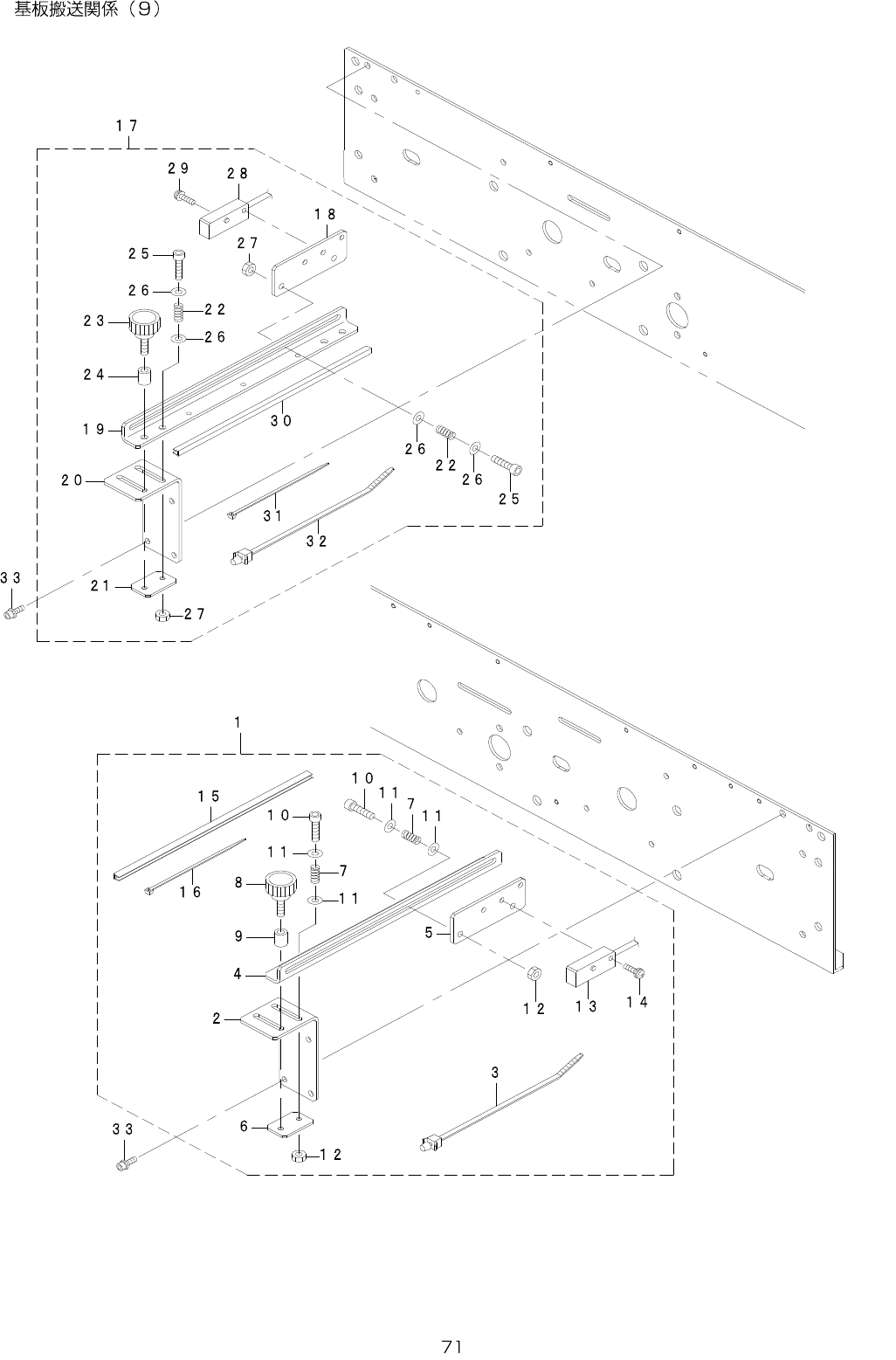

- - 36. PWBCONVEY ORCOMPONENTS (9)

- -

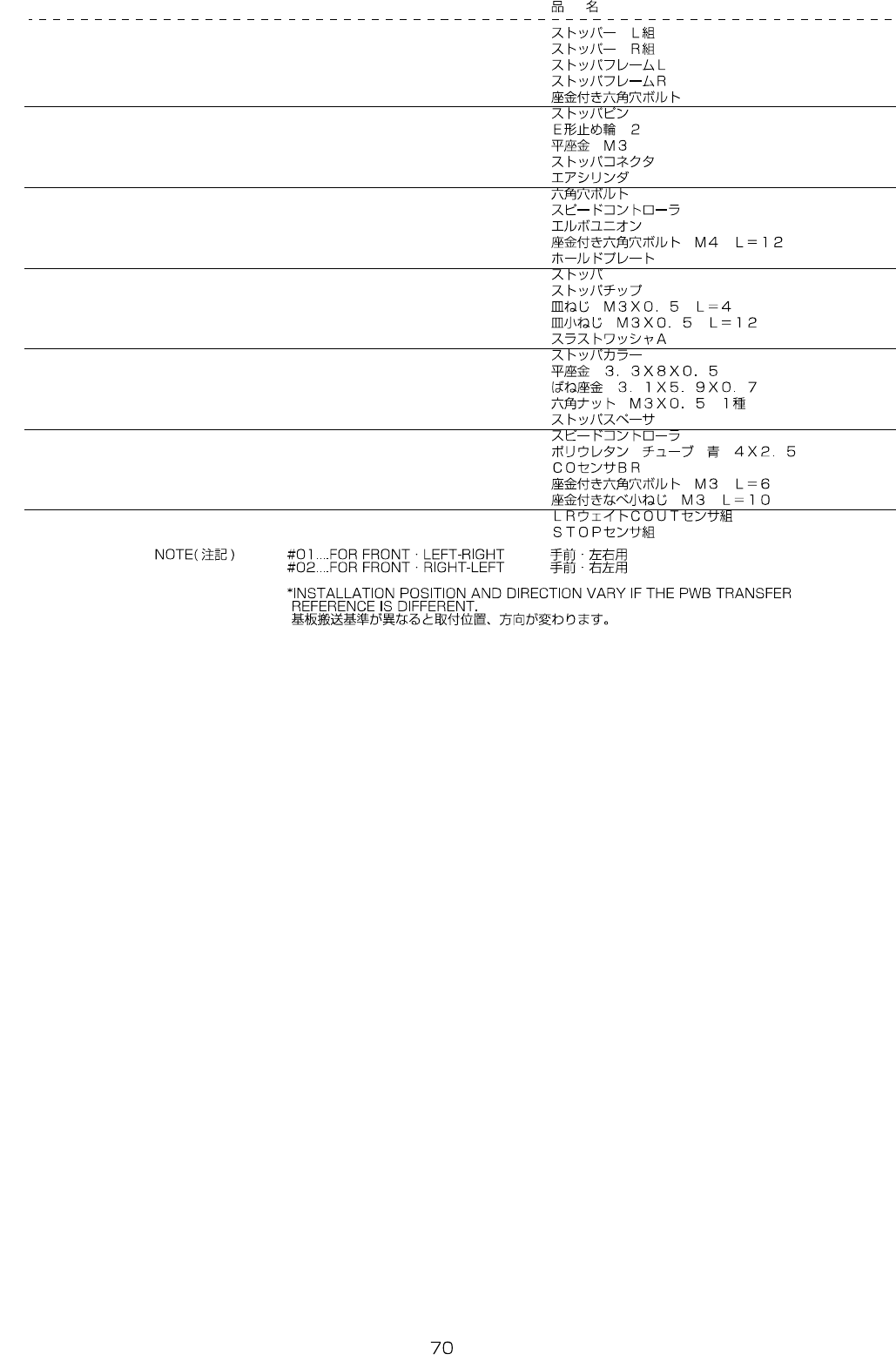

REF.NO NOTE PARTNO DESCRIPTION Qty

1

#02

401-46966 STOPPER_L_ASM 1

2

#01

401-46965 STOPPER_R_ASM 1

3

#02

401-47004 STOPPER_FRAME_L (1)

4

#01

401-47003 STOPPER_FRAME_R (1)

5 SL-6030842-TN SCREWM3L=8 (1)

6 400-00910 STOPPERPIN (1)

7 RE-0200000-K0 E-RING2 (1)

8 WP-0320501-SC WASHERM3 (1)

9 400-00911 STOPERCONNECT (1)

10 PA-1002008-A0 AIRCYLINDER (1)

11 SM-6031402-TN SCREWM3X0.5L=8 (2)

12 PC-0105080-00 SPEEDCONTROLLER (1)

13 PJ-3040405-11 ELBOWUNION (1)

14 SL-6041292-TN SCREWM4L=12 (2)

15 E2169-721-000 HOLDPLATE (1)

16 400-00909 STOPER (1)

17 E2233-725-000 STOPPERCHIP (1)

18 SM-1030401-SE SCREWM3L=4 (1)

19 SM-1031201-SC SCREWM3X0.5L=12 (1)

20 E2039-721-000 WASHERA (2)

21 E2038-721-000 STOPPERCOLLAR (1)

22 WP-0330516-SC WASHER3.3X8X0.5 (1)

23 WS-0310002-KN SPRINGWASHERM3 (1)

24 NM-6030001-SC NUTM3X0.5TYPE1 (1)

25 400-23788 STOPERSPACER (1)

26 PC-0124010-00 SPEEDCONTROLLER (1)

27 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.5)

28 401-47001 CO_SENSOR_BR (1)

29 SL-6030692-TN SCREWM3L=6 (2)

30 SL-4031091-SC SCREWM3L=10 (4)

31 401-35828 LRWAITCOUTSENSASM (1)

32 401-10065 STOPSENSORASM (1)

- -

36.PWBCONVEYORCOMPONENTS(9)

- -

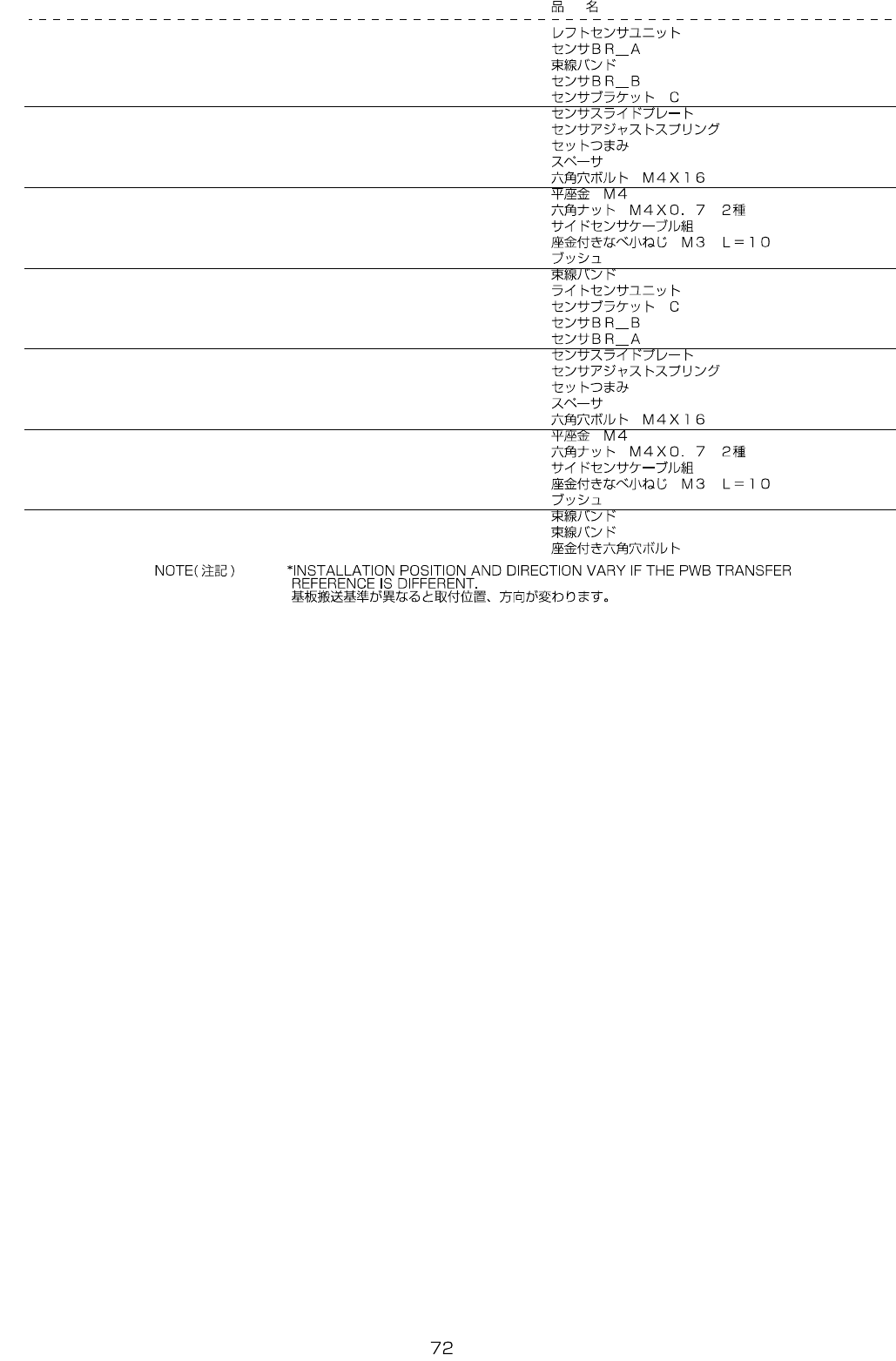

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-46961 LEFT_SENS_UNIT 1

2 401-46990 SENSOR_BR_A (1)

3 HX-0044000-00 CABLEBAND (1)

4 401-46991 SENSOR_BR_B (1)

5 400-01079 SENSORBRAKETC (1)

6 400-01076 SENSORSLIDEPLATE (1)

7 400-00912 SENSORADJUSTSPRING (3)

8 G6518-880-000 SETPICK-UP (1)

9 400-58815 SPACER (1)

10 SM-6041602-TN SCREWM4X16 (3)

11 WP-0430801-SC WASHERM4 (6)

12 NM-6040002-SE NUTM4X0.7TYPE2 (3)

13 401-29046 SIDESENSORCABLEASM (1)

14 SL-4031091-SC SCREWM3L=10 (2)

15 HX-0036700-0A BUSH (0.16)

16 EA-9500B00-00 CABLEBAND (5)

17 401-46962 RIGHT_SENS_UNIT 1

18 400-01079 SENSORBRAKETC (1)

19 401-46991 SENSOR_BR_B (1)

20 401-46990 SENSOR_BR_A (1)

21 400-01076 SENSORSLIDEPLATE (1)

22 400-00912 SENSORADJUSTSPRING (3)

23 G6518-880-000 SETPICK-UP (1)

24 400-58815 SPACER (1)

25 SM-6041602-TN SCREWM4X16 (3)

26 WP-0430801-SC WASHERM4 (6)

27 NM-6040002-SE NUTM4X0.7TYPE2 (3)

28 401-29046 SIDESENSORCABLEASM (1)

29 SL-4031091-SC SCREWM3L=10 (1)

30 HX-0036700-0A BUSH (0.16)

31 EA-9500B00-00 CABLEBAND (5)

32 HX-0044000-00 CABLEBAND (1)

33 SL-6031092-TN SCREW 4
