39.FEEDERBANKCOMPONENTS(1)
5
5
9
1 0
6
7
8
8
7
2
1 1
4
1 1
1 0
2
3
9
5
3
4
5
6
4 6
5 2
5 1
4 8
4 9
5 0
4 5
4 5
4 6
4 4
1 4
1 5
2 2
1 9
2 0
2 1
1 3
1 8
1 7
1 6
2 2
1 2
2 3 2 4
5 1
5 0
4 9
4 7
5 2
1
5 0
5 2
4 9
4 8
5 1
4 9
4 7
5 2
5 0
5 1
2 8
2 6 2 7
2 9
2 9
4 2
4 1
4 3
4 0
3 9
3 8
3 7
3 4
3 3
3 5
3 5
3 7
3 3
3 2
3 6
2 9
2 9
2 5 2 7
2 8
3 2
3 8
4 1
4 2
3 6
4 0
3 9
4 3
3 4
3 0
3 1
4 1
4 3
4 0
3 9
3 8
4 2
3 7
3 4
3 3
3 2
3 5
3 6
3 4
3 3
3 7
3 5
3 6
3 2
4 3
3 9
4 0
4 1
4 2
3 8
- -

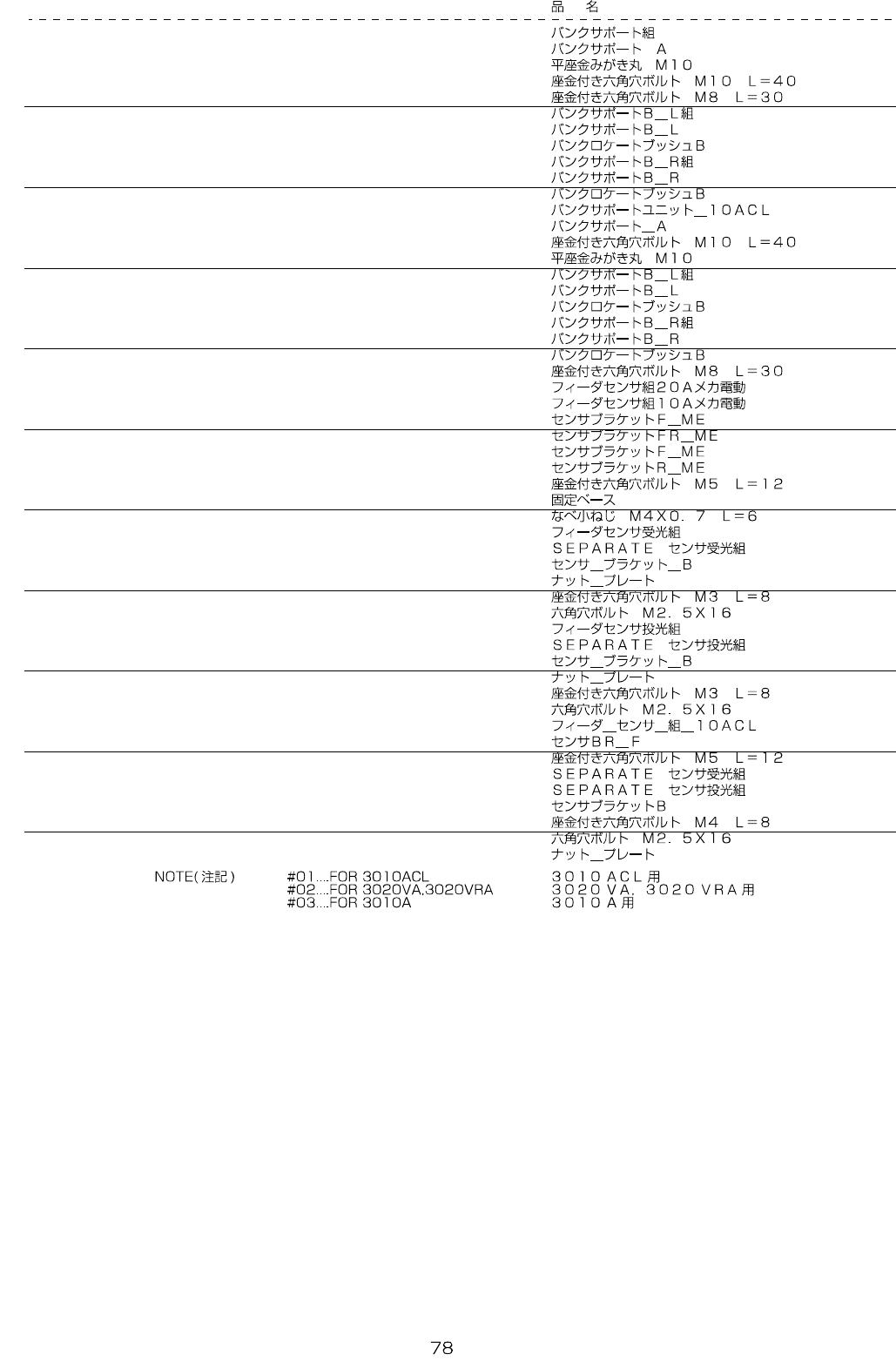

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-47411 BANK_SUPPORT_UNIT 1
2 401-09098 BANKSUPA (2)
3 WP-1052001-SC WASHER10 (8)
4 SL-6104042-TN SCREWM10L=40 (8)
5 SL-6083092-TN SCREWM8L=30 (16)
6 401-47412 BANK_SUP_B_L_ASM (2)
7 401-47413 BANK_SUP_B_L (1)
8 E2623-721-000 BANKLOCATEBUSHB (1)
9 401-47415 BANK_SUP_B_R_ASM (2)
10 401-47416 BANK_SUP_B_R (1)
11 E2623-721-000 BANKLOCATEBUSHB (1)
12
#01
401-59463 BANK_SUP_UNIT_10ACL 1
13 401-09098 BANKSUPA (1)
14 SL-6104042-TN SCREWM10L=40 (4)
15 WP-1052001-SC WASHER10 (4)
16 401-47412 BANK_SUP_B_L_ASM (1)
17 401-47413 BANK_SUP_B_L (1)
18 E2623-721-000 BANKLOCATEBUSHB (1)
19 401-47415 BANK_SUP_B_R_ASM (1)
20 401-47416 BANK_SUP_B_R (1)
21 E2623-721-000 BANKLOCATEBUSHB (1)
22 SL-6083092-TN SCREWM8L=30 (8)
23
#02
401-60137 FEEDER_SENS_ASM_20A_ME 1
24
#03
401-60136 FEEDER_SENS_ASM_10A_ME 1
25
#02
401-60011 SENSOR_BR_F_ME (1)
26
#02
401-60013 SENSOR_BR_FR_ME (1)
27
#03
401-60011 SENSOR_BR_F_ME (2)
28 401-60012 SENSOR_BR_R_ME (2)
29 SL-6051292-TN SCREWM5L=12 (8)
30
#02
HX-0029400-00 FIXEDBASE (2)
31
#02
SM-4040601-SC SCREWM4X0.7L=6 (2)
32 401-60006 FEEDERSENSORRECEIVERASM (4)
33 401-29057 SEPARATESENSORRECEIVERASM (1)
34 400-93991 S_BR_B (1)
35 400-93993 NUT_PLATE (1)
36 SL-6030892-TN SCREWM3L=8 (2)
37 SM-6851602-TN SCREWM2.5X16 (2)
38 401-60007 FEEDERSENSOREMISSIONASM (4)
39 401-29058 SEPARATESENSOREMISSIONASM (1)
40 400-93991 S_BR_B (1)
41 400-93993 NUT_PLATE (1)
42 SL-6030892-TN SCREWM3L=8 (2)
43 SM-6851602-TN SCREWM2.5X16 (2)
44
#01
401-59464 FEEDER_SENS_ASM_10ACL 1
45 401-47419 SENSOR_BR_F (2)
46 SL-6051292-TN SCREWM5L=12 (4)
47 401-29057 SEPARATESENSORRECEIVERASM (2)
48 401-29058 SEPARATESENSOREMISSIONASM (2)
49 401-28046 SENSOR_BRACKET_B (4)
50 SL-6040892-TN SCREWM4L=8 (8)
51 SM-6851602-TN SCREWM2.5X16 (8)
52 400-93993 NUT_PLATE (4)
- -
40.FEEDERBANKCOMPONENTS(2)(FOR3010A,3020VA,3020VRA)
