- - 42. ACCESSORIE SPARTCOM PONENTS 1 4 1 7 6 8 3 2 4 5 3 1 2 1 3 3 2 0 1 0 1 2 8 1 5 3 2 3 0 1 1 2 7 2 5 2 4 1 9 1 2 1 3 2 9 9 2 3 2 2 2 6 7 1 8 1 6

- -

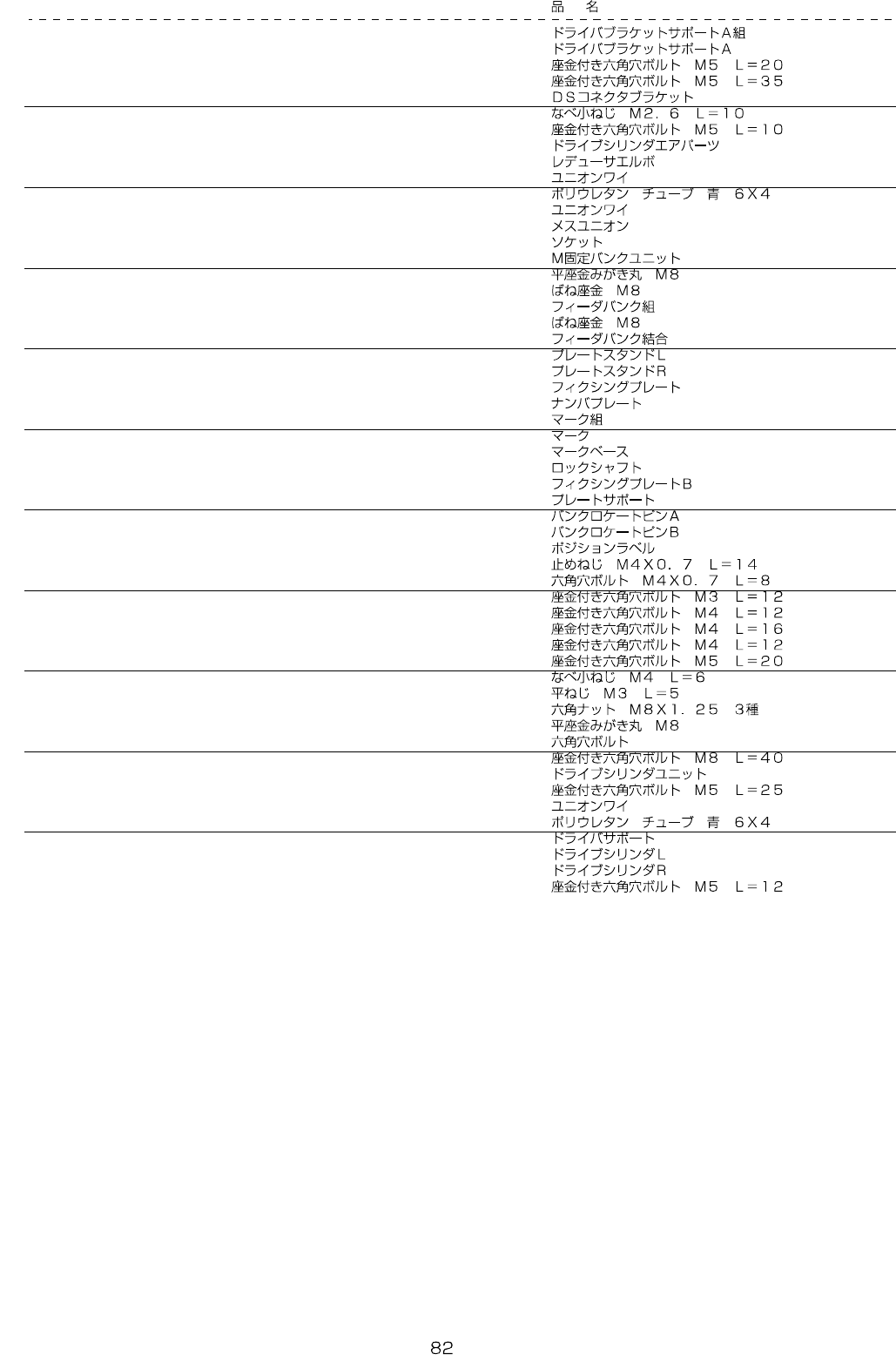

REF.NO NOTE PARTNO DESCRIPTION Qty

1 E2634-721-0A0 DRIVERBRACKETSUPPORTAASM. 1

2 E2634-721-000 DRIVERBRACKETSUPPORTA (2)

3 SL-6052092-TN SCREWM5L=20 (4)

4 SL-6053592-TN SCREWM5L=35 (4)

5 400-26804 DSCONNECTORBRACKET 1

6 SM-4861001-SC SCREWM2.6L=10 4

7 SL-6051092-TN SCREWM5L=10 2

8 400-93832 DCAIRPARTS 2

9 PJ-3040600-01 REDUCERELBOW (1)

10 PJ-3080600-03 UNIONY (1)

11 BT-0600400-EC URETHANETUBEBLUE6X4 (4)

12 PJ-3080600-03 UNIONY (2)

13 PJ-3010651-06 FEMALEUNION (1)

14 E2904-700-000 SOCKET (1)

15 401-14142 MFIXEDBANKUNIT 1

16 WP-0841601-SC WASHERM8 (2)

17 WS-0820002-KN SPRINGWASHERM8 (2)

18 E2501-729-AA0 FEEDERBANKASM (1)

19 WS-0820002-KN SPRINGWASHERM8 (2)

20 E2501-729-0B0 FEEDERBANK(30)COMPL. (1)

21 E2502-729-000 PLATESTANDL (1)

22 E2503-729-000 PLATESTANDR (1)

23 E2515-729-000 FIXINGPLATE (1)

24 E2516-729-000 NUMBERPLATE (1)

25 E2505-729-0A0 MARKASM. (2)

26 E2601-725-000 MARK (1)

27 E2505-729-000 MARKBASE (1)

28 E2504-729-000 LOCKSHAFT (1)

29 E2513-729-000 FIXINGPLATEB (4)

30 E2608-721-000 PLATESUPPORT (4)

31 E2609-721-000 BANKLOCATEPINA (1)

32 E2610-721-000 BANKLOCATEPINB (1)

33 400-98252 POSITIONLABEL (1)

34 SM-8041402-TP SCREWM4X0.7L=14 (4)

35 SM-6040802-TN SCREWM4X0.7L=8 (17)

36 SL-6031292-TN SCREWM3L=12 (12)

37 SL-6041292-TN SCREWM4L=12 (5)

38 SL-6041692-TN SCREWM4L=16 (8)

39 SL-6041292-TN SCREWM4L=12 (4)

40 SL-6052092-TN SCREWM5L=20 (4)

41 SM-4040655-SN SCREWM4X0.7L=6 (8)

42 SM-6030552-KS SCREW (9)

43 NM-6080003-SC NUTM8X1.25TYPE3 (2)

44 WP-0841601-SC WASHERM8 (2)

45 SM-6085002-TN SCREW (2)

46 SL-6084092-TN SCREWM8L=40 (2)

47 400-93831 DRIVECYLINDERUNIT 2

48 SL-6052592-TN SCREWM5L=25 (6)

49 PJ-3080600-03 UNIONY (1)

50 BT-0600400-EC URETHANETUBEBLUE6X4 (0.8)

51 400-93843 DRIVERSUPPORT (1)

52 400-00575 DRIVECYLINDERL (1)

53 400-00576 DRIVECYLINDERR (1)

54 SL-6051292-TN SCREWM5L=12 (2)

- -

42.ACCESSORIESPARTCOMPONENTS

1 4

1 7

3 1

2 1

3 3

2 0

1 0

2 8

1 5

3 2

3 0

1 1

2 7

2 5

2 4

1 9

1 2

1 3

2 9

2 3

2 2

2 6

1 8

1 6

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-72349 HANDKNOBASM 1

2 400-72363 HANDKNOB (1)

3 400-72364 HANDKNOBARM (1)

4 NM-6050001-SC NUTM5X0.8TYPE1 (1)

5 WS-0510002-KN SPRINGWASHERM5 (1)

6 400-34506 BACKUPPINASSEMBLY 12

7 SL-6041092-TN SCREWM4L=10 2

8 400-94361 NSLGREASE 1

#01

E5190-729-0A0 CALPIECE 1

10 SL-6030892-TN SCREWM3L=8 7

11 MDF-RX1001L0-9 DEFRIXOILNO1 1

12 J1067-000-000 OILER 1

13 400-32449 6459GREASEN 1

14 SL-3061232-TN SCREWM6L=12 8

15 400-46644 ZMRUBBER 1

16 401-46952 X_FIX_BR 1

17 401-06051 Y_FIX_BR_V2 1

18 E2424-725-000 STOPPERRUBBERR 2

19 J1080-000-000 BOLLSCREWDRIVER 1

20 288-46400 BOLT 4

21 288-46509 WASHER 4

22 400-45985 CHIPBOX 1

23 400-45986 CHIPBOXCUSHION 1

24 PJ-0700000-01 SOCKET 1

25 161-21907 HOSEBAND 1

26 SM-6083002-TN SCREWM8L=30 12

27 NM-6080002-SC NUTM8X1.25TYPE2 12

28 400-46643 CG2GREASE 1

29 EA-9500B02-00 CABLEBAND150 10

#01

400-46529 ICZMSTOPPER 1

31 400-46528 ZMSTOPPER 6

32 HF-0110025-S0 SLO-BLOFUSE 3

33 288-46608 SPRINGWASHER 4
