5 Maintenance Parts FEB./2003 Multi-Camera 1 2 3 56 8 7 4 No . Part No. Part Name Q'ty Remarks Rank 1 KGA-M73B0-37X CAM. FOV35-H265-F 1 Multi Camera B 2 KGA-M75B0-11X LIGHT NON-1 1 M ulti Camera Light B 3 KV7-M7510-…
4
Maintenance Parts
FEB./2003
Vision Attachment
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 KGA-M7210-01X CCD CAMERA 1 B
2 KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1 B
Nozzle Selection
Type71A/81A Type82A Type73A/83A Type76A/86A Type79A/89AType74A/84A
1 2 3 6 74
5
No. Part No. Part Name Q'ty Remarks Rank
1 KV8-M7710-A1X NOZZLE 71A/81A ASSY 1 Type 71A/81A A
2 LC2-M7720-A0X NOZZLE 82A ASSY 1 Type 82A A
3 KV8-M7730-00X NOZZLE 73A/83A 1 Type 73A/83A A
4 KV8-M7740-A0X NOZZLE 74A/84A ASSY 1 Type 74A/84A A
5 90990-17J013 O-RING 1 P4(Type 74/84A) A
6 KV8-M7760-00X NOZZLE 76A/86A 1 Type 86A(Melf) A
7 KV8-M7790-A0X NOZZLE 79A/89A ASSY 1 Type 89A(Circle) A
5
Maintenance Parts
FEB./2003

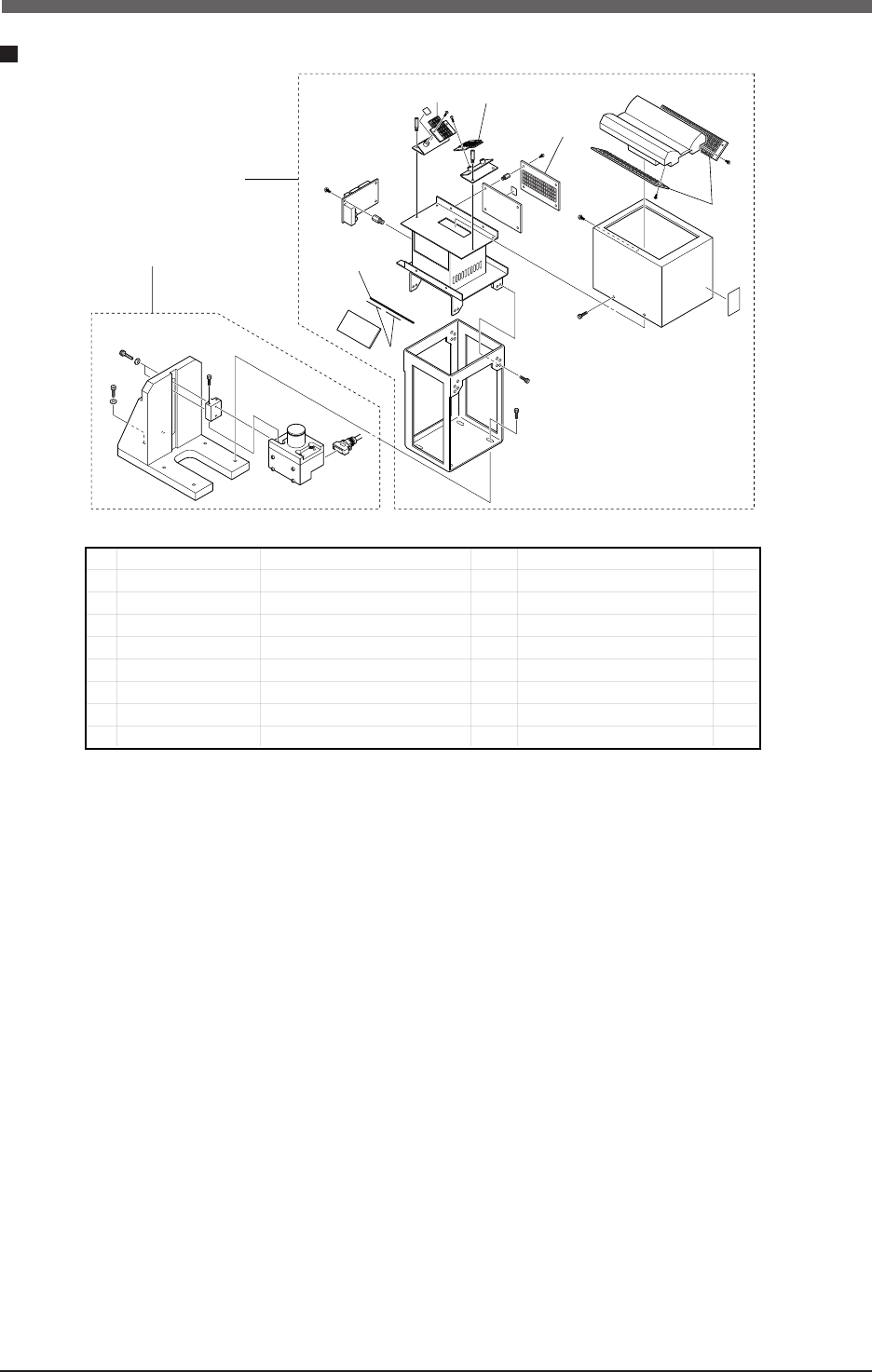

Multi-Camera
1
2
3
56
8
7
4
No. Part No. Part Name Q'ty Remarks Rank
1 KGA-M73B0-37X CAM. FOV35-H265-F 1 Multi Camera B
2 KGA-M75B0-11X LIGHT NON-1 1 Multi Camera Light B
3 KV7-M7510-00X HARF MIRROR 1 B
4 KV7-M7534-00X ADHESIVE TAPE 2 B
5 KV7-M7554-00X M. LIGHT MAIN ASSY 1 B
6 KV7-M7554-10X M. LIGHT MAIN ASSY 1 B
7 KV7-M7554-20X M. LIGHT MAIN ASSY 2 B
8 KV7-M7558-00X M. LIGHT COAX ASSY 1 B
6
Maintenance Parts
FEB./2003
Main Conveyor-1
4
3
5
1
8
1
2
7
4
4
4
6
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M911M-00X BELT 2 Conveyor Belt A
2 LC2-M911N-00X BELT(255-3GT-9) 1 A
3 LC2-M911P-00X BELT(B150S3M219) 1 A
4 LC2-M911R-00X BELT(B150S3M789) 2 A
5 90K61-001500 AC SERVO MOTOR 1 W1 B
6 LC2-M9121-40X VALVE 1 Spare B
7 LC2-M9131-00X MOTOR 1 1 Conv. Motor B
8 LC2-M9132-00X GEAR HEAD 1 1 Conv. Motor B
Main Conveyor-2
1
1
No. Part No. Part Name Q'ty Remarks Rank
1 KU0-M655F-20X SENSOR 2 Ent. & Exit Spare B
