User Manual SIPLACE S-25 HM / HS-50 2 PCB Camera Multicolor (Option)

Software Version SC.502.xx 11/00 Issue 2.4 LCU: Configuration PCB Camera Multicolor

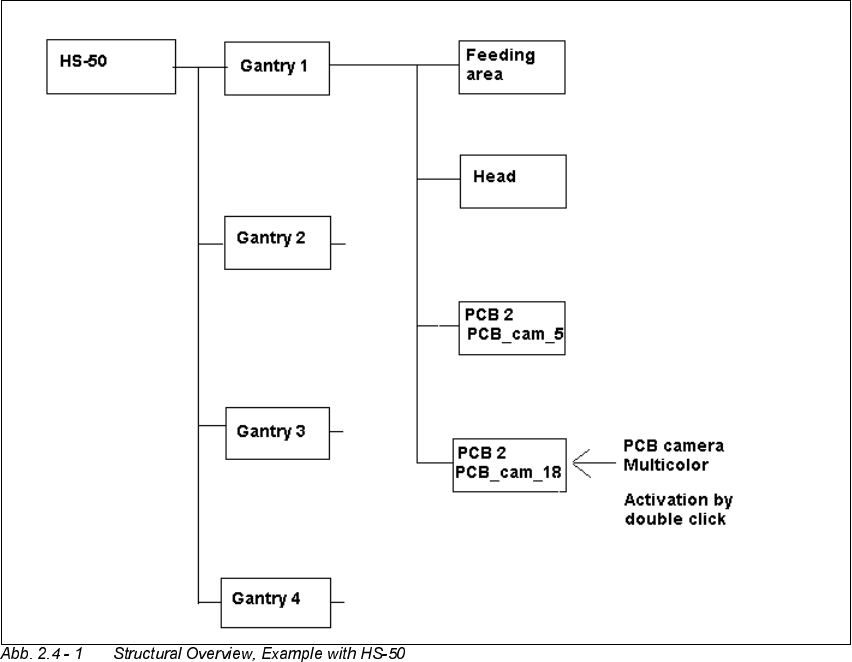

Å The field "PCB camera Multicolor" is deactivated. Activate the optional PCB camera Multicolor

with a double click on the "LP PC_cam _18", as illustrated above.

Å Do this for all 4 / 2 gantries (HS-50 / S-25 HM).

Å In the menu bar at top, in the Station Editor, select "File" -> "Save" - END".

Å Then select: "File" ->

'DWDPDQDJHU

Å Double click on the ICONs for "Master data".

Å In the window that opens, double click on "Stations".

Å Click once on the "Double click" field that opens and click once on "Translator" to select it and

continue with a double click to select the pertinent station at which the PCB camera Multicolor

is used / was retrofitted.

Å In the "Data manager" window select the field "OK".

All of the windows are closed.

This concludes the work on the line computer for the configuration of the PCB camera Multi-

color. If you have not done so already, carry out the carry out the check "Focus camera / thick-

ness of substrate" as described in Section 2.4.2.

Then carry out the activation / configuration of the PCB camera Multicolor in the SITEST pro-

gram (see Section 2.5).

2 PCB Camera Multicolor (Option) User Manual SIPLACE S-25 HM / HS-50

2.4 LCU: Configuration PCB Camera Multicolor Software Version SC.502.xx 11/00 Issue

 &DPHUD)RFXVDVD)XQFWLRQRIWKH3&%6XEVWUDWH7KLFNQHVV

The focus level for the current substrate or PCB thickness can be optimized by installing or remov-

ing the distance plate (spacer) between the Multicolor PCB camera and camera holder.



The decision as to whether or not to work with the distance plate can be made during the course

of the retrofitting on the basis of the table (see Section 2.3). After describing the PCB, a specifica-

tion can be accessed at the line computer as described below:



Å After describing the PCB, including entering the PCB/substrate thickness (= height) in the clu-

ster editor, conducting the produceability check and specifying the job for the relevant station

in the job editor you can check under -> Services -> Error messages.

If a change must be made involving the distance plate (spacer), a message such as the follo-

wing one is displayed:

Warning: PCB xxx.la is more than 3.400 mm thick (x.y > 3.400 mm)

For this reason, camera 18 must be mounted without the spacer.

Warning: PCB xxx.la is less than 1.500 mm thick (x.y < 1.500 mm).

For this reason, camera 18 must be mounted with the spacer.

xxx.la = name of PCB

x.y = in the cluster editor entered thickness (height) of the PCB / substrate

Camera 18 = PCB camera Multicolor

Å Carry out the activation / configuration of the PCB camera Multicolor in the SITEST program

on the Station (see Section 2.5).

User Manual SIPLACE S-25 HM / HS-50 2 PCB Camera Multicolor (Option)

Software Version SC.502.xx 11/00 Issue 2.5 SITEST: PCB Camera Multicolor (Option)

 6,7(673&%&DPHUD0XOWLFRORU2SWLRQ

The optional PCB camera Multicolor that is installed in place of the PCB camera with normal illu-

mination (subgantry camera) is activated/configured for HS-50 or S-25 HM at the station in the

SITEST program 502.01 or later. The operation can be performed before or after the configuration

in the station configurator of the UNIX line computer.



 &RQILJXUDWLRQ

The Requirement for the configuration is that the 4 PCB cameras Multicolor are retrofitted on the

HS-50 or the both PCB cameras Multicolor are retrofitted on the S-25 HM and the safety hoods

and safety doors are closed.

All component changeover tables must be moved into the machined and docked properly.



Å Boot the machine and change over into the SITEST program.

Å Select "Settings" -> "Machine configuration".

Å On the HS-50 or S-25 HM select: "Gantry 1" -> "PCB camera" -> "Edit" (button).

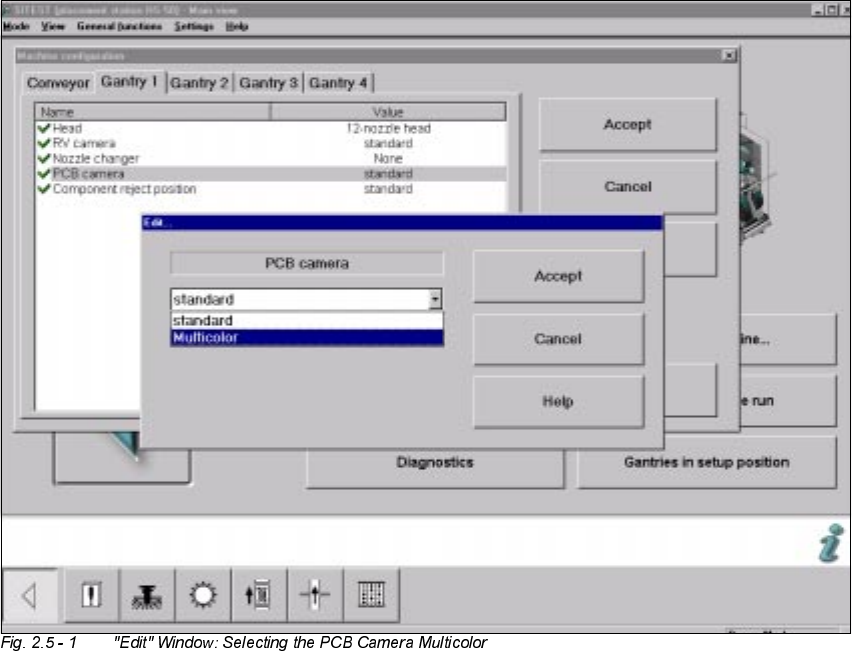

Å The "Edit" window is displayed (e.g., on the HS-50):
