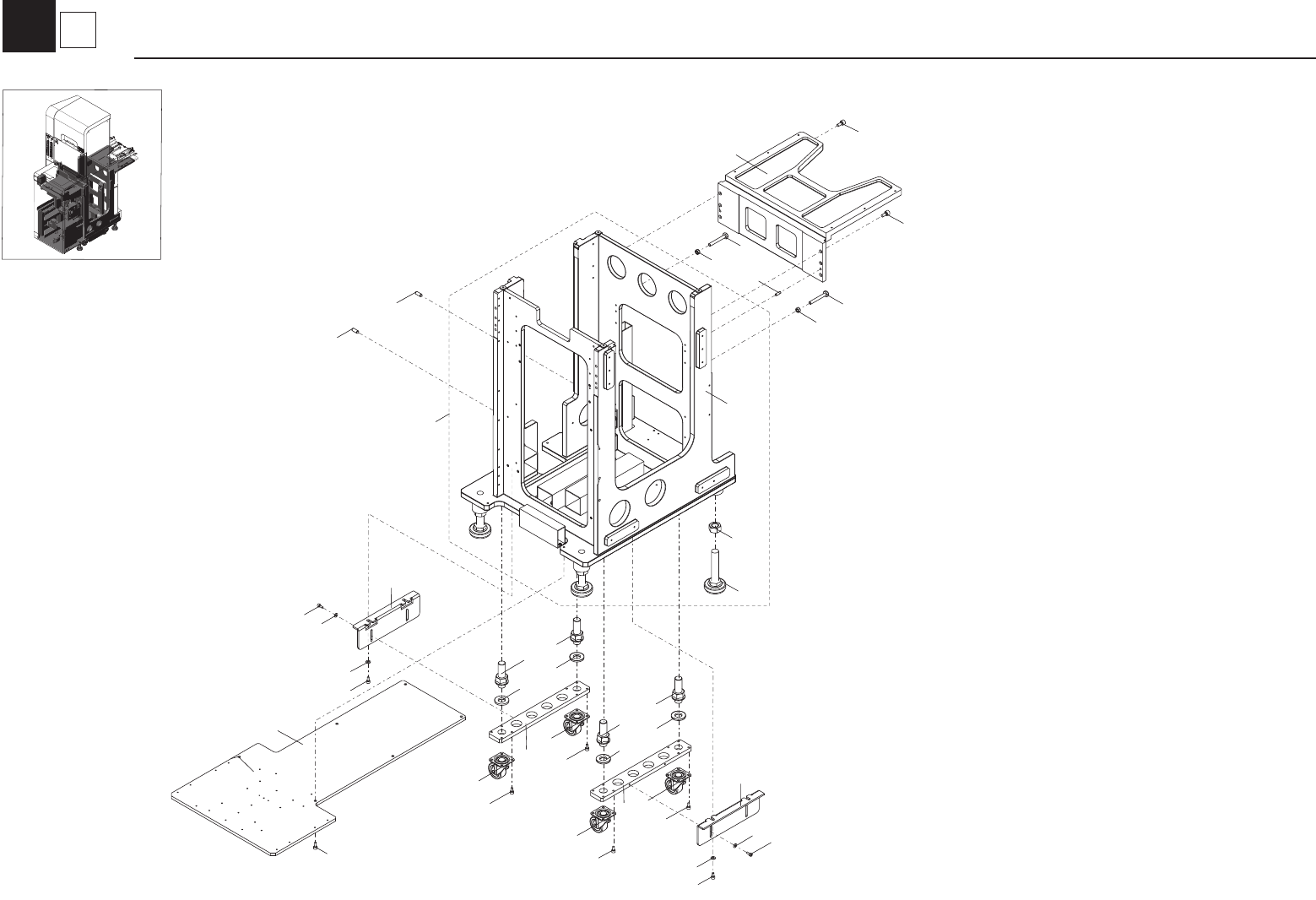

KMH-1806 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KMH-1806
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KJD-M1123-10 CASTER 4 /
39
2 KJD-M1129-00 BOLT LEVELING 4 /
40
3 KKU-M1103-00 FOOT,LEVELING 4 /
Í
41
4 KMA-M1108-01 PLATE 6 2 /
Í
42
5 KMA-M1109-01 BRACKET 2 2 /
Í
43
6 KMA-M11B0-01 BASE,TABLE 1 /
Í
44
7 KMH-M1101-00 BASE 1 /
Í
45
8 KMH-M1101-A0 BASE FRAME ASSY. 1 /
Í
46
9 KMH-M1102-00 PLATE.BOTTOM 1 /
Í
47
10 90189-02J206 NUT, HEXAGON 4 48
11 90990-28J142 WASHER,PLAIN 4 49
12 90990-33J033 BOLT, STOPPER 2 50
13 91312-05012 BOLT HEX,SOCKET HEAD 4 51
14 91312-06012 BOLT HEX,SOCKET HEAD 20 52
15 91312-06014 BOLT HEX,SOCKET HEAD 6 53
16 91312-08016 BOLT HEX,SOCKET HEAD 6 54
17 92902-05200 WASHER,PLAIN 4 55
18 92902-06200 WASHER,PLAIN 4 56
19 95302-08600 NUT HEXAGON 2 57
20 99480-06018 PIN,PARALLEL 1 58
21 99480-08020 PIN,PARALLEL 2 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
1
2
Base Sub
Base
