Gantry system 1 f. TX1_TX2 cpl._20211118_084439 - 第17页
Gantry system 1 f. TX1/TX2 cpl. Page 17 / 22 18.11.2021
Gantry system 1 f. TX1/TX2 cpl.
Page 16 / 22 18.11.2021

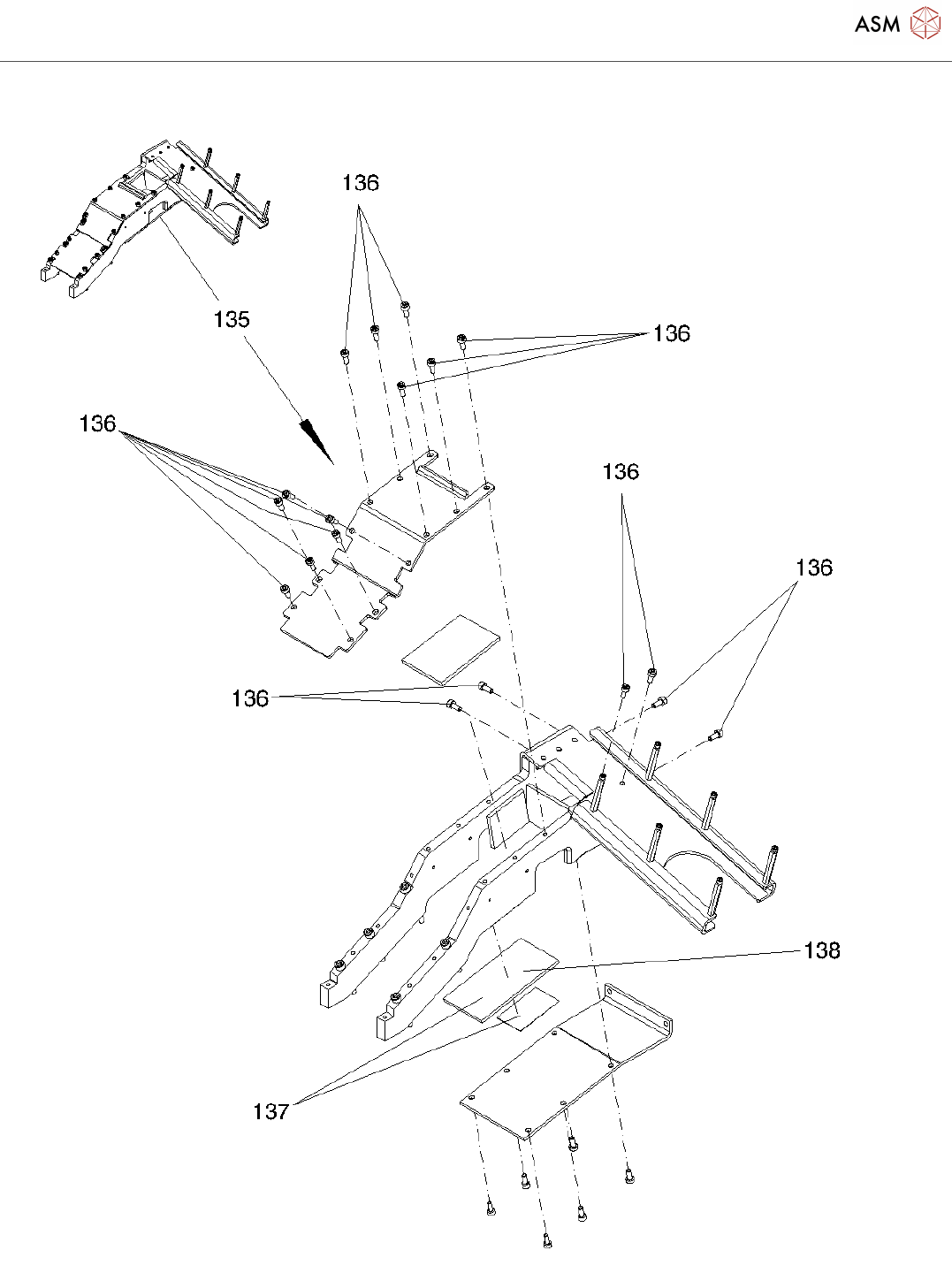

Gantry system 1 f. TX1/TX2 cpl.
Page 17 / 22 18.11.2021
Gantry system 1 f. TX1/TX2 cpl.
Page 18 / 22 18.11.2021
Pos. Item no. Description Part marking
1 03149929-01 GANTRY SYSTEM 1 F. TX1_2 CPL.
2 03149716S01 GANTRY SYSTEM 1 F. TX1_2 *
3 03113996-02 GANTRY SYSTEM 1 CPL.
4 03113208-01 ASSY X AXIS GANTRY 1 CPL.
5 03123236-02 X HOLDER GANTRY 1 TX
6 03127134-01 SHEET METAL CPL.
7 03042548-01 ISO 4762 - M 3 X 25-A2-70 STANDARD PARTS
8 03059244-01 SLAB
9 03042544-01 ISO 4762 - M 3 X 12-A2-70 STANDARD PARTS
10 03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
11 03042542-01 ISO 4762 - M 3 X 8-A2-70 STANDARD PARTS
12 03018635-01 COOLING AIR FILTER CMPL. WEAR PART
13 03054251-01 COVER
14 03054236-01 CAP
03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
16 03003717-01 FILTER ELEMENT WEAR PART
17 03062222-01 O-RING DIN 3771 - 40 X 1,5 - N -
EPDM 70
WEAR PART
18 03007733-01 ISO 4762 - M 3 X 6-8.8,ZINC
PLATED
STANDARD PARTS
19 03123333-01 GROMMET STRIP X-HOLDER TX MC
20 03022705-01 ISO 7093-1 - 3 - 200 HV - A2 STANDARD PARTS
21 03122446-01 SUPPORT X-HOLDER TX MC
22 00315647-01 ABSTANDSBOLZEN TYPE B I/A-
M3X30-ST ZN
23 03042553-01 ISO 4762 - M 4 X 12-A2-70
24 00319192-01 CABLE CLIP D=5MM H2P
POLYAMIDE
STANDARD PARTS
25 03139438-01 SPP X DRIVE F. SIPLACE TX GANTRY
1
*
26 03092340-04 LINEAR MOTOR FORCER X AXIS
00805140-01 CABLE TIE W=2.4MM L=92MM
TYB-23M
28 03042540-01 ISO 4762 - M 3 X 5-A2-70
29 00327308-01 FASTENING CLIP WN7855/B 4MM STANDARD PARTS
30 00318127-01 WIRE MANAGEMENT MOUNT, FLAT
2,5
STANDARD PARTS
