Retrofitting Instructions Splice Detection B asic Package S /F 11/2003 Edition 26 17 Fig. 17 - 4 Cable route to t he HUB 17 Fig. 17 - 5 Cable route to t he HUB 17
Retrofitting Instructions Splice Detection Basic Package S/F
11/2003 Edition
25
: Pull the cable through the base frame to the HUB using the pilot wire (Fig. 7 - 3, 7 - 4, 7 - 5).
: Fix the new U-profile to the machine base frame (Fig. 7 - 3).
. 17
Fig. 17 - 3 Fitted cable and U-profile
Retrofitting Instructions Splice Detection Basic Package S/F
11/2003 Edition
26
17

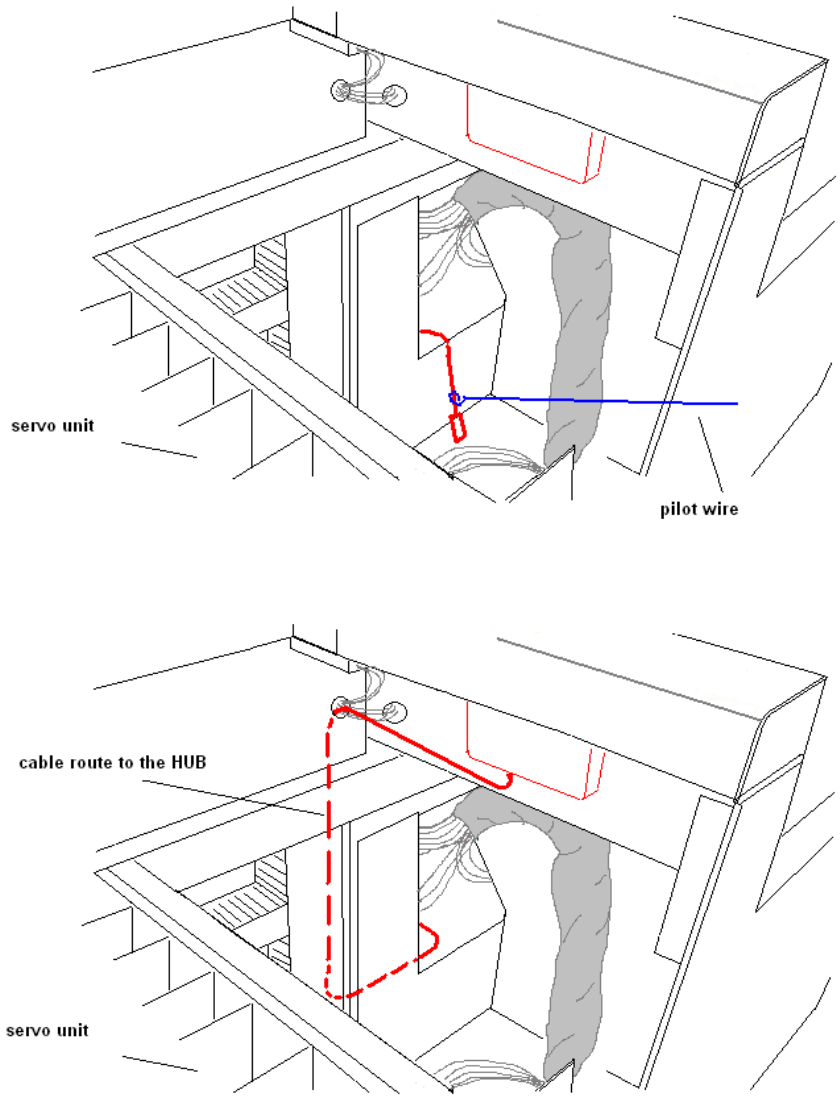

Fig. 17 - 4 Cable route to the HUB
17
Fig. 17 - 5 Cable route to the HUB
17
Retrofitting Instructions Splice Detection Basic Package S/F
11/2003 Edition
27
17.2 Connecting location 3 to the HUB
: Check once again that you have disconnected the station from the power supply.
: Remove the cover from the power supply unit.
17
First detach the grounding cable fixed to the inside of the cover. 17
17
17
: Remove the screw that secures the power supply unit, and pull the unit out of its drawer care-
fully.
: Loosen the 6 screws to remove the U-profile at location 3.
: Then fix the narrow end of the cable to the pilot wire, and pull it as far as the opening on the Y
axis motor (as for the connection for location 1).
: Replace the U-profile (panel) with the U-profile supplied (which has the additional opening for
the socket for connecting the splice detector).
: Fix the cable to the HUB using the 4x M3 screws provided.
