Retrofitting Instructions S plice Detection Basic Package S/F 11/2003 Edition 31 20 Connector pin assignment on the hub : Plug the existin g cables at the hub int o the ass ociated soc kets (Fig. 10 - 1) . 20 Fig. 20 - 1…
Retrofitting Instructions Splice Detection Basic Package S/F
11/2003 Edition
30
19 Connecting to the station computer
: Plug the serial cable into the HUB.
: Use the pilot wire to pull the serial cable to the station computer. Loosen the two screws at the
side to make more room for the plug (Fig. 9 - 1).
: Plug the serial cable supplied into the free COM port on the station computer
19
It is better to do this work with 2 persons. 19
19
19
19

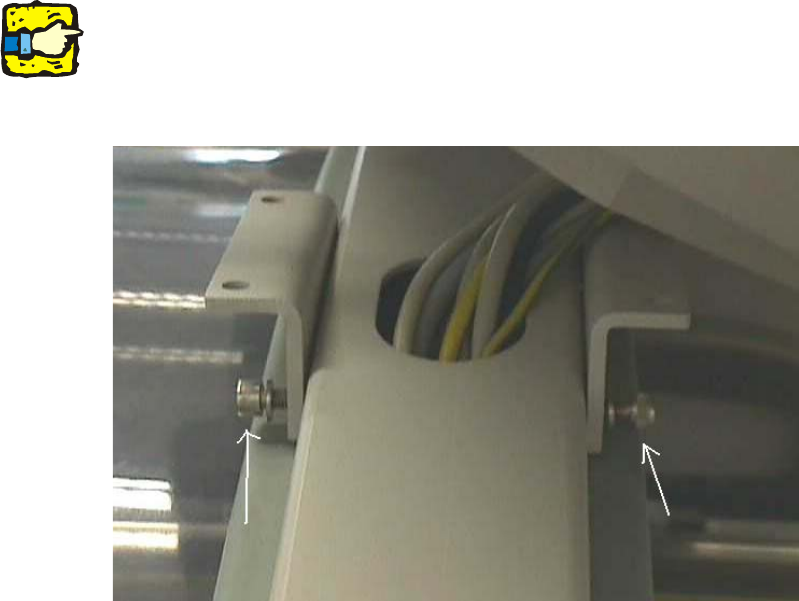

Fig. 19 - 1 Screws for detaching the station computer mount
19
19
19
19
19
19
Retrofitting Instructions Splice Detection Basic Package S/F
11/2003 Edition
31
20 Connector pin assignment on the hub
: Plug the existing cables at the hub into the associated sockets (Fig. 10 - 1).
20

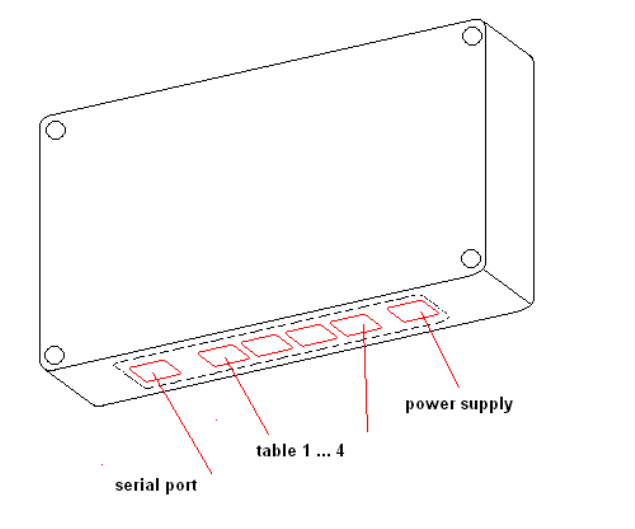

Fig. 20 - 1 Connector pin assignment on the hub
20
20
20
Retrofitting Instructions Splice Detection Basic Package S/F
11/2003 Edition
32
