2.8.3 Installation of the option lifting tables
: Unscrew the 4 screws from the existing lifting table and remove the table carefully.
: Lift the option lifting table carefully into the machine and tighten it with the 4 screws you remo-
ved before.
2.8.4 Installation of the vacuum toolings
: Put the vacuum tooling onto the lifting table and position it at the right place. There are two pins
on the lifting table to help you find the right positon.
: Tighten the tooling with one screw to the lifting table.
2
2
2
2
2
2
Vacuum tooling
2 Assembly instructions Special design Vacuum tooling SIPLACE HS-60 Special design
10/2006 Edition
46
2
2
Vacuum tooling

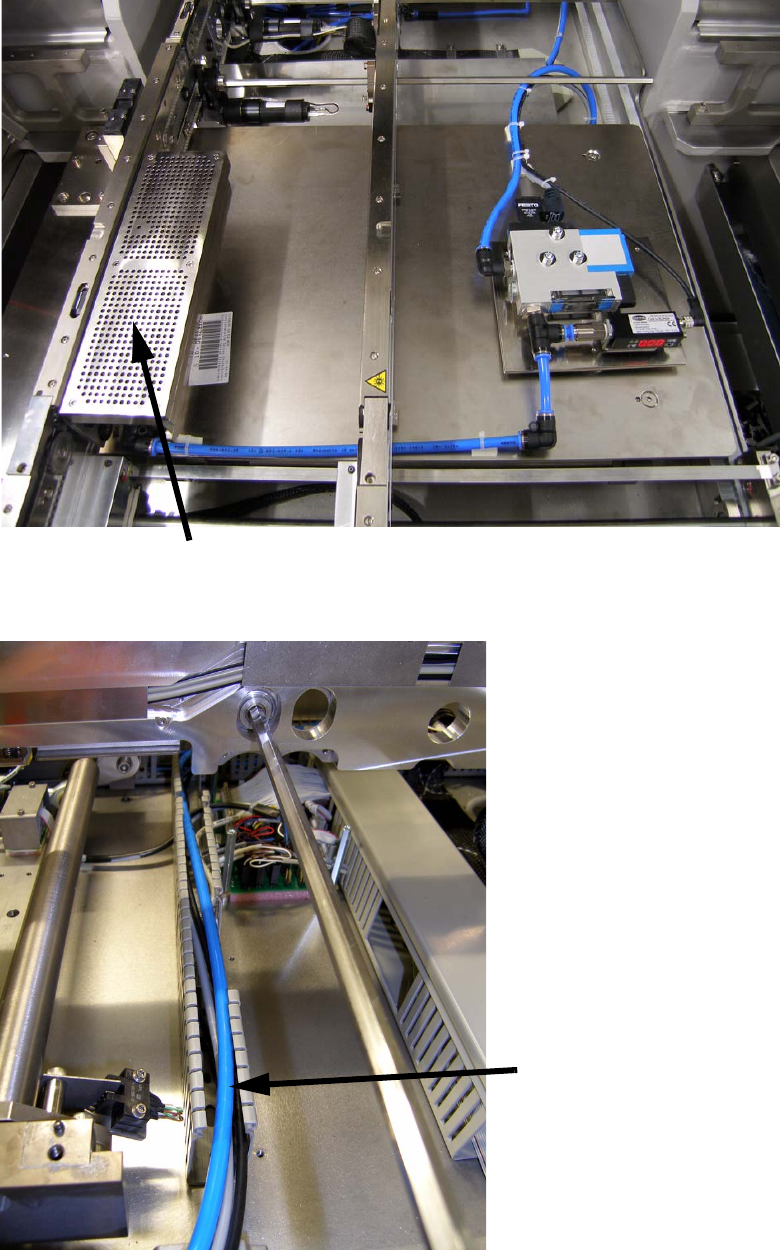

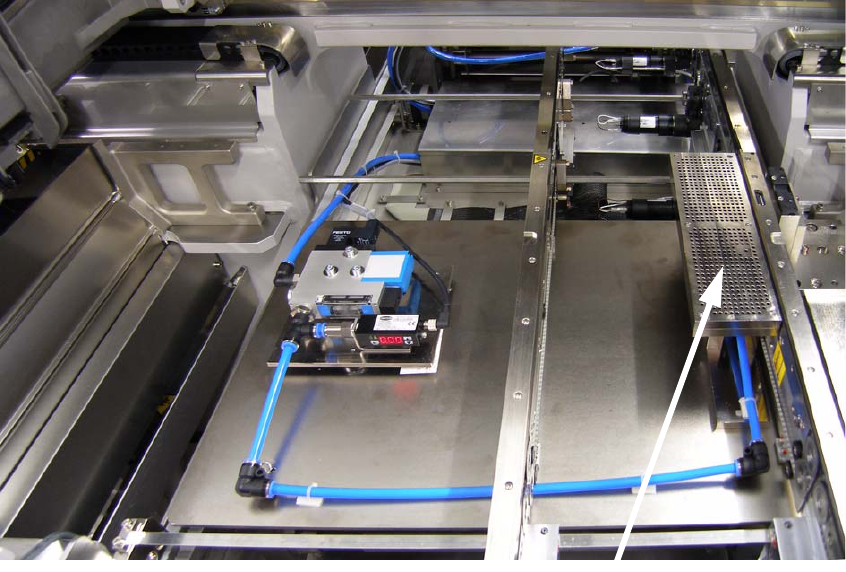

Hose- and cable layout
Special design 2 Assembly instructions Special design Vacuum tooling SIPLACE HS-60
10/2006 Edition
47
2
2

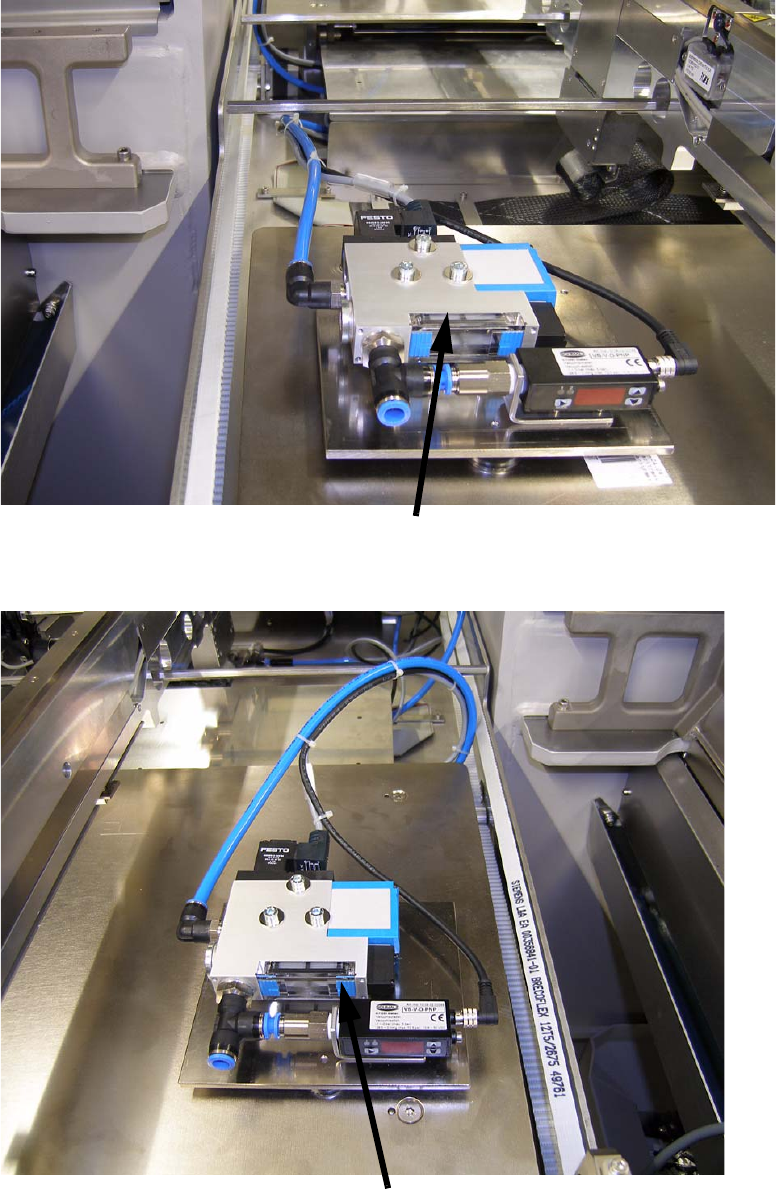

Vacuum generator PA1
Vacuum generator PA2
