4.2.3.2. Chain for Adjusting Conveyor Width On Manual Operation
Inspection
Check for contamination on the chain.
Insufficient lubricant on the chain could cause difficulties in adjusting the conveyor
width. Check the condition of the lubrication.
Figure 4-5. Chain for Adjusting Conveyor Width On Manual Operation
Solution
Repeat 2 to 3
times.
Chain
Belt

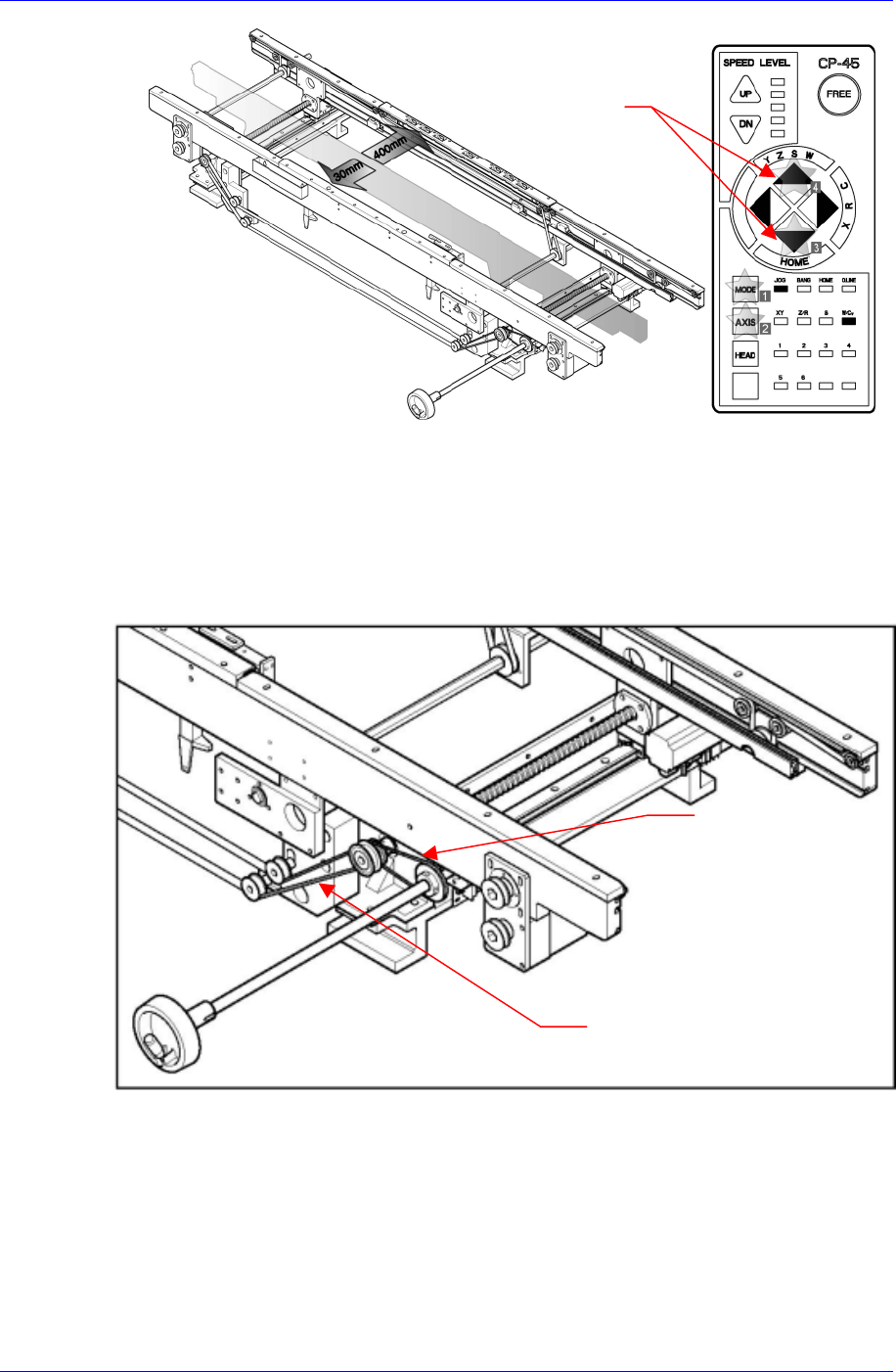

Using the teaching box, move the X-axis to the adequate position for grease injection
on the chain for manual width adjustment.
4-14
Lubricant Method
4-15
Warning

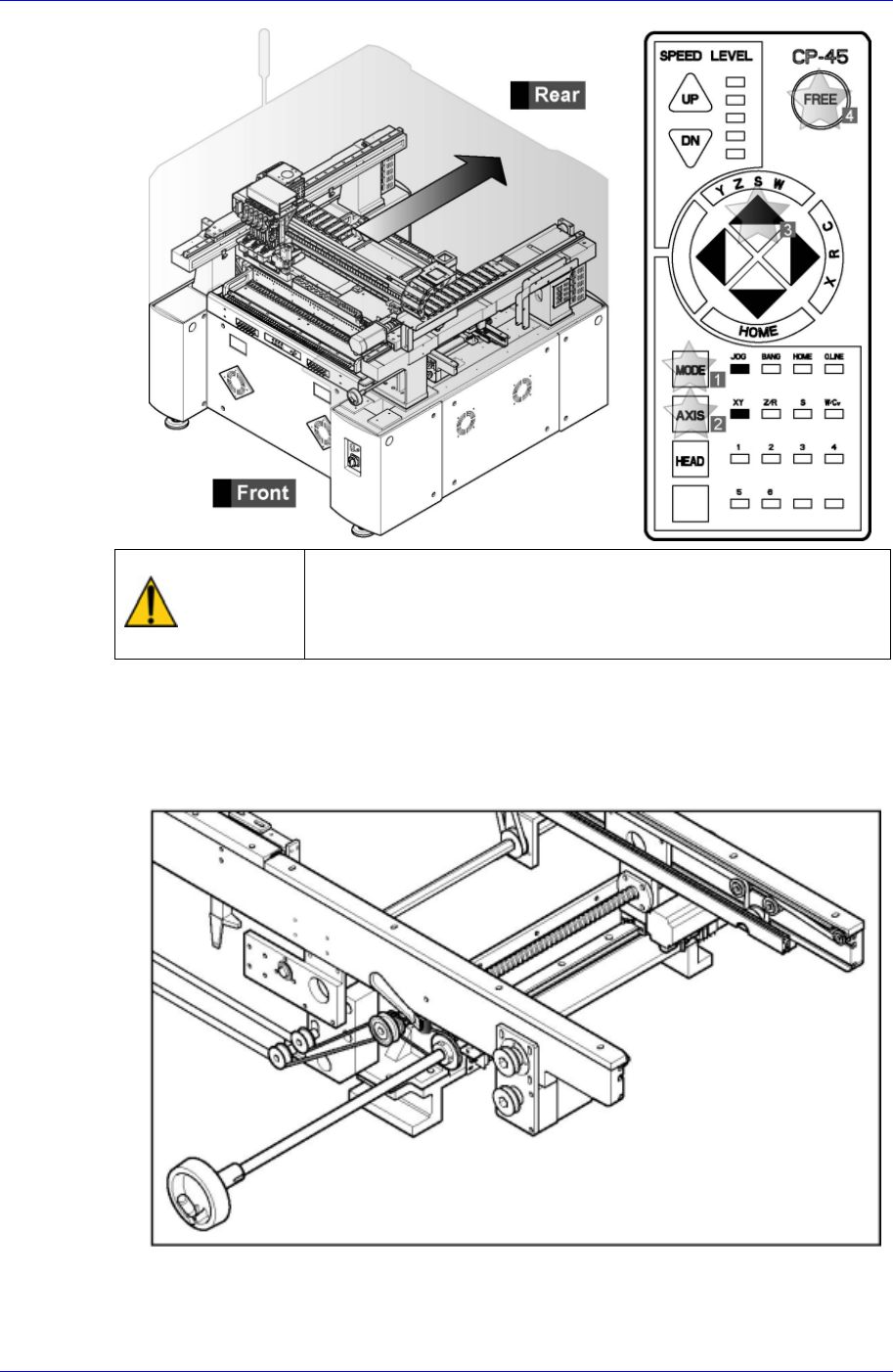

After clicking the “Motor Free” button on the teaching box,
click the “Stop” button on the front operation panel.
Conduct inspection while the motor power supply is turned
off.
Remove dust and foreign matter from the chain for adjusting conveyor Width on
manual operation using the clean cloth in the clean kit supplied by us.
Apply grease (EP2) thinly on the chain for manual width adjustment using a paint
brush.
