Inspection of the Controller
7-15
PIN NO. DEF. DESCRIPTION REMARK
15 OUT2.4 BUZZER OUT
16 OUT2.5 FFEEDER CHANGE SW. LAMP OUT
21 OUT2.6 RESET SW. LAMP OUT
22 OUT2.7 RESERVED OUTPUT PORT
1 OUT3.0 RED LAMP OUTPUT
2 OUT3.1 BLUE LAMP OUTPUT
3 OUT3.2 GREEN LAMP OUTPUT
CN7
4 OUT3.3 YELLOW LAMP OUTPUT
6PIN CONNECTOR
1/3 OUT3.4 FRONT BELT CONTROL
CN8
2/4 OUT3.5 REAR BELT CONTROL
6PIN CONNECTOR
1/3 OUT3.6 Previous stage machine I/F OUT
CN9
2/4 OUT3.7 Next stage machine I/F OUT
6PIN CONNECTOR
3 IN6.0 FRONT FEEDER Unlock SENSOR
CN19
4 IN6.1 RESERVED INPUT PORT
6PIN CONNECTOR
3 IN6.2 Previous stage machine I/F IN
CN20
4 IN6.3 Next stage machine I/F IN
6PIN CONNECTOR
3 IN7.0 RESERVED INPUT PORT
CN21
4 IN7.1 UPS IN POWER DROP INPUT
6PIN CONNECTOR
3 IN7.2 RESERVED INPUT PORT
CN22
4 IN7.3 RESERVED INPUT PORT
6PIN CONNECTOR
3 IN7.4 RESERVED INPUT PORT
CN23
4 IN7.5 RESERVED INPUT PORT
6PIN CONNECTOR
3 IN7.6 RESERVED INPUT PORT
CN24
4 IN7.7 RESERVED INPUT PORT
6PIN CONNECTOR
CN25 2 AN0 RESERVED ANALOG INPUT PORT 6PIN CONNECTOR
1 TXD SERIAL TRANSMISSION LINE
2 RXD SERIAL RECEIVE LINE
3 IN6.4 FRONT_KEYPAD_USED
4 IN6.6 FRONT_KEYPAD_EMG
5 +12V +12V for JOGBOX
CN26
6 GND GROUND
FROM FRONT JOGBOX CONNECTOR
1 TXD SERIAL TRANSMISSION LINE
2 RXD SERIAL RECEIVE LINE
3 IN6.5 REAR_KEYPAD_USED
4 IN6.7 REAR_KEYPAD_EMG
5 +12V +12V for JOGBOX
CN27
6 GND GROUND
FROM REAR JOGBOX CONNECTOR
1 TXD SERIAL TRANSMISSION LINE
2 RXD SERIAL RECEIVE LINE
CN28
3 GND GROUND
TO MVME162 BOARD
OUTPUT
PIN NO. DEF. DESCRIPTION REMARK
3 OUT4.0 READY RELAY OUTPUT
CN10
4 OUT4.1 RESERVED OUTPUT PORT
6PIN CONNECTOR
CN11
3 OUT4.2 RFEEDER CHANGE SW. LAMP OUT
6PIN CONNECTOR
Samsung Component Placer CP45NEO Series Maintenance Guide
PIN NO. DEF. DESCRIPTION REMARK
4 OUT4.3 RESERVED OUTPUT PORT
3 OUT4.4 RESERVED OUTPUT PORT
CN12
4 OUT4.5 RESERVED OUTPUT PORT
6PIN CONNECTOR
3 OUT4.6 RESERVED OUTPUT PORT
CN13
4 OUT4.7 RESERVED OUTPUT PORT
6PIN CONNECTOR
LED information for board status diagnosis
LED ON DESCRIPTION REMARK LED ON DESCRIPTION REMARK
LED1 Can transmission LED65 ANC1 Shutter Open Sensor Input 2
LED2 Error Occurrence LED66 Stop Sw. Input Input 2
LED3 Receiving Can LED67 ANC 2 Shutter Close Sensor Input 2
LED4 CPU Operation LED68 Reset Sw. Input Input 2
LED5 IO RESET LED69 ANC2 Shutter Open Sensor Input 2
LED6 Board Output Power LED70 I/O Sw. Input Input 2
LED7 Board Operation Power LED71 Dummy Input Input 2
LED40 PCB Input Sensor Input 1 LED72 Front Feeder Unlock Sensor Input 3
LED41 BUT Up Sensor Input 1 LED73 RearEmergency Input/CN-IN5 Input 3
LED42 PCB Wait Sensor Input 1 LED74
Front Feeder Alarm for
replacement Sensor
Input 3
LED43 BUT Down Sensor Input 1 LED75 Rear Door Input Input 3
LED44 Wait Stopper Up Sensor Input 1 LED76 Previous stage machine I/F In Input 3
LED45 Hole Fixer Right Sensor Input 1 LED77 RFeeder Change Sw. Input Input 3
LED46 Wait Stopper Down Sensor Input 1 LED78 Next stage machine I/F In Input 3
LED47 Hole Fixer Left Sensor Input 1 LED79 Rear Feeder Unlock Sensor Input 3
LED48 PCB Place Sensor Input 1 LED80 Front_Key_Pad_Used Input 3
LED49 Edge Pusher Forward Sensor Input 1 LED81
Rear Feeder Alarm for
replacement Sensor
Input 3
LED50 Place Stopper Up Sensor Input 1 LED82 Rear_Key_Pad_Used Input 3
LED51 Edge Pusher Backward Sensor Input 1 LED83
Main Pneumatic pressure
measurement Sensor
Input 3
LED52 Place Stopper Down Sensor Input 1 LED84 Front Key Pad Emg. Input 3
LED53 Back Pusher Sensor Input 1 LED85 Pressure Sensor Enable Input 3
LED54 Dummy Input Input 1 LED86 Rear Key Pad Emg. Input 3
LED55 Back Pusher Sensor Input 1 LED87 Dummy Input Input 3
LED56 Front Emergency Input Input 2 LED88 I/O Power Drop Input Input 4
LED57 PCB Out Sensor Input 2 LED89 USP In Power Drop Input Input 4
LED58 Front Door Input Input 2 LED90 220V Main Power Drop Input Input 4
LED59 Out Stopper Up Sensor Input 2 LED91 110V Main Power Drop Input Input 4
LED60 Feeder Change Sw. Input Input 2 LED92 220V Sub Power Drop Input Input 4
LED61 Out Stopper Down Sensor Input 2 LED93 110V Sub Power Drop Input Input 4
LED62 Ready Sw. Input Input 2 LED94 Drmmy Input Input 4
LED63 ANC1 Shutter Close Sensor Input 2 LED95 Drmmy Input Input 4
LED64 Start Sw. Input Input 2
7-16
Inspection of the Controller
7-17

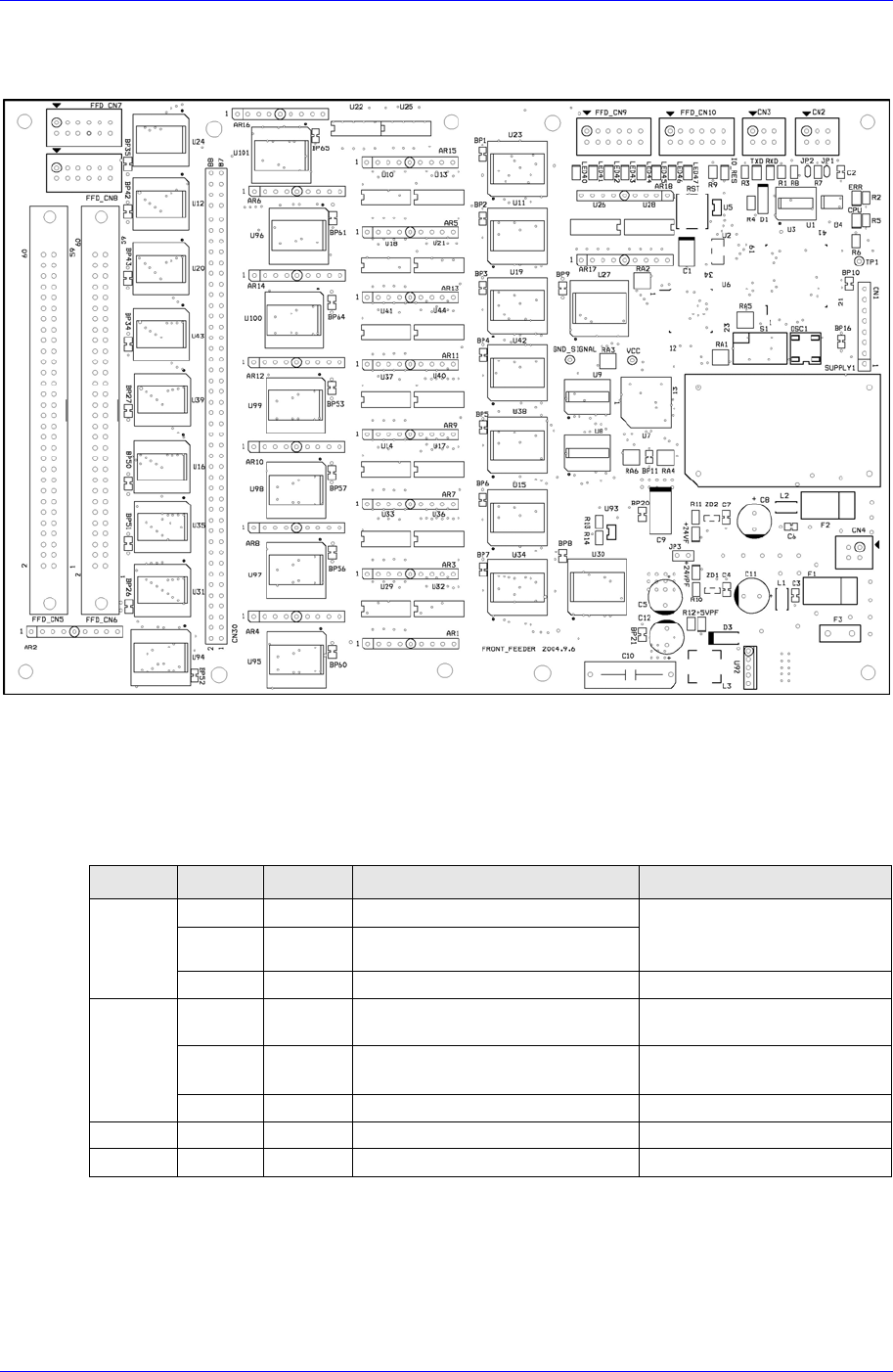

7.3.4. Feeder Control Board
Receives commands from the CAN Master Board to operate the feeder solenoid valve.
Required power supply
External power input: +24V DC
Internal power required: +5V DC / +24V DC
Description of major functions
INPUT
PIN NO. DEF. DESCRIPTION REMARK
1 CANH CAN communication signal
2 CANL
Connection with CAN
communication signal of other
nodes
CN2/CN3
3 /IO-RES RESET Signal FROM CAN MASTER
1 24VP DC+24V for OUTPUT PORT
Apply after inputting the READY
SW
2 24V DC+24V for INPUT PORT
then DC+5V for BOARD is
generated
CN4
3/4 24G DC+24V GROUND -
CN9 1~12 IN1.0~1.3 RESERVED INPUT PORT -
CN10 1~12 IN1.4~1.7 RESERVED INPUT PORT -
