Preface
xi

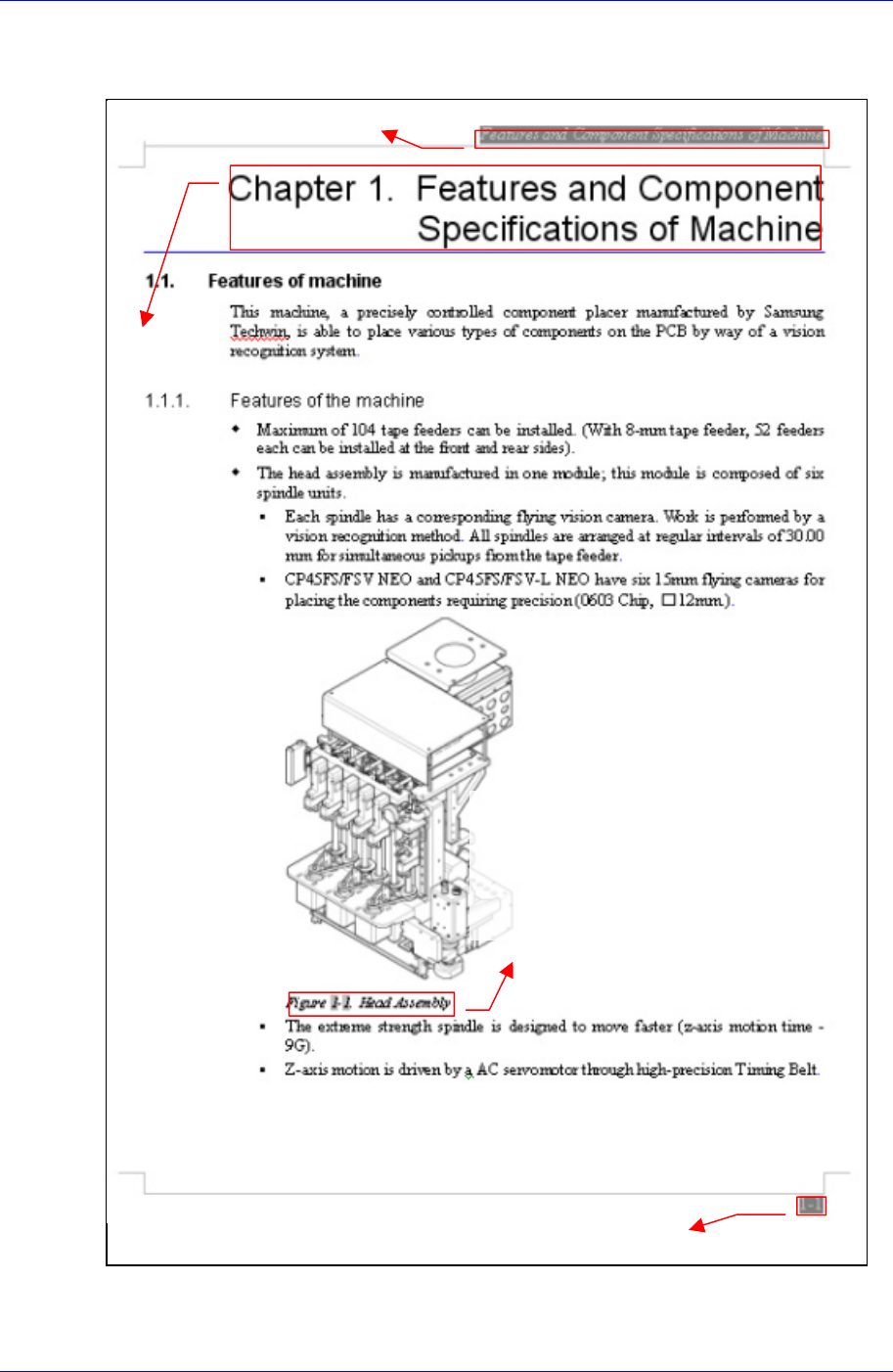

Page Layout
Chapter Title
Chapter Title / Manual Name
Figure (Chapter number)-(Serial number) (Title o
f
the figure)
Indicates that this is the first figure o
f
Chapter 1 and that the title of the figure is
Head Assembl
y
.
Chapter number – page (Indicates the first page of Chapter 1)
Samsung Component Placer CP45NEO Series Maintenance Reference
Explanation of Terminologies

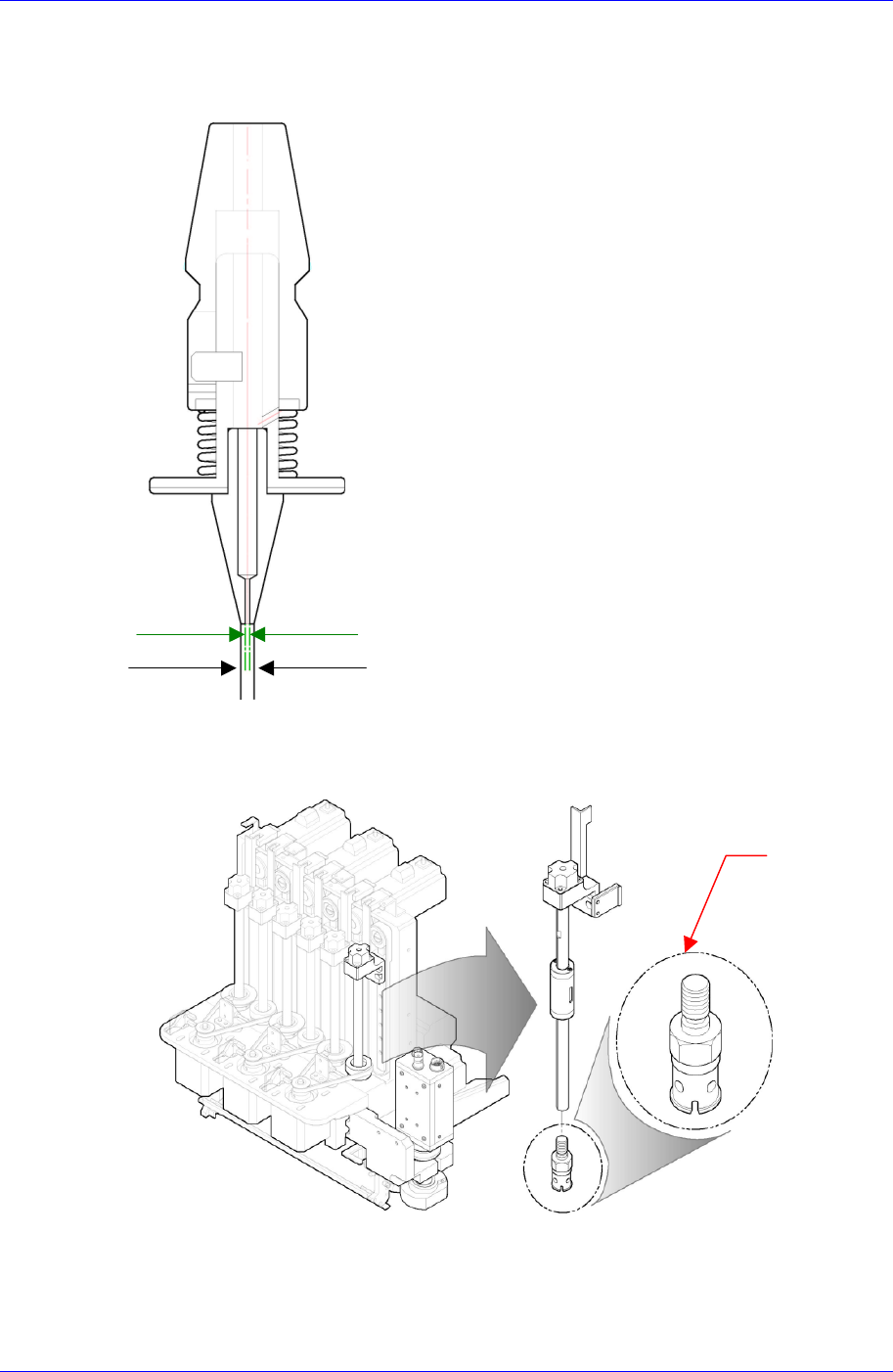

Inner Diameter of Nozzle
Inne
r
Diamete
r
Ou
t
e
r
Diamete
r
Nozzle Holder
Refers to a device connected to the spindle end, which holds a nozzle.
N
ozzle
Holde
r

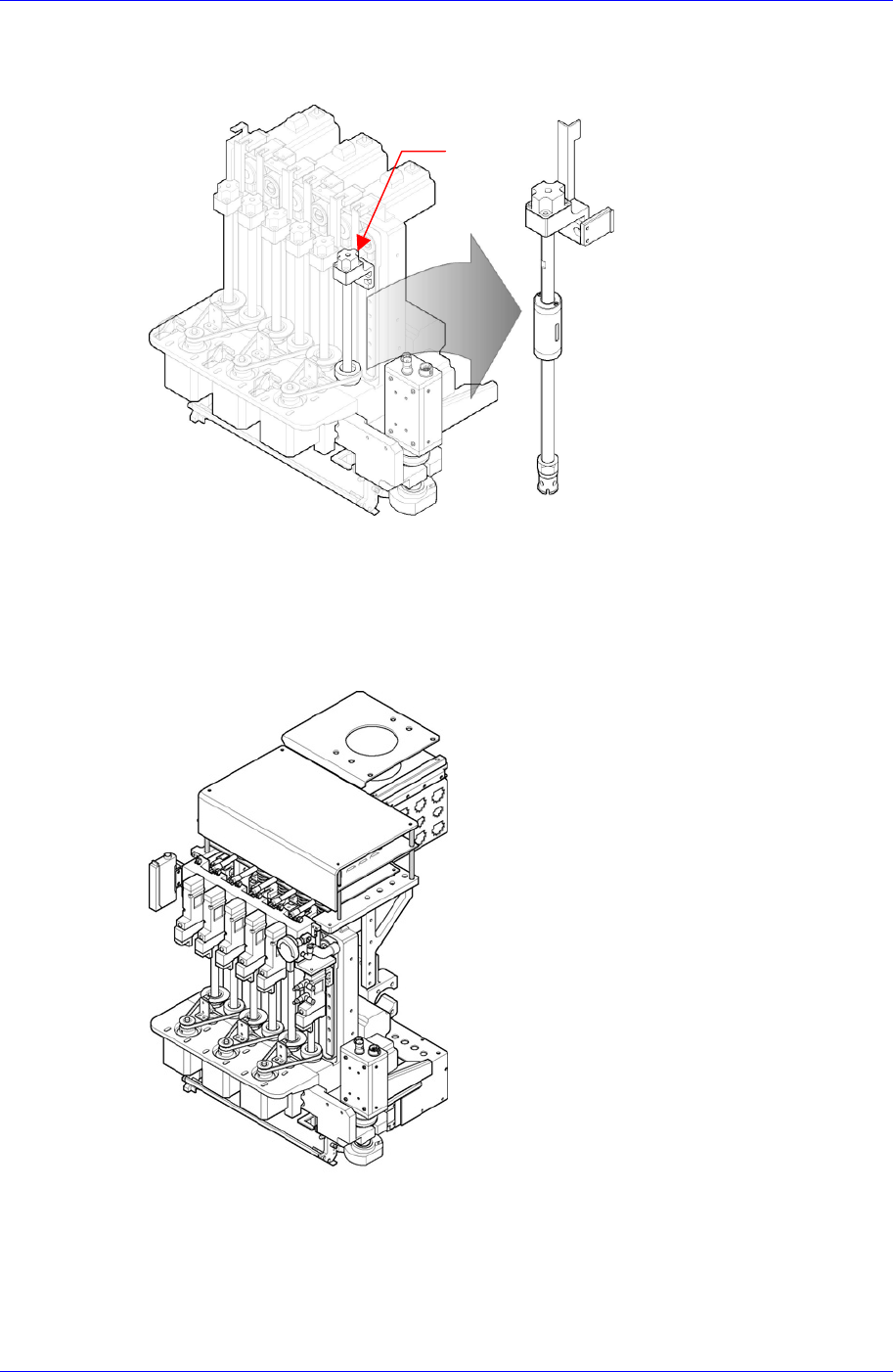

Spindle
Refers to a small rotating shaft belonging to the head assembly of the machine. It has
a nozzle holder at its end. The precisely driven timing belt and AC servo motor move
xii
Preface
xiii
the Z-axis for component pick-up and placement and the micro step motor moves the
θ
-axis for correction of component position.
Spindle
Head Assembly
Consists of mechanisms belonging to the head assembly or the head body supporting
pneumatic devices, spindle, driving motor, and flying vision assembly, and is used to
recognize the component shape and fiducial camera.
Vision System
Performs position check during teaching and fiducial mark check and component
shape recognition through vision system.
Fiducial Camera
