Daily Inspection 2-3 Wa r n i n g After clicking the “Motor Free” button on the teaching box, click the “Stop” and “Reset” button s on the front operation panel. Conduct inspection whil e the motor power supply is turned…
Samsung Component Placer CP45NEO Series Maintenance Reference
Open the ANC shutter.
Press “Motor Free” in the teaching box to turn off the power supply to the motor.
2-2
Daily Inspection
2-3
Warning
After clicking the “Motor Free” button on the teaching box,
click the “Stop” and “Reset” buttons on the front operation
panel. Conduct inspection while the motor power supply is
turned off.
Open the ANC shutter, take out the nozzles in the ANC holes and clean them
manually.
Caution
Before removing the ANC nozzle manually, be sure to
remember the nozzle arrangement. After completion of
cleaning, the nozzle must be arranged at the ANC in the
same manner as it was prior to being cleaned.
Removing contaminant on the nozzle hole
Insert the pin through the nozzle in the radial direction.
Spray the recommended cleaning liquid on the nozzle hole by using a spray straw
After 1 minute, blow out the cleaning liquid from the tip of the nozzle by using
air pressure.
Blow out all the cleaning liquid from the nozzle hole.
If the contaminant is not removed by above method, repeat it once more.
If the contaminant still remains, contact the local agent.
Removing contaminant from the wings and tip of the nozzle
Damp a piece of cloth with the recommended cleaning liquid by using a spray
straw.
Wipe the wings or tip of the nozzle with the dampened cloth.
Wipe off all cleaning liquid with a piece of clean cloth.
If the contaminant is not removed by above method, repeat it once more.
If the contaminant still remains, contact the local agent.
Samsung Component Placer CP45NEO Series Maintenance Reference
Recommended cleaning liquid
Name: CHEMTECH Sticker Remover spray
Place of purchase: Samsung Techwin C/S Center
Caution
Precautions
Precautions for handling written on the container
must be followed.
Do not spray toward a flame.
Keep away from heat, sparks, and open flame.
Do not keep it in the temperature of over 40 °C.
Do not use it in a closed space.
Do not dispose the container in the fire. Remove all
gas and dispose it.
Do not inhale the vapor and avoid contact with skin,
eyes, and clothes.
After use, turn the container upside down and spray
the remaining liquid.
Keep it away from children.
Do not swallow it.
Do not use it for purposes other than cleaning the
hole, wings, and tip of the nozzle.
Please refer to Material Safety Data Sheets for
details.

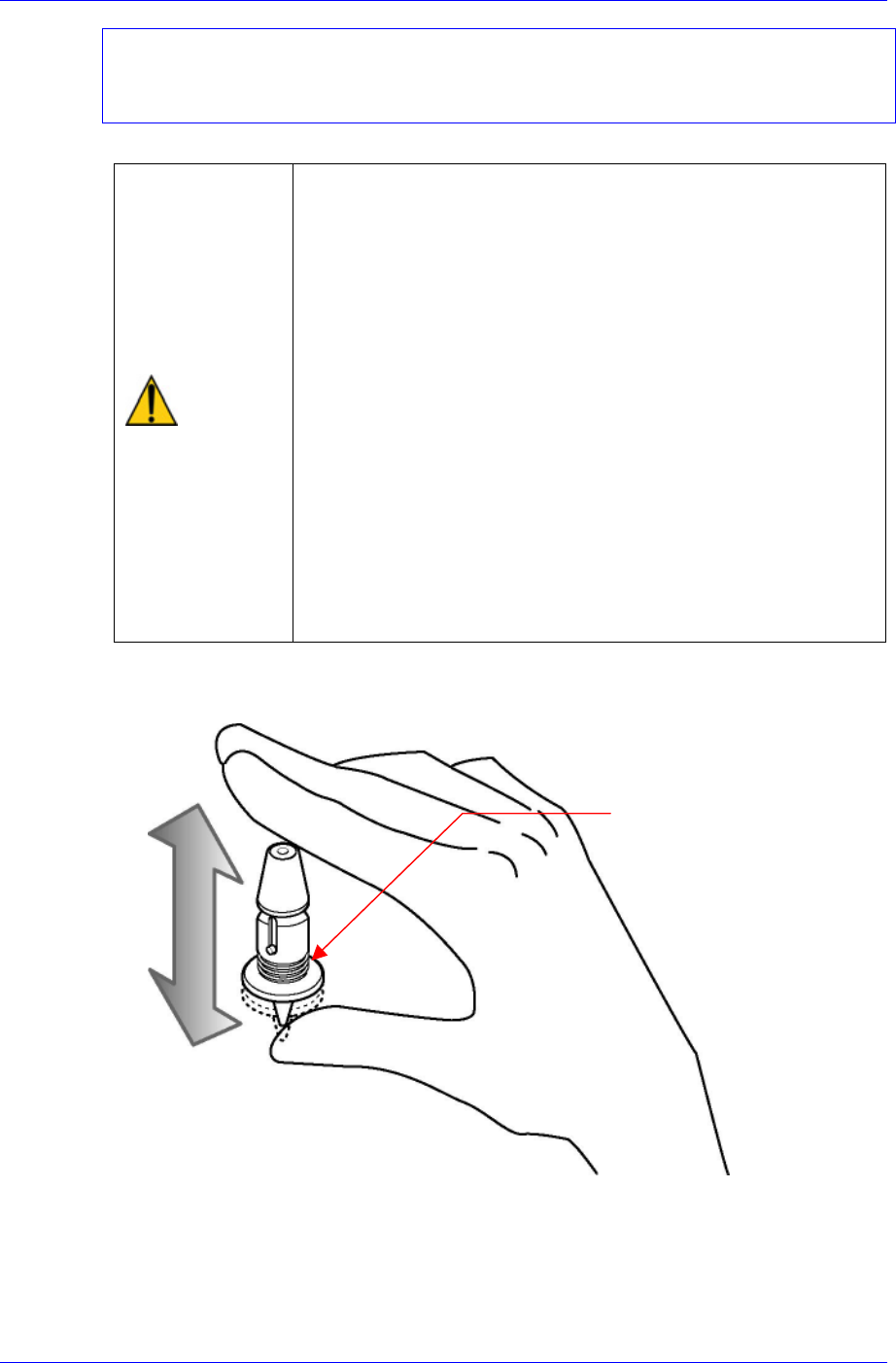

Check if the nozzle spring is adequately smooth by pressing it 2 to 3 times by hand
before returning the nozzle to ANC.
N
ozzle Spring
If the nozzle spring doesn’t work well, inject the provided nozzle cleaning liquid into
points of injection referring to the following figures.
