Samsung Component Placer CP45NEO Series Maintenance Refer ence  Operate the teaching box to move the Front X Frame Assembly to the rear side as far as possible so that front and rear head assem blies do not interfere wi…

Daily Inspection

2-5

After pressing the nozzle 4 to 5 times to distribute the recently applied lubrication oil,

return the nozzle to ANC in the arrangement memorized in advance.

2.2. Nozzle Holder Tube Inspection

Inspection

A hitch may arise in nozzle pickup if the nozzle holder tube is loose or cracked.

Solution

 Execute the ANC dialog box and click the <Put All Nozzle> button to keep all

nozzles that are mounted on the heads in the ANC.

Points o

Lubrication

Lubricant

for nozzle

Samsung Component Placer CP45NEO Series Maintenance Reference

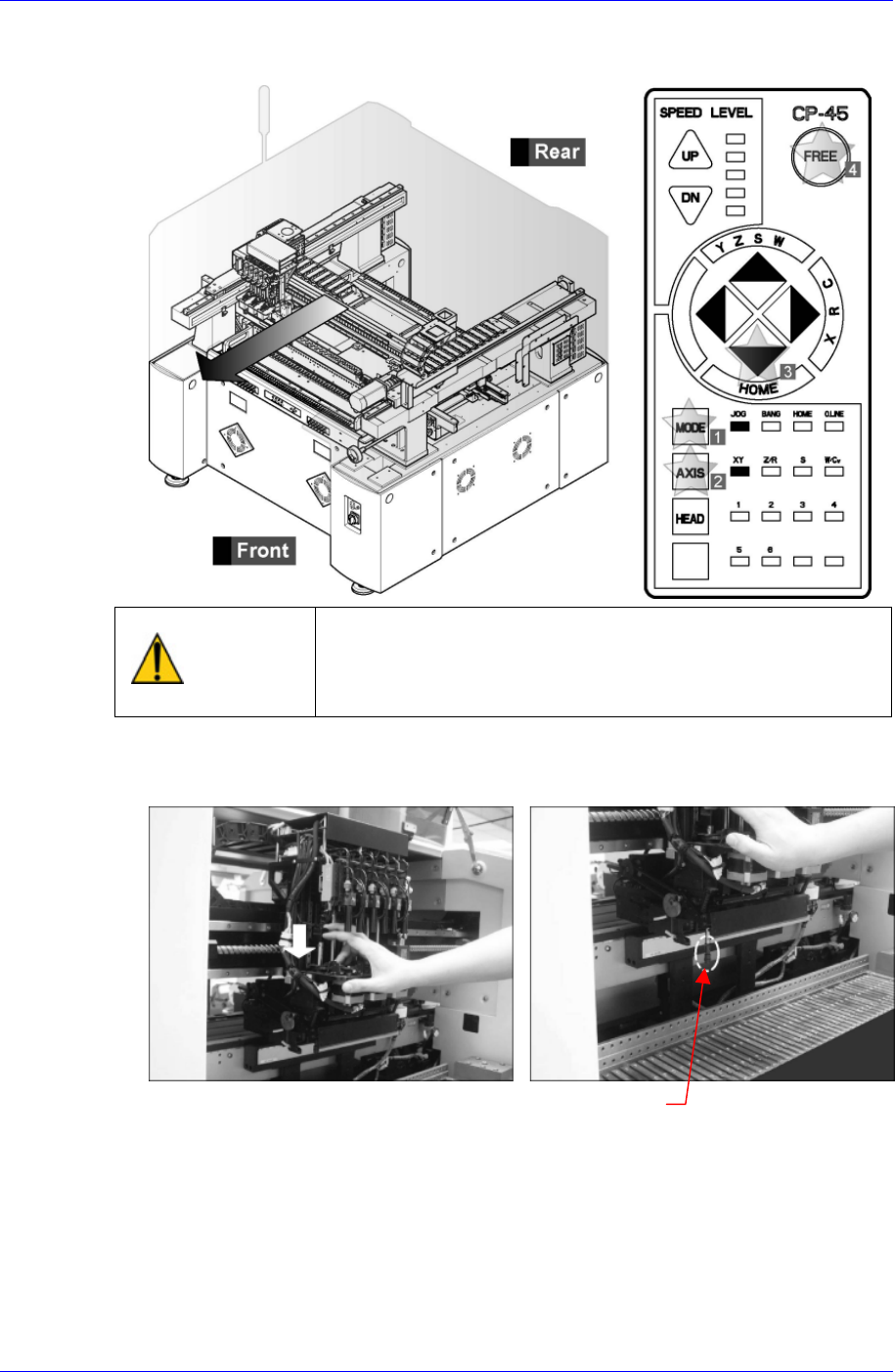

 Operate the teaching box to move the Front X Frame Assembly to the rear side as far

as possible so that front and rear head assemblies do not interfere with each other.

Warning

After clicking the “Motor Free” button on the teaching box,

click the “Stop” and “Reset” buttons on the front operation

panel. Conduct inspection while the motor power supply is

turned off.

 Open the window and lower the Z-axis manually to the position where the nozzle

holder of head 1 is visible by pressing the upper surface of the spindle by hand.

Nozzle Holde

 Check if the nozzle holder tube is not too loose or that any cracks exist by touching it

by hand. In case a defect is found, replace it.

2-6

Daily Inspection

2-7

Caution

When replacing the nozzle holder tube, if the pneumatic

air line is not shut off, it may affect the head function.

Replace the nozzle holder tube once the pneumatic air

line has been shut off.

Check head 2 to head 6 in the same way.
