Samsung Component Placer CP45NEO Series Maintenance Refer ence 3.2.2.1. X-Y Frame Sensor Inspection Check if the limit and home sensor of the X-Y frame is operating normally . Wa r n i n g Do not disassemble the sensor i…

Weekly Inspection

3-25

 If viewed from below, there is an approximate 1cm gap between the lighting

assembly bracket and the lens. Clean any lens dust with a swab by inserting it through

the gap. If necessary, dip the swab in alcohol to moisten and then use it to clean the

lens.

 When the lens has been cleaned using a swab moistened with alcohol, wipe the lens

surface again carefully using a clean dry swab.

3.2.2. X-Y Frame Section

Check the state of contamination and operation over all of the X-Y Frame.

Samsung Component Placer CP45NEO Series Maintenance Reference

3.2.2.1. X-Y Frame Sensor

Inspection

Check if the limit and home sensor of the X-Y frame is operating normally.

Warning

Do not disassemble the sensor intentionally as doing so

may cause collision of the machine or serious safety

danger to the operator.

Solution

 After selecting the Diagnosis from the main menu tool bar in the MMI screen, select

the I/O command from the sub menu tool bar to check the sensor operation.

Y Axis (-)Limit Sensor

Y Axis Home Sensor

X Axis (-)Limit SensorY Axis (+)Limit Senso

X Axis Home Sensor

X Axis (+)Limit Sensor

3-26

Weekly Inspection

3-27

Warning

Do not insert any part of your body into the machine during

I/O testing. Otherwise, serious injury may result.

 If any problems still occur, contact our designated C/S company (STS) and local

agent.

3.2.3. Operation of each Cylinder of the Machine

Inspection

 Check the operation status of each cyclinder.

 Check the operation detect sensor of each cyclinder.

Solution

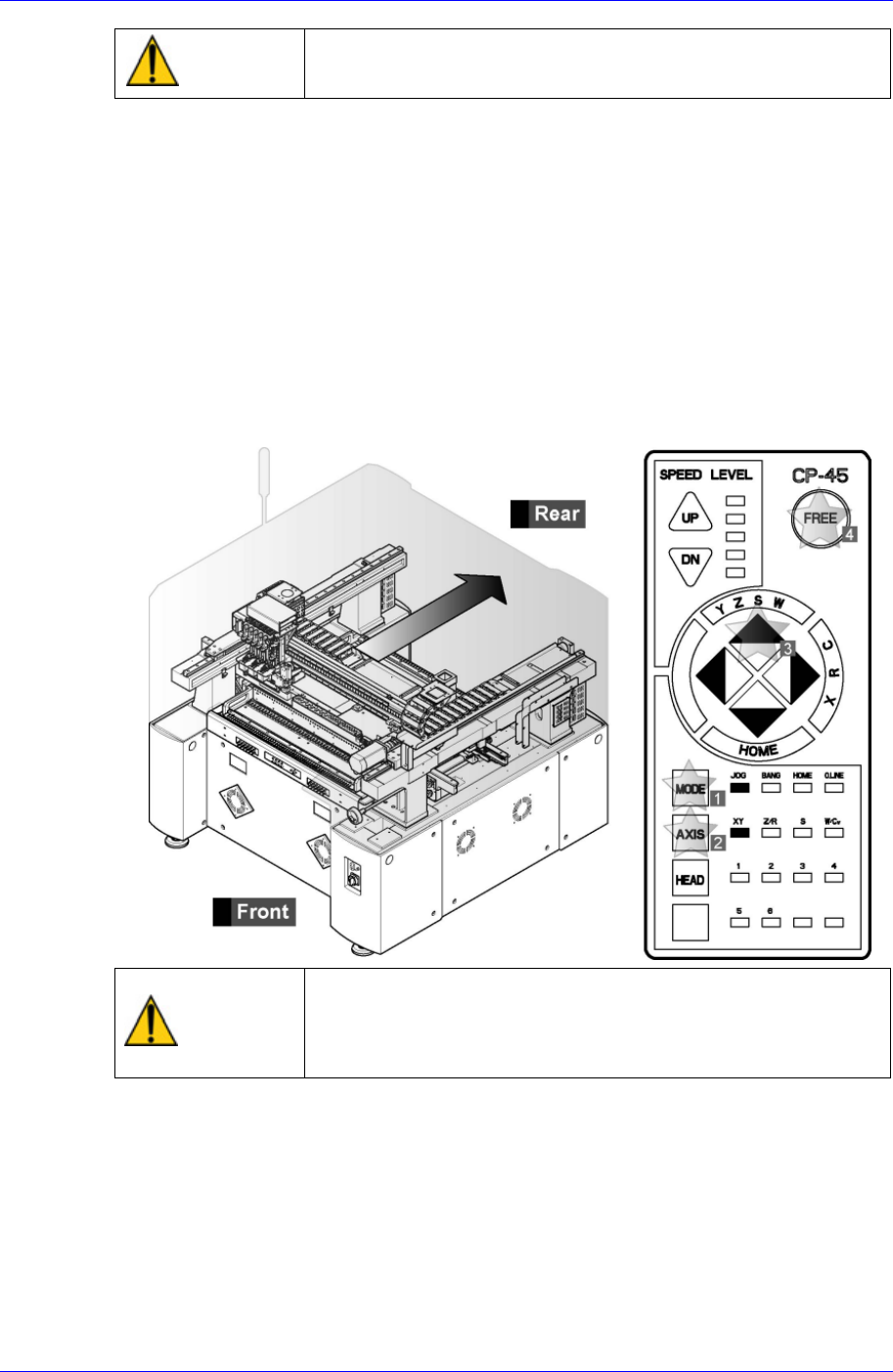

 Operate the teaching box to move the X Frame Ass’y to the rear side as far as

possible.

Warning

After clicking the “Motor Free” button on the teaching box,

click the “Stop” button on the front operation panel.

Conduct inspection while the motor power supply is turned

off.
