Weekly Inspection
3-29
3.2.4. Conveyor Scetion
Check the state of contamination and operation over all of the conveyor.

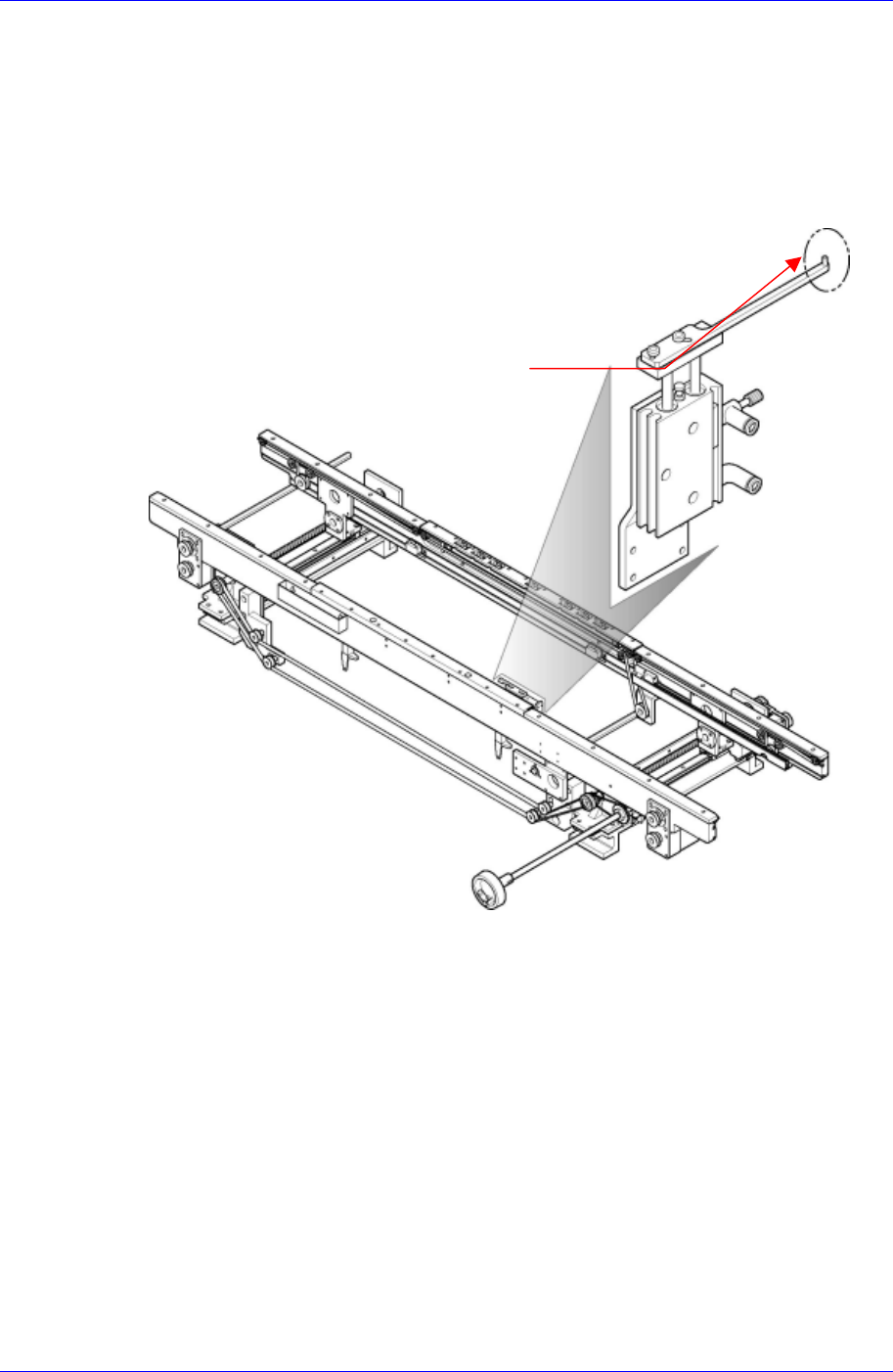

3.2.4.1. Stopper End Inspection
Inspection
Check if there is any wear on the PCB connection face above the stopper.
Checking point o
f
the Stopper En
d
Figure 3-6. Stopper Inspection
Solution

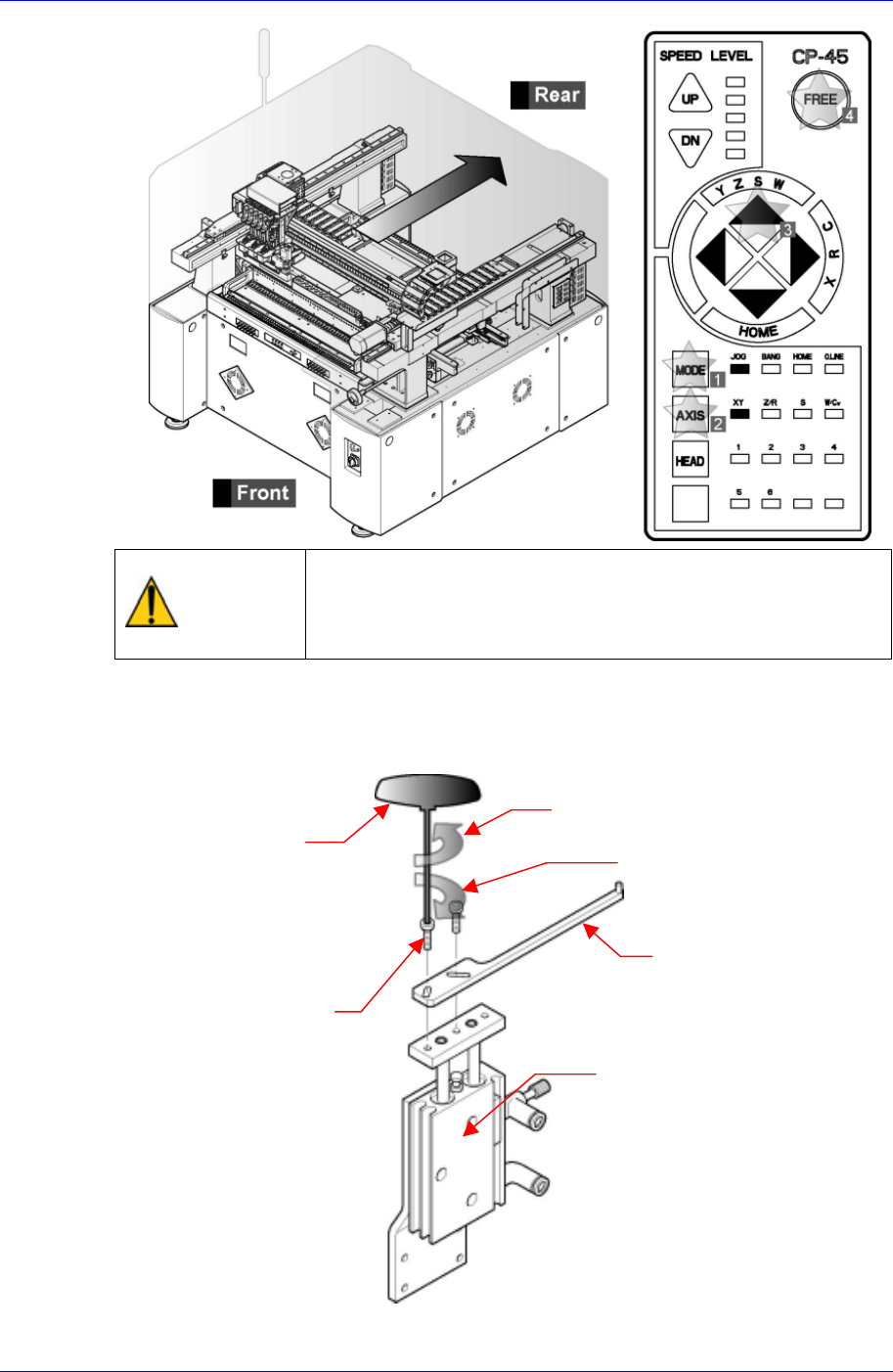

Operate the teaching box to move the X Frame Ass’y to the rear side as far as
possible.
Samsung Component Placer CP45NEO Series Maintenance Reference
Warning
After clicking the “Motor Free” button on the teaching box,
click the “Stop” button on the front operation panel.
Conduct inspection while the motor power supply is turned
off.
For replacement, remove the bolt (M3*L10) connecting the conveyor PCB stopper
cylinder and stopper upper plate using a T-wrench (2.5mm) among the tools provided
by us, and replace the stopper top plate with a new one.
Separation direction (counterclockwise)
T wrench (2.5mm)
Assembly direction (clockwise)
Stopper Upper Plate
Bolt(M3*L10)
CONV PCB Stopper Cylinder
Assembling is done in the reverse order.
3-30
Weekly Inspection
3-31

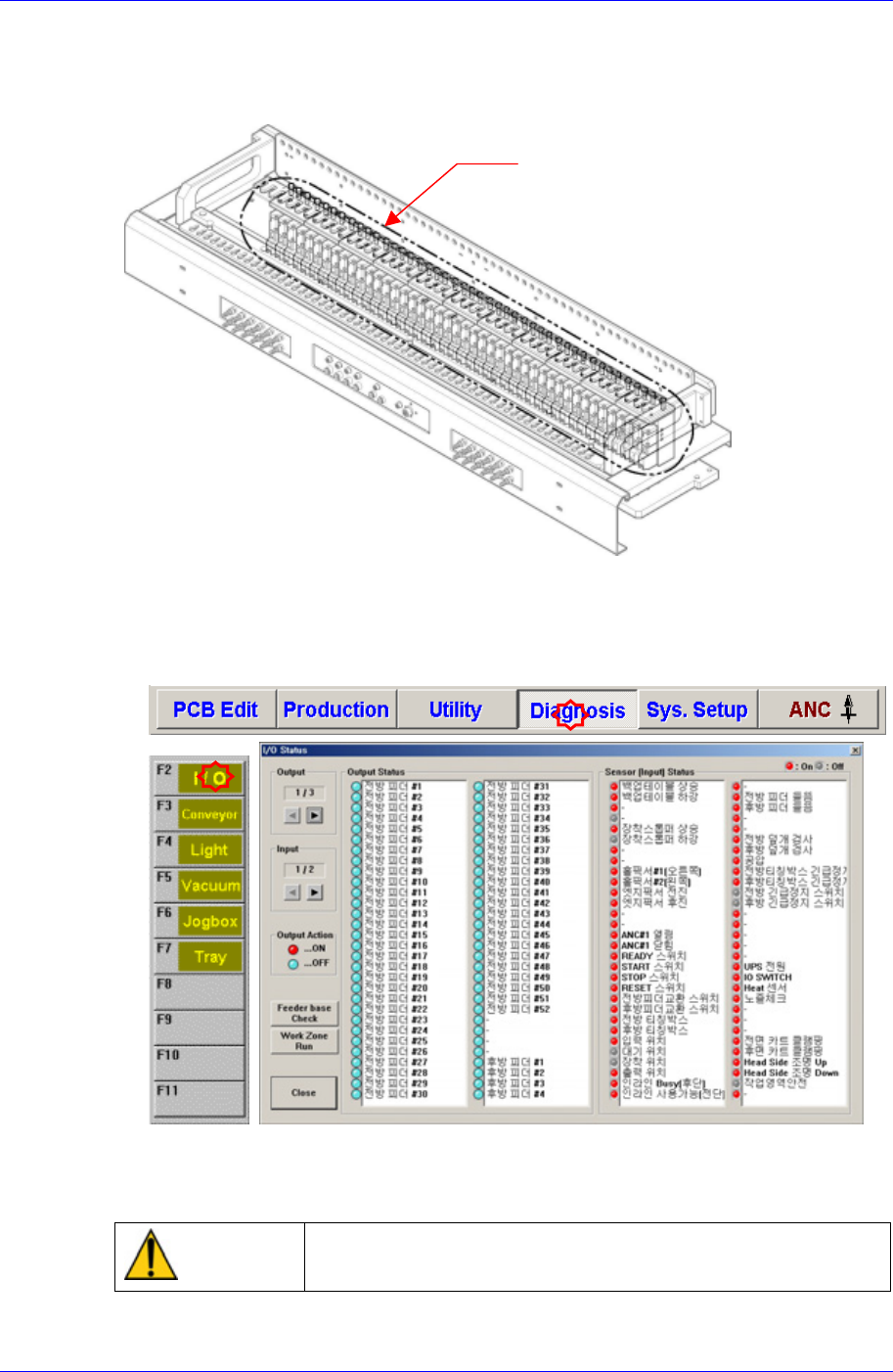

3.2.5. Feeder Station Cylinder Inspection
Check the Feeder Station Cylinder. In case the operation of the cylinder is not smooth,
picking up of the parts may also not be smooth.
Solution
Feeder Station Cylinder Ass’y
Remove all the feeders installed in the feeder station
After selecting the Diagnosis from the main menu tool bar in the MMI screen, select
the I/O command from the sub menu tool bar to check the sensor operation.
Operate sequentially from the No. 1 cylinder of the front feeder station.
In case the operation of the cylinder is not smooth, please contact our customer
satisfaction company (STS) or local agent.
Warning
Do not insert any part of your body into the machine during
I/O testing. Otherwise, serious injury may result.
