Weekly Inspection

3-31

3.2.5. Feeder Station Cylinder Inspection

Check the Feeder Station Cylinder. In case the operation of the cylinder is not smooth,

picking up of the parts may also not be smooth.

Solution

Feeder Station Cylinder Ass’y

 Remove all the feeders installed in the feeder station

 After selecting the Diagnosis from the main menu tool bar in the MMI screen, select

the I/O command from the sub menu tool bar to check the sensor operation.

 Operate sequentially from the No. 1 cylinder of the front feeder station.

 In case the operation of the cylinder is not smooth, please contact our customer

satisfaction company (STS) or local agent.

Warning

Do not insert any part of your body into the machine during

I/O testing. Otherwise, serious injury may result.

Samsung Component Placer CP45NEO Series Maintenance Reference

3.2.6. Adjustment of Multi Cylinder Speed

Inspection

 Check if the working speed of the cylinder driving the tape feeder causes any

problem in relation to the placement of the components.

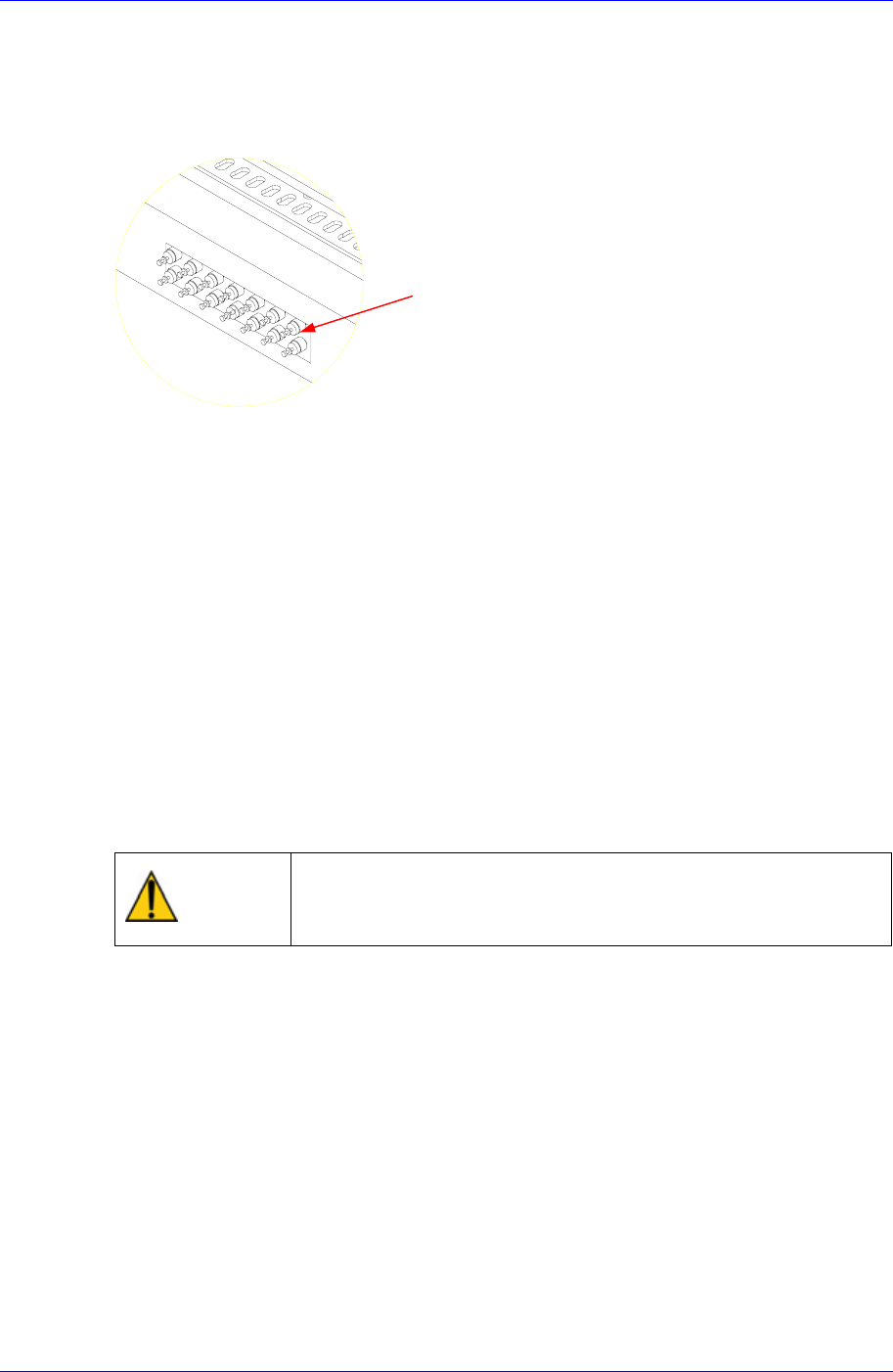

Figure 3-7. Speed Control Valve

Solution

Speed Control Valve

 Adjust using the speed control valve for the multi-cylinders.

3.2.7. Air Filter & Auto Drainer

Inspection

 Check ff the pneumatic pressure of the machine is normal with the air pressure gauge

of the air panel on the front side of the machine. (If the air filter is clogged, the air

pressure becomes low).

 Check if there is accumulated water in the air filter of the air panel on the rear side of

the machine.

 Visually check through the acryl cover if the color of the filter element is change.

 Visually check if the water is drained well from the drainer.

 If the tube is not inserted in the drainer, insert it

Warning

If the air filter or filter element is replaced without shutting off

the air supply line, personal injury may occur. Shut off the air

supply line before replacing the air filter or filter element.

Solution

 Shut off the pneumatic air supplied to the machine from the air line.

 The message that the pneumatic pressure is low in the machine is displayed in the

MMI dialog box with the yellow lamp (or blue lamp) of the signal light turned on. (If

the pneumatic pressure is supplied after replacement is completed, the machine turns

to normal state).

 Through the inspection window of the air filter on the air panel cover at the right side

seen from the rear of the machine, check visually if the color of the filter element in

the air filter has been changed.

3-32

Weekly Inspection

3-33

Air Filter Inspection Window

Air Filter Ass’y

 In case of occurrence of color change or other abnormal conditions, block the main

pressurized air to the machine.

Caution

Shock caused by pressurization while blocking the

pressurized air may be caused. Please handle with care.

 Separate the filter element bundle by turning it clockwise.
