Samsung Component Placer CP45NEO Series Maintenance Guide

4.2. Lubrication and Grease Application

Caution

It may shorten the average life span of a machine if grease

not specified by our company is applied on the machine.

Use the grease specified by our company.

4.2.1. Head

Inspection

 Check the Ball Spline or the rail for discoloration or dust.

 Noise may be generated if the lubricant has become too dry. Therefore, check the

state of lubrication.

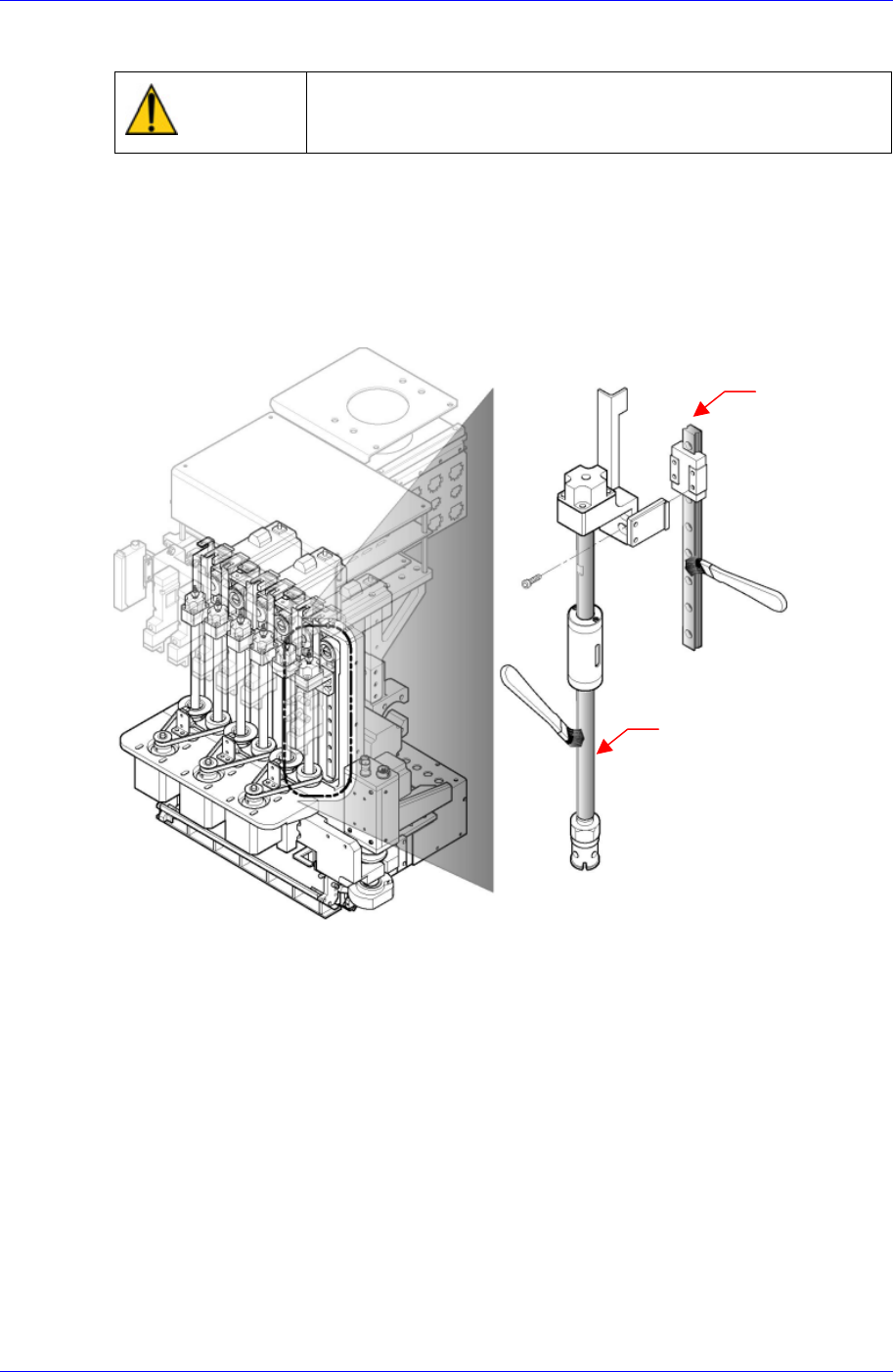

Figure 4-1. Head Assembly Application

Solution

LM Guide Rail

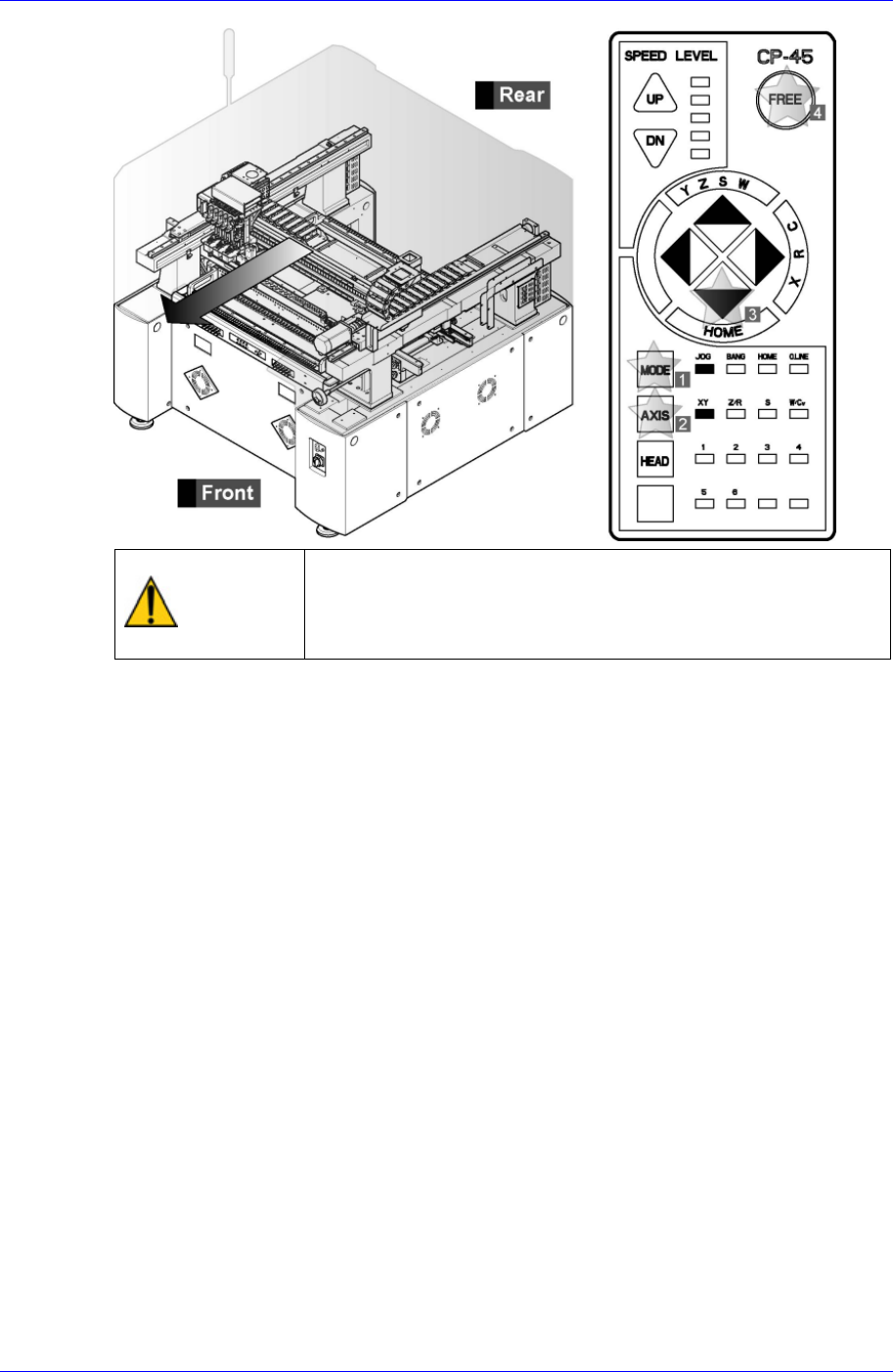

 Operate the teaching box to move the head assembly to the front side as far as

possible.

4-4

Lubricant Method

4-5

Warning

After clicking the “Motor Free” button on the teaching box,

click the “Stop” button on the front operation panel.

Conduct inspection while the motor power supply is turned

off.

 When the working area is insufficient, move the head assembly to the rear side

manually.

 Remove dust and foreign matter using the clean cloth in the cleaning kit supplied by

us and if necessary, apply grease thinly on the ball spline and rail surface using the

one way brush.

4.2.2. X-Y Frame

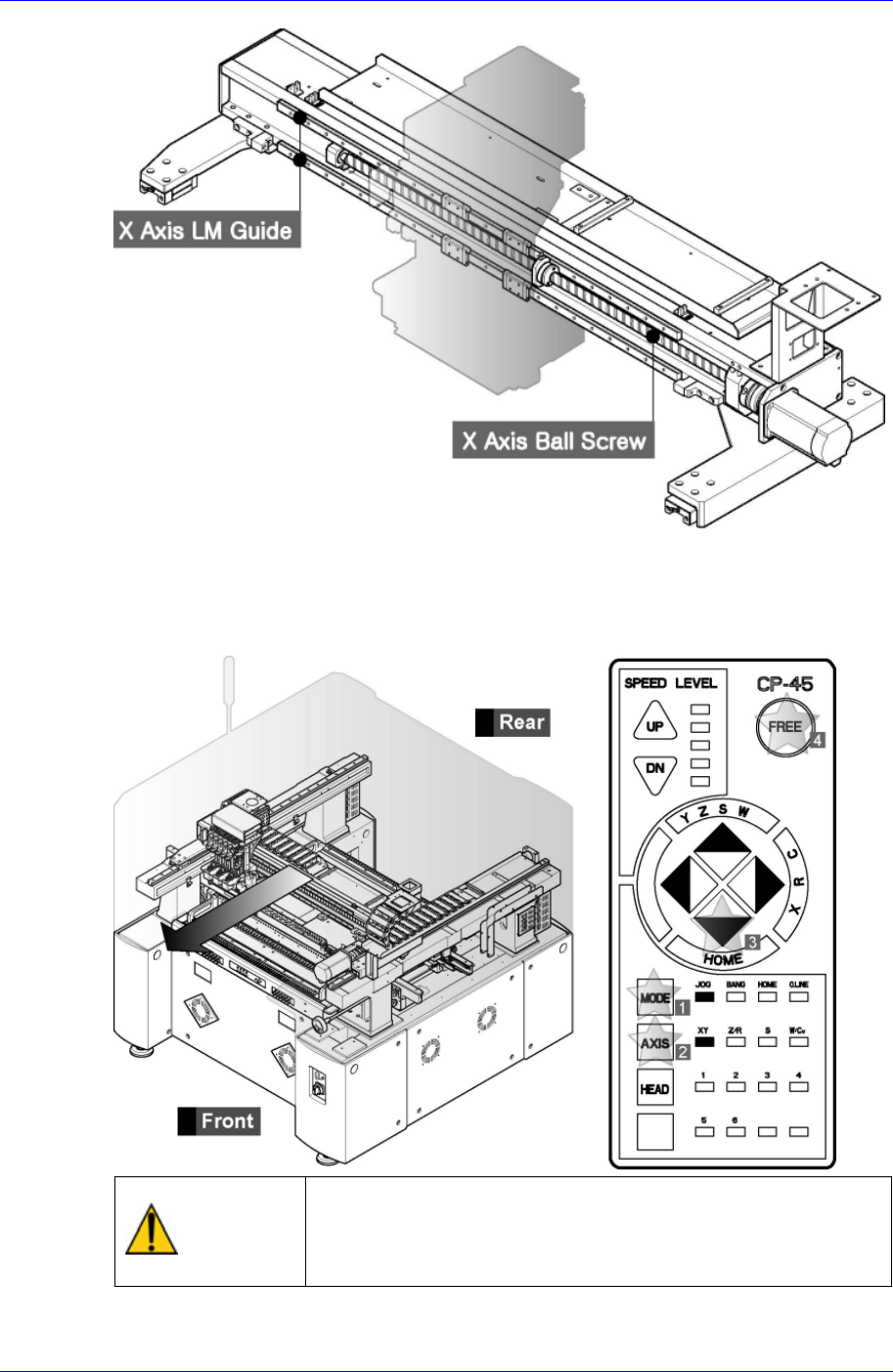

4.2.2.1. X-axis L/M Guide Rail, Ball Screw

Inspection

 Check the LM Guide Rail and the Ball Screw for discoloration or dust.

 Check the lubricants on the LM Guide Rail and the Ball Screw. Insufficient lubricants

on the LM Guide Rail and the Ball Screw could cause unusual noise during operation

of the machine.
