Samsung Component Placer CP45NEO Series Maintenance Guide 4.2.2.2. Y -axis L/M Guide Rail, Ball Screw Inspection Check the L/M Guide Rail and the Ball Screw for discoloration or dust. Check the lubricants on the L/M …
Lubricant Method
4-7
If the working space is insufficient, move the head assembly manually to the front
side and place it at the center of the X-axis.
Remove dust and foreign matter from the LM guide rail and ball screw using the
clean cloth in the clean kit supplied by us.

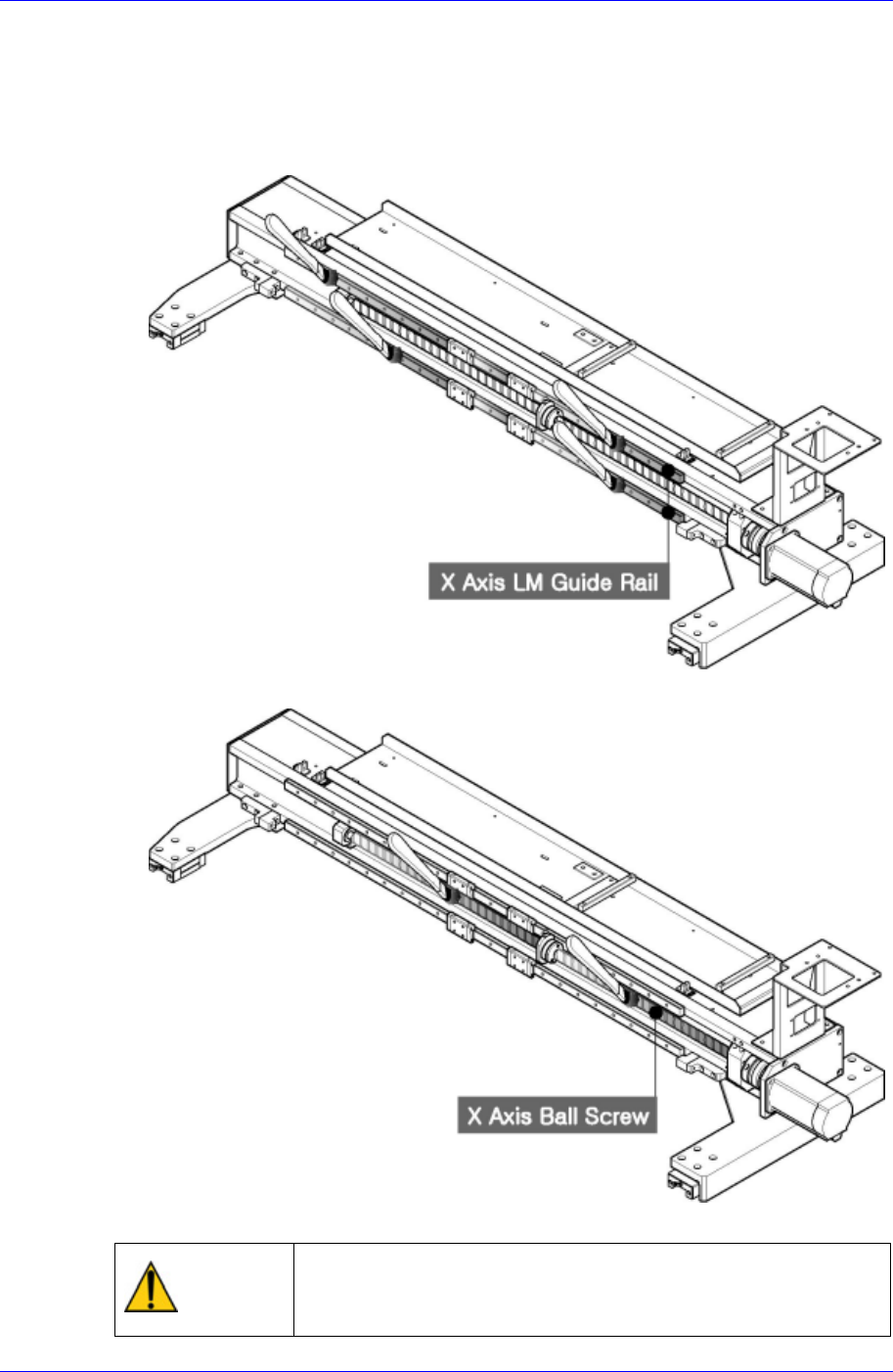

Apply grease thinly on the LM Guide Rail using the one way brush.
Apply grease thinly on the Ball Screw Rail using the one way brush.
Caution
The designated grease must be applied using the
designated lubricator in the designated manner. Other
lubricating methods are unacceptable.
Samsung Component Placer CP45NEO Series Maintenance Guide
4.2.2.2. Y-axis L/M Guide Rail, Ball Screw
Inspection
Check the L/M Guide Rail and the Ball Screw for discoloration or dust.
Check the lubricants on the L/M Guide Rail and the Ball Screw. Insufficient
lubricants on the L/M Guide Rail and the Ball Screw could cause unusual noise
during operation of the machine.

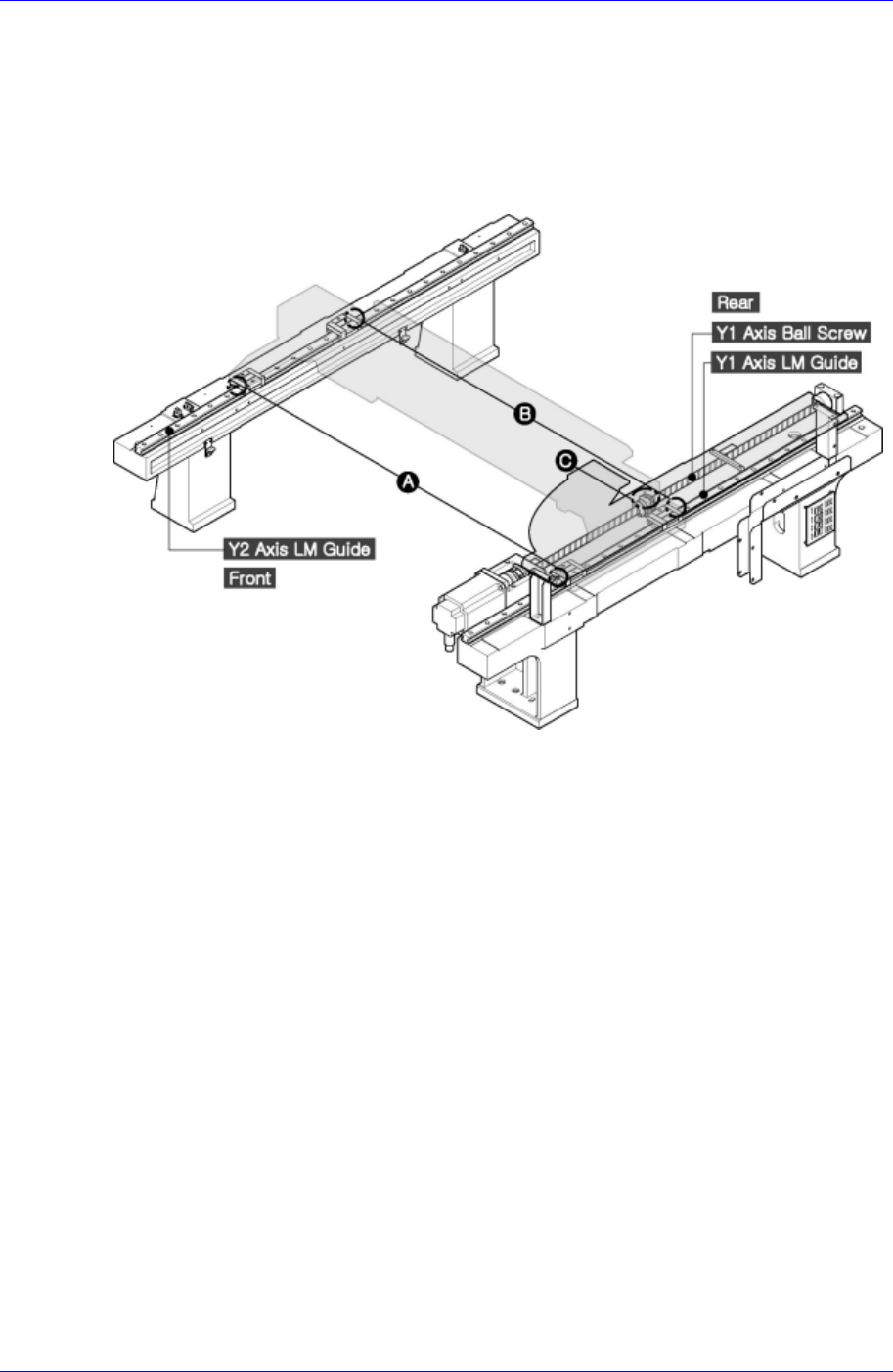

Figure 4-3. Y-axis L/M Guide
Solution

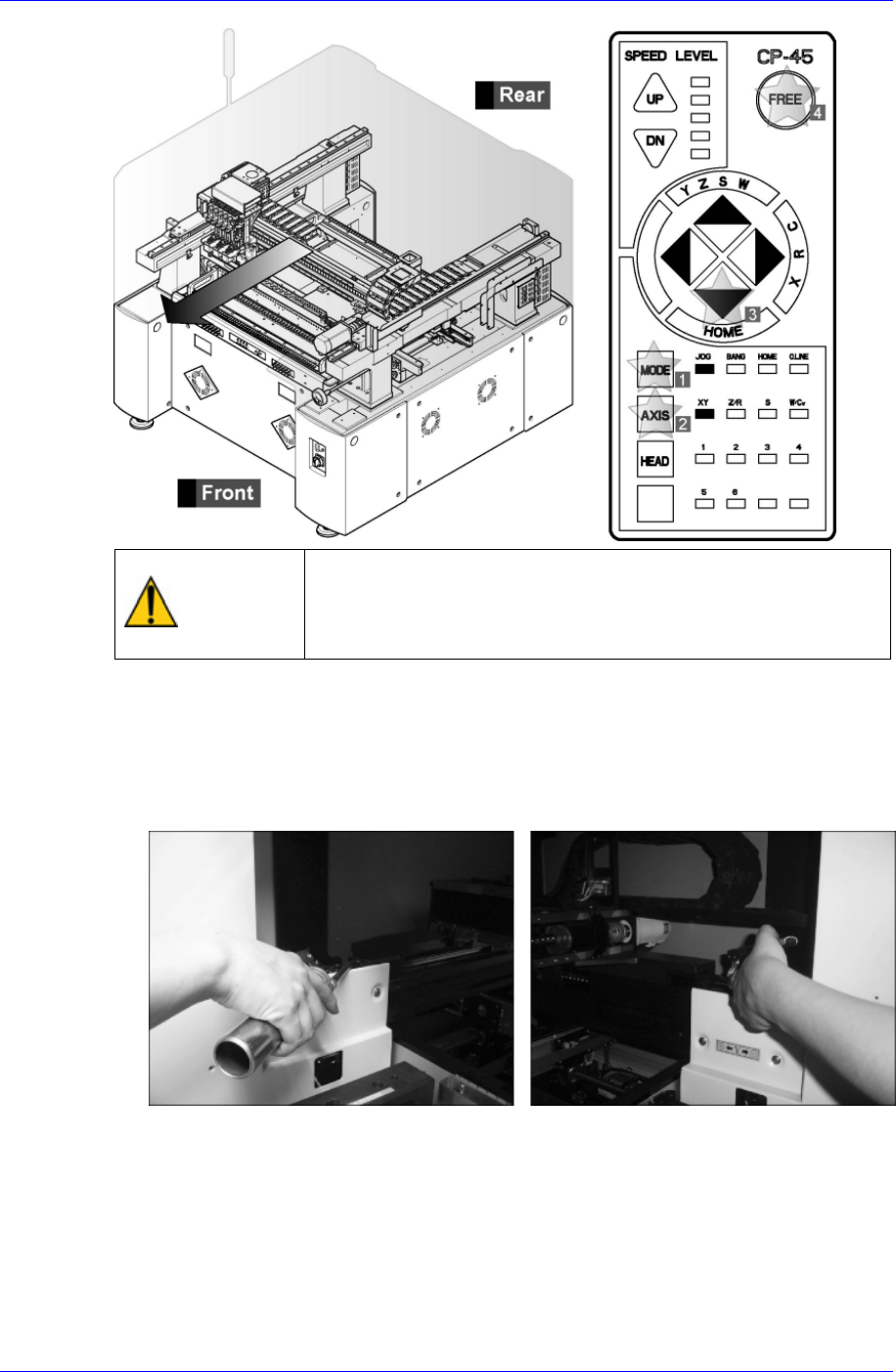

Operate the teaching box to move the head assembly to the front side as far as
possible and click the motor free button.
4-8
Lubricant Method
4-9
Warning
After clicking the “Motor Free” button on the teaching box,
click the “Stop” button on the front operation panel.
Conduct inspection while the motor power supply is turned
off.
Remove dust and foreign matter from the LM guide rail and ball screw using the
clean cloth in the clean kit supplied by us.
Inject adequate volume of grease through the grease nipple (A) of the Y1 and Y2 LM
guide block on the front of the machine using the grease injection device provided by
us.
Using the teaching box, move the X-axis to the rear, and the Y-axis LM guide block
and grease nipples (B) and (C) to the position adequate for injecting grease.
