Samsung Component Placer CP45NEO Series Maintenance Guide

4.2.2.2. Y-axis L/M Guide Rail, Ball Screw

Inspection

 Check the L/M Guide Rail and the Ball Screw for discoloration or dust.

 Check the lubricants on the L/M Guide Rail and the Ball Screw. Insufficient

lubricants on the L/M Guide Rail and the Ball Screw could cause unusual noise

during operation of the machine.

Figure 4-3. Y-axis L/M Guide

Solution

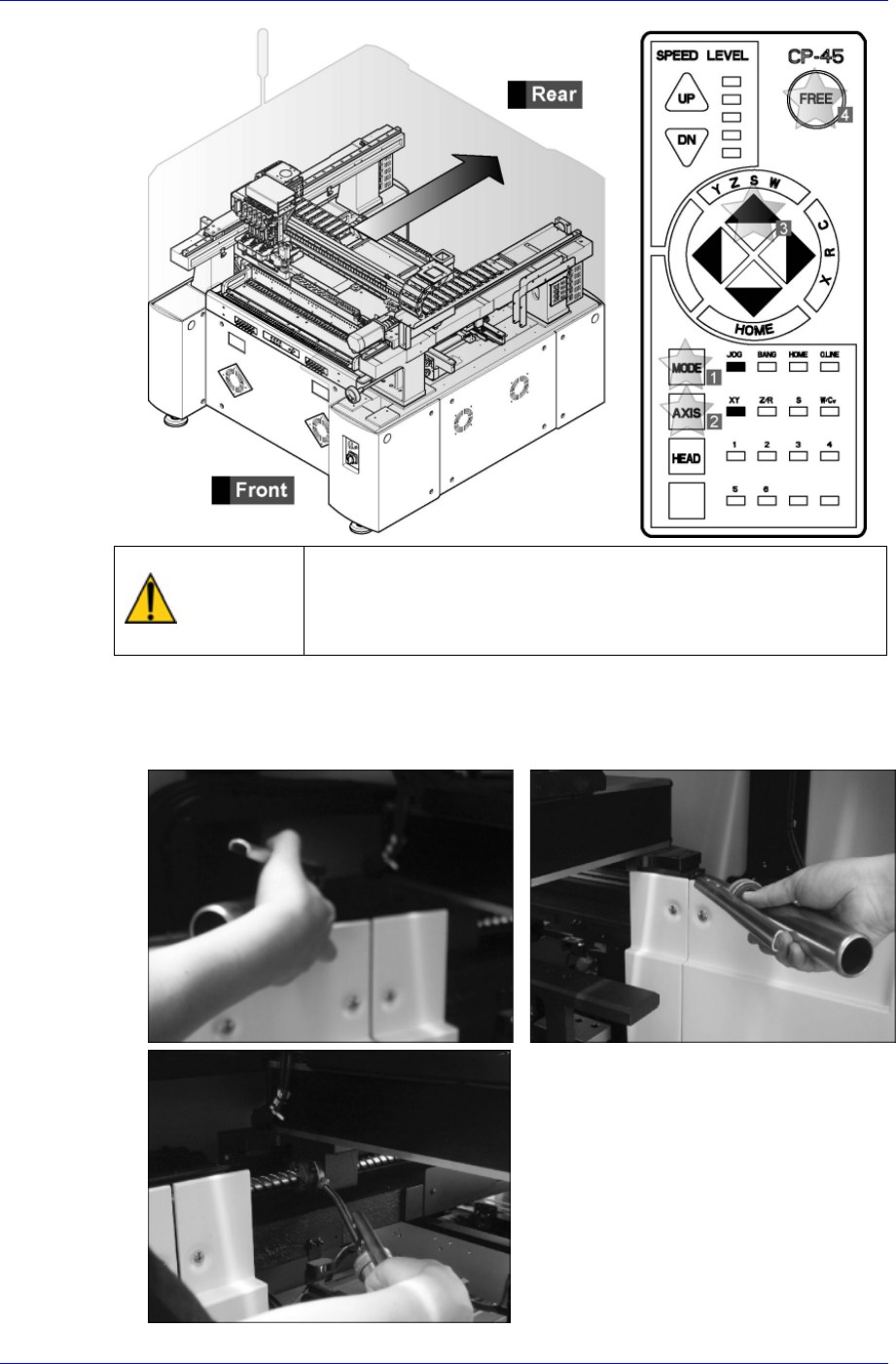

 Operate the teaching box to move the head assembly to the front side as far as

possible and click the motor free button.

4-8

Lubricant Method

4-9

Warning

After clicking the “Motor Free” button on the teaching box,

click the “Stop” button on the front operation panel.

Conduct inspection while the motor power supply is turned

off.

 Remove dust and foreign matter from the LM guide rail and ball screw using the

clean cloth in the clean kit supplied by us.

 Inject adequate volume of grease through the grease nipple (A) of the Y1 and Y2 LM

guide block on the front of the machine using the grease injection device provided by

us.

 Using the teaching box, move the X-axis to the rear, and the Y-axis LM guide block

and grease nipples (B) and (C) to the position adequate for injecting grease.
