1 1 Maintenance Parts ■ Cleaner Head 1 4 4 9 5 2 3 7 8 10 10 1 6 No. Part No. Part Name Q'ty Remarks Rank 1 KGJ-M3617-00X BALL PLUNGER 1 C 2 KGJ-M3650-A1X BRAKE ASSY . 1 11 1-08-1 1 d15 B 3 KGJ-M3657-A1X MOTOR ASSY …
10

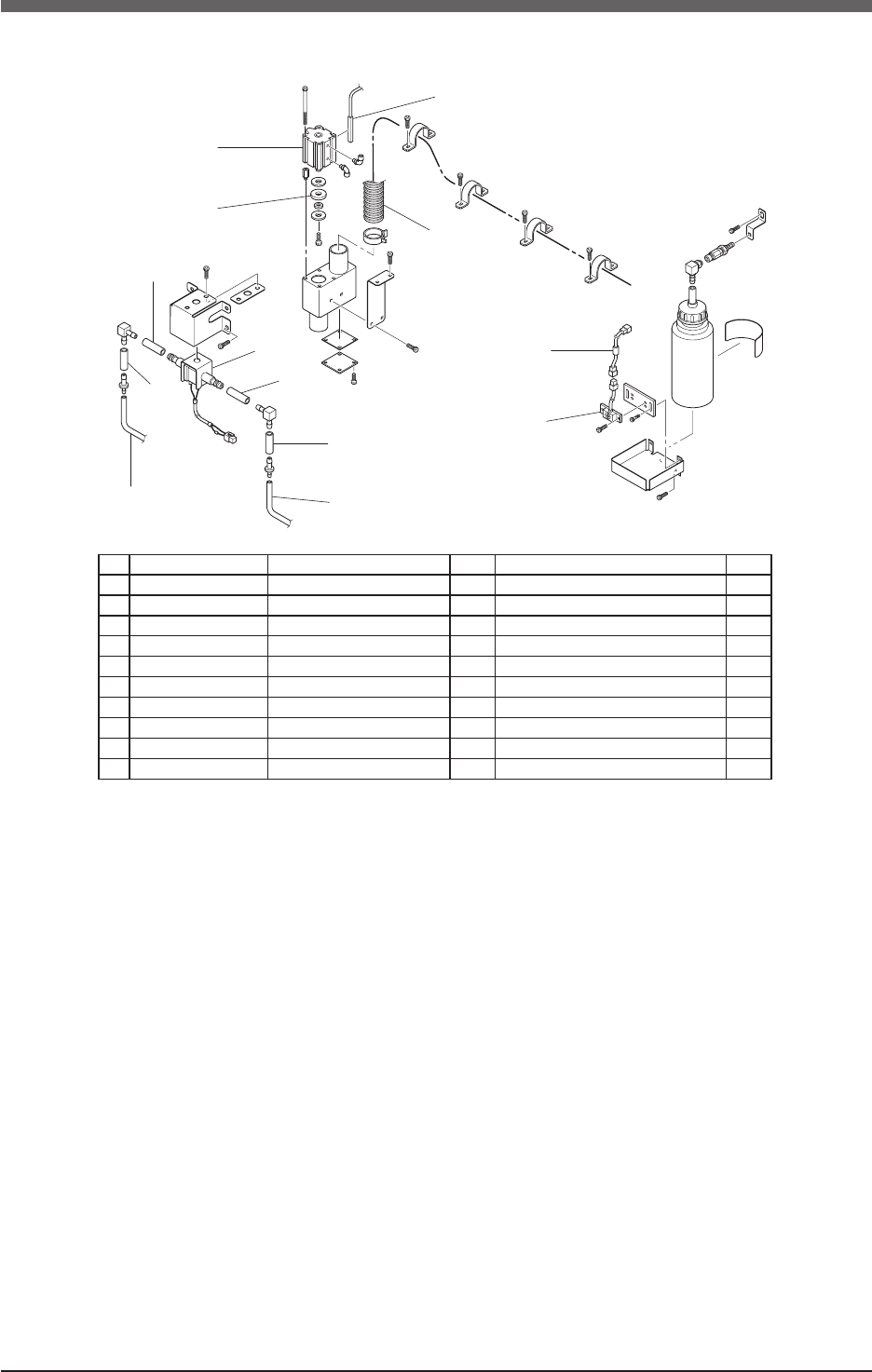

Maintenance Parts
■
Cleaner Base
2
1
4
3
6
7
8
8
9
10
8
8
5
No. Part No. Part Name Q'ty Remarks Rank
1 90990-28J022 WASHER, PLAIN 1 B
2 KGJ-M3754-00X CYL, VALVE 1 CDAS32x15 B
3 KGJ-M3756-02X TUBE, VACUUM 1 Hose C.Head-Valve A
4 KU0-M653A-10X SENSOR, 1 ASSY. 1 ZE235A B
5 KW3-M653H-00X SENSOR, 7-1 ASSY. 1 EE-SX871R B
6 KW3-M653J-00X CHANGE, PN ASSY. 1 NPN-PNP B
7 KGJ-M3771-A0X PUMP 1 LP6W B
8 KGJ-M3774-10X TUBE, PUMP 4 φ8x10mmx40mm C
9 KGJ-M3776-11X TUBE, BOTTLE 1 φ4x6mmx1.5M C
10 KGJ-M3776-21X TUBE, CLEANER 1 φ4x6mmx2.5M A
11

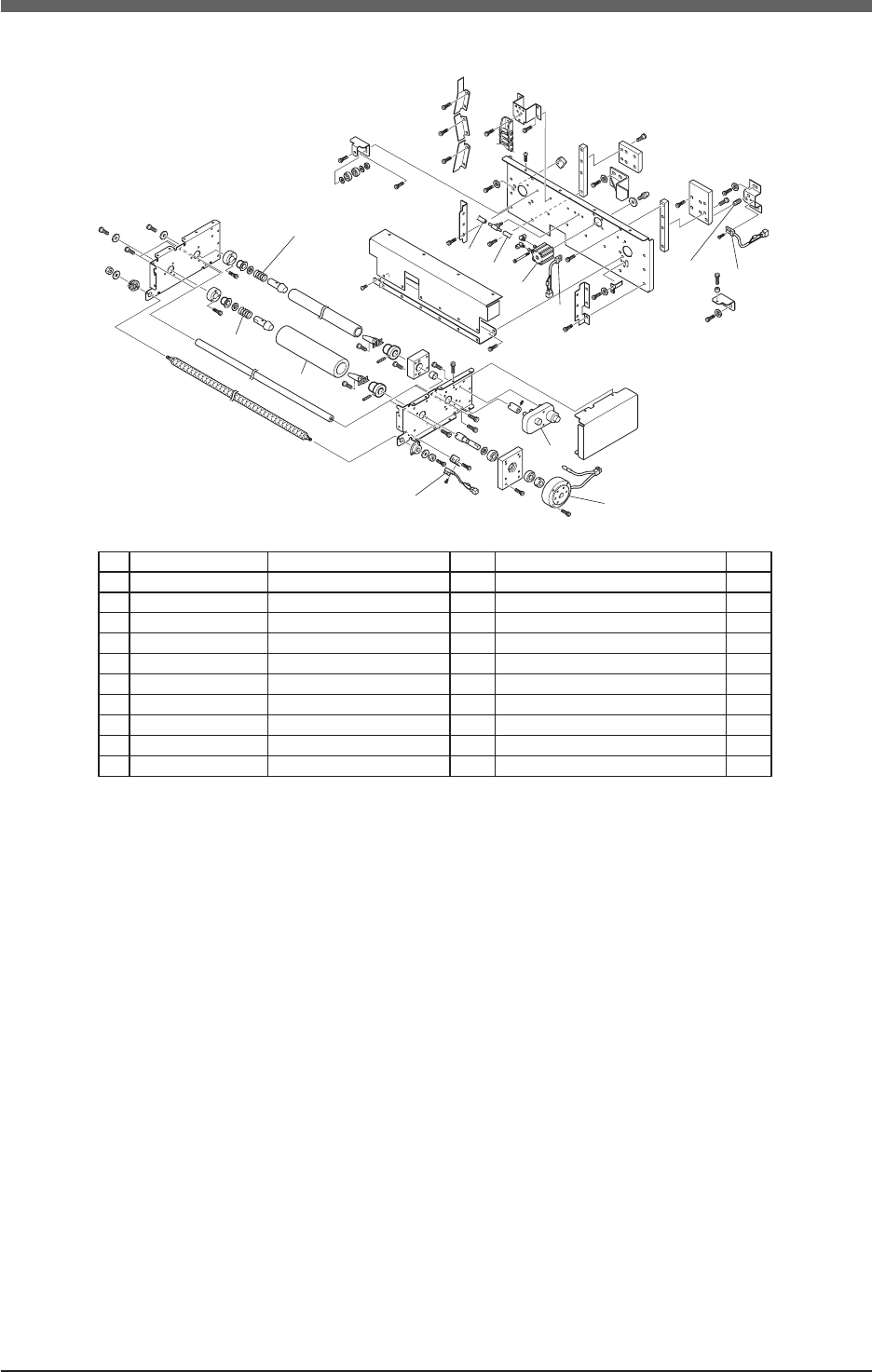

Maintenance Parts
■
Cleaner Head 1
4
4
9
5
2
3
7
8
10
10
1
6
No. Part No. Part Name Q'ty Remarks Rank
1 KGJ-M3617-00X BALL PLUNGER 1 C
2 KGJ-M3650-A1X BRAKE ASSY. 1 111-08-11 d15 B
3 KGJ-M3657-A1X MOTOR ASSY. CL 1 RJH-900-N595-24 B
4 KGJ-M3660-00X SPRING 2 2 B
5 KV7-M653A-70X SENSOR, 1 ASSY. 1 E2S-W22 B
6 KGJ-M3679-00X
SENSOR, CLEANER ASSY
1 B
7 KW3-M3656-00X CYL, LOCK 1 CDAS32x15 B
8 KU0-M653A-10X SENSOR, 1 ASSY. 6 ZE235A B
9 KGJ-M3694-00X BENCOT ROLLE, L 1 TS-507 (420mmx45M) A
10 KGJ-M3675-10X TUBE, LIQUID 2 Hose C
12
Maintenance Parts
■
Cleaner Head 2
■
Blower Unit, etc.
3
1
2
2
1
3
4
No. Part No. Part Name Q'ty Remarks Rank
1 KGJ-M3627-00X CYL, CLEANER 2 CDAS16x15 C
2 KGJ-M3629-01X BELT CLEANING 1 A
3 KGJ-M3633-00X SPRING, CLEANER 2 A
4 KGJ-M3786-00X NOZZLE, TUBE 1 POM /
5
2
4
1
3
No. Part No. Part Name Q'ty Remarks Rank
1
KW3-M3685-20 TUBE, VACUUM 1 C
KGJ-M3756-30 TUBE, VACUUM 1 CE C
2 KGJ-M3756-10 TUBE, VACUUM 1 Hose 3m C
3 KGJ-M3756-40 TUBE, VACUUM 1 Hose 1m C
4 KGJ-M641R-01 BLOWER MOTOR 1 VFZ501A B
5 KW3-M642T-01 FILTER ELEMENT 1 Spare for Blower motor A
