13 Maintenance Parts AUG./2002 Main Stopper 1 8 3 2 4 5 7 6 No . Part No. Part Name Q'ty Remarks Rank 1 KGJ-M9161-01X BLOCK, STOPPER 1 A 2 KGJ-M9176-00X BELT1 1 A 3 KGJ-M9177-00X BELT2 1 A 4 KW3-M653G-10X AMP, ASSY.…
12
Maintenance Parts
■

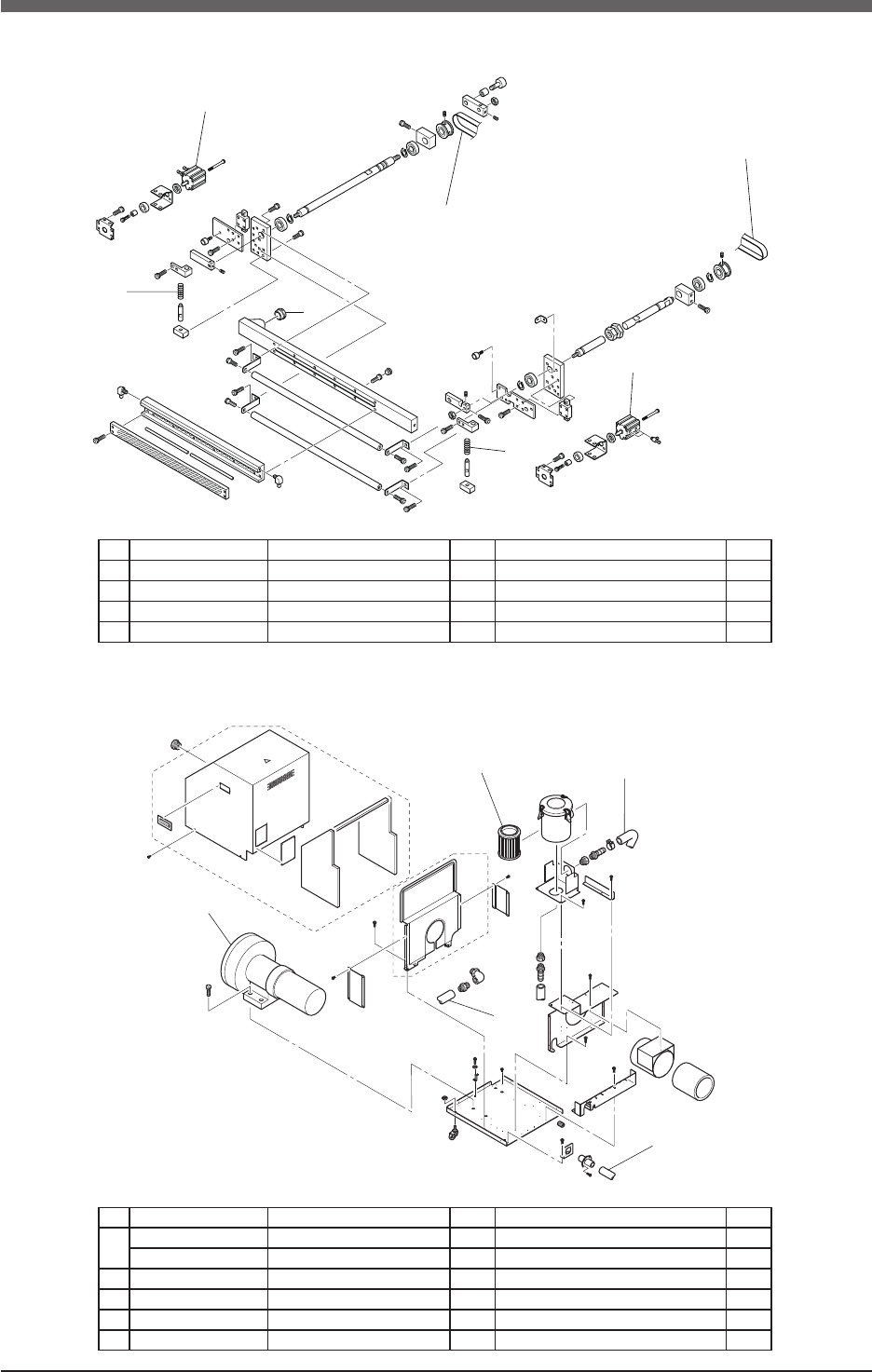

Cleaner Head 2
■
Blower Unit, etc.
3
1
2
2
1
3
4
No. Part No. Part Name Q'ty Remarks Rank
1 KGJ-M3627-00X CYL, CLEANER 2 CDAS16x15 C
2 KGJ-M3629-01X BELT CLEANING 1 A
3 KGJ-M3633-00X SPRING, CLEANER 2 A
4 KGJ-M3786-00X NOZZLE, TUBE 1 POM /
5
2
4
1
3
No. Part No. Part Name Q'ty Remarks Rank
1
KW3-M3685-20 TUBE, VACUUM 1 C
KGJ-M3756-30 TUBE, VACUUM 1 CE C
2 KGJ-M3756-10 TUBE, VACUUM 1 Hose 3m C
3 KGJ-M3756-40 TUBE, VACUUM 1 Hose 1m C
4 KGJ-M641R-01 BLOWER MOTOR 1 VFZ501A B
5 KW3-M642T-01 FILTER ELEMENT 1 Spare for Blower motor A
13
Maintenance Parts
AUG./2002

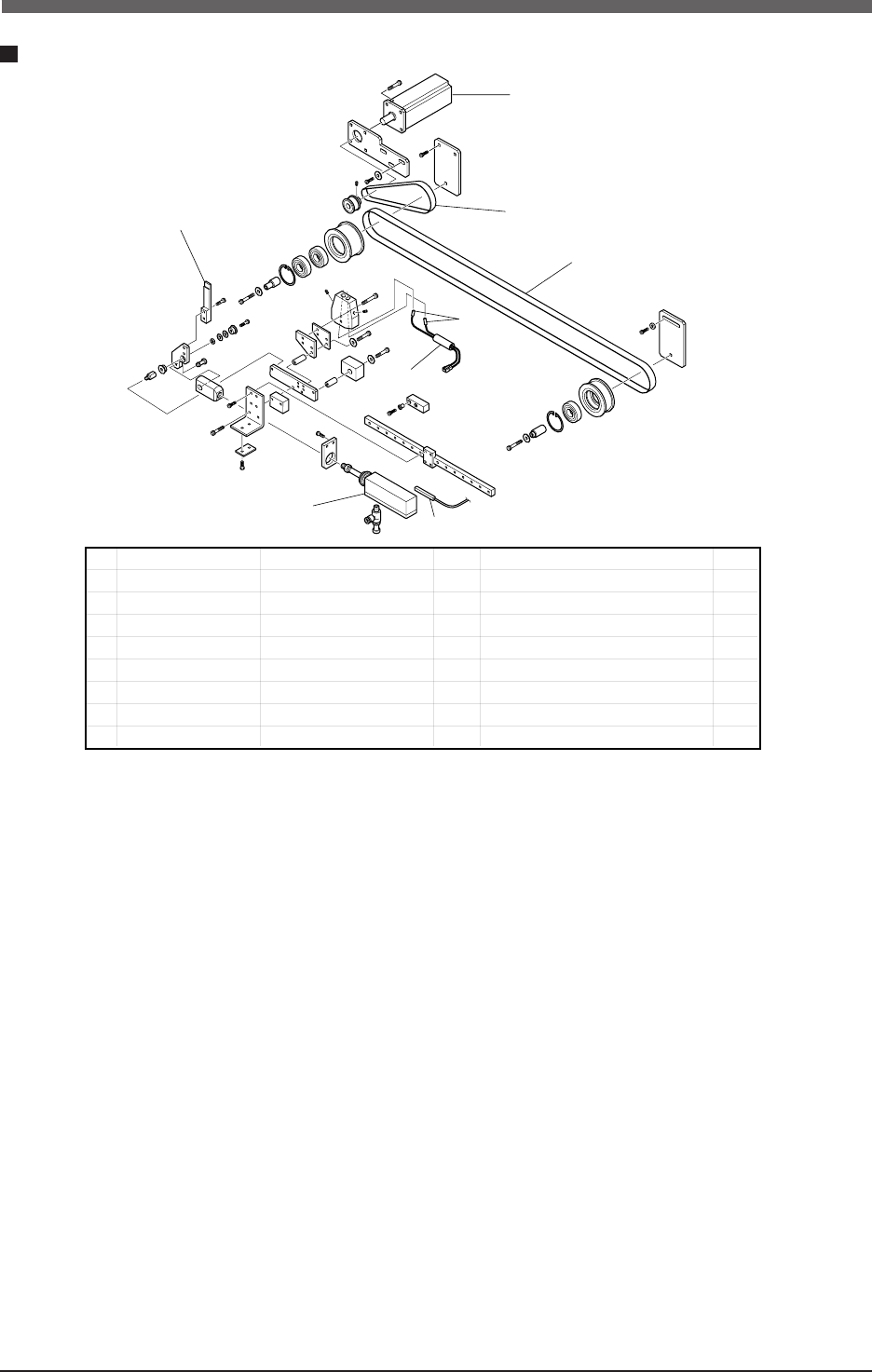

Main Stopper
1
8
3
2
4
5
7
6
No. Part No. Part Name Q'ty Remarks Rank
1 KGJ-M9161-01X BLOCK, STOPPER 1 A
2 KGJ-M9176-00X BELT1 1 A
3 KGJ-M9177-00X BELT2 1 A
4 KW3-M653G-10X AMP, ASSY. 1 Spare B
5 KW3-M654G-10X LIGHT FIBER 1 Spare B
6 KW3-M9167-A0X CYLINDER ASSY. 1 NDAS10x30 B
7 KW3-M653F-02X SENSOR, 5-1 ASSY. 1 CS11TA B
8 90K55-4W479P AC SERVO MOTOR 1 B
14
Maintenance Parts
AUG./2002

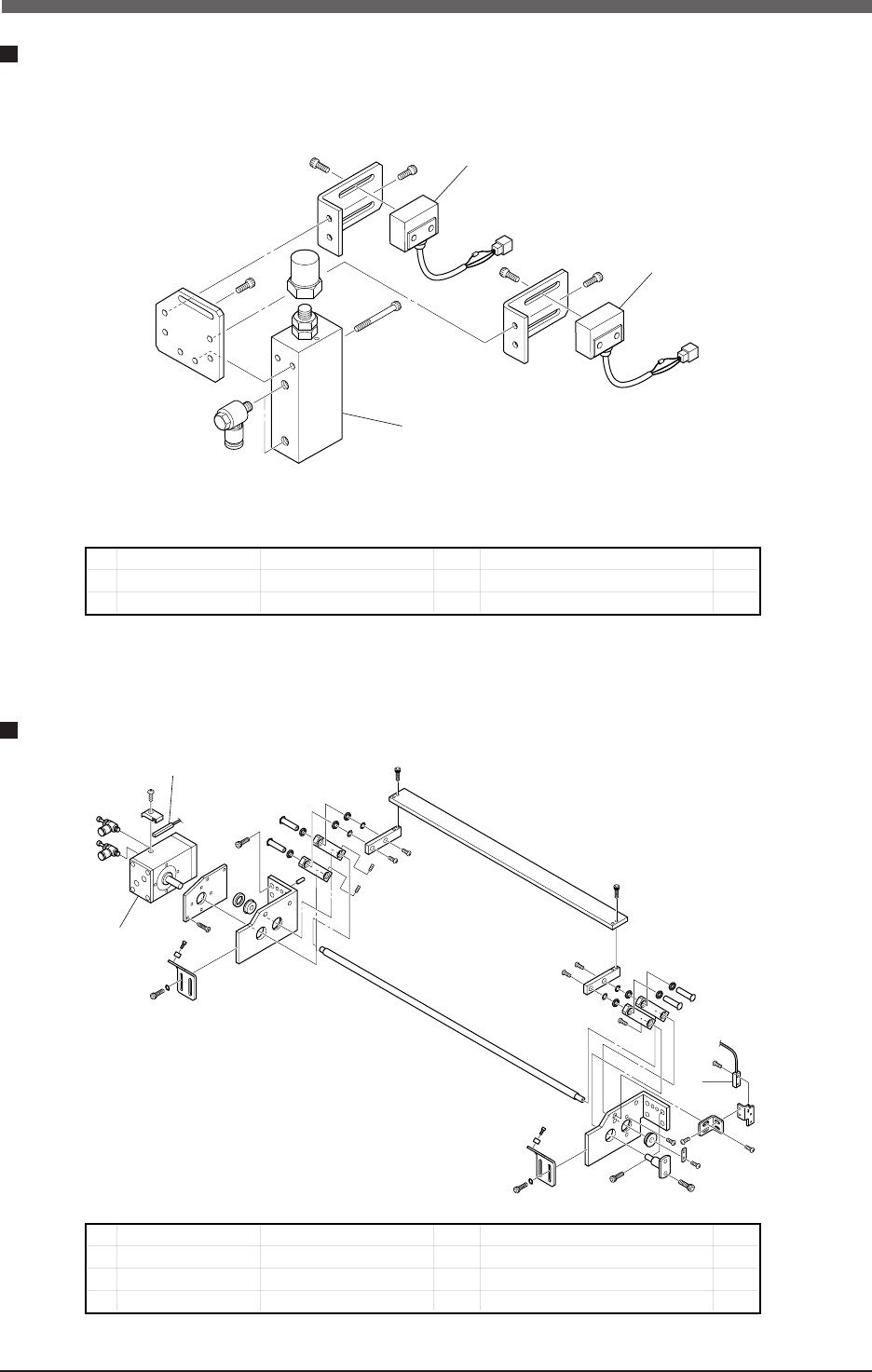

Exit Stopper
Board Stopper
2
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9283-00X CYL., YMDA16X35 1 YMDA16x35 B
2 KM0-M655F-10X SENSOR 1-3 (L=1150) 2 DZ-7232-PN2 B
1
3
2
No. Part No. Part Name Q'ty Remarks Rank
1 KGJ-M925G-00X ROTARY AC. 2 RAPS10-100 B
2 KW3-M653F-02X SENSOR, 5-1 ASSY. 2 CS11TA B
3 KH4-M655T-30X SENSOR, 1-12 (L=1000) 2 GXL-8FU B
