A-6
A2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
51
EZ4-705-584-11
SPACER (SQ-10)
ｽﾍﾟ-ｻ (SQ-10)
4
52
EZ4-706-151-11
CLAMP (KR5G5)
ﾊｲｾﾝﾄﾞﾒ (KR5G5)
1
53
EZ4-761-803-11
NUT, FINE U (TREATMENT HAVE)
ﾌｱｲﾝ U ﾅﾂﾄ (ｼﾖﾘ ｱﾘ) (FU00SS)
1
54
EZ7-623-208-22
SW 3,TYPE 2
SW 3,TYPE 2
2
55
EZ7-623-210-22
SW 4,TYPE 2
SW 4,TYPE 2
8
56
EZ7-624-198-21
STOP RING 10, TYPE C
C ｶﾞﾀ ﾄﾒﾜ 10 (ｼﾞｸ ﾖｳ)
1
57
EZ7-682-160-01
SCREW +P 4X6
+P 4X6
1
58
EZ7-682-954-01
SCREW +PSW 3X25
+PSW 3X25
4
59
EZ7-683-403-04
BOLT,HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
9
60
EZ7-683-404-04
BOLT,HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
26
61
EZ7-683-406-04
BOLT,HEXAGON SOCKET 3X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X12
12
62
EZ7-683-411-04
BOLT,HEXAGON SOCKET 3X25
6 ｶｸ ｱﾅ ﾂｷ ﾎﾞﾙﾄ 3X25
4
63
EZ7-683-419-04
BOLT HEXAGON SOCKET 4X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8
12
64
EZ7-683-420-04
BOLT,HEXAGON SOCKET 4X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10
4
65
EZ7-683-421-04
BOLT,HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X12
8
66
EZ7-683-423-04
BOLT,HEXAGON SOCKET 4X16
6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 4X16
24
67
EZ7-683-427-04
BOLT,HEXAGON SOCKET 4X25
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X25
4
68
EZ7-683-436-04
BOLT,HEXAGON SOCKET 5X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X12
4
69
EZ7-683-437-04
BOLT,HEXAGON SOCKET 5X14
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14
3
70
EZ7-683-440-04
BOLT,HEXAGON SOCKET 5X20
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X20
4
71
EZ7-683-442-04
BOLT,HEXAGON SOCKET 5X25
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X25
6
72
EZ7-683-444-04
BOLT,HEXAGON SOCKET 5X30
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X30
4
73
EZ7-688-004-11
W 4, MIDDLE
W 4, MIDDLE
4
74
EZ7-688-005-11
W 5, MIDDLE
W 5, MIDDLE
10
75
EZ4-455-213-11
PULLEY COVER X AXIS (R)
ﾌﾟ-ﾘ- ｶﾊﾞ- X ｼﾞｸ (R)
1
76
EZ4-471-955-11
CABLE CLAMP UPPER (RZ-L)
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ UPPER (RZ-L)
1
77
EZ4-471-954-11
CABLE CLAMP UPPER (RZ-R)
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ UPPER (RZ-R)
1
78
EZ4-455-282-01
CLAMP S Z, CABLE
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ S Z
1
79
EZ4-455-281-01
CLAMP L Z, CABLE
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ L Z
1
80
EZ4-471-956-11
CABLE CLAMP BRACKET (RZ)
ｹ-ﾌﾞﾙ ｸﾗﾝﾌﾟ ﾌﾞﾗｹﾂﾄ (RZ)
1
81
EZ4-455-280-11
PLATE Z, SENSOR (R)
ｾﾝｻ- ﾌﾟﾚ-ﾄ Z (R)
1
82
EZ1-492-214-11
SENSOR, LASER (ZX2-LD50 0.5M)
ﾚ-ｻﾞ- ｾﾝｻ (ZX2-LD50 0.5M)
1
83
EZ4-453-818-01
BOLT (CBSTSR3-5)
ﾁﾖｳ ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSTSR3-5)
8
84
EZ7-683-402-04
BOLT,HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
18
85
EZ7-682-154-01
SCREW +P 3X25
+P 3X25
2
A-7
A3

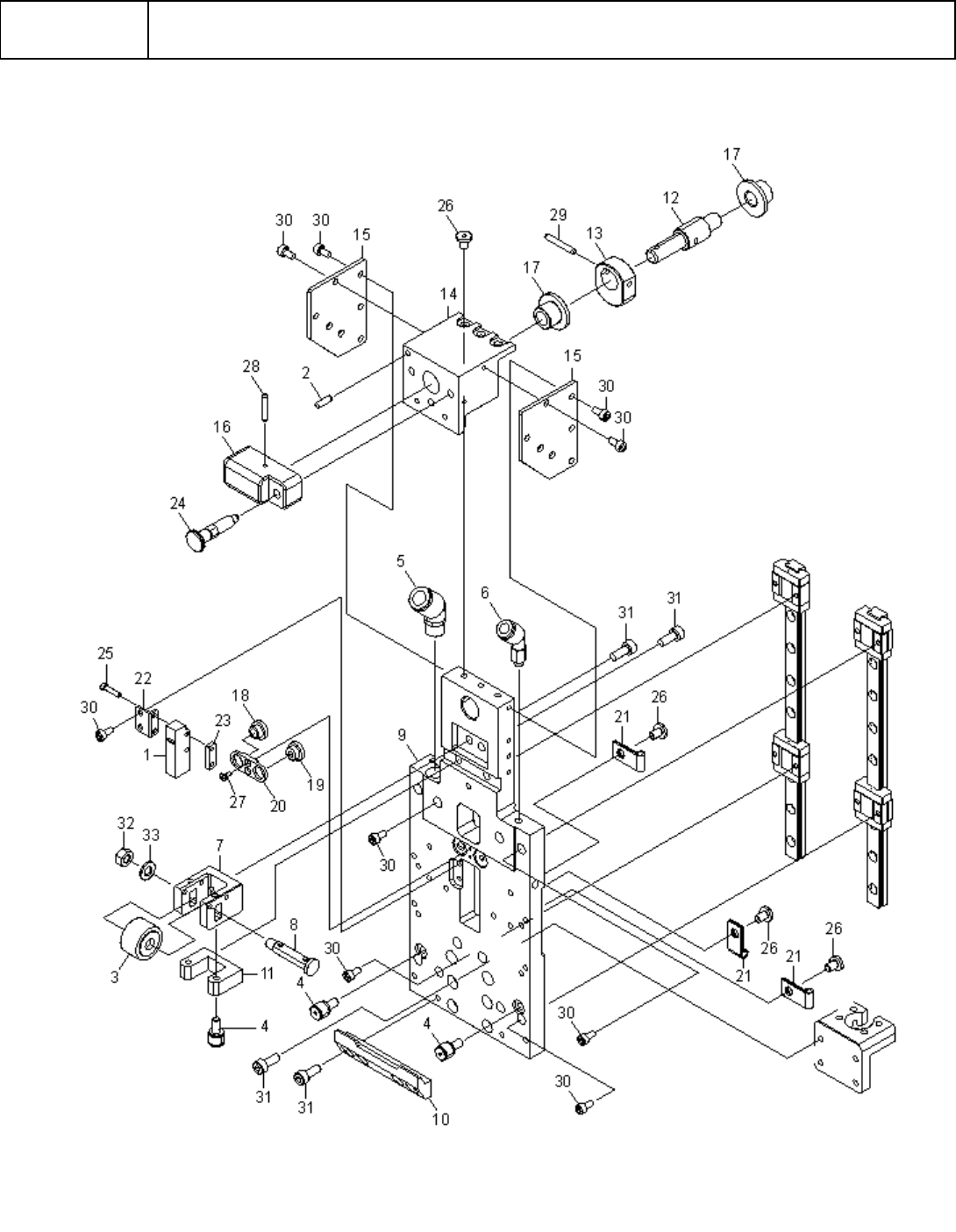

XYZ フレーム-2
XYZ frame - 2
