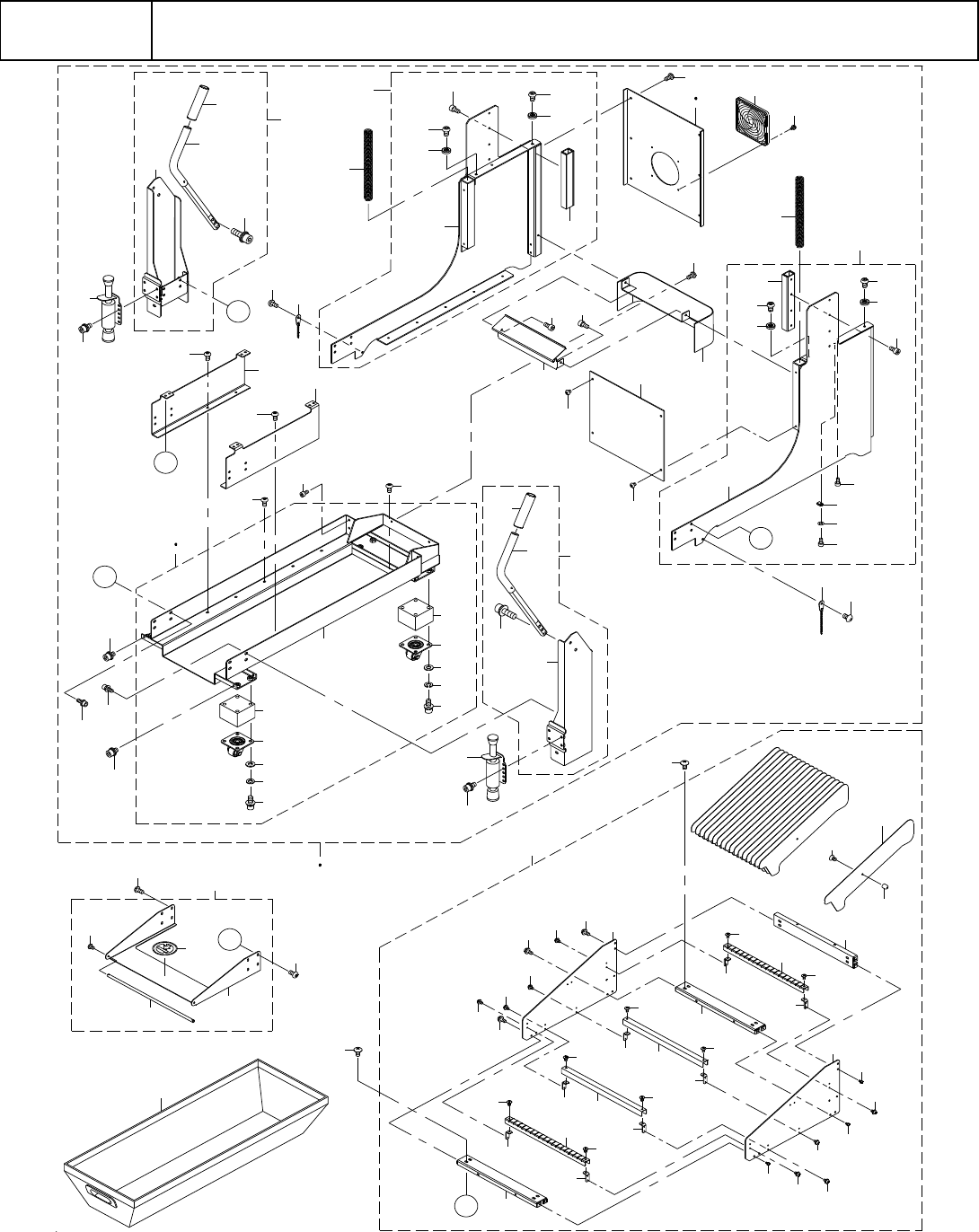

RX-7-Rev07PDFA - 第124页

A- 106 A 44 IFS- NX ユニット -1 IFS-NX unit - 1 3 4 5 5 5 6 5 7 1 5 1 2 1 3 1 9 2 0 2 1 2 1 2 0 2 7 2 6 2 6 2 7 2 3 2 4 2 8 2 9 3 0 3 0 2 2 3 1 3 3 3 3 6 3 5 3 5 3 6 3 6 3 2 3 7 3 8 3 8 3 9 1 8 2 5 4 3 4 3 4 2 5 4 4 4 4 5 4 …

100%1 / 226
A-106
A44
IFS-NX ユニット-1
IFS-NX unit - 1
3 4
5 5
5 6
5 7
1 5
1 2
1 3
1 9
2 0
2 1
2 1
2 0
2 7
2 6
2 6
2 7
2 3
2 4
2 8
2 9
3 0
3 0
2 2
3 1
3 3
3 3
6
3 5
3 5
3 6
3 6
3 2
3 7
3 8
3 8
3 9
1 8
2 5
4 3
4 3
4 2
5 4
4 4
4 5
4 4
4 5
4 6
4 7
4 6
4 7
4 8
4 8
6 1
6 2
6 0
6 4
6 5
6 5
6 1
6 0
6 2
6 3
6 3
5 9
5 9
6 6
6 7
6 7
6 3
6 0
6 0
6 1
6 3
6 4
6 5
6 0
6 5
6 0
6 7
6 0
6 6
6 2
6 0
6 7
6 1
6 3
6 1
6 1
6 3
6 1
6 1
5 8
7 1
7 1
A
A
7 6
7 4
7 5
7 7
7 7
7 2
7 3
B
B
C
3 3
3 3
3 4
5
1 7
7 8
1 6
5 2
1 4
1 1
5 3
C
1 2
5 0
5 1
4 9
6 9
7 0
6 8
6
1 0
1 0
9
7
8
7
9
8
4 0 4 1
A-107
A44
IFS-NX ユニット-1
IFS-NX unit - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
401-43572
TROLEY_STAND
ﾄﾛﾘｰｽﾀﾝﾄﾞ
1
2
401-45946
TROLEY_STAND_950
ﾄﾛﾘｰｽﾀﾝﾄﾞ_950
1
950MM 仕様
3
401-43573
STAND_BASE_ASSY
ｽﾀﾝﾄﾞﾍﾞｰｽｱｯｼｰ
(1)
4
401-45945
STAND_BASE_ASSY_950
ｽﾀﾝﾄﾞﾍﾞｰｽｱｯｼｰ_950
(1)
950MM 仕様
5
401-53358
STAND_BASE
ｽﾀﾝﾄﾞﾍﾞｰｽ
(1)
6
401-43493
CASTER
ｷｬｽﾀｰ
(4)
7
SL6-08209
SCREW M8 L=20
座金付き六角穴ﾎﾞﾙﾄ M8 L=20
(16)
8
WS-0820002-KN
SPRING WASHER M8
ﾊﾞﾈｻﾞｶﾞﾈ M8
(16)
950MM 仕様
9
WP-0841601-SC
WASHER 8.4X17.4X1.6
ﾋﾗｻﾞｶﾞﾈ ﾐｶﾞｷﾏﾙ M8
(16)
950MM 仕様
10
401-45947
CASTER_SPASER
ｷｬｽﾀｰｽﾍﾟｰｻｰ
(4)
950MM 仕様
11
401-43575
HANDLE_R_ASSY
ﾊﾝﾄﾞﾙ R ｱｯｼｰ
(1)
12
401-62284
HANDLE_BASE_R
ﾊﾝﾄﾞﾙﾍﾞｰｽ R
(1)
13
401-27991
TROLLEY_HANDLE
ﾄﾛﾘﾊﾝﾄﾞﾙ
(1)
14
E2641-729-000
HANDLE CLIP
ﾊﾝﾄﾞﾙｸﾞﾘｯﾌﾟ
(1)
15
SL-6082592-TN
SCREW M8 L=25
座金付き六角穴ﾎﾞﾙﾄ M8 L=25
(3)
16
401-43576
STAND_SIDE_BASE_L_ASSY
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ L ｱｯｼｰ
(1)
17
401-43496
STAND_SIDE_BASE_L
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ L
(1)
18
401-43497
SLIDE_RAIL
ｽﾗｲﾄﾞﾚｰﾙ
(1)
19
SM-6051002-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
20
400-89239
E_TROLLEY_PLATE
E ﾄﾛﾘｰﾌﾟﾚｰﾄ
(2)
21
SM-3061052-TN
SCREW M6 L=10
ﾏﾙﾈｼﾞ M6 L=10
(2)
22
401-43577
STAND_SIDE_BASE_R_ASSY
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ R ｱｯｼｰ
(1)
23
401-43498
STAND_SIDE_BASE_R
ｽﾀﾝﾄﾞｻｲﾄﾞﾍﾞｰｽ R
(1)
24
401-43497
SLIDE_RAIL
ｽﾗｲﾄﾞﾚｰﾙ
(1)
25
SM-6051002-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
26
400-89239
E_TROLLEY_PLATE
E ﾄﾛﾘｰﾌﾟﾚｰﾄ
(2)
27
SM-3061052-TN
SCREW M6 L=10
ﾏﾙﾈｼﾞ M6 L=10
(2)
28
HX-0015000-00
CABLE CLAMP
ｹｰﾌﾞﾙｸﾘｯﾌﾟ
(1)
29
WT-0430002-KN
WASHER M4
ﾊﾂｷｻﾞｶﾞﾈ M4
(1)
30
SM-6040802-TN
SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8
(2)
31
401-43499
REEL_HOLDER_SUPPORT_L
ﾘｰﾙﾎﾙﾀﾞｻﾎﾟｰﾄ L
(1)
32
401-43500
REEL_HOLDER_SUPPORT_R
ﾘｰﾙﾎﾙﾀﾞｻﾎﾟｰﾄ R
(1)
33
SM-3051052-TN
SCREW M5 L=10
ﾏﾙﾈｼﾞ M5 L=10
(10)
34
SM-6051002-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
35
SL-6061692-TN
SCREW M6 L=16
ｻﾞｶﾞﾈﾂｷﾛｯｶｸｱﾅﾎﾞﾙﾄ M6 L=16
(8)
36
SL-6061092-TN
SCREW M6 L=10
座金付き六角穴ﾎﾞﾙﾄ M6 L=10
(2)
37
401-43501
FRONT_COVER_BOTTOM
ﾌﾛﾝﾄｶﾊﾞｰﾎﾞﾄﾑ
(1)
38
SM-6051002-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(2)
39
SM-3051052-TN
SCREW M5 L=10
ﾏﾙﾈｼﾞ M5 L=10
(2)
40
401-64481
FRONT_COVER
ﾌﾛﾝﾄｶﾊﾞｰ
(1)
41
401-43502
FRONT_PLATE
ﾌﾛﾝﾄﾌﾟﾚｰﾄ
(1)
42
401-43503
BACK_PLATE
ﾊﾞｯｸﾌﾟﾚｰﾄ
(1)
43
SM-3040552-TN
SCREW M4 L=5
丸ねじ M4 L=5
(4)
44
E2711-721-000
TROLLEY STOPPER
ﾄﾛﾘｰｽﾄｯﾊﾟｰ
(2)
45
SL-6061292-TN
SCREW M6 L=12
座金付き六角穴ﾎﾞﾙﾄ M6 L=12
(4)
46
401-43504
GROUND_CHAIN
ｸﾞﾗｳﾝﾄﾞﾁｪｰﾝ
(2)
47
SM-3061252-TN
SCREW M6 L=12
ﾏﾙﾈｼﾞ M6 L=12
(2)
48
401-43505
SUPPORT_SP
ｻﾎﾟｰﾄｽﾌﾟﾘﾝｸﾞ
(2)
49
401-64219
TAPE_GUARD_F_S
ﾃｰﾌﾟｶﾞｰﾄﾞ F_S
(1)
50
HM-0010100-1B
FAN MOTOR
ﾌｨﾙﾀｰ
(1)
51
SL-4040881-SC
SCREW M4 L=8
ｻﾞｶﾞﾈﾂｷ ﾅﾍﾞｺﾈｼﾞ M4 L=8
(4)
52
SM-3051052-TN
SCREW M5 L=10
ﾏﾙﾈｼﾞ M5 L=10
(6)
53
401-43574
HANDLE_L_ASSY
ﾊﾝﾄﾞﾙ L ｱｯｼｰ
(1)
54
401-62283
HANDLE_BASE_L
ﾊﾝﾄﾞﾙﾍﾞｰｽ L
(1)
