A- 122 A48 RF フィーダ用 一括交換台車 -3 Replacing overal l changer truc k for RF feeder -3 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 401 -69726 CUTTER_UNIT_K ｶｯﾀｰﾕﾆｯﾄ K 1 2 401 -69744 BASE_CUTTER_A ﾍﾞｰ…

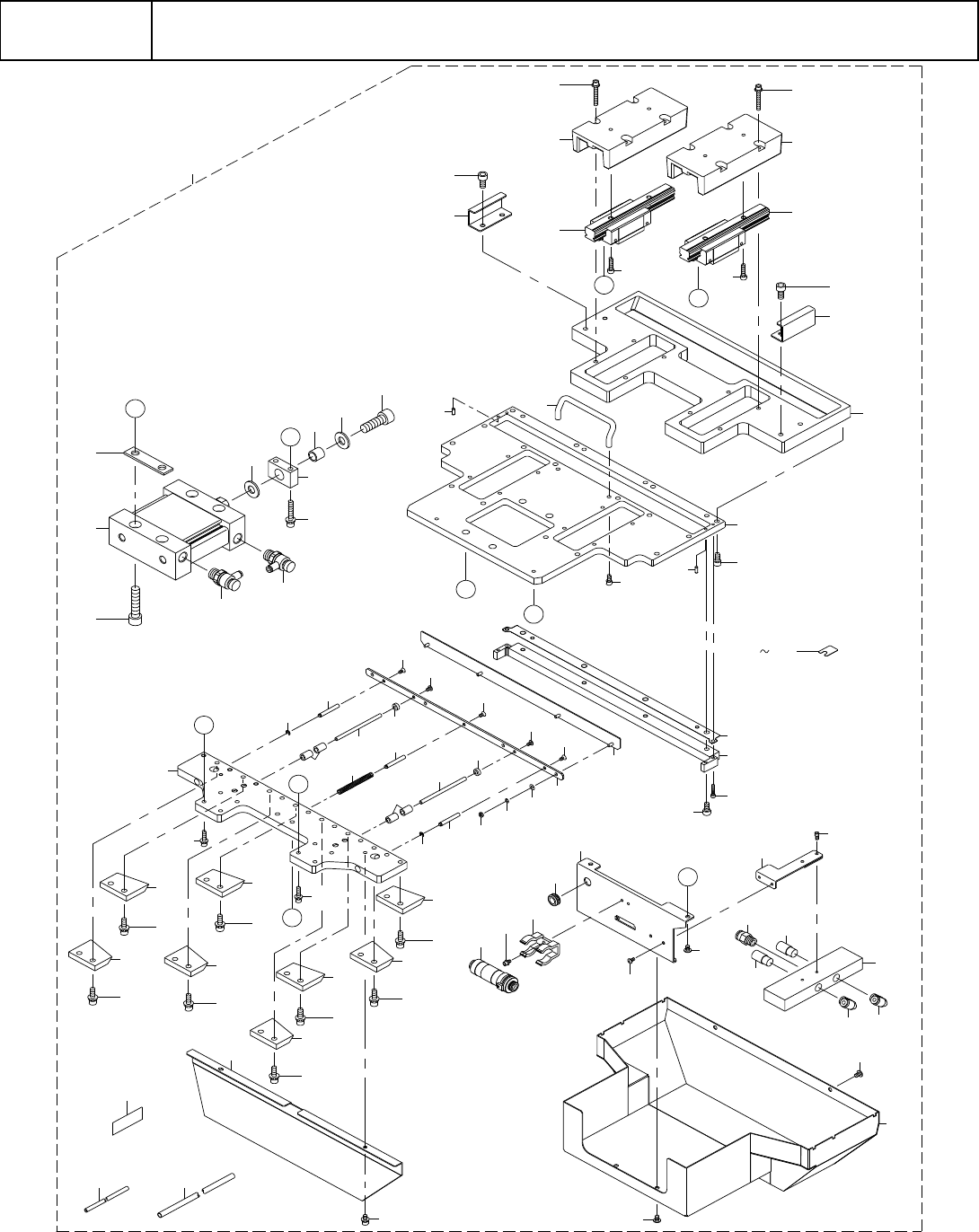

A-121
A48
RF フィーダ用 一括交換台車 -3
Replacing overall changer truck for RF feeder -3
1
A
5 5
5 4
5 4
5 1
5 2
6 6
6 5
5 6
5 7
6 0
6 0
5 9
5 9
6 1
5 8
6 2
3 3
3 3
3 2
3 1
3 4
3 6
3 5
A
2 8
3 5
3 7
2 9
B
B
1 0
1 0
1 1
1 1
1 2
1 2
1 3
1 3
9
8
1 4
1 5
1 7
1 5
1 8
1 7
1 6
1 9
1 9
2 0
2 3
2 0
2 3
2 0
2 1
2 1
2 1
2 2
2 4
2 7
2 6
2 5
1 8
3 0
3 0
3 8
3 9
4 0
4 3
4 5
4 7
4 8
4 8
4 6
4 8
4 7
4 6
4 8
4 6
4 8
4 8
4 7
4 8
4 7
4 8
4 6
4 9
5 0
6 3
6 4
5 3
6 6
6 7
C
C
D
D
E
E
5
5
4 4
3
4
2
7
6
7
6
A-122
A48
RF フィーダ用 一括交換台車 -3
Replacing overall changer truck for RF feeder -3
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
401-69726
CUTTER_UNIT_K
ｶｯﾀｰﾕﾆｯﾄ K
1
2
401-69744
BASE_CUTTER_A
ﾍﾞｰｽｶｯﾀｰ A
(1)
3
401-69745
BASE_CUTTER_B
ﾍﾞｰｽｶｯﾀｰ B
(1)
4
SM-6051002-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(16)
5
PH-0300080-U0
PARALLEL PIN TYPE B 3X8
平行ﾋﾟﾝ B 種 3×8
(2)
6
401-69747
GUIDE_ANGLE
ｶﾞｲﾄﾞｱﾝｸﾞﾙ
(2)
7
SM-6051002-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
8
E1046-717-000
X COVER HANDLE
X ｶﾊﾞｰﾊﾝﾄﾞﾙ
(1)
9
SM-6040802-TN
SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8
(2)
10
401-67529
SUB_BASE_CUTTER
ｻﾌﾞﾍﾞｰｽｶｯﾀｰ
(2)
11
401-67577
LINEAR GUIDE
ﾘﾆｱｶﾞｲﾄﾞ
(2)
12
SM-6041602-TN
SCREW M4X16
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X16
(4)
13
SL-6043092-TN
SCREW M4 L=30
座金付き六角穴ﾎﾞﾙﾄ M4 L=30
(8)
14
401-67548
SLIDE_BASE_LOWER_EDGE
ｽﾗｲﾄﾞﾍﾞｰｽﾛﾜｰｴｯｼﾞ
(1)
15
SB-7040001-00
BEARING
ころがり軸受
(4)
16
401-67578
HOLD_PLATE
ﾎｰﾙﾄﾞﾌﾟﾚｰﾄ
(1)
17
401-67549
HOLD_COLLAR
ﾎｰﾙﾄﾞｶﾗｰ
(2)
18
401-67550
HOLDER_GUIDE_SHAFT
ﾎﾙﾀﾞｶﾞｲﾄﾞｼｬﾌﾄ
(2)
19
EZ4-453-818-01
BOLT (CBSTSR3-5)
ﾁﾖｳ ｺﾞｸ ﾃｲﾄｳ ﾎﾞﾙﾄ (CBSTSR3-5)
(2)
20
401-67579
SPRING_GUIDE_SHAFT
ｽﾌﾟﾘﾝｸﾞｶﾞｲﾄﾞｼｬﾌﾄ
(3)
21
SM-1030601-SC
SCREW M3X6
ｻﾗﾈｼﾞ M3X6
(3)
22
401-67580
HOLD_SPRING
ﾎｰﾙﾄﾞｽﾌﾟﾘﾝｸﾞ
(1)
23
RE-0250000-K0
E-RING 2.5
E 形止め輪 2.5
(2)
24
401-67581
FACE_PLATE
ﾌｪｲｽﾌﾟﾚｰﾄ
(1)
25
WP-0320501-SC
WASHER M3
ﾋﾗｻﾞｶﾞﾈ M3
(4)
26
WS-0310002-KN
SPRING WASHER M3
ﾊﾞﾈｻﾞｶﾞﾈ M3
(4)
27
NM-6030003-SC
NUT M3X0.5 TYPE3
六角 ﾅｯﾄ M3X0.5 3 種
(4)
28
401-67551
CONNECTION_BLOCK
ｺﾈｸｼｮﾝﾌﾞﾛｯｸ
(1)
29
SL-6053092-TN
SCREW M5 L=30
座金付き六角穴ﾎﾞﾙﾄ M5 L=30
(2)
30
SL-6041692-TN
SCREW M4 L=16
座金付き六角穴ﾎﾞﾙﾄ M4 L=16
(8)
31
401-67582
SPACER
ｽﾍﾟｰｻ
(2)
32
PA-5003501-00
AIR CYLINDER
ｴｱ ｼﾘﾝﾀﾞ
(1)
33
PC-0152040-00
SPEED CONTROLLER
ｽﾋﾟｰﾄﾞ ｺﾝﾄﾛｰﾗ
(2)
34
SM-6084002-TN
SCREW M8 L=40
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M8 L=40
(4)
35
401-67585
WASHER_10_21
ﾜｯｼｬ 10_21
(2)
36
401-67586
COLLAR
ｶﾗｰ
(1)
37
SM-6103002-TN
SCREW M10 L=30
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M10 L=30
(1)
38
401-69746
UPPER_EDGE
ｱｯﾊﾟｰｴｯｼﾞ
(1)
39
401-67587
SHIM_UPPER_EDGE
ｼﾑｱｯﾊﾟｰｴｯｼﾞ
(2)
40
400-84713
E_BANK_SHIM_0.02
E ﾊﾞﾝｸｼﾑ 0.02
(2)
41
400-84714
E_BANK_SHIM_0.03
E ﾊﾞﾝｸｼﾑ 0.03
(2)
42
400-84715
E_BANK_SHIM_0.05
E ﾊﾞﾝｸｼﾑ 0.05
(2)
43
400-84699
E_BANK_SHIM_0.10
E ﾊﾞﾝｸｼﾑ 0.10
(2)
44
SM-6051002-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(4)
45
SM-6031402-TP
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(2)
46
401-69742
LOWER_EDGE_A
ﾛﾜｰｴｯｼﾞ A
(4)
47
401-69743
LOWER_EDGE_B
ﾛﾜｰｴｯｼﾞ B
(4)
48
SL-6051692-TN
SCREW M5 L=16
座金付き六角穴ﾎﾞﾙﾄ M5 L=16
(16)
49
401-67588
COVER_LOWER_EDGE
ｶﾊﾞｰﾛﾜｰｴｯｼﾞ
(1)
50
SL-6040892-TN
SCREW M4 L=8
座金付き六角穴ﾎﾞﾙﾄ M4 L=8
(2)
51
401-67535
FILTER_BR
ﾌｨﾙﾀﾌﾞﾗｹｯﾄ
(1)
52
HX-0025300-00
GROMMET
ﾌﾞｯｼｭ
(1)
53
SM-0040601-SC
SCREW M4X0.7 L=6
ﾄﾗｽｺﾈｼﾞ M4X0.7 L=6
(2)
A-123
A48
RF フィーダ用 一括交換台車 -3
Replacing overall changer truck for RF feeder -3
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
54
EZ4-453-560-01
FILTER(FSL200-66-B) INLINE
ｲﾝﾗｲﾝ ﾌｲﾙﾀ(FSL200-66-B)
(1)
55
SL-6030692-TN
SCREW M3 L=6
座金付き六角穴ﾎﾞﾙﾄ M3 L=6
(2)
56
401-67589
SOLENOID_BR
ｿﾚﾉｲﾄﾞ BR
(1)
57
SM-0030601-SC
SCREW M3X6
ﾄﾗｽﾈｼﾞ M3X6
(2)
58
401-68969
CUTTER SOLENOID VALVE ASM
ｶｯﾀｰ ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ｸﾐ
(1)
59
EZ4-426-151-01
SILENCER(AN10-01)
ｻｲﾚﾝｻ(AN10-01)
(2)
60
EZ4-447-092-01
UNION (KQ2L04-01NS) ELBOW
ｴﾙﾎﾞ ﾕﾆｵﾝ (KQ2L04-01NS)
(2)
61
PJ-3010651-03
HALF UNION 6XPT1/8
ﾊｰﾌ ﾕﾆｵﾝ 6XPT1/8
(1)
62
SM-6030602-TN
SCREW M3X6
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M3X6
(2)
63
BT-0400251-EA
URETHANE TUBE BLUE 4X2.5
ﾎﾟﾘｳﾚﾀﾝ ﾁｭｰﾌﾞ 青 4X2.5
(0.2)
64
BT-0600400-EC
URETHANE TUBE BLUE 6X4
ﾎﾟﾘｳﾚﾀﾝ ﾁｭｰﾌﾞ 青 6X4
(0.3)
65
401-67590
COVER_CUTTER
ｶﾊﾞｰｶｯﾀｰ
(1)
66
SM-0040601-SC
SCREW M4X0.7 L=6
ﾄﾗｽｺﾈｼﾞ M4X0.7 L=6
(4)
67
E9635-455-000
REVISION SEAL
REV ﾒｲﾊﾝ
(1)
