A- 26 A 12 ヘッド ASSY-3 Head assy - 3
A-25
A11
ヘッド ASSY-2
Head assy - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
EZ1-492-165-13
SENSOR ASSY (NOZZLE SHAFT)
ｾﾝｻ- ASSY (ﾉｽﾞﾙ / ｼｬﾌﾄｹﾝｼｭﾂ)
2
2
EZ4-454-015-01
NUT, PLATE
ｲﾀ ﾅﾂﾄ
2
3
EZ4-454-830-01
LOW HEAD SCREW (M3X4)
ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X4)
9
4
EZ4-457-753-01
CONNECT PLATE (2)
ﾚﾝｹﾂ ﾌﾟﾚ-ﾄ (2)
1
5
EZ4-465-279-01
HEAD COVE RBRACKET
ﾍﾂﾄﾞ ｶﾊﾞ- ﾌﾞﾗｹﾂﾄ
1
6
EZ7-683-000-23
BOLT, HEXAGON SOCKET 2X8
6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 2X8
4
7
EZ7-683-480-24
BOLT, HEXAGON SOCKET 2X5
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2X5
4
8
EZ1-492-167-11
MOTOR ASSY (VALVE)
ﾓ-ﾀ- ASSY (ﾊﾞﾙﾌﾞ)
1
9
EZ1-492-168-11
SENSOR ASSY (VALVE)
ｾﾝｻ- ASSY (ﾊﾞﾙﾌﾞ)
1
10
EZ1-492-168-11
SENSOR ASSY (VALVE)
ｾﾝｻ- ASSY (ﾊﾞﾙﾌﾞ)
1
11
EZ4-454-007-01
VALEV LEVER HOLDER
ﾊﾞﾙﾌﾞ ﾚﾊﾞ- ﾎﾙﾀﾞ-
1
12
EZ4-454-008-01
VALVE MOTOR BASE BARCKET
ﾊﾞﾙﾌﾞ ﾓ-ﾀ ﾍﾞ-ｽ ﾌﾞﾗｹﾂﾄ
1
13
EZ4-454-010-01
CAM FOLLOWER SHAFT
ｶﾑ ﾌｵﾛｱ ｼﾔﾌﾄ
1
14
EZ4-454-014-01
NOZZLE SENSOR BRACKET
ﾉｽﾞﾙ ｾﾝｻ- ﾌﾞﾗｹﾂﾄ
1
15
EZ4-454-040-01
LEVER SHAFT
ﾚﾊﾞ- ｼﾔﾌﾄ
2
16
EZ4-454-046-01
BEARING (MR83)
ﾍﾞｱﾘﾝｸﾞ (MR83)
2
17
EZ4-454-067-01
CAMFLLOWER (CFS3)
ﾐﾆﾁﾕｱ ｶﾑﾌｵﾛｱ (CFS3)
1
18
EZ4-454-073-01
LM GUIDE MLC7R45
LM ｶﾞｲﾄﾞ (MLC7R45)
1
19
EZ4-454-715-01
LEVER SHAFT BEARING COLLAR
ﾚﾊﾞ- ｼﾔﾌﾄ ﾍﾞｱﾘﾝｸﾞ ｶﾗ-
2
20
EZ4-457-186-01
PLATE, SENSOR BRACKET
ｾﾝｻ- ﾌﾞﾗｹﾂﾄ ﾄﾘﾂｹ ﾌﾟﾚ-ﾄ
1
21
EZ4-457-187-01
PLATE, LEVER SENSOR FITTING
ﾚﾊﾞ- ｾﾝｻ ﾄﾘﾂｹ ﾌﾟﾚ-ﾄ
1
22
EZ4-457-188-01
LEVER SENSOR DOG
ﾚﾊﾞ- ｾﾝｻ ﾄﾞｸﾞ
1
23
EZ4-457-202-01
LEVER BLOCK
ﾚﾊﾞ- ﾌﾞﾛﾂｸ
1
24
EZ4-701-529-01
TIE MOUNT (MB1)
ﾀｲﾏｳﾝﾄ (MB1)
6
25
EZ4-718-721-01
BOLT HEXAGON SOCKET(M2X3 SUS)
ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M2X3 SUS)
4
26
EZ7-621-996-05
BOLT HEXAGON SOCKET 2.6X5
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.6X5
4
27
EZ7-682-247-04
SCREW +K 3X6
+K 3X6
6
28
EZ7-683-404-04
BOLT,HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
7
29
EZ7-683-405-04
BOLT,HEXAGON SOCKET 3X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10
5
30
EZ7-683-480-14
BOLT, HEXAGON SOCKET 2X4
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2X4
1
31
EZ7-684-023-04
N 3 TYPE 2
N 3 TYPE 2
2
32
EZ7-683-403-04
BOLT,HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
14
33
EZ3-681-308-02
BOLT (M2X6), HOLE, HEXAGON
ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ M2X6
32
34
401-55272
SLIT (OS-EX10-12)
ｽﾘｯﾄ (OS-EX10-12)
1

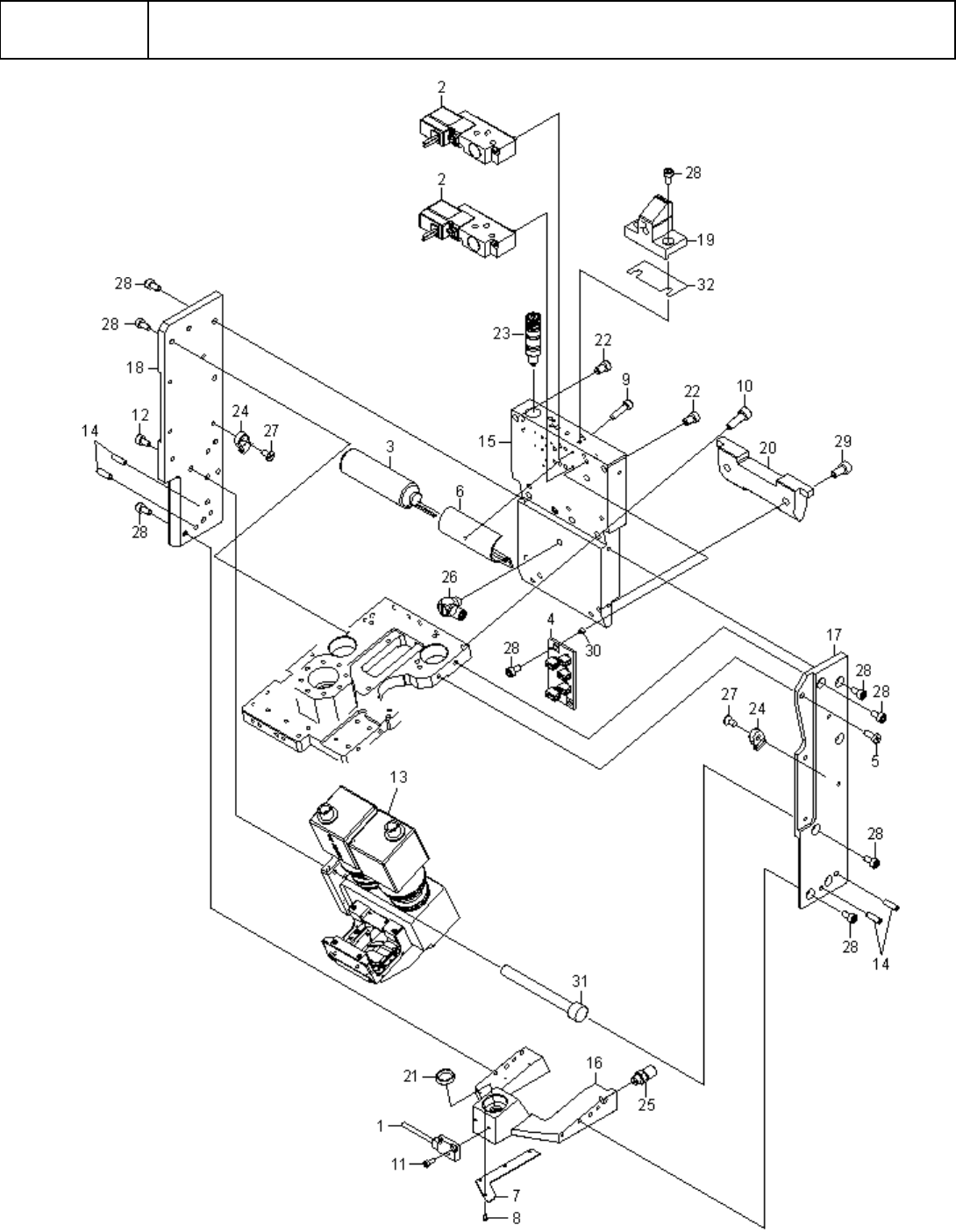

A-26
A12
ヘッド ASSY-3
Head assy - 3
A-27
A12
ヘッド ASSY-3
Head assy - 3
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
EZ1-492-165-13
SENSOR ASSY (NOZZLE SHAFT)
ｾﾝｻ- ASSY (ﾉｽﾞﾙ / ｼｬﾌﾄｹﾝｼｭﾂ)
2
2
EZ1-492-166-12
SOLENOID VALVE ASSY (BLW)
ｿﾚﾉｲﾄﾞ ﾊﾞﾙﾌﾞ ASSY (BLW)
2
3
EZ1-492-202-12
BATTERY ASSY
ﾊﾞﾂﾃﾘ- ASSY
1
4
EZ1-895-367-12
BOARD BACKUP MONITORING
ﾊﾞﾂｸｱﾂﾌﾟ ﾓﾆﾀ- ﾎﾞｰﾄﾞ
1
5
EZ4-454-723-01
LOW HEAD SCREW (M3X8)
ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X8)
1
6
EZ4-458-314-01
BATTERY CLIP
ﾊﾞﾂﾃﾘ- ｸﾘﾂﾌﾟ
1
7
EZ4-458-495-02
COVER, WIRING
ﾊｲｾﾝ ｶﾊﾞ-
1
8
EZ7-627-551-18
SCREW,PRECISION +P 1.4X2
ｾｲﾐﾂﾈｼﾞ +P 1.4X2.0, TYPE 1
4
9
EZ7-683-406-04
BOLT,HEXAGON SOCKET 3X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X12
2
10
EZ7-683-421-04
BOLT HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12)
3
11
EZ7-683-480-24
BOLT, HEXAGON SOCKET 2X5
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2X5
4
12
EZ7-683-405-04
BOLT,HEXAGON SOCKET 3X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10
5
13
EZ1-845-163-11
UNIT, CAMERA MOVE (MX-155-100)
ｲﾄﾞｳ ｶﾒﾗ ﾕﾆﾂﾄ (MX-155-100)
1
14
EZ3-703-360-51
PIN, PARALLEL (DIA. 3X8)
ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 3X8)
4
15
EZ4-453-950-01
PLATE, HEAD BASE
ﾍﾂﾄﾞﾌﾞ ﾍﾞ-ｽ ﾌﾟﾚ-ﾄ
1
16
EZ4-453-951-01
PLATE, BOTTOM
ﾎﾞﾄﾑ ﾌﾟﾚ-ﾄ
1
17
EZ4-453-952-01
PLATE (1), SIDE
ｻｲﾄﾞ ﾌﾟﾚ-ﾄ (1)
1
18
EZ4-453-953-01
PLATE (2), SIDE
ｻｲﾄﾞ ﾌﾟﾚ-ﾄ (2)
1
19
EZ4-453-994-01
BLOCK, CLAMP
ｸﾗﾝﾌﾟ ﾌﾞﾛﾂｸ
1
20
EZ4-453-997-01
HEAD FIXING BLOCK
ﾍﾂﾄﾞｶﾞﾜ ｺﾃｲ ﾌﾞﾛﾂｸ
1
21
EZ4-454-074-01
MINIATURE Y PACKING MYA-8
ﾐﾆ Y ﾊﾟﾂｷﾝ (MYA-8)
1
22
EZ4-457-781-01
STOPPER PIN
ｽﾄﾂﾊﾟ- ﾋﾟﾝ
2
23
EZ4-458-768-01
DECOMPRESSION VALVE (MR001)
ｹﾞﾝｱﾂﾍﾞﾝ (MR001)
1
24
EZ4-701-529-01
TIE MOUNT (MB1)
ﾀｲﾏｳﾝﾄ (MB1)
2
25
EZ4-702-269-01
NIPPLE (M-5H-4), HOSE
ﾎ-ｽ ﾆﾂﾌﾟﾙ (M-5H-4)
1
26
EZ4-702-324-01
ELBO (M-5HL-4), HOSE
ﾎ-ｽ ｴﾙﾎﾞ (M-5HL-4)
1
27
EZ7-682-247-04
SCREW +K 3X6
+K 3X6
2
28
EZ7-683-403-04
BOLT,HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
14
29
EZ7-683-419-04
BOLT HEXAGON SOCKET 4X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8
2
30
EZ4-454-032-01
SPACER, GEAR
ｷﾞｱﾖｳ ｽﾍﾟ-ｻ-
7
31
EZ4-472-629-01
SHAFT, REINFORCE
ﾎｷﾖｳﾖｳ ｼﾔﾌﾄ
1
32
EZ4-465-277-01
HEAD CLAMP BLOCK SHIM (T0.1)
ﾍﾂﾄﾞ ｸﾗﾝﾌﾟ ﾌﾞﾛﾂｸ ｼﾑ (T0.1)
1
EZ4-465-277-11
HEAD CLAMP BLOCK SHIM (T0.2)
ﾍﾂﾄﾞ ｸﾗﾝﾌﾟ ﾌﾞﾛﾂｸ ｼﾑ (T0.2)
2
EZ4-465-277-21
HEAD CLAMP BLOCK SHIM (T0.5)
ﾍﾂﾄﾞ ｸﾗﾝﾌﾟ ﾌﾞﾛﾂｸ ｼﾑ (T0.5)
1
