A - 31 A14 ヘッド ASSY -5 Head assy - 5 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ1 - 492 - 547 - 14 MOTOR ASSY (H) MOTOR ASSY (H) 1 2 401 - 78054 B EA RING COLLAR ﾍﾞｱﾘﾝｸﾞｶﾗｰ 1 3 EZ2 - 148 - 0…

100%1 / 226
A-30
A14
ヘッド ASSY-5
Head assy - 5
A-31
A14
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
EZ1-492-547-14
MOTOR ASSY (H)
MOTOR ASSY (H)
1
2
401-78054
BEARING COLLAR
ﾍﾞｱﾘﾝｸﾞｶﾗｰ
1
3
EZ2-148-082-01
FOLLOWER, MINIATURE CAM (CFS2.5)
ﾐﾆﾁﾕｱ ｶﾑ ﾌｵﾛｱ (CFS2.5)
1
4
EZ3-657-877-01
PIN, PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (ﾅﾝｼﾂ)
2
5
EZ3-703-358-52
PIN PARALLEL (DIA. 2X6)
ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 2X6)
2
6
EZ4-453-913-01
LEVER, HOLDER
ﾚﾊﾞ- ﾎﾙﾀﾞ
1
7
EZ4-453-947-01
RETAINER (2), BEARING
ﾍﾞｱﾘﾝｸﾞ ｵｻｴ (2)
1
8
EZ4-453-948-01
COLLAR, H AXIS
H ｼﾞｸ ｶﾗ-
1
9
EZ4-453-955-01
BRACKET, MOTOR
ﾓ-ﾀ ﾌﾞﾗｹﾂﾄ
1
10
EZ4-453-956-01
HOLDER (1), BEARING
ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (H 1)
1
11
EZ4-453-957-01
HOLDER (H 2), BEARING
ﾍﾞｱﾘﾝｸﾞ ﾎﾙﾀﾞ (H 2)
1
12
EZ4-453-958-01
PLATE (1), SUPPORT
ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (1)
1
13
EZ4-453-959-01
PLATE (2), SUPPORT
ｻﾎﾟ-ﾄ ﾌﾟﾚ-ﾄ (2)
1
14
EZ4-453-961-01
SHAFT, LINEAR
ﾘﾆｱ ｼﾔﾌﾄ
1
15
EZ4-453-962-01
H AXIS NUT HOLDER
H ｼﾞｸ ﾅﾂﾄ ﾎﾙﾀﾞ
1
16
EZ4-454-012-01
STOPPER (H), UPPER
H ｼﾞｸ ｱﾂﾊﾟ- ｽﾄﾂﾊﾟ-
1
17
EZ4-454-013-01
STOPPER (H), UNDER
H ｼﾞｸ ｱﾝﾀﾞ- ｽﾄﾂﾊﾟ-
1
18
EZ4-454-044-01
COUPLING (SFC-005SA2-5B-5B)
ｶﾂﾌﾟﾘﾝｸﾞ (SFC-005SA2-5B-5B)
1
19
EZ4-454-047-01
BEARING (MR105)
ﾍﾞｱﾘﾝｸﾞ (MR105)
2
20
EZ4-454-048-01
LINEAR BUSH
ﾘﾆｱ ﾌﾞﾂｼﾕ (SM6G-LUU)
1
21
EZ4-454-050-01
LOCK NUT (LNM6X0.75)
ﾛﾂｸ ﾅﾂﾄ (LNM6X0.75)
1
22
EZ4-454-051-01
BEARING (AC6-16DF)
ｱﾝｷﾞﾕﾗ ﾍﾞｱﾘﾝｸﾞ (AC6-16DF)
1
23
EZ4-454-055-01
BALL SCREW (WHF0612S-3.4GT+)
ﾎﾞ-ﾙ ﾈｼﾞ (WHF0612S-3.4GT+)
1
24
EZ4-454-725-01
RING (12)
ｱﾅﾖｳ C ｶﾞﾀ ﾄﾒ ﾜ (12)
1
25
EZ4-718-766-01
SET-SCREW (M3X4 SUS), HEAD
ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X4 SUS)
2
26
EZ7-683-000-10
BOLT, HEXAGON SOCKET 3X30
6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 3X30
1
27
EZ7-683-403-04
BOLT,HEXAGON SOCKET 3X6
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X6
33
28
EZ7-683-404-04
BOLT,HEXAGON SOCKET 3X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X8
4
29
EZ7-683-481-04
BOLT, HEXAGON SOCKET 2.5X4
6 ｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.5X4
3

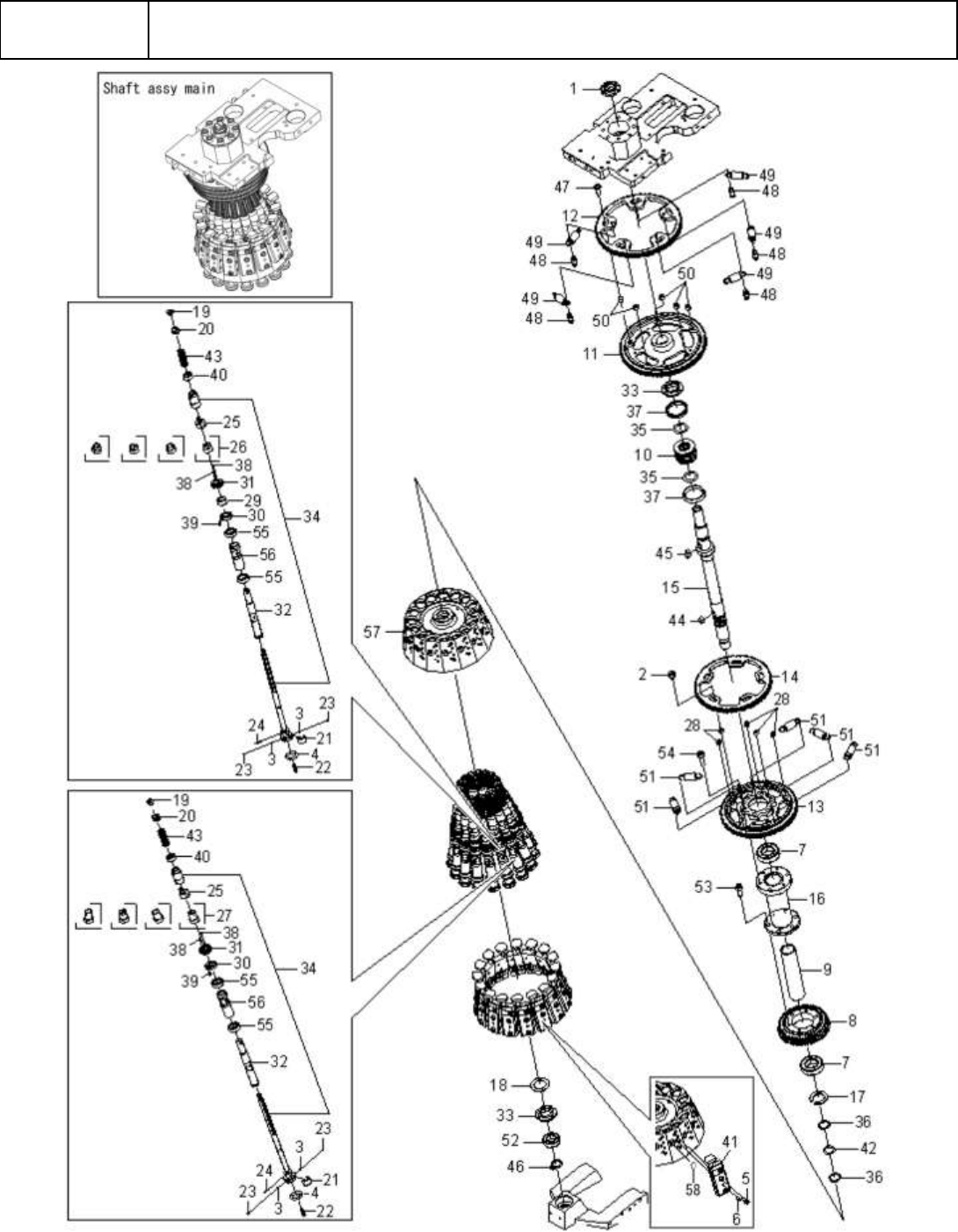

A-32
A15
ヘッド ASSY-6
Head assy - 6
