A-40
A17
P8 ヘッド ASSY-2
P8 Head assy-2
55
401-56612
RETAINING RING CURICENT TYPE(5103-46)
ｸﾘｾﾝﾄﾄﾒﾜ(5103-46)
8
56
401-56640
HEXAGON SOCKET SCREW(M2.52.5)_FLAT TYPE
ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ(M2.5x2.5)ﾋﾗｻｷ
16
57
EZ3-278-152-01
SHOE SET
ｾﾂﾄ ｼﾕ-
16
58
401-56148
HOLDER_SPLINE NUT
ｽﾌﾟﾗｲﾝﾅｯﾄﾎﾙﾀﾞｰ
1
59
401-56149
NUT_SPLINE
ｽﾌﾟﾗｲﾝﾅｯﾄ
1
60
401-56150
SHAFT_SPLINE
ｽﾌﾟﾗｲﾝｼｬﾌﾄ
1
61
401-56168
STOPPER_SHAFT
ｼｬﾌﾄｽﾄｯﾊﾟｰ
1
62
401-56425
CYLINDER_SPECIAL(SPC1-4-7.5-Z14-007)
ﾄｸｼｭｼﾘﾝﾀﾞ(SPC1-4-6.5-Z14-007)
1
63
401-56637
NUT 2TYPE(M2SUS)_HEXAGON
ﾛｯｶｸﾅｯﾄ 2TYPE(M2SUS)
1
64
401-56744
BARB FITTING(M-3ALU-2)
ﾊﾞｰﾌﾞﾂｷﾞﾃ(M-3ALU-2)
1
65
401-56422
SPLINE_INNER(LT4XUS+88.5LPF)
ｲﾝﾅｰｽﾌﾟﾗｲﾝ(LT4XUS+88.5LPF)
2
66
401-56421
SPLINE_INNER(LT4XUS+88.0LPF)
ｲﾝﾅｰｽﾌﾟﾗｲﾝ(LT4XUS+88.0LPF)
2
67
401-56420
SPLINE_INNER(LT4XUS+87.5LPF)
ｲﾝﾅｰｽﾌﾟﾗｲﾝ(LT4XUS+87.5LPF)
4
68
EZ3-279-059-02
SPRING (O RING -D#) O RING
ﾉｽﾞﾙ O ﾘﾝｸﾞ ﾊﾞﾈ (O ﾘﾝｸﾞ -D*)
8
69
EZ4-719-920-01
BALL ROPE (DIA 2+-0 MICRONE)
ｺｳｷﾕｳ (ﾏﾙ 2+-0 ﾐｸﾛﾝ.JIS B1501*)
16
70
401-56412
BEARING(6705HW2RUC0)
ﾍﾞｱﾘﾝｸﾞ(6705HW2RUC0)
1
71
401-56458
LOW HEAD CAP SCREW(M3X12)_HEX SOCKET
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳﾎﾞﾙﾄ(M3x12)
6
72
401-56604
SHAFT OUTER ASSY
ｱｳﾀｰｼｬﾌﾄ ASSY
1
73
SM-6044002-TN
SCREW M4X0.7 L=40
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=40
2
74
401-55917
POST_RN SPRING
RN ｽﾌﾟﾘﾝｸﾞﾎﾟｽﾄ
4
75
401-55920
SPACER_RN GEAR
RN ｷﾞｱｰｽﾍﾟｰｻｰ
4
76
401-56287
GEAR_RN(1)
ｷﾞｱｰ RN(1)
1
77
401-56288
GEAR_RN(2)
ｷﾞｱｰ RN(2)
1
78
EZ4-454-723-01
LOW HEAD SCREW (M3X8)
ﾃｲﾄｳ ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ (M3X8)
4
79
401-55888
COLLAR(2)_BEARING
ﾍﾞｱﾘﾝｸﾞｶﾗｰ(2)
1
80
401-56136
SHAFT_CENTER
ｾﾝﾀｰｼｬﾌﾄ
1
81
401-56413
BEARING(6704-H-ZZS)
ﾍﾞｱﾘﾝｸﾞ(6704-H-ZZS)
1
82
RC-1850001-KP
C-RING 20 (18.5)
C 形止め輪 20 (18.5)
1
83
WP-0280500-SC
WASHER
ﾋﾗｻﾞｶﾞﾈ ｺｶﾞﾀﾏﾙ M2.5
8
84
401-56164
BLOCK_MANIFOLD
ﾏﾆﾎｰﾙﾄﾞﾌﾞﾛｯｸ
1
85
401-56413
BEARING(6704-H-ZZS)
ﾍﾞｱﾘﾝｸﾞ(6704-H-ZZS)
1
86
401-56414
BEARING(6702-H-ZZ)
ﾍﾞｱﾘﾝｸﾞ(6702-H-ZZ)
1
87
401-56442
O RING(SOP15)_CAP
ｷｬｯﾌﾟ O-ﾘﾝｸﾞ(SOP15)
2
88
401-56443
O RING(SOP20)_CAP
ｷｬｯﾌﾟ O-ﾘﾝｸﾞ(SOP20)
1
A-41
A18

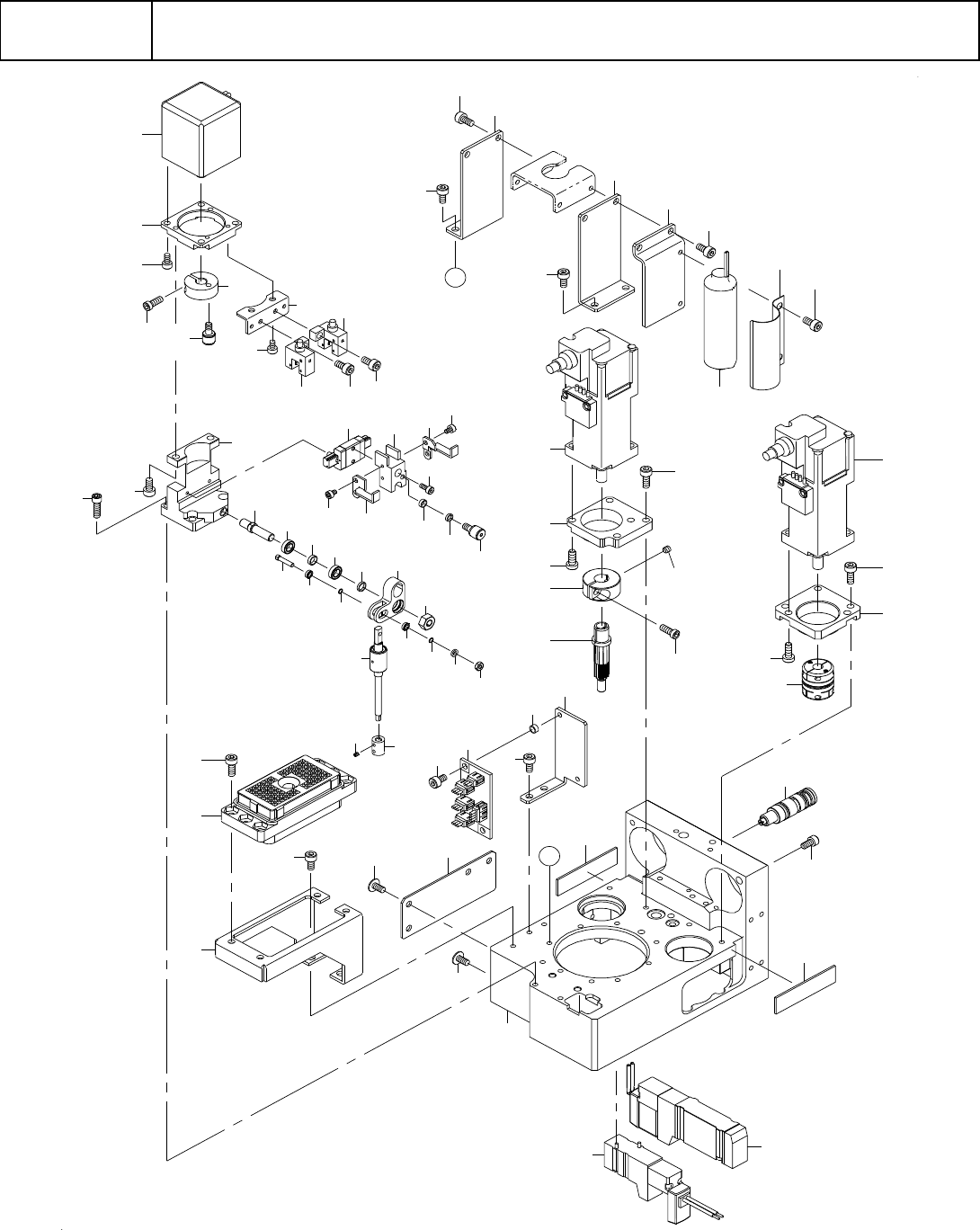

P8 ヘッド ASSY-3
P8 Head assy -3
1
8
5 2
5 0
5 3
5 1
5 7
5 5
5 8
5 4
5 6
5 9
6 0
3 9
4 4
2 9
3 0
4 3
3 5
4 1
4 7
4 0
4 0
4 6
4 6
3 3
3 8
2 0
1 9
4 7
3 1
3 2
4 8
4 8
4 5
2 2
2 1
3 7
2 7
3 7
2 7
3 4
2 8
4 2
3 6
3 6
2 6
2 5
4 9
4 6
6 1
6 5
6 4
6 2
6 3
1 2
1 2
7
1 1
1 1
1 1
4
4
1 1
6
1 8
1 1
5
1 5
1 6
1 0
1 1
2
1 1
9
2 4
2 3
1 3
1 4
1 2
1 7
3
1 7
A
A
9
