A-43
A18
P8 ヘッド ASSY-3
P8 Head assy-3
55
401-56152
BASE(RT)_MOTOR
ﾓｰﾀｰﾍﾞｰｽ RT
1
56
401-56286
GEAR_RT DRIVING
RT ﾄﾞﾗｲﾌﾞｷﾞｱｰ
1
1
57
401-56510
MOTOR ASSY (RT)
MOTOR ASSY (RT)
58
401-56611
LOW HEAD CAP SCREW(M3X8)_HEXAGON SOCKET
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳﾎﾞﾙﾄ(M3x8)
2
59
401-56626
LOW_SMALL HEAD CAP SCREW(M3X8)_HEAXGON S
ﾛｯｶｸｱﾅﾂｷﾃｲﾄｳｼｮｳｱﾀﾏﾎﾞﾙﾄ(M3x8)
1
60
EZ3-170-255-01
SCREW (M3X3)
ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M3X3)
1
61
401-56131
BASE_UPPER
ｳｴﾍﾞｰｽ
1
62
401-56537
SOLENOID VALVE ASSY(BLW)
SOLENOID VALVE ASSY (BLW)
1
63
401-56618
SOLENOID VALVE ASSY (CAM)
SOLENOID VALVE ASSY (CAM)
1
64
401-56638
LOCATING PIN(SFPDPC3-P5-L6-B3-CN)
ｲﾁｷﾞﾒﾋﾟﾝ(SFPDPC3-P5-L6-B3-CN)
2
65
EZ4-458-768-01
DECOMPRESSION VALVE (MR001)
ｹﾞﾝｱﾂﾍﾞﾝ (MR001)
1
A-44
A19

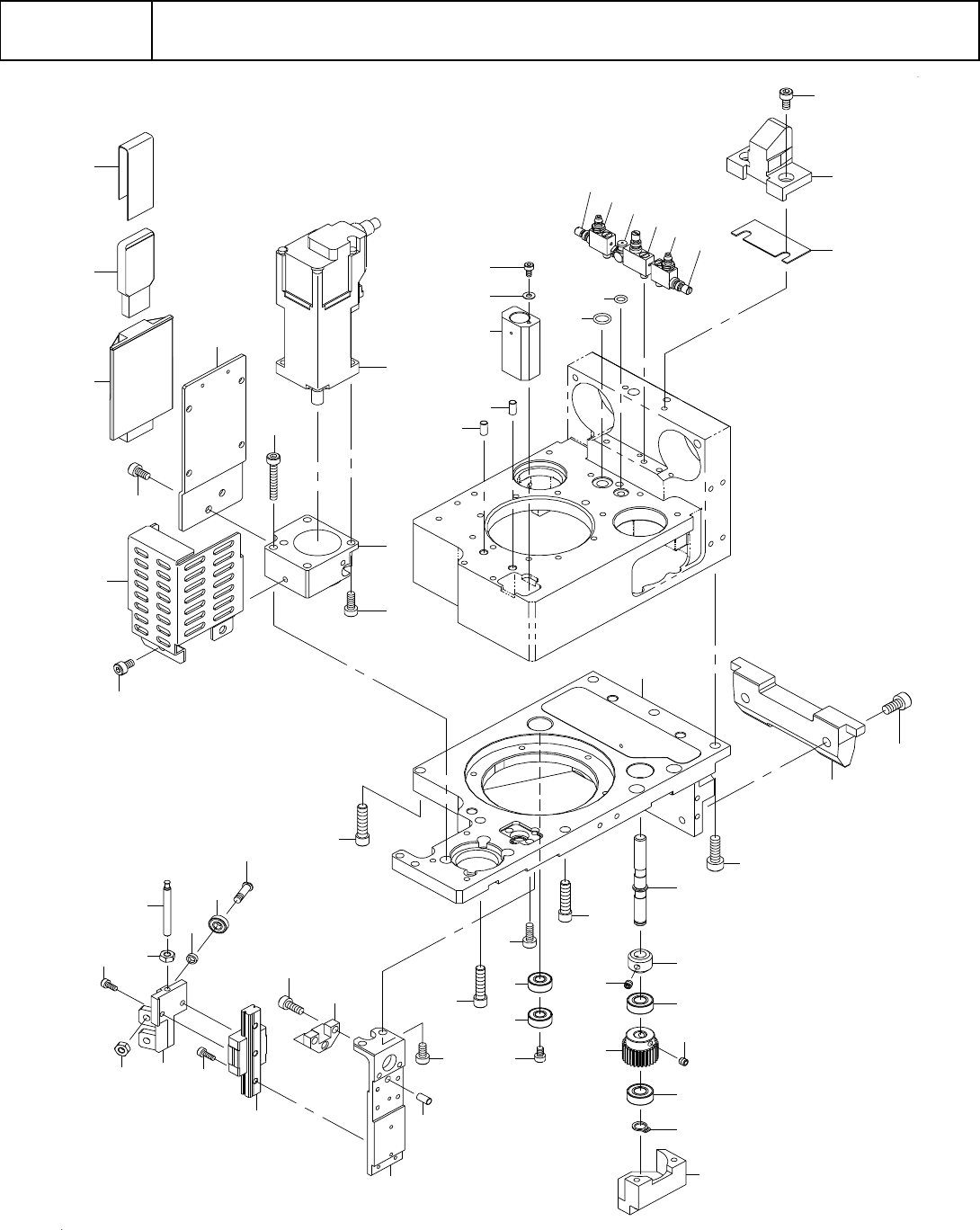

P8 ヘッド ASSY-4
P8 Head assy -4
2 8
3 1
3 8
4 1
4 0
3 9
4 2
4 2
4 3
4 1
1 0
8
1 2
9
1 1
1 6
2 7
2 9
3 2
2 5
3 4
3 5
2 4
3 6
3 6
2 6
3 0
5 1
5 1
4 5
5 2
5 0
2 2
1 9
6
6
6
1 8
3
3
1 3
2
1 7
1 4
5 3
5
4
4 7
4 8
4 6
4 6
4 9
4 9
7
1 5
4 4
3 3
2 0
2 1
2 3
3 7
1
