A-66
A29
電装 BOX-1

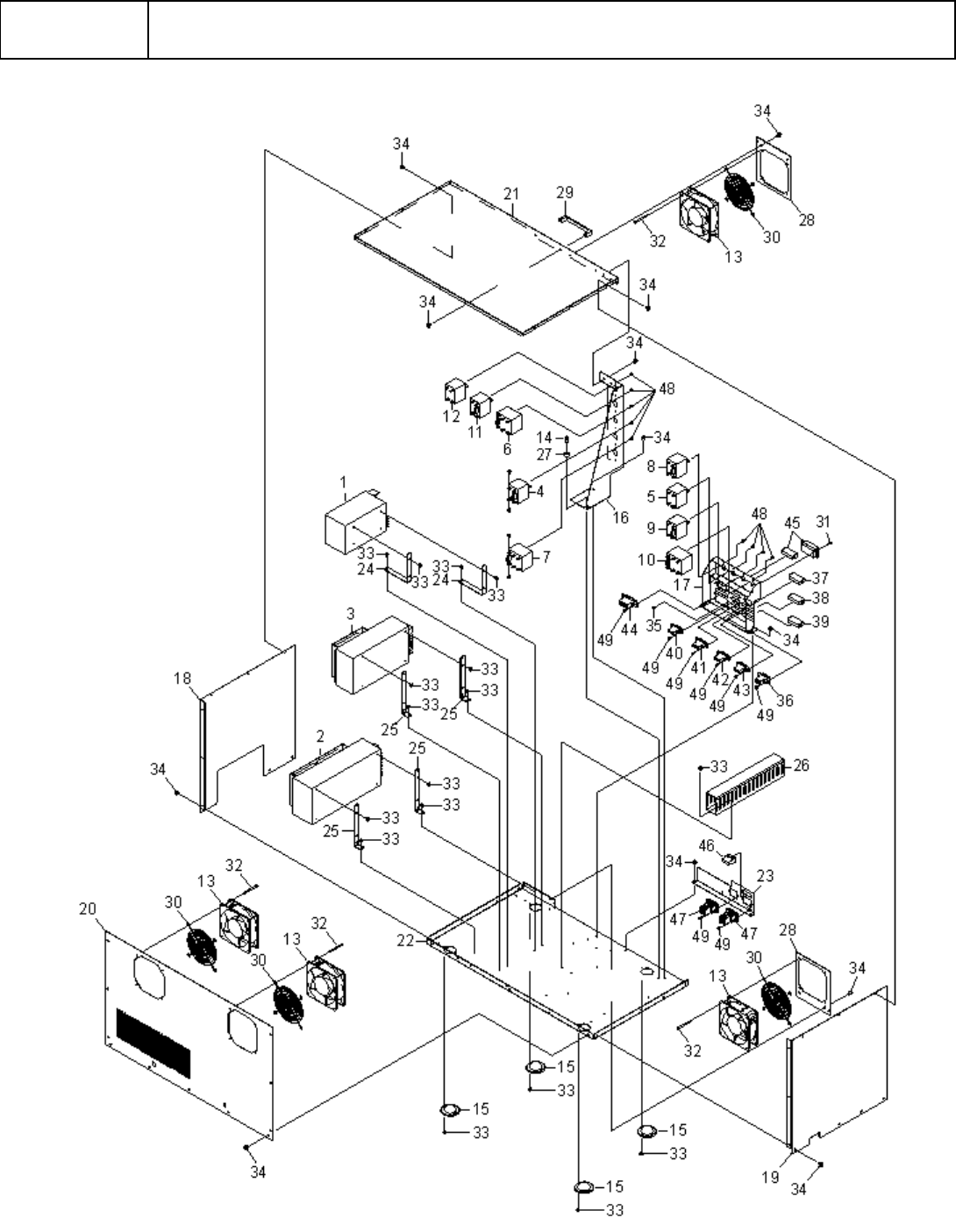

Electrical box - 1
A-67
A29
電装 BOX-1

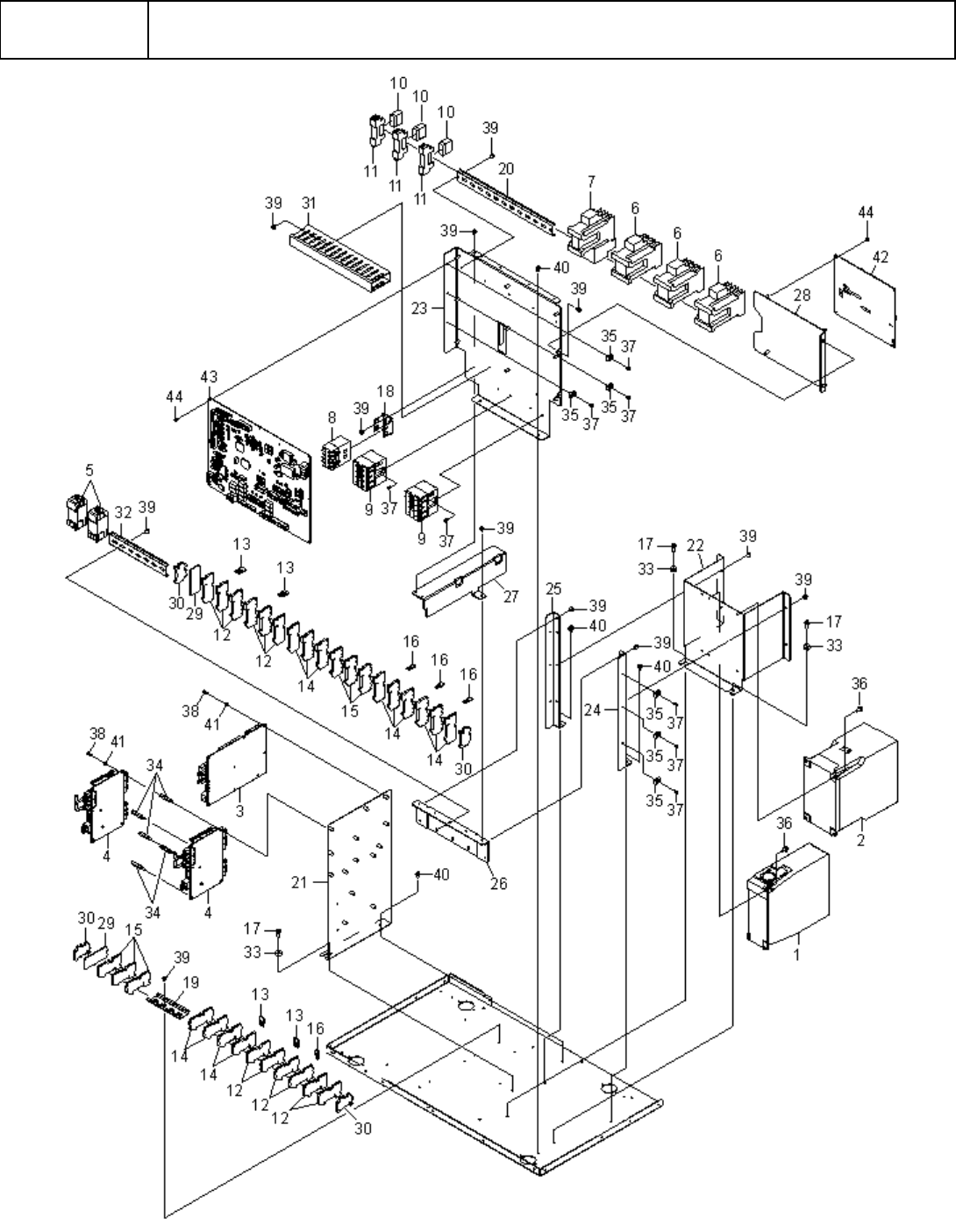

Electrical box - 1
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
EZ1-474-521-11
REGULATOR,SWITCHING(HWS600P-*)
REGULATOR,SWITCHING(HWS600P-*)
1
2
EZ1-474-528-11
REGULATOR,SWITCHING(ADA1000F*)
REGULATOR,SWITCHING(ADA1000F*)
1
3
EZ1-474-529-11
REGULATOR,SWITCHING(ADA750F-*)
REGULATOR,SWITCHING(ADA750F-*)
1
4
EZ1-523-270-11
BREAKER, CIRCUIT(CP32V/2WDN)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/2WDN)
1
5
EZ1-523-272-11
BREAKER, CIRCUIT(CP32V/15WDC)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/15WDC)
1
6
EZ1-523-273-11
BREAKER, CIRCUIT(CP33V/2W)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP33V/2W)
1
7
EZ1-523-275-11
BREAKER, CIRCUIT(CP33V/20WDN)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP33V/20WDN)
1
8
EZ1-523-295-11
BREAKER, CIRCUIT (CP32V/30WDC)
BREAKER, CIRCUIT (CP32V/30WDC)
1
9
EZ1-523-303-11
BREAKER, CIRCUIT (CP32V/10WDC)
BREAKER, CIRCUIT (CP32V/10WDC)
1
10
EZ1-523-304-11
BREAKER, CIRCUIT(CP33V/7.5WDC)
BREAKER, CIRCUIT(CP33V/7.5WDC)
1
11
EZ1-533-718-11
BREAKER, CIRCUIT (CP32V/7.5W)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/7.5W)
1
12
EZ1-576-339-11
BREAKER, CIRCUIT (CP32V/3)
ｻ-ｷﾂﾄ ﾌﾞﾚ-ｶ (CP32V/3)
1
13
EZ1-763-987-11
FAN (4715MS-20T-B5A-B01)
ﾌｱﾝ (4715MS-20T-B5A-B01)
4
14
EZ2-580-608-01
SCREW, +PSW M5X16
SCREW, +PSW M5X16
1
15
EZ4-180-708-01
CASTER (K-142-8L), BALL
ﾎﾞ-ﾙ ｷﾔｽﾀ- (K-142-8L)
4
16
EZ4-453-730-02
PANEL (ACCP), FRONT COVER
ｼﾖｳﾒﾝ ﾊﾟﾈﾙ (ACCP)
1
17
EZ4-453-731-03
PANEL (DCCP), FRONT COVER
ｼﾖｳﾒﾝ ﾊﾟﾈﾙ (DCCP)
1
18
EZ4-453-732-03
PANEL (R), SIDE
ｿｸﾒﾝ ﾊﾟﾈﾙ R
1
19
EZ4-453-733-01
PANEL (L), SIDE
ｿｸﾒﾝ ﾊﾟﾈﾙ L
1
20
EZ4-453-734-01
PANEL, REAR
ﾊｲﾒﾝ ﾊﾟﾈﾙ
1
21
EZ4-453-735-02
PANEL, UPPER
ｼﾞﾖｳﾌﾞ ﾊﾟﾈﾙ
1
22
EZ4-453-737-05
PANEL, MAIN BASE
ﾒｲﾝ ﾍﾞ-ｽ ﾊﾟﾈﾙ
1
23
EZ4-453-744-03
PANEL, AC CONNECTOR
AC ｺﾈｸﾀ ﾊﾟﾈﾙ
1
24
EZ4-453-746-02
BRACKET, POWER FITTING
ｽｲﾂﾁﾝｸﾞ ﾃﾞﾝｹﾞﾝ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ
2
25
EZ4-453-763-01
BRACKET (F-ADA-2)
ﾃﾞﾝｹﾞﾝ ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ (F-ADA-2)
4
26
EZ4-453-971-01
DUCT (AD-462), WIRING
ﾊｲｾﾝ ﾀﾞｸﾄ (AD-462 ｾﾞﾝﾁﾖｳ 1M)
1
27
EZ4-459-135-01
COLLAR(CLJGJ14-5-6-TC2)
ｼﾞﾕｼ ｶﾗ- (CLJGJ14-5-6-TC2)
1
28
EZ4-472-227-01
BRACKET, FAN
ﾌｱﾝ ﾌﾞﾗｹﾂﾄ
2
29
EZ4-705-232-11
HANDLE 3, SQUARE (165-4)
ｶｸｶﾞﾀ 3 ｺﾞｳ ﾄﾂﾃ (A165-4)
1
30
EZ4-720-311-01
GUARD, FAN (PG-47-02)
ﾌｱﾝ ｶﾞ-ﾄﾞ (PG-47-02)
4
31
EZ7-682-150-01
SCREW +P 3X12
+P 3X12
4
32
EZ7-682-172-01
SCREW +P 4X50
+P 4X50
16
33
EZ7-682-961-01
SCREW +PSW 4X8
+PSW 4X8
28
34
EZ7-682-973-11
SCREW +PSW 5X10
+PSW 5X10
37
35
EZ7-684-023-04
N 3 TYPE 2
N 3 TYPE 2
4
36
EZ1-969-094-13
HARNESS (CP9-SV3, 4, 5)
ﾊ-ﾈｽ (CP9-SV3, 4, 5)
1
37
EZ1-969-085-12
HARNESS (SDIO CN2701-IO1)
ﾊ-ﾈｽ (SDIO CN2701-IO1)
1
38
EZ1-969-084-14
HARNESS (SDIO CN2903-H-IO)
ﾊ-ﾈｽ (SDIO CN2903-H-IO)
1
39
EZ1-969-084-24
HARNESS (SDIO CN2904-H-IO)
ﾊ-ﾈｽ (SDIO CN2904-H-IO)
1
40
EZ1-969-102-11
HARNESS (ATX-TP, POW)
ﾊ-ﾈｽ (ATX-TP, POW)
1
41
EZ1-969-779-11
HARNESS (TB5-BOX CN3)
ﾊ-ﾈｽ (TB5-BOX CN3)
1
42
EZ1-969-780-11
HARNESS (TB5-BOX CN4)
ﾊ-ﾈｽ (TB5-BOX CN4)
1
43
EZ1-969-083-13
HARNESS(TB5-CONV, POW3)
ﾊ-ﾈｽ (TB5-CONV, POW3)
1
44
EZ1-969-098-13
HARNESS (CR2, 3-TROLLY, POW)
ﾊ-ﾈｽ (CR2, 3-TROLLY, POW)
1
45
EZ1-969-099-16
HARNESS (SDIO CN2800-2 ECT-IF)
ﾊ-ﾈｽ (SDIO CN2800-2 ECT-IF)
1
46
EZ1-969-092-12
HARNESS (CP3-VAC)
ﾊ-ﾈｽ (CP3-VAC)
1
47
EZ1-969-065-12
HARNESS(ACIN-TB1)
ﾊ-ﾈｽ (ACIN-TB1)
1
48
EZ7-682-947-01
SCREW +PSW 3X6
+PSW 3X6
18
49
EZ7-682-948-01
SCREW +PSW 3X8
+PSW 3X8
16
