A- 71 A31 PC UNIT PC UNIT ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 EZ1- 458 - 642 - 11 MEMORY 4GB(TS512MLK64V3N) ﾒﾓﾘ 4GB (TS512MLK64V3N) 1 2 EZ1- 474 - 020 - 11 PO W ER, A TX (ENSP3- 450P -S…
A-70
A31
PC UNIT
PC UNIT
A-71
A31
PC UNIT
PC UNIT
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
EZ1-458-642-11
MEMORY 4GB(TS512MLK64V3N)
ﾒﾓﾘ 4GB (TS512MLK64V3N)
1
2
EZ1-474-020-11
POWER, ATX (ENSP3-450P-S20-H1V)
ATX ﾃﾞﾝｹﾞﾝ (ENSP3-450P-S20-H1V)
1
3
EZ1-492-163-11
FAN ASSY(109P0912H4D01)
ﾌｱﾝ ASSY (109P0912H4D01)
1
4
EZ1-756-676-11
BATTERY (BS10A-H24/2.0L)
ﾊﾞﾂﾃﾘ (BS10A-H24/2.0L)
1
5
EZ1-786-766-11
SWITCH, PUSH BUTTON (FB-15ANP2
ｵｼﾎﾞﾀﾝ ｽｲﾂﾁ (FB-15ANP2)
1
6
EZ1-805-664-11
INDICATOR LIGHT, LED (UP06-67G
LED ﾋﾖｳｼﾞﾄｳ (UP06-67G)
1
7
EZ1-805-664-21
NDICATOR LIGHT, LED (UP06-67R
LED ﾋﾖｳｼﾞﾄｳ (UP06-67R)
1
8
401-52327
DISK ASSY
DISK ASSY
1
9
EZ1-895-353-11
MOTHER BOARD(FB18-L2S)
ATX ﾏｻﾞ-ﾎﾞ-ﾄﾞ (FB18-L2S)
1
10
EZ6-720-331-01
IC CM8062301044204S-R05Y
IC CM8062301044204S-R05Y
1
11
EZ2-149-019-01
BRACKET, CABLE LOCK (KT01S-KTN
ｹ-ﾌﾞﾙ ﾛﾂｸ ｶﾅｸﾞ (KT01S-KTN6)
1
12
EZ3-659-757-02
SPACER (4X8.5)
ｽﾍﾟ-ｻ- 4X8.5
4
13
EZ4-453-747-02
PANEL, PC UNIT (MAIN)
PC ﾕﾆﾂﾄ ﾒｲﾝ ﾊﾟﾈﾙ
1
14
EZ4-453-748-01
BRACKET, PCI PC BOARD FIXED
PCI ｷﾊﾞﾝ ｺﾃｲ ﾌﾞﾗｹﾂﾄ
1
Ver.2
15
EZA-192-221-6A
(M) MC3 COMPL
(M) MC3 COMPL
1
16
EZ4-453-750-02
BRACKET, PC UNIT (LOWER SIDE)
PC ﾕﾆﾂﾄ ｼﾀｶﾞﾜ ﾌﾞﾗｹﾂﾄ
1
17
EZ4-529-919-01
BRACKET HDD SIDE
HDD ｿｸﾒﾝ ﾌﾞﾗｹﾂﾄ
2
18
EZ4-453-752-02
PANEL (PC), FRONT COVER
ｼﾖｳﾒﾝ ﾊﾟﾈﾙ (PC)
1
19
EZ4-453-753-01
BRACKET, HDD FITTING
HDD ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ
1
20
EZ4-453-754-02
BRACKET, HDD FAN FITTING
HDD FAN ﾄﾘﾂｹ ﾌﾞﾗｹﾂﾄ
1
21
EZ4-453-755-01
BRACKET, PC BOARD RETAINER
ｷﾊﾞﾝ ｵｻｴ ﾌﾞﾗｹﾂﾄ
1
Ver.2
22
EZ4-462-937-01
RUBBER (VB-1209-80BK)
ﾎﾞｳｼﾝ ｺﾞﾑ (VB-1209-80BK)
4
23
EZ4-613-955-01
SCREW
(+) B 6-32 ﾕﾆﾌｱｲ ｺﾈｼﾞ
6
24
EZ4-969-071-01
HOLDER (EHP-6U), EDGE
ｴﾂｼﾞ ﾎﾙﾀﾞ- (EHP-6U)
4
25
EZ7-682-948-01
SCREW +PSW 3X8
+PSW 3X8
43
26
EZ7-682-961-01
SCREW +PSW 4X8
+PSW 4X8
24
27
EZ7-682-965-01
SCREW +PSW 4X16
+PSW 4X16
4
28
EZ7-682-968-01
SCREW +PSW 4X30
+PSW 4X30
4
29
EZ7-682-973-11
SCREW +PSW 5X10
+PSW 5X10
5
30
EZ7-684-023-04
N 3 TYPE 2
N 3 TYPE 2
2
31
EZ4-453-764-11
RAIL, DIN(NS35/7, 5PERF40MM/Z)
DIN ﾚ-ﾙ (NS35/7, 5PERF40MM/Z)
1
32
EZ1-755-675-11
RELAY, SAFTY(G9SX-NSA222-T03*)
ｾ-ﾌﾃｲﾘﾚ-ﾕﾆﾂﾄ(G9SX-NSA222-T03*)
1
33
EZ1-474-492-11
REGULATOR, SWITCHING(LFA30F-24-J1)
ｽｲﾂﾁﾝｸﾞ ﾚｷﾞﾕﾚ-ﾀ (LFA30F-24-J1)
1
34
EZ1-755-538-11
RELAY (RU4S-D-D24)
ﾘﾚ- (RU4S-D-D24)
1
35
EZ1-755-539-11
SOCKET, RELAY (SY4S-05B)
ﾘﾚ- ｿｹﾂﾄ (SY4S-05B)
1
36
EZ1-857-162-13
BOARD ASSY CAN IO (CART)
CAN IO ﾎﾞｰﾄﾞ ｸﾐ (CART)
2
37
EZ4-453-736-02
PANEL (PC), SIDE
ｿｸﾒﾝ ﾊﾟﾈﾙ (PC)
1
38
EZ7-682-167-01
SCREW +P 4X25
+P 4X25
2
39
EZ2-149-018-01
BRACKET, HOLDING (SFA-101)
ﾎｼﾞ ｶﾅｸﾞ (SFA-101)
2
40
EZ1-969-103-11
HARNESS (CAN1, 2-CONV)
ﾊ-ﾈｽ (CAN1, 2-CONV)
1
41
EZ1-837-828-11
CABLE, PC UNIT MC3 SERIAL
PC ﾕﾆﾂﾄ MC3 ｼﾘｱﾙ ｹ-ﾌﾞﾙ
1
42
EZ1-855-270-11
CPU COOLER(RR-V211-15FK-R2)
CPU ｸ-ﾗ- (RR-V211-15FK-R2)
1
43
EZ4-184-128-01
PANEL, PC UNIT (USB) CONNECT
PC ﾕﾆﾂﾄ USB ｺﾈｸﾄ ﾊﾟﾈﾙ
1
Ver.2
44
EZ1-895-351-11
FRAME GRABBER(ASP-8514X-SMD4)
ﾌﾚ-ﾑ ｸﾞﾗﾊﾞ- (ASP-8514X-SMD4)
2
45
EZ1-895-352-11
CONTROLLER, MOTION(MR-MC210-S05)
ﾓ-ｼﾖﾝ ｺﾝﾄﾛ-ﾗ (MR-MC210-S05)
1
A-72
A32

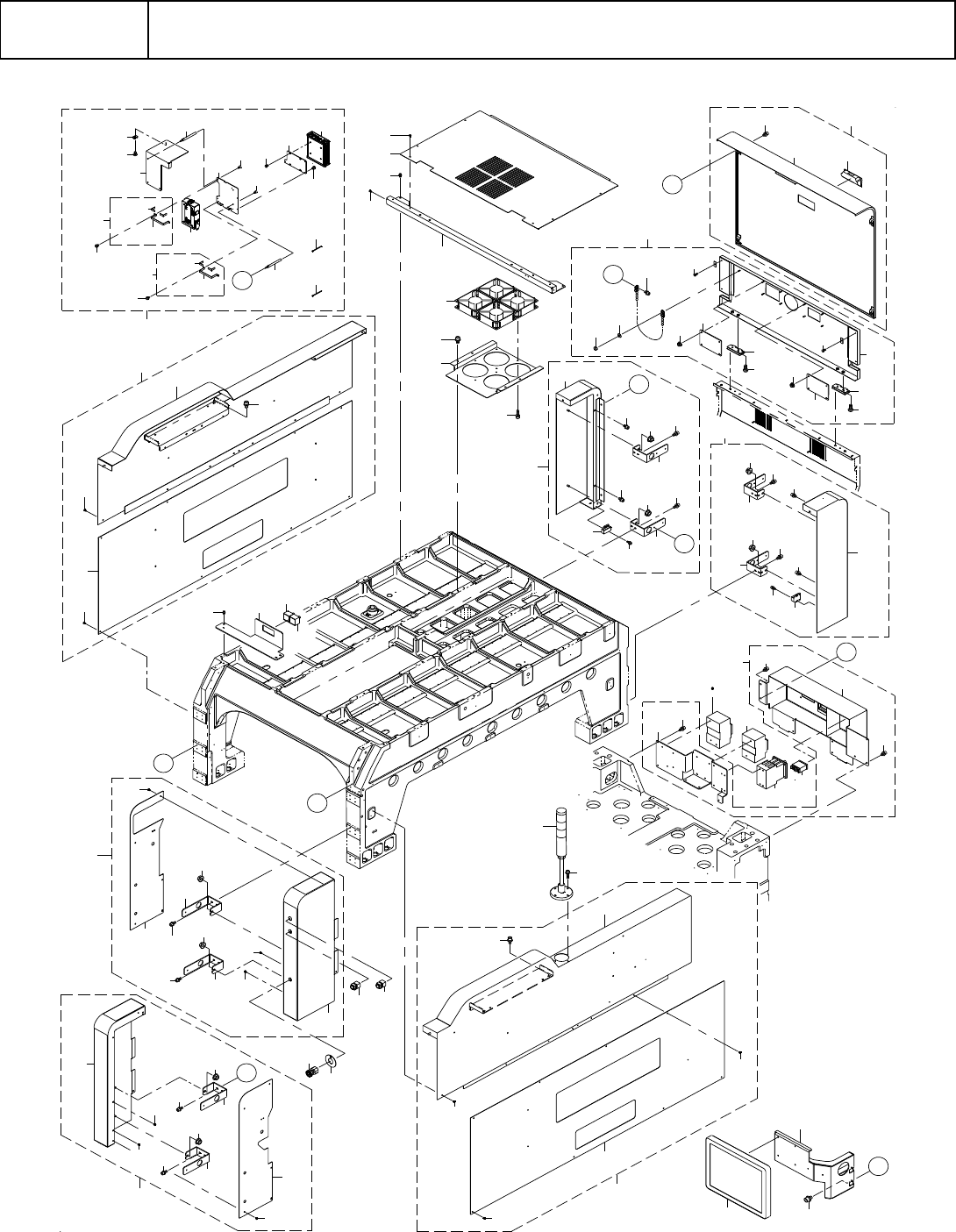

カバー ASSY-1
Cover assy - 1
3
2
4
5
6
8
9
1 0
1 1
1 2
1
1 2
7
1 7
1 7
1 4
1 4
1 5
1 5
1 6
1 8
2 0
1 3
2 5
2 3
2 2
2 2
2 3
2 5
2 4
2 6
2 8
2 7
3 0
3 3
3 0
3 3
3 1
3 1
3 2
3 4
1 8
2 6
3 4
3 5
3 6
2 9
4 1
3 8
4 0
3 9
3 8
4 1
3 9
4 2
4 2
4 3
4 4
3 7
4 6
4 7
4 8
4 5
5 1
5 2
5 3
5 4
5 5
5 5
5 3
5 4
5 2
6 0
6 1
6 1
6 3
6 2
5 9
6 5
6 4
6 6
6 8
6 9
7 0
7 1
7 2
7 3
7 4
7 5
7 6
7 8
A
A
7 7
1 9
4 9
5 0
5 1
B
B
2 1
5 6
5 7
C
C
D
D
5 8
6 7
8 3
8 4
8 7
8 5 9 0
8 6
7 9
8 0
8 1
8 2
8 8
8 9
9 1
1 0 4
1 0 5
9 5
9 2
9 3
1 0 6
1 0 6
1 0 3
1 0 2
1 0 5
1 0 1
9 9
9 9
9 9
9 7
9 6
9 4
9 8
1 0 0
9 5
E
E
1 0 1
1 0 1
1 0 4
