A- 78 A 34 カバー ASSY -3 Cover assy – 3 3 9 2 4 5 7 6 2 1 0 1 0 9 8 2 9 2 8 2 7 3 1 2 9 3 2 3 0 3 3 3 4 3 4 3 5 1 1 7 1 2 2 4 2 2 2 5 1 3 1 4 1 5 1 9 1 3 1 4 1 5 1 8 1 7 2 6 2 6 2 3 1 2 2 0 1 7 1 8 1 7 1 1 2 1 1 6

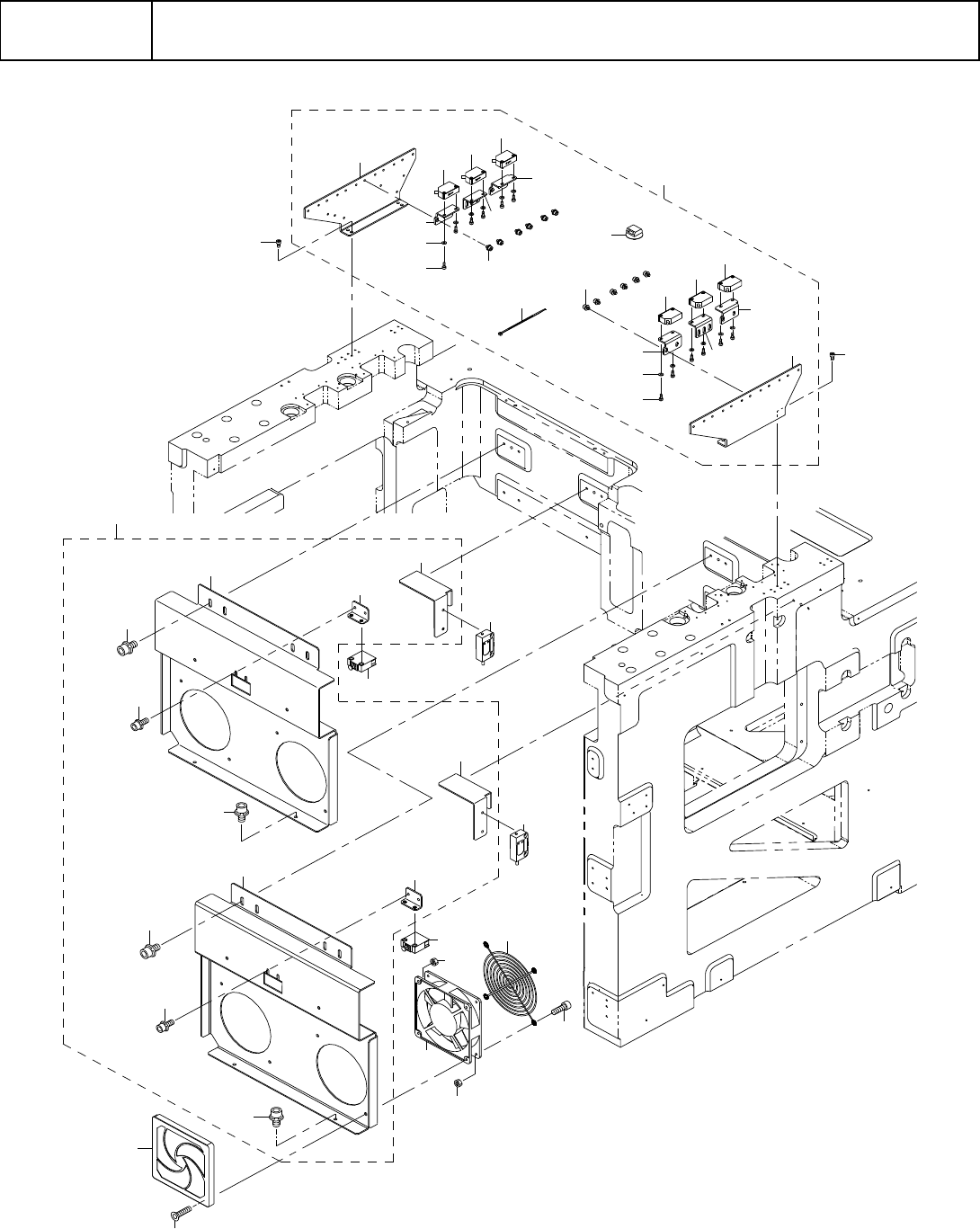

A-78
A34
カバー ASSY-3
Cover assy – 3
3
9
2
4
5
7
6
2
1 0
1 0
9
8
2 9
2 8
2 7
3 1
2 9
3 2
3 0
3 3
3 4
3 4
3 5
1
1 7
1 2
2 4
2 2
2 5
1 3
1 4
1 5
1 9
1 3
1 4
1 5
1 8
1 7
2 6
2 6
2 3
1 2
2 0
1 7
1 8
1 7
1 1
2 1
1 6
A-79
A34
カバー ASSY-3
Cover assy-3
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
401-43860
BANK_COVER_ASM
ﾊﾞﾝｸｶﾊﾞｰ_ｸﾐ
1
2
401-43388
COVER_BANK_SENSOR_BR
ｶﾊﾞｰ_ﾊﾞﾝｸ_ｾﾝｻ_ﾌﾞﾗｹｯﾄ
(2)
3
401-43389
COVER_BANK_L
ｶﾊﾞｰ_ﾊﾞﾝｸ_L
(1)
4
SL-6051092-TN
SCREW M5 L=10
座金付き六角穴ﾎﾞﾙﾄ M5 L=10
(4)
5
SL-6041092-TN
SCREW M4 L=10
座金付き六角穴ﾎﾞﾙﾄ M4 L=10
(2)
6
401-43390
COVER_BANK_R
ｶﾊﾞｰ_ﾊﾞﾝｸ_R
(1)
7
SL-6051092-TN
SCREW M5 L=10
座金付き六角穴ﾎﾞﾙﾄ M5 L=10
(4)
8
SL-6041092-TN
SCREW M4 L=10
座金付き六角穴ﾎﾞﾙﾄ M4 L=10
(2)
9
401-43391
BANK_UP_SENSOR_BR
ﾊﾞﾝｸ_ｱｯﾌﾟ_ｾﾝｻ_ﾌﾞﾗｹｯﾄ
(2)
10
SL-6051092-TN
SCREW M5 L=10
座金付き六角穴ﾎﾞﾙﾄ M5 L=10
(2)
11
401-58792
FEEDER_FLOAT_JAM_SENSOR_ASM
ﾌｨｰﾀﾞｳｷ_JAM ｾﾝｻｸﾐ
1
12
401-28046
SENSOR_BRACKET_B
ｾﾝｻﾌﾞﾗｹｯﾄ B
(1)
13
SL-6040692-TN
SCREW M4 L=6
座金付き六角穴ﾎﾞﾙﾄ M4 L=6
(12)
14
SM-6030802-TN
SCREW
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ
(12)
15
WP-0320501-SC
WASHER M3
ﾋﾗｻﾞｶﾞﾈ M3
(12)
16
HX-0070600-0A
MOUNT BASE
ﾏｳﾝﾄﾍﾞｰｽ
(8)
17
401-58787
SENSOR ASSY A (FEEDER FLOAT JAM)
SENSOR ASSY A (FEEDER FLOAT JAM)
(2)
18
401-58788
SENSOR ASSY B (FEEDER FLOAT JAM)
SENSOR ASSY B (FEEDER FLOAT JAM)
(1)
19
401-58829
FEEDER_SENSOR_STAND_L
ﾌｨｰﾀﾞｾﾝｻｽﾀﾝﾄﾞ L
(1)
20
401-58830
FEEDER_SENSOR_STAND_R
ﾌｨｰﾀﾞｾﾝｻｽﾀﾝﾄﾞ R
(1)
21
EZ4-716-434-21
TIE INSULOCK (AB150 BLACK)
ｲﾝｼｭﾛｯｸ ﾀｲ (AB150 ｸﾛ)
(10)
22
401-60564
SENSOR_BR_LI
ｾﾝｻﾌﾞﾗｹｯﾄ LI
(1)
23
401-60565
SENSOR_BR_RI
ｾﾝｻﾌﾞﾗｹｯﾄ RI
(1)
24
401-60566
SENSOR_BR_LO
ｾﾝｻﾌﾞﾗｹｯﾄ LO
(1)
25
401-60567
SENSOR_BR_RO
ｾﾝｻﾌﾞﾗｹｯﾄ RO
(1)
26
SM-6040802-TN
SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅ ﾎﾞﾙﾄ M4X0.7 L=8
8
27
EZ1-492-199-22
SAFETY SW ASSY
SAFETY SW ASSY (ﾀﾞｲｼﾔ) R
1
28
EZ1-492-199-32
SAFETY SW ASSY
SAFETY SW ASSY (ﾀﾞｲｼﾔ) L
1
29
EZ1-771-841-11
SWITCH POWER (D2D-2000)
ﾃﾞﾝｹﾞﾝ ｽｲﾂﾁ (D2D-2000)
2
30
EZ2-672-385-01
FILTER (FL12) FAN
ﾌｱﾝ ﾖｳ ﾌｲﾙﾀ- (FL12)
4
31
EZ1-763-987-11
FAN (4715MS-20T-B5A-B01)
ﾌｱﾝ (4715MS-20T-B5A-B01)
4
32
EZ4-720-311-01
GUARD FAN (PG-47-02)
ﾌｱﾝ ｶﾞ-ﾄﾞ (PG-47-02)
4
33
EZ7-682-265-04
SCREW +K 4X16
ﾈｼﾞ +K 4X16
16
34
EZ7-684-024-04
N 4 TYPE 2
N 4 TYPE 2
32
35
EZ7-683-421-04
BOLT HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12)
16
