A- 83 A36 P8 本体 ASSY -2 P8 Mai n assy-2 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 1 401 -56470 NOZZLE CTRG ASSY (P8) ﾉｽﾞﾙｶｰﾄﾘｯｼﾞ ASSY (P8) 4 2 401 -56374 CART RIDGE MAIN (P8) ｶ - ﾄﾘﾂｼﾞﾎﾝﾀｲ (P8)…

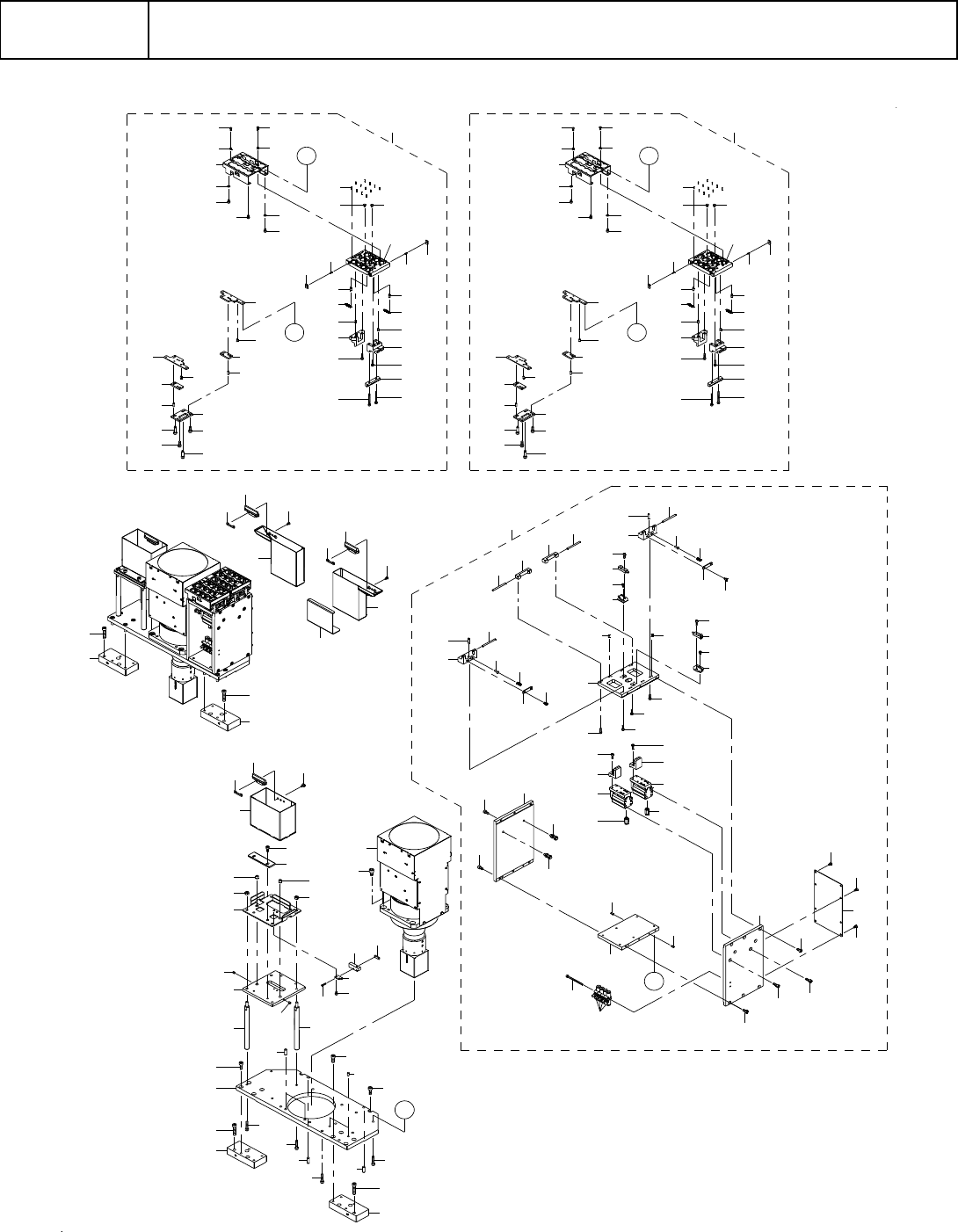

A-82
A36
P8 本体 ASSY-2
P8 Main assy-2
1 2
7
1 2
7
2 1
2 3
2 1
2 3
2 4
2 4
9
9
1 1
2 5
1 8
1 8
2 5
6
6
3
2 0
1 4
2 2
2 0
1 4
2 2
1 1
1 5
1 9
1 3
1 9
1 3
8
1 7
1 7
5
4
2 2
2 2
1 6
1 6
1 0
A
A
1 8
2
4 2
4 2
4 1
3 2
4 0
4 0
4 0
3 4
4 2
4 2
3 3
3 7
3 7
4 9
3 8
4 4
4 0
4 3
5 0
3 8
3 8
2 9
2 9
3 9
3 9
4 5
4 0
3 5
3 9
4 5
4 0
3 5
2 8
2 7
3 6
4 8
3 9
3 9
2 7
3 6
4 8
4 6
3 0
4 6
4 6
4 6
3 9
3 9
4 9
3 8
4 4
3 0
5 0
4 3
3 9
4 0
4 1
7 5
7 4
7 8
7 8
7 3
7 7
7 7
7 7
5 3
5 3
7 6
7 6
5 5
5 4
7 1
6 9
7 1
5 6
6 2
6 4
6 4
6 9
8 1
8 2
6 8
6 7
7 2
5 2
6 1
6 3
6 6
6 0
6 5
5 9
5 8
5 7
7 0
7 6
7 6
A
A
3 1
2
1 8
A
A
1 0
1 6
1 6
2 2
2 2
4
5
1 7
1 7
8
1 3
1 9
1 3
1 9
1 5
1 1
2 2
1 4
2 0
2 2
1 4
2 0
3
6
6
2 5
1 8
1 8
2 5
1 1
9
9
2 4
2 4
2 3
2 1
2 3
2 1
7
1 2
7
1 2
1 1
7 8
7 8
8 0
8 0
7 9
8 0
5 1
4 7
2 6
6 7
6 8
7 0
6 7
6 8
7 5
7 4
A-83
A36
P8 本体 ASSY-2
P8 Main assy-2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
1
401-56470
NOZZLE CTRG ASSY (P8)
ﾉｽﾞﾙｶｰﾄﾘｯｼﾞ ASSY (P8)
4
2
401-56374
CARTRIDGE MAIN (P8)
ｶ-ﾄﾘﾂｼﾞﾎﾝﾀｲ(P8)
(1)
3
401-56375
SHUTTER (P8)
ｼﾔﾂﾀ- (P8)
(1)
4
401-56376
CTRG CNT BLOCK A (P8)
CTRG CNT ﾌﾞﾛﾂｸ A (P8)
(1)
5
401-56377
CTRG CNT BLOCK B (P8)
CTRG CNT ﾌﾞﾛｯｸ B (P8)
(1)
6
401-56378
SHUTTER JOINT (P8)
ｼﾔﾂﾀ- ｼﾞﾖｲﾝﾄ (P8)
(2)
7
401-56379
CHANGER COLLAR (P8)
ﾁｴﾝｼﾞﾔ- ｶﾗ- (P8)
(4)
8
401-56381
CTRG STAND BLOCK (P8)
CTRG ｽﾀﾝﾄﾞ ﾌﾞﾛﾂｸ (P8)
(1)
9
401-56382
SPRING HOOK (P8)
ﾊﾞﾈ ｶｹ (P8)
(2)
10
401-56383
PIN PARALLEL (B1X6)
ﾍｲｺｳ ﾋﾟﾝ (B1X6)
(12)
11
401-56384
SPRING EXTENSION (P8)
ﾋﾂﾊﾟﾘ ﾊﾞﾈ (P8)
(2)
12
401-56385
EXTRA LOW HEAD CAP SCREW 2.5X6
ｺﾞｸﾃｲﾄｳﾎﾞﾙﾄ 2.5X6
(4)
13
401-56386
SPRING HOOK M4 (P8)
ﾊﾞﾈ ｶｹ M4 (P8)
(2)
14
401-56387
SHUTTER SPACER (P8)
ｼｬｯﾀｰｽﾍﾟｰｻ (P8)
(2)
15
401-56388
SHUTTER JOINT PLATE (P8)
ｼｬｯﾀｰｼﾞｮｲﾝﾄﾌﾟﾚｰﾄ (P8)
(1)
16
EZ7-683-406-04
BOLT HEXAGON SOCKET 3X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X12
(4)
17
EZ7-683-000-10
BOLT HEXAGON SOCKET 3X30
6 ｶｸｱﾅﾂｷ ﾎﾞﾙﾄ 3X30
(2)
18
EZ7-683-402-04
BOLT HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
(6)
19
EZ7-683-420-04
BOLT HEXAGON SOCKET 4X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10
(2)
20
EZ2-022-865-01
PIN PARALLEL (DIA. 3M6X10)
ﾍｲｺｳ ﾋﾟﾝ (ﾌｱｲ 3M6X10)
(4)
21
EZ2-919-160-01
PIN (B2X6 SUS)
ﾍｲｺｳ ﾋﾟﾝ (B2X6 SUS)
(4)
22
EZ3-703-360-01
PIN PARALLEL (DIA. 3X6)
ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 3X6)
(6)
23
EZ4-454-431-02
PIECE (SQUARE) RESIN
ｼﾞﾕｼ ﾋﾟ-ｽ (ｼｶｸ)
(4)
24
EZ4-454-434-01
PIECE RESIN
ｼﾞﾕｼ ﾋﾟ-ｽ
(2)
25
WP-0320500-SC
WASHER M3
ﾋﾗｻﾞｶﾞﾈ ｺｶﾞﾀﾏﾙ M3
(2)
26
401-56478
FRONT CHG ASSY
ﾌﾛﾝﾄﾁｪﾝｼﾞｬｰ ASSY
2
27
401-56359
CHG SLIDE JOINT (P8)
CHG ｽﾗｲﾄﾞ ｼﾞﾖｲﾝﾄ (P8)
(2)
28
401-56361
CHG FRAME BASE TOP (P8)
CHG ﾌﾚｰﾑﾍﾞｰｽ TOP (P8)
(1)
29
401-56362
CHG CNT BLOCK 1 (P8)
CHG CNT ﾌﾞﾛｯｸ 1 (P8)
(1)
30
401-56363
CHG CNT BLOCK 2 (P8)
CHG CNT ﾌﾞﾛｯｸ 2 (P8)
(1)
31
401-56364
CHG FRAME BASE BTM (P8)
CHG ﾌﾚｰﾑﾍﾞｰｽ BTM (P8)
(1)
32
401-56365
CHG FRAME SIDE PLATE A (P8)
CHG ﾌﾚｰﾑｻｲﾄﾞﾌﾟﾚｰﾄ A (P8)
(1)
33
401-56366
CHG FRAME SIDE PLATE B (P8)
CHG ﾌﾚｰﾑｻｲﾄﾞﾌﾟﾚｰﾄ B (P8)
(1)
34
401-56367
CHG FRAME SUPPORT SHEET (P8)
CHG ﾌﾚｰﾑｻﾎﾟｰﾄｼｰﾄ (P8)
(1)
35
401-56368
CTRG SENSOR BRACKET (P8)
CTRG ｾﾝｻﾌﾞﾗｹｯﾄ (P8)
(2)
36
401-56369
AIR CYLINDER (MSDG-L-12-10)
ｴｱｼﾘﾝﾀﾞ(MSDG-L-12-10)
(2)
37
401-56371
STOPPER BOLT (PUSTH5-15)
ｽﾄｯﾊﾟﾎﾞﾙﾄ (PUSTH5-15)
(2)
38
401-56372
PIN PARALLEL (B3X40)
ﾍｲｺｳ ﾋﾟﾝ (B3X40)
(4)
39
EZ7-683-405-04
BOLT HEXAGON SOCKET 3X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X10
(14)
40
EZ7-683-402-04
BOLT HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
(16)
41
EZ7-683-421-04
BOLT HEXAGON SOCKET 4X12
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ(C4X12)
(4)
42
EZ7-683-419-04
BOLT HEXAGON SOCKET 4X8
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X8
(12)
43
EZ4-454-438-01
PIN PUSH
ｵｼ ﾋﾟﾝ
(4)
44
EZ4-454-440-02
RETAINER SPRING
ﾊﾞﾈ ｵｻｴ
(2)
45
EZ1-492-211-12
SENSOR APPROACH (GX-F8A-C5)
ｷﾝｾﾂ ｾﾝｻ (GX-F8A-C5)
(2)
46
EZ3-703-360-01
PIN PARALLEL (DIA. 3X6)
ﾍｲｺｳﾋﾟﾝ (ﾌｱｲ 3X6)
(12)
47
EZ4-284-642-01
CONTROLLER (AS1002F-04) SPEED
ｽﾋﾟ-ﾄﾞ ｺﾝﾄﾛ-ﾗ (AS1002F-04)
(4)
48
EZ4-447-053-01
UNION (KQ2H04-M5N) HALF
ﾊ-ﾌ ﾕﾆｵﾝ (KQ2H04-M5N)
(4)
49
EZ4-454-549-11
PIN (B3X14) PARALLEL
ﾍｲｺｳ ﾋﾟﾝ (B3X14)
(2)
50
EZ4-454-764-01
SPRING (WL5-15) COMPRESSION
ｱﾂｼﾕｸ ﾊﾞﾈ (WL5-15)
(4)
A-84
A36
P8 本体 ASSY-2
P8 Main assy-2
51
SM-6034502-TP
SCREW M3 L=45
六角穴付きﾎﾞﾙﾄ M3 L=45
(2)
52
401-56342
DISPOSAL BOX (P8)
ﾊｲｷ BOX (P8)
2
装置構成により
数量異なる
53
401-56343
DB STAND SUPPORT SHAFT
DB ｽﾀﾝﾄﾞｻﾎﾟｰﾄｼｬﾌﾄ
8
54
401-56344
DB STAND GUIDE BASE
DB ｽﾀﾝﾄﾞｶﾞｲﾄﾞﾍﾞｰｽ
2
55
401-56345
DB STAND BASE
DB ｽﾀﾝﾄﾞﾍﾞｰｽ
2
56
401-56346
DB GUIDE PLATE
DB ｶﾞｲﾄﾞﾌﾟﾚｰﾄ
2
57
401-56347
DUST BOX (R_S16)
ﾀﾞｽﾄ BOX (R_S16)
1
58
401-56348
DUST BOX (L_S16)
ﾀﾞｽﾄ BOX (L_S16)
1
59
401-56505
DB BOX DUMMY DOG
DB BOX ﾀﾞﾐｰ ﾄﾞｸﾞ
2
60
EZ4-459-203-01
BOLT HEXAGON SOCKET 2.3X10
ﾛﾂｶｸ ｱﾅﾂｷ ﾎﾞﾙﾄ 2.3X10
4
61
EZ7-683-402-04
BOLT HEXAGON SOCKET 3X5
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 3X5
4
62
EZ7-683-420-04
BOLT HEXAGON SOCKET 4X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X10
4
63
EZ1-798-475-11
SWITCH (AV630564)
ｽｲﾂﾁ (AV630564)
2
64
EZ4-456-320-01
MAGNET (HXN6-6)
ﾏｸﾞﾈﾂﾄ (HXN6-6)
4
65
EZ4-459-059-01
BRACKET SENSOR
ｾﾝｻ- ﾌﾞﾗｹﾂﾂﾄ
2
66
EZ4-459-060-01
NUT PLATE (Z AXIS)
ｲﾀﾅﾂﾄ (Z ｼﾞｸ)
2
67
EZ4-461-360-02
BRUSH (A) NOZZLE
ﾉｽﾞﾙ ﾌﾞﾗｼ (A)
2
68
EZ4-472-141-02
PLATE BRUSH NUT
ﾌﾞﾗｼ ﾅﾂﾄ ﾌﾟﾚ-ﾄ
2
69
EZ4-718-767-01
SET-SCREW (M4X5 SUS) HEAD
ﾛﾂｶｸ ｱﾅﾂｷ ﾄﾒﾈｼﾞ (M4X5 SUS)
4
70
EZ7-682-247-09
SCREW +K 3X6
SCREW +K 3X6
2
71
EZ7-684-025-04
N 5 TYPE 2
N 5 TYPE 2
8
72
EZ2-580-593-01
SCREW +PSW M3X8
ﾈｼﾞ +PSW M3X8
4
73
401-56337
CAMERA BASE PLATE (P8)
ｶﾒﾗﾍﾞｰｽﾌﾟﾚｰﾄ (P8)
2
74
401-56338
CAMERA BASE BLOCK A (P8)
ｶﾒﾗﾍﾞｰｽﾌﾞﾛｯｸ A (P8)
2
75
401-56339
CAMERA BASE BLOCK B (P8)
ｶﾒﾗﾍﾞｰｽﾌﾞﾛｯｸ B (P8)
2
76
EZ7-683-425-04
BOLT HEXAGON SOCKET 4X20
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 4X20
8
77
EZ7-683-437-04
BOLT HEXAGON SOCKET 5X14
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X14
20
78
EZ7-683-442-04
BOLT HEXAGON SOCKET 5X25
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 5X25
4
79
PH-0400082-C0
PARALLEL PIN TYPE B 4X8
平行ﾋﾟﾝ B 種 4X8
8
80
PH-0500142-C0
PARALLEL PIN TYPE B 5X14
平行ﾋﾟﾝ B 種 5X14
8
81
401-56606
PARTS CAMERA
PARTS CAMERA
2
82
EZ7-683-452-04
BOLT HEXAGON SOCKET 6X10
6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ 6X10
8
