- - 51. CONVEYOR EXTE NTION COMPONENTS 3 4 5 6 1 3 1 4 1 5 1 6 7 8 9 1 0 1 1 1 2 1 1 1 2 1 7 1 8 1 7 1 8 1 9 1 5 1 6 1 9 2 0 2 0 2 1 2 2 2 1 2 2 2 3 2 4 2 5 1 2 3 8 3 1 3 0 2 9 3 2 3 2 2 9 3 5 3 6 3 6 3 5 3 7 3 4 3 3 3…
- -

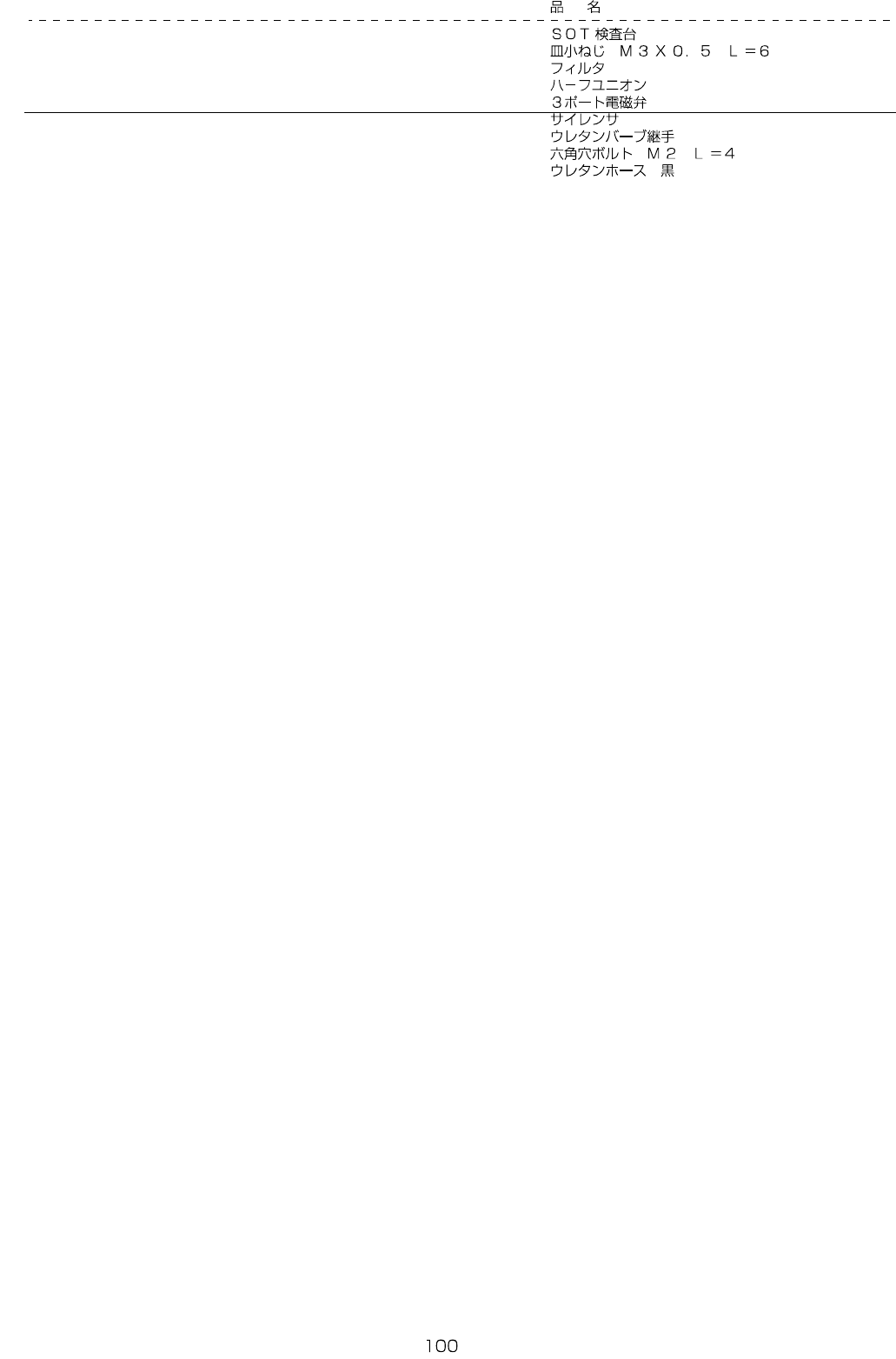

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E5381-729-000 SOT CHECK TABLE 4
2 SM-1030601-SC SCREW M3 L=6 8
3 400-00641 FILTER 4
4 PJ-3010405-05 HALF UNION 4
5 PV-1303060-A0 SOLENOID_VALVE 4
6 E3274-760-000 SILENCER 4
7 PJ-0320390-01 CONNECTOR 8
8 SM-6020402-TN BOLT M2 L=4 8
9 BT-0400251-EB URETHANE HOSE, BLACK 0.8
- -
51.CONVEYOR EXTENTION COMPONENTS
3 4
5 6
1 3 1 4
1 5 1 6
7 8
9 1 0
1 1 1 2
1 1 1 2
1 7 1 8
1 7 1 8
1 9
1 5 1 6
1 9
2 0
2 0
2 1 2 2
2 1 2 2
2 3 2 4
2 5
1 2
3 8
3 1
3 0
2 9
3 2
3 2
2 9
3 5
3 6
3 6
3 5
3 7
3 4
3 3
3 4
3 4
3 3
3 4
4 1
4 6
4 8
4 2
4 5
4 0
4 3
4 4
4 5
4 5
4 5
4 5
4 6
4 5
4 4
4 3
4 1
3 9
4 5
4 0
4 2
2 8
4 5
2 6
2 7
4 7
2 3 2 4
6 1
5 4
5 3
5 7
5 5
5 2
5 2
5 5
5 8
5 7
5 9
5 9
5 8
6 0
5 7
5 6
5 7
5 6
5 1
5 2
5 0
5 2
2 9
2 9
4 5
4 7
4 9
4 9
- -

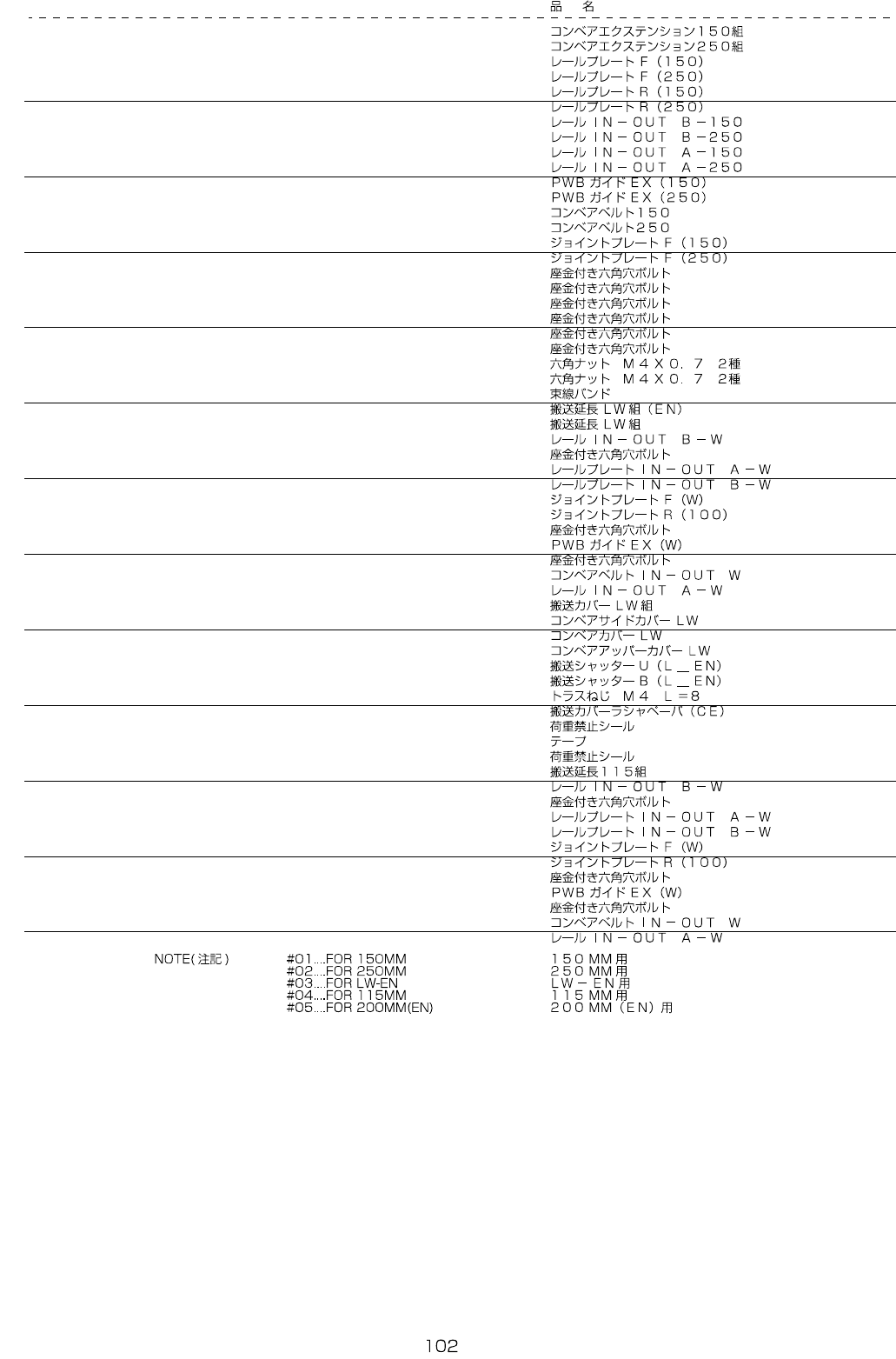

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-73916 CONVEYOR EXTENSION 150 ASM 1
2
#02
400-73915 CONVEYOR EXTENSION 250 ASM 1
3
#01
400-11053 RAIL PLATE F(150) (1)
4
#02
400-11060 RAIL PLATE F(250) (1)
5
#01
400-11054 RAIL PLATE R(150) (1)
6
#02
400-11061 RAIL PLATE R(250) (1)
7
#01
400-73884 RAIL IN-OUT B-150 (1)
8
#02
400-73886 RAIL IN-OUT B-250 (1)
9
#01
400-73883 RAIL IN-OUT A-150 (1)
10
#02
400-73885 RAIL IN-OUT A-250 (1)
11
#01
400-11057 PWB GUIDE EX(150) (2)
12
#02
400-11064 PWB GUIDE EX(250) (2)
13
#01
400-73709 CONVEYOR BELT 150 (2)
14
#02
400-73708 CONVEYOR BELT 250 (2)
15
#01
400-11072 JOINT PLATE F(150) (2)
16
#02
400-11066 JOINT PLATE F(250) (2)
17
#01
SL-6031092-TN SCREW (6)
18
#02
SL-6031092-TN SCREW (8)
19 SL-6031492-TN SCREW (4)
20 SL-6041292-TN SCREW (6)
21
#01
SL-6041092-TN SCREW (8)
22
#02
SL-6041092-TN SCREW (12)
23
#01
NM-6040002-SN NUT M4 (8)
24
#02
NM-6040002-SN NUT M4 (12)
25 HX-0044000-00 CABLE BAND (5)
26
#03
400-73917 CONVEYOR EXTENSION LW ASM(EN) 1
27 400-46881 CONVEYOR EXTENSION LW ASM (1)
28 400-46989 RAIL IN-OUT B-W (2)
29 SL-6031092-TN SCREW (16)
30 400-46990 RAIL PLATE IN-OUT A-W (2)
31 400-46991 RAIL PLATE IN-OUT B-W (2)
32 400-00791 JOINT PLATE F(W) (4)
33 E2176-725-000 JOINT PLATE R(100) (4)
34 SL-6041292-TN SCREW (16)
35 400-00789 PWB GUID EX(W) (4)
36 SL-6030892-TN SCREW (8)
37 400-46938 CONVEYOR BELT IN-OUT W (4)
38 400-46988 RAIL IN-OUT A-W (2)
39 400-47307 CONVEYOR COVER LW ASM (1)
40 400-47227 CONVEYOR SIDE COVER LW (2)
41 400-47226 CONVEYOR COVER LW (2)
42 400-47228 CONVEYOR UPPER COVER LW (2)
43 400-01484 CONVEYOR SHUTTER U(L_EN) (2)
44 400-01485 CONVEYOR SHUTTER B(L_EN) (2)
45 SM-0040801-SC SCREW (40)
46 E1143-721-000 WOOLEN CLOTH PAPER (8)
47 E5721-729-000 LABEL (2)
48 400-01490 TAPE (3)
49 401-05884 LOAD PROHIBITION LABEL (2)
50
#04
400-73300 CONVEYOR EXTENSION 115 ASM 1
51 400-46989 RAIL IN-OUT B-W (1)
52 SL-6031092-TN SCREW (8)
53 400-46990 RAIL PLATE IN-OUT A-W (1)
54 400-46991 RAIL PLATE IN-OUT B-W (1)
55 400-00791 JOINT PLATE F(W) (2)
56 E2176-725-000 JOINT PLATE R(100) (2)
57 SL-6041292-TN SCREW (8)
58 400-00789 PWB GUID EX(W) (2)
59 SL-6030892-TN SCREW (4)
60 400-46938 CONVEYOR BELT IN-OUT W (2)
61 400-46988 RAIL IN-OUT A-W (1)
