- - 6. BASE FRA ME ELECTRIC AP PARATUS COMPONENTS ( 5) 3 5 1 2 5 1 2 6 5 1 2 5 1 2 5 1 2 5 1 2 5 1 2 5 1 2 4 5 1 2 1 7 1 8 1 3 1 3 1 4 1 5 1 6 2 9 2 9 3 0 3 0 3 0 3 0 5 2 1 4 1 5 2 1 4 1 4 1 5 2 1 4 1 2 1 3 9 4 0 2 1 4…
- -

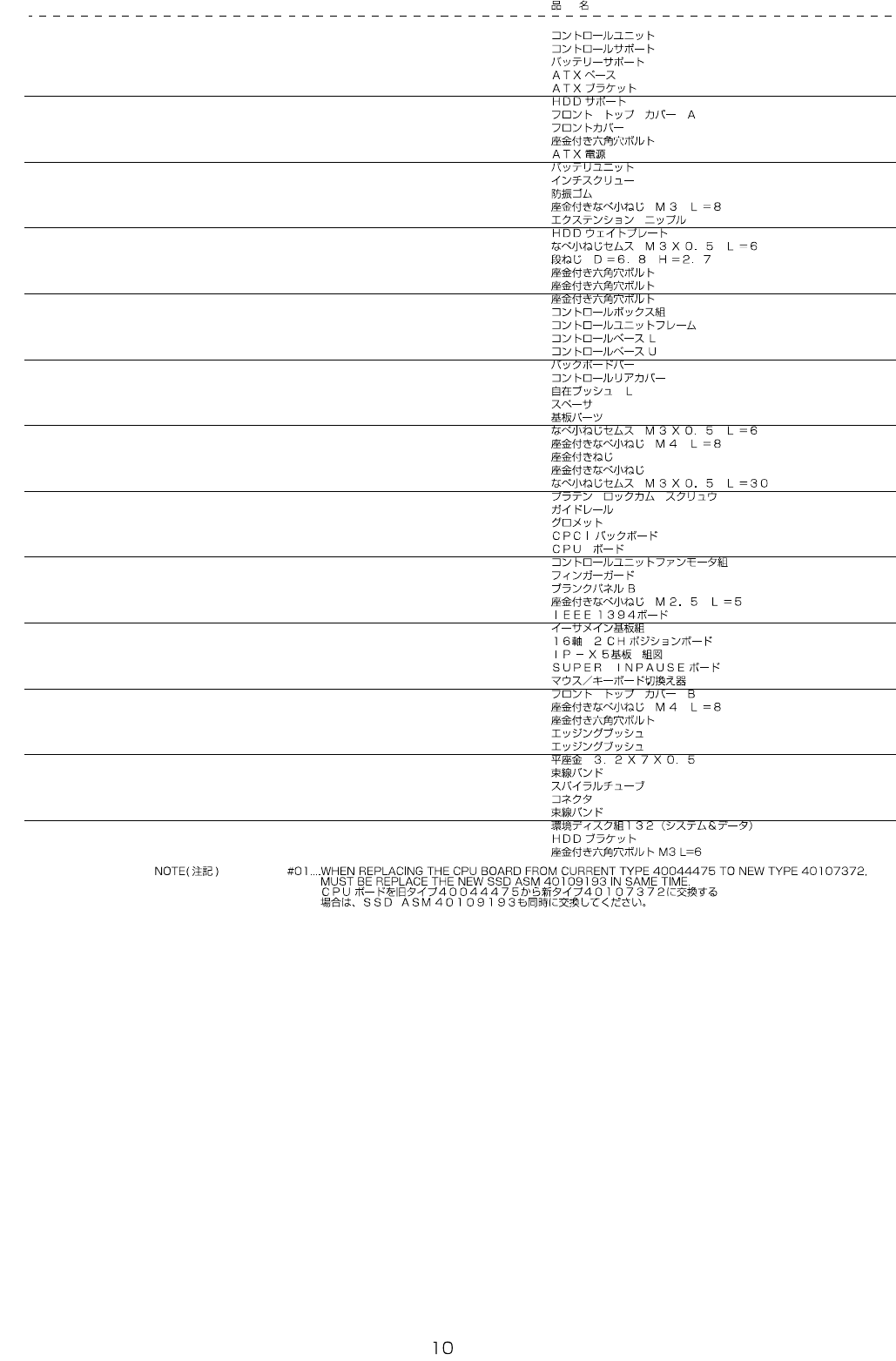

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-47058 CONTROL UNIT ASSY 1
2 400-47081 CTRL SUPPORT (1)
3 400-47082 BATTERY SUPPORT (1)
4 400-63462 ATX BASE (1)
5 400-63463 ATX BRACKET (1)
6 400-63464 HDD SUPPORT (2)
7 400-72706 FRONT TOP COVER_A (1)
8 400-63476 FRONT COVER (1)
9 SL-6040892-TN BOLT (6)
10 400-48006 ATX PSU (1)
11 400-48007 BATTERY UNIT (1)
12 400-48047 INCH SCREW (8)
13 E1612-721-000 VIBROISOLATING RUBBER (4)
14 SL-4030881-SC SCREW M3 L=8 (4)
15 E3032-700-000 EXTENSION NIPPLE (4)
16 400-11588 HDD WEIGHT PLATE (1)
17 SL-4030691-SC SCREW M3X6 (10)
18 SD-0680276-TP SHOULDER SCREW D=6.8 H=2.7 (2)
19 SL-6061692-TN BOLT (4)
20 SL-6061092-TN SCREW (4)
21 SL-6041092-TN SCREW (2)
22 400-47083 CTRL BOX ASSY (1)
23 400-47084 CTRL UNIT FRAME (1)
24 400-47085 CTRL BASE L (1)
25 400-47086 CTRL BASE U (1)
26 400-47087 BACK BOAD BAR (1)
27 400-47088 CTRL REAR COVER (1)
28 EA-9002B11-00 BUSHING L (0.23)
29 HX-0035400-0N SPACER (6)
30 HX-0035400-00 STUD (4)
31 SL-4030691-SC SCREW M3X6 (12)
32 SL-4040891-SC SCREW M4 L=8 (8)
33 SL-4851091-SC SCREW (16)
34 SL-4031491-SC SCREW M3X14 (3)
35 SL-4033091-SC SCREW M3 L=30 (4)
36 E1038-871-000 PLATEN LOCK CAM SCREW (2)
37 HX-0002600-00 GUIDE RAIL (12)
38 HX-0066900-00 GROMMET (0.4)
39 400-48002 CPCI BACK BOARD (1)
40
#01
401-07372 CPU BOARD (1)
41 400-47702 CTRL UNIT FAN ASM (1)
42 HM-0003300-20 FINGER GUARD (2)
43 E1649-729-000 BRANK PANEL B (3)
44 SL-4850591-SC SCREW M2.5 L=5 (6)
45 400-48003 IEEE1394 BOARD (1)
46 401-49647 ETHER-MAIN PCB ASM (1)
47 400-44540 16AXIS 2CH SERVO CONTROLLER (2)
48 400-47528 IP-X5 PCB ASM (1)
49 400-48082 SUPER INPAUSE BOARD (1)
50 400-03281 MOUSE/KEYBOARD SELECTOR (1)
51 400-72707 FRONT TOP COVER B (1)
52 SL-4040891-SC SCREW M4 L=8 (2)
53 SL-6030892-TN SCREW (4)
54 HX-0009600-00 GROMMET (0.25)
55 HX-0009600-0A GROMMET (0.17)
56 WP-0320501-SC WASHER M3 (4)
57 EA-9500B01-00 CABLE BAND 3
58 HX-0031400-00 SPIRAL TABE 0.15
59 HK-0122900-0G CONNECTOR 2
60 HX-0006500-0A CABLE CLIP 1
61
#01
401-09193 ENVIRONMENT SYSTEM 132 ASM 1
62 400-57003 HDD BRACKET 1
63 SL-6030692-TN SCREW M3 L=6 2
- -

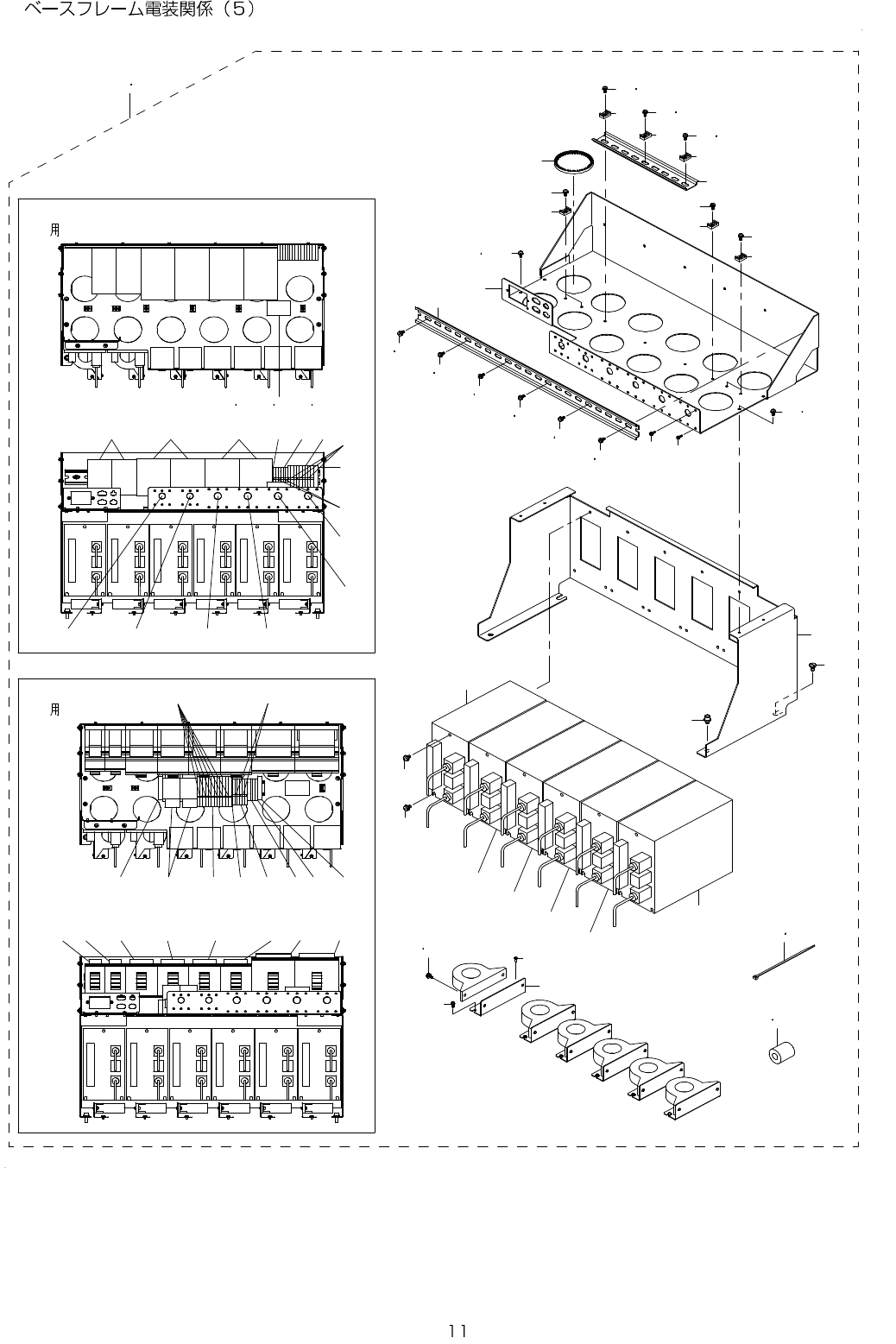

6. BASE FRAME ELECTRIC APPARATUS COMPONENTS (5)
3
5 1 2
5 1 2
6
5 1 2
5 1 2
5 1 2
5 1 2
5 1 2
5 1 2
4
5 1 2 1 7 1 8
1 3
1 3
1 4
1 5
1 6
2 9
2 9
3 0
3 0
3 0
3 0
5 2 1
4 1
5 2 1
4 1
4 1
5 2 1
4 1
2 1
3 9 4 0
2 1
4 1
2 42 33 2
3 4 3 4 3 5 3 5
3 6
3 5
2 6
8
1 3
1 1
2 6
3 6
2 6
3 5
2 62 52 5
4 1
2 1
3 1
1 4
2 2
1 92 0
4 2
2 7 2 82 8
4 34 4
3 8
3 7
F OR S T
S T
9 1 0
1 2
F OR E N
E N
7 4 5
3 3
4 6
4 7
4 4
4 9
4 8
- -

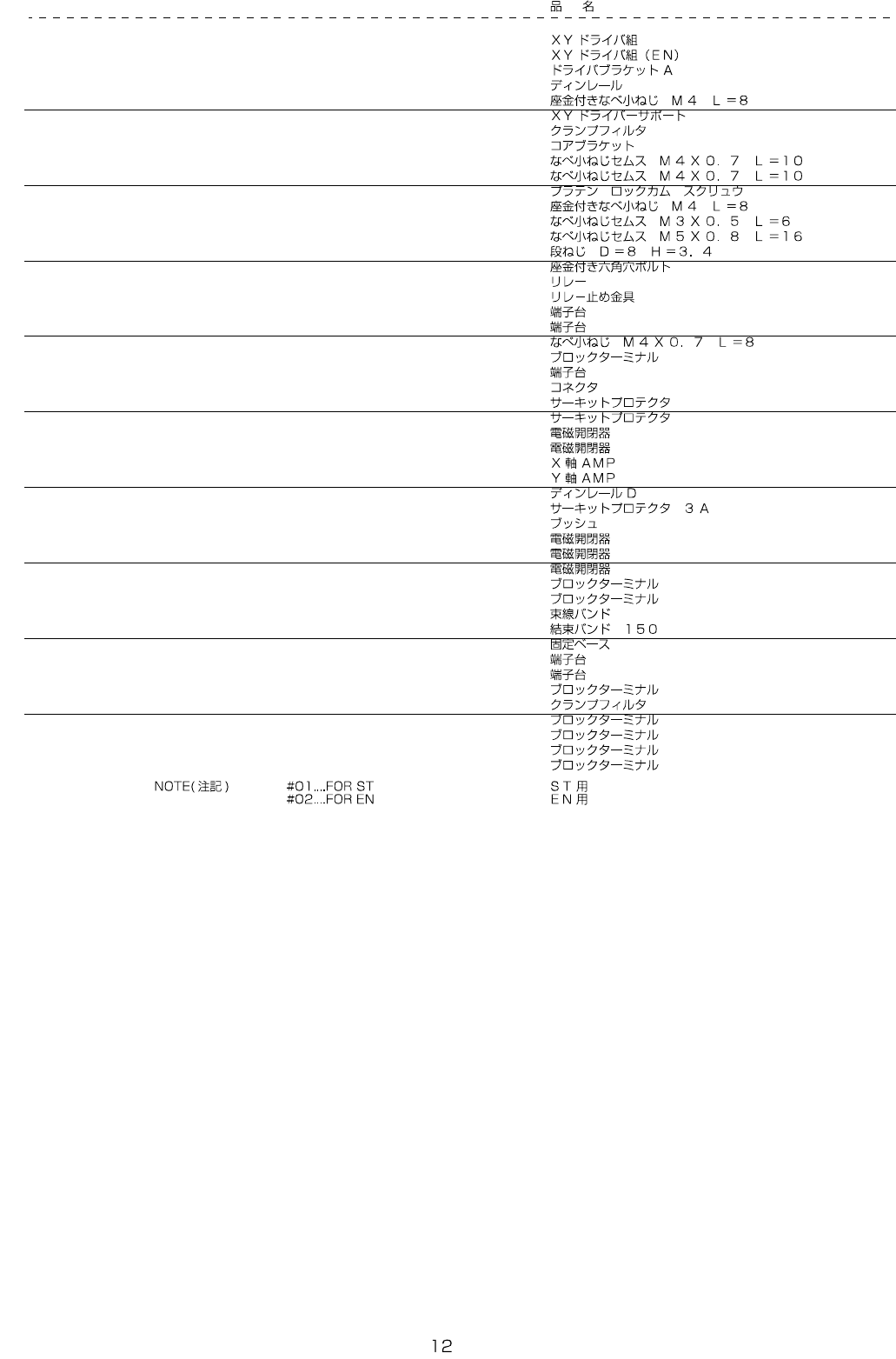

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-47060 XY DRIVER UNIT 2
2
#02
400-47136 XY DRV UNIT (EN) ASM 2
3 400-47091 DRIVER BRACKET A (1)
4 400-47092 DIN RAIL (1)
5
#02
SL-4040891-SC SCREW M4 L=8 (15)
6 400-80239 XY DRIVER SUPPORT (1)
7
#02
HN-0014900-0A CLAMP FILTER (6)
8 400-63468 CORE BRACKET (6)
9
#01
SL-4041091-SC SCREW M4 L=10 (12)
10
#02
SL-4041091-SC SCREW M4 L=10 (16)
11 E1038-871-000 PLATEN LOCK CAM SCREW (6)
12
#01
SL-4040891-SC SCREW M4 L=8 (12)
13 SL-4030691-SC SCREW M3X6 (44)
14 SL-4051691-SC SCREW M5X0.8 L=16 (18)
15 SD-0800346-TP SHOULDER SCREW (2)
16 SL-6061692-TN BOLT (2)
17 HB-0012800-0C RELAY (1)
18 HB-0005800-10 RELAY CLASP (1)
19 HK-0695500-10 BLOCK TERMINAL (9)
20 HK-0696500-10 BLOCK TERMINAL (6)
21
#01
SM-4040801-SC SCREW M4X0.7 L=8 (8)
22
#02
HK-0695900-00 BLOCK TERMINAL (1)
23
#02
HK-0692500-10 BLOCK TERMINAL (4)
24
#02
HK-0691900-00 BLOCK TERMINAL (1)
25 HA-0055800-0A CIRCUIT PROTECTOR (2)
26 HA-0051700-00 CIRCUIT PROTECTOR (4)
27
#01
HA-0055500-00 MAGNETIC CONTACTOR (2)
28
#01
HA-0062100-00 MAGNETIC CONTACTOR (4)
29 400-48019 SERVO AMP 2KW (2)
30 400-48020 SERVO AMP 3.5KW (4)
31
#02
400-63485 DIN RAIL D (1)
32
#02
HA-0050600-0B CIRCUIT PROTECTOR 3A (2)
33 E5348-033-100 CABLE PROTECTOR 106MM (2.8)
34
#02
HA-0059800-00 MAGNETIC CONTACTOR (2)
35
#02
HA-0060400-00 MAGNETIC CONTACTOR (4)
36
#02
HA-0060300-00 MAGNETIC CONTACTOR (2)
37 HK-0691900-0B BLOCK TERMINAL (1)
38 HK-0696900-00 BLOCK TERMINAL (1)
39 EA-9500B01-00 CABLE BAND (42)
40 EA-9500B02-00 CABLE BAND 150 (20)
41
#01
HX-0029400-00 FIXED BASE (8)
42
#02
HK-0695500-10 BLOCK TERMINAL (12)
43
#02
HK-0696500-10 BLOCK TERMINAL (6)
44
#02
HK-0691900-0B BLOCK TERMINAL (2)
45
#02
HN-0014900-00 CLAMP FILTER(L) (6)
46 HK-0695500-10 BLOCK TERMINAL (9)
47 HK-0696500-10 BLOCK TERMINAL (6)
48 HK-0695900-20 BLOCK TERMINAL (6)
49 HK-0696900-30 BLOCK TERMINAL (2)
