- - 14. COVER COMPONEN TS (5) 6 6 6 7 4 1 6 7 4 2 4 2 6 7 4 2 4 3 4 4 5 5 5 6 6 2 6 3 6 0 6 1 9 0 9 1 9 5 9 5 9 5 9 7 9 6 9 8 9 8 9 8 9 9 7 5 8 6 8 7 8 8 8 9 1 0 1 1 0 2 4 5 6 9 4 5 6 9 4 5 6 9 4 5 6 9 4 5 6 9 4 5 6 9 …
- -

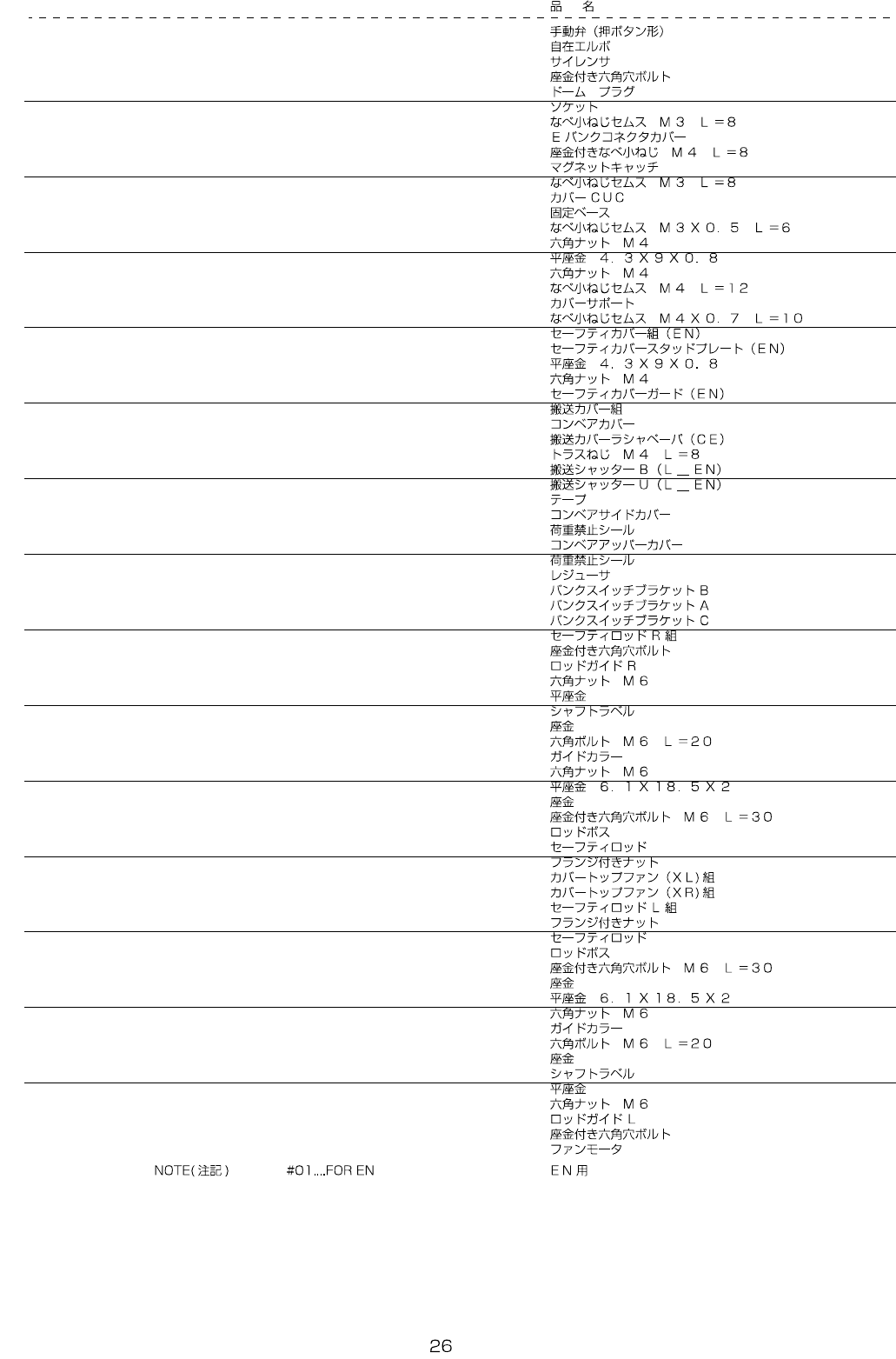

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 PV-0151240-00 HAND VALVE 4
2 PJ-3040651-03 SWIVEL ELBOW 8
3 PX-0551030-00 SILENCER 4
4 SL-6041092-TN SCREW 16
5 HX-0032600-0M DOME PLUG 4
6 PJ-3091000-03 SOCKET 4
7 SL-4030891-SC SCREW M3X8 8
8 400-63526 E BANK CONNECTOR COVER 4
9 SL-4040891-SC SCREW M4 L=8 8
10 E5158-715-000 MAGNET CATCH 4
11 SL-4030891-SC SCREW M3X8 8
12 400-47152 COVER CUC 2
13 HX-0029400-00 FIXED BASE 10
14 SL-4030691-SC SCREW M3X6 10
15 NM-6040001-SC NUT M4 32
16 WP-0430801-SC WASHER 4.3X9X0.8 32
17 NM-6040001-SC NUT M4 32
18 SL-4041291-SC SCREW M4 L=12 32
19 400-63502 COVER SUPPORT 4
20 SL-4041091-SC SCREW M4 L=10 4
21
#01
400-72866 SAFETY COVER ASSY(EN) 4
22 400-72862 SAFETY COVER STUD PLATE(EN) (1)
23 WP-0430801-SC WASHER 4.3X9X0.8 (10)
24 NM-6040001-SC NUT M4 (10)
25 400-72861 SAFETY COVER GUARD(EN) (1)
26 400-47306 CONVEYOR COVER ASM 1
27 400-47223 CONVEYOR COVER (2)
28 E1143-721-000 WOOLEN CLOTH PAPER (8)
29 SM-0040801-SC SCREW (40)
30 400-01485 CONVEYOR SHUTTER B(L_EN) (2)
31 400-01484 CONVEYOR SHUTTER U(L_EN) (2)
32 400-01490 TAPE (3)
33 400-47224 CONVEYOR SIDE COVER (2)
34 E5721-729-000 LABEL (2)
35 400-47225 CONVEYOR UPPER COVER (2)
36 401-05884 LOAD PROHIBITION LABEL (2)
37 PJ-3010600-04 REDUCER 4
38 400-84933 BANK SWITCH BRACKET B 2
39 400-84932 BANK SWITCH BRACKET A 1
40 400-84934 BANK SWITCH BRACKET C 1
41 400-69694 SAFETY ROD R ASSY 2
42 SL-6061292-TN SCREW (2)
43 400-69686 ROD GUIDE R (1)
44 NM-6060003-SC NUT M6 (1)
45 WP-0651646-SC WASHER (1)
46 E3065-729-000 SHAFT LABEL (1)
47 400-69691 WASHER (2)
48 SM-9062003-SC SCREW M6 L=20 (1)
49 400-69692 GUIDE COLOR (1)
50 NM-6060003-SC NUT M6 (1)
51 WP-0612056-SE WASHER 6.1X18.5X2 (1)
52 400-69691 WASHER (3)
53 SL-6063092-TN SCREW M6 L=30 (1)
54 400-69687 ROD BOSS (1)
55 400-69683 SAFETY ROD (1)
56 NM-3060810-SF NUT M6 (1)
57 400-65391 COVER TOP FAN XL ASM 1
58 400-65397 COVER TOP FAN XR ASM 1
59 400-69693 SAFETY ROD L ASSY 2
60 NM-3060810-SF NUT M6 (1)
61 400-69683 SAFETY ROD (1)
62 400-69687 ROD BOSS (1)
63 SL-6063092-TN SCREW M6 L=30 (1)
64 400-69691 WASHER (3)
65 WP-0612056-SE WASHER 6.1X18.5X2 (1)
66 NM-6060003-SC NUT M6 (1)
67 400-69692 GUIDE COLOR (1)
68 SM-9062003-SC SCREW M6 L=20 (1)
69 400-69691 WASHER (2)
70 E3065-729-000 SHAFT LABEL (1)
71 WP-0651646-SC WASHER (1)
72 NM-6060003-SC NUT M6 (1)
73 400-69685 ROD GUIDE L (1)
74 SL-6061292-TN SCREW (2)
75 HM-0021700-10 FAN MOTOR 8
- -

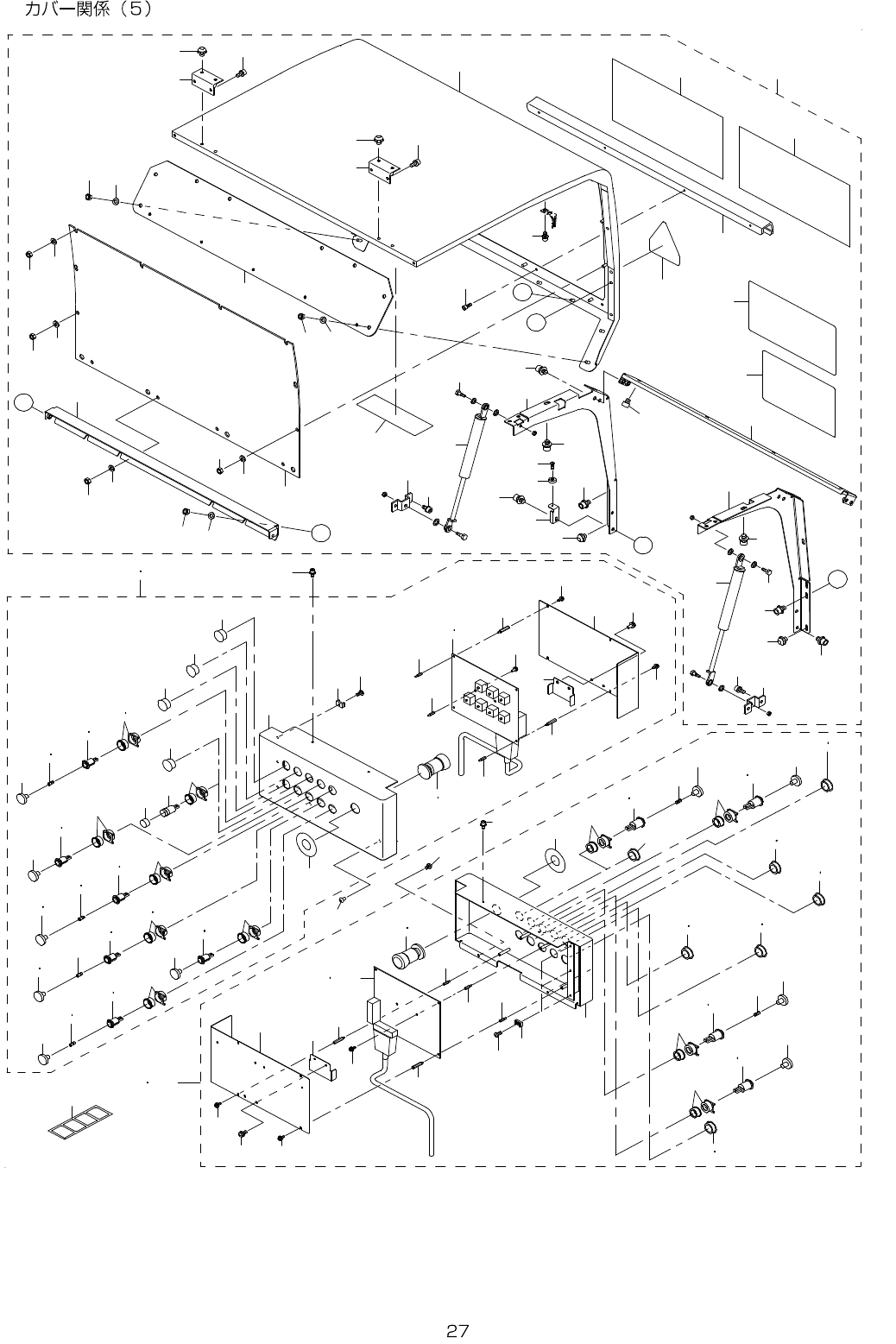

14.COVER COMPONENTS (5)
6 6
6 7
4 1
6 7
4 2
4 2
6 7
4 2
4 3
4 4
5 5 5 6
6 2
6 3
6 0 6 1
9 0
9 1
9 5
9 5
9 5
9 7
9 6
9 8
9 8
9 8
9 9
7 5
8 6 8 7
8 8 8 9
1 0 1
1 0 2
4 5 6 9
4 5 6 9
4 5 6 9
4 5 6 9
4 5 6 9
4 5 6 9
4 6 7 0
4 6 7 0
4 7 4 8
4 7
4 9
5 1
5 0 7 1
5 0 7 1
5 1
5 1
5 2 7 2
5 3
5 2 7 2
5 3
5 3
5 3
3 9 4 0
7 6 1 0 0
7 7
8 2
7 6 1 0 0
7 6 1 0 0
7 8
7 9
8 0
8 1
8 3
8 3
8 4 8 5
8 4 8 5
8 4 8 5
9 4
7 6 1 0 0
8 1
8 3
1 0 3
1 0 4
7 3 7 4
1 0 5
5 8
5 7
5 9
5 4
7
6
1 9
9
1 1
2 1
2 0
B
5
3
2 4
8
1 7
1 6
1 6
1 7
A
4
1 4
2
5
3
4
1 8
1 5
1 2
A
2 1
2 0
1 4
1 3
1 4
1 3
2 2
2 3
B
2 3
C
C
2 7
2 8
2 2
8
1 9
2 9
2 5
2 4
2 5
1 0
1 3
2 6
3 1
8
2 9
3 0
6 8
6 4
6 5
8
3 4
3 5
3 6
3 3
3 2
5 4
5 4
5 4
8 4 8 5
8 4 8 5
8 4 8 5
9 2
9 3
8 5
3 7
3 8
1
- -

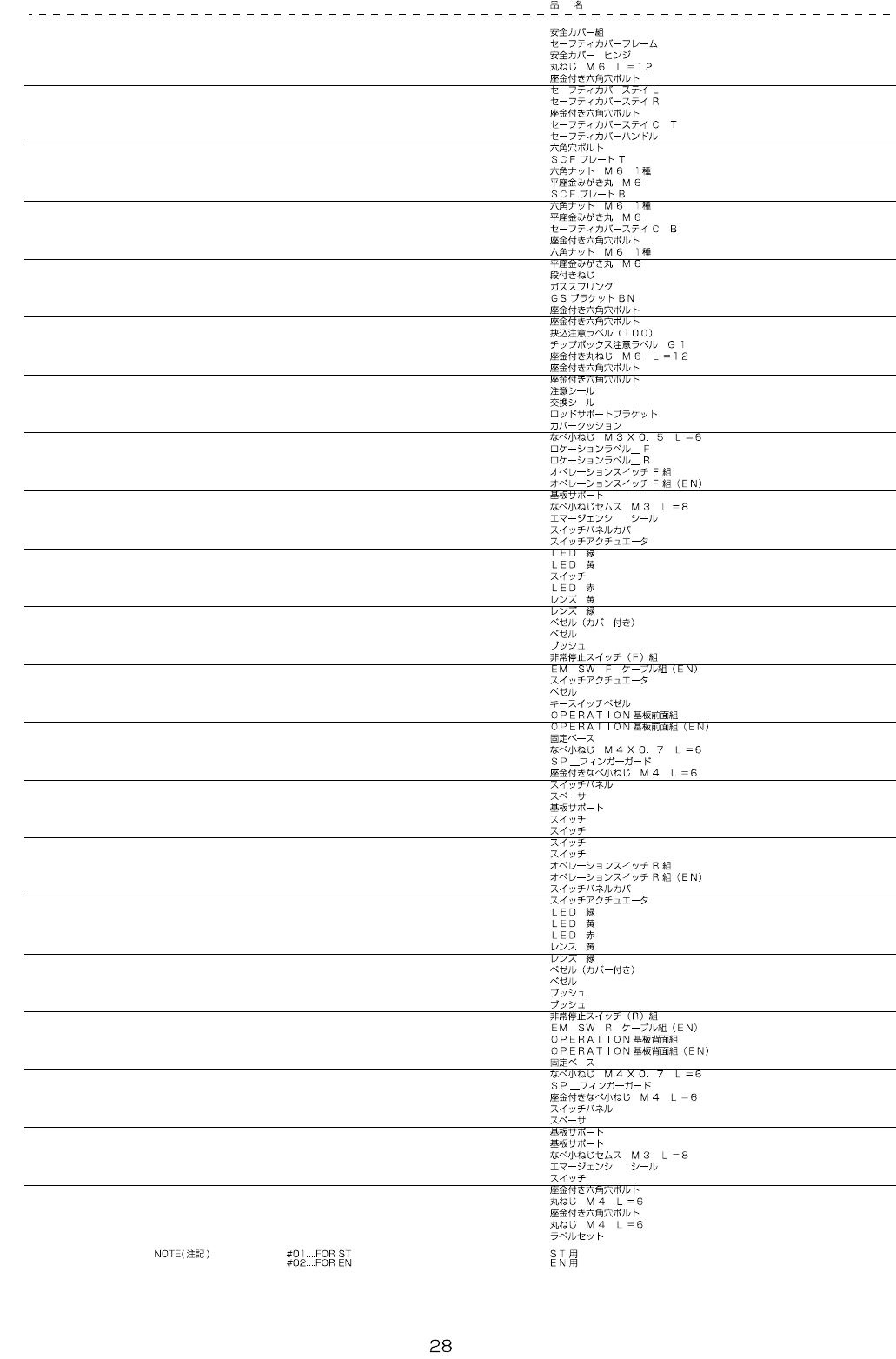

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-47213 SAFETY COVER ASSY 4
2 400-63507 SAFETY COVER FLAME (1)
3 E1318-715-000 SAFTY COVER HINGE (2)
4 SM-3061252-TN SCREW M6 L=12 (4)
5 SL-6061242-TN BOLT (4)
6 400-63508 SAFETY COVER STAY L (1)
7 400-63509 SAFETY COVER STAY R (1)
8 SL-6061092-TN SCREW (14)
9 400-63510 SAFETY COVER STAY C T (1)
10 400-63514 SAFETY COVER HANDLE (1)
11 SM-6040502-TN BOLT (4)
12 400-63512 SCF PLATE T (1)
13 NM-6060001-SC NUT M6 (8)
14 WP-0641601-SC WASHER (8)
15 400-63513 SCF PLATE B (1)
16 NM-6060001-SC NUT M6 (4)
17 WP-0641601-SC WASHER (4)
18 400-63511 SAFETY COVER STAY C B (1)
19 SL-6061492-TN BOLT (2)
20 NM-6060001-SC NUT M6 (8)
21 WP-0641601-SC WASHER (8)
22 400-38381 STEP SCREW (2)
23 401-10176 GAS_SPRING (2)
24 400-31237 GS BRACKET BN (2)
25 SL-6061242-TN BOLT (4)
26 SL-6041042-TN BOLT (2)
27 CM-3002000-E6 LABEL (1)
28 400-51621 CHIP BOX NOTICE LABEL G1 (1)
29 SL-3061232-TN SCREW (2)
30 SL-6061292-TN SCREW (4)
31 SL-6061092-TN SCREW (4)
32 400-69695 CAUTION SEAL (1)
33 400-69696 EXCHANGE SEAL (1)
34 400-77462 ROD SUP BRACKET (1)
35 400-49671 COVER CUSHION (1)
36 SM-4030601-SC SCREW M3 X 6 (1)
37 400-73237 LOCATION LABEL F (1)
38 400-73238 LOCATION LABEL R (1)
39
#01
400-47218 OP SW ASSY F 1
40
#02
400-47393 OP SW ASSY F(EN) 4
41 HX-0035400-0M STUD (3)
42 SL-4030891-SC SCREW M3X8 (6)
43 E1326-715-000 EMERGENCY SEAL (1)
44 400-47177 SWITCH PANEL COVER (1)
45
#01
HA-0053400-20 SWITCH ACTUATOR (6)
46
#01
HA-0053400-70 LED GREEN (2)
47
#01
HA-0053400-7A LED YELLOW (2)
48
#02
HA-0053400-7A SWITCH (1)
49 HA-0055200-10 LED RED (1)
50
#01
HA-0055200-1A LENSE YELLOW (2)
51 HA-0055200-1B LENSE GREEN (3)
52
#01
HA-0053400-4A BEZEL (2)
53 HA-0055200-30 BEZEL (4)
54 HX-0032600-0A BUSH (4)
55
#01
400-47489 EMG SW(F) ASM (1)
56
#02
400-48257 EM SW F CABLE ASM(EN) (1)
57
#02
HA-0053500-20 SWITCH ACTUATOR (1)
58
#02
HA-0053500-3A BEZEL (1)
59
#02
HA-0055200-20 KEY SWITCH BEZEL (1)
60
#01
400-47520 OPERATION PCB FRONT ASM (1)
61
#02
400-47543 OPERATION PCB FRONT ASM (EN) (1)
62 HX-0029400-00 FIXED BASE (3)
63 SM-4040601-SC SCREW M4X0.7 L=6 (3)
64 400-73246 SP FINGER GUARD (1)
65 SL-4040691-SC SCREW M4 L=6 (2)
66 400-47175 SWITCH PANEL (1)
67 HX-0035400-0H SPACER (6)
68 HX-0035400-0P STUD (1)
69
#02
HA-0053400-20 SWITCH (5)
70
#02
HA-0053400-70 SWITCH (1)
71
#02
HA-0055200-1A SWITCH (1)
72
#02
HA-0053400-4A SWITCH (1)
73
#01
400-47219 OP SW ASSY R 1
74
#02
400-47394 OP SW ASSY R(EN) 1
75 400-47177 SWITCH PANEL COVER (1)
76
#01
HA-0053400-20 SWITCH ACTUATOR (4)
77 HA-0053400-70 LED GREEN (1)
78
#01
HA-0053400-7A LED YELLOW (1)
79 HA-0055200-10 LED RED (1)
80
#01
HA-0055200-1A LENSE YELLOW (1)
81 HA-0055200-1B LENSE GREEN (2)
82
#01
HA-0053400-4A BEZEL (1)
83 HA-0055200-30 BEZEL (3)
84
#01
HX-0032600-0A BUSH (6)
85
#02
HX-0032600-0A BUSH (7)
86
#01
400-47490 EMG SW(R) ASM (1)
87
#02
400-48258 EM SW R CABLE ASM(EN) (1)
88
#01
400-47542 OPERATION PCB REAR ASM (1)
89
#02
400-47544 OPERATION PCB REAR ASM (EN) (1)
90 HX-0029400-00 FIXED BASE (3)
91 SM-4040601-SC SCREW M4X0.7 L=6 (3)
92 400-73246 SP FINGER GUARD (1)
93 SL-4040691-SC SCREW M4 L=6 (2)
94 400-47175 SWITCH PANEL (1)
95 HX-0035400-0H SPACER (6)
96 HX-0035400-0M STUD (3)
97 HX-0035400-0P STUD (1)
98 SL-4030891-SC SCREW M3X8 (6)
99 E1326-715-000 EMERGENCY SEAL (1)
100
#02
HA-0053400-20 SWITCH (3)
101 SL-6041092-TN SCREW 2
102 SM-3040652-TN SCREW M4 L=6 2
103 SL-6040892-TN BOLT 2
104 SM-3040652-TN SCREW M4 L=6 2
105 400-63516 LABEL SET 1
