- - 32. PWB CONV EYOR COMPONEN TS (7) 8 9 1 2 1 6 3 1 4 1 3 4 2 7 1 1 1 6 1 7 1 8 1 5 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 8 3 0 3 1 3 2 3 3 3 4 3 4 3 5 3 7 3 7 3 6 3 6 8 1 0 2 8 2 9 3 3 3 5 2 4 7 7 5
- -

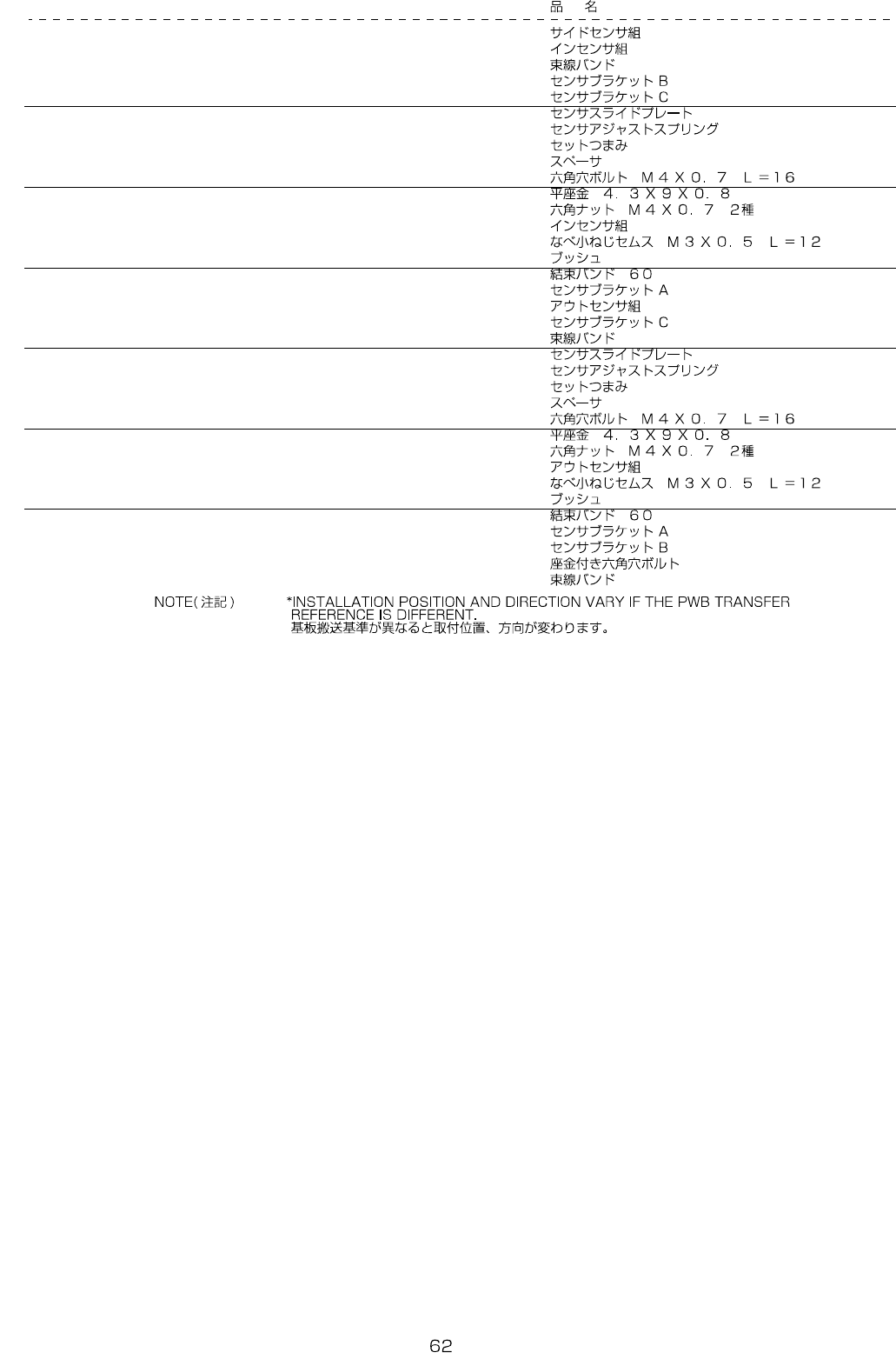

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00907 SIDE SENSOR ASM 1
2 400-00908 IN SENSOR ASM. (1)
3 HX-0044000-00 CABLE BAND (1)
4 400-01078 SENSOR BRAKET B (1)
5 400-01079 SENSOR BRAKET C (1)
6 400-01076 SENSOR SLIDE PLATE (1)
7 400-00912 SENSOR ADJUST SPRING (3)
8 G6518-880-000 SET PICK-UP (1)
9 400-58815 SPACER (1)
10 SM-6041602-TN SCREW M4 X 16 (3)
11 WP-0430801-SC WASHER 4.3X9X0.8 (6)
12 NM-6040002-SE NUT M4X0.7 (3)
13 400-02208 IN SENS ASM (1)
14 SL-4031291-SC SCREW M3X12 (1)
15 HX-0036700-0A BUSH (0.16)
16 EA-9500B00-00 CLIP CV-70S (5)
17 400-01077 SENSOR BRAKET A (1)
18 400-00914 OUT SENSOR ASM. (1)
19 400-01079 SENSOR BRAKET C (1)
20 HX-0044000-00 CABLE BAND (1)
21 400-01076 SENSOR SLIDE PLATE (1)
22 400-00912 SENSOR ADJUST SPRING (3)
23 G6518-880-000 SET PICK-UP (1)
24 400-58815 SPACER (1)
25 SM-6041602-TN SCREW M4 X 16 (3)
26 WP-0430801-SC WASHER 4.3X9X0.8 (6)
27 NM-6040002-SE NUT M4X0.7 (3)
28 400-02210 OUT SENS ASM (1)
29 SL-4031291-SC SCREW M3X12 (1)
30 HX-0036700-0A BUSH (0.16)
31 EA-9500B00-00 CLIP CV-70S (5)
32 400-01077 SENSOR BRAKET A (1)
33 400-01078 SENSOR BRAKET B (1)
34 SL-6031092-TN SCREW (4)
35 HX-0044000-00 CABLE BAND (4)
- -

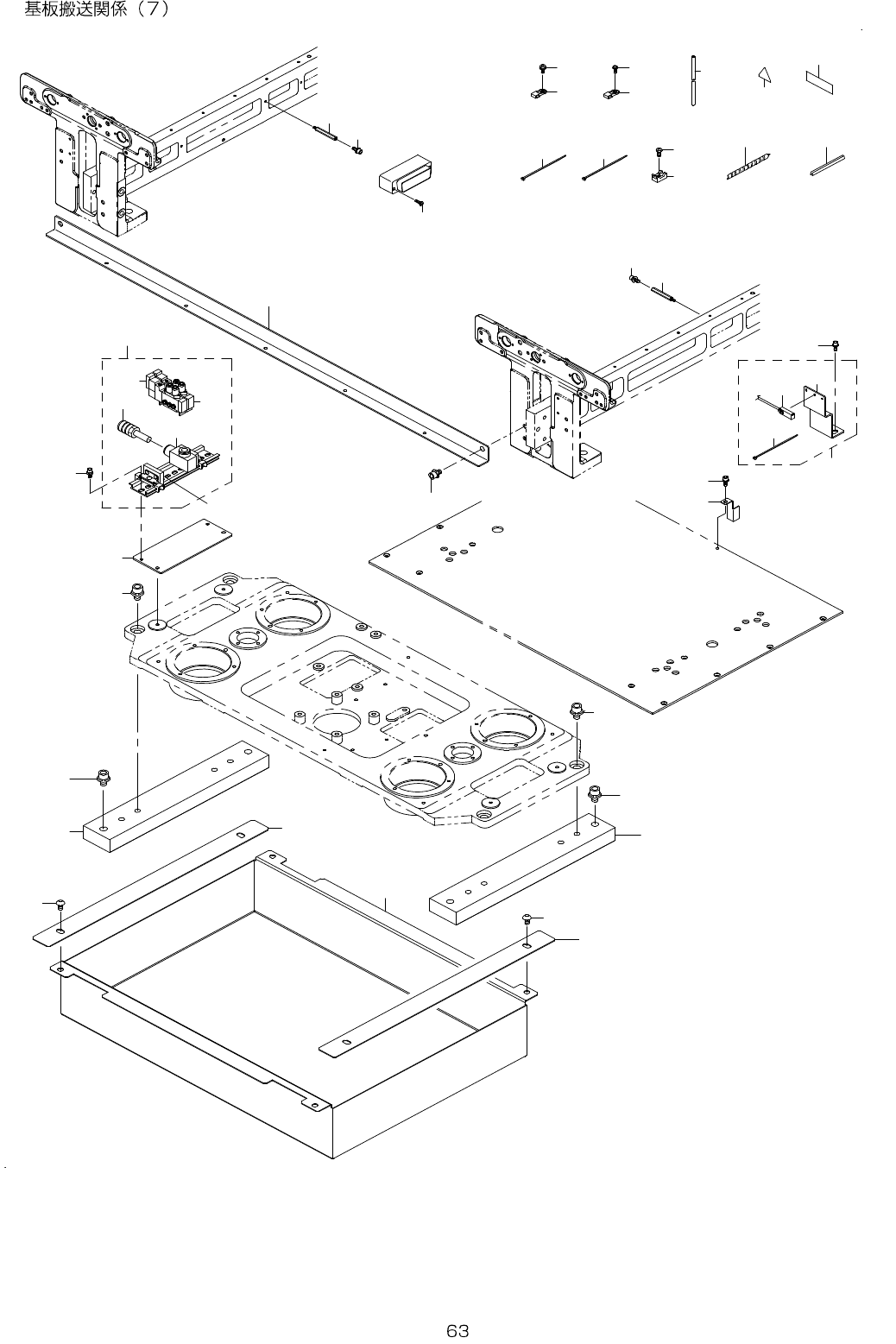

32.PWB CONVEYOR COMPONENTS (7)
8
9
1 2
1
6
3
1 4
1 3
4
2 7
1 1
1 6
1 7
1 8
1 5
1 9
2 0
2 1 2 2
2 3
2 4
2 5
2 6
2 8
3 0 3 1
3 2
3 3
3 4
3 4
3 5
3 7
3 7
3 6
3 6
8
1 0
2 8
2 9
3 3
3 5
2
4
7
7
5
- -

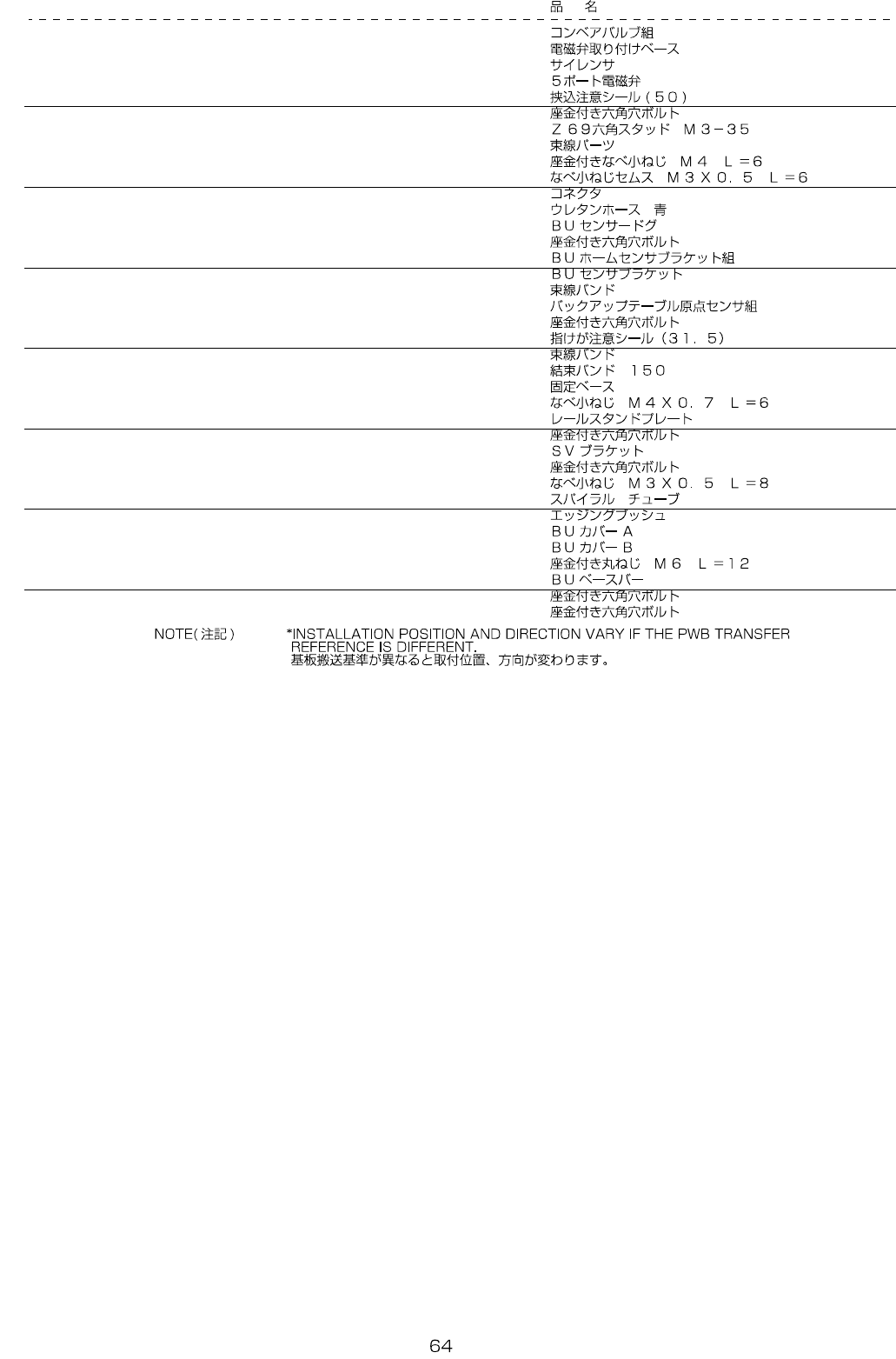

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-46871 MANIFOLD VALVE A ASM 1
2 PV-9150050-00 SOLENOID VALVE INSTALLING BASE (1)
3 PX-0500030-00 SILENCER (1)
4 PV-1502093-00 5 PORT ELECTROMAGNETIC VALVE (2)
5 401-05880 CRUSH HAZARD LABEL (50) 2
6 SL-6041092-TN SCREW 4
7 400-42762 Z69 HEX-STUD M3-35 4
8 HX-0034400-00 HARNESS PARTS 8
9 SL-4040691-SC SCREW M4 L=6 3
10 SL-4030691-SC SCREW M3X6 2
11 HK-0498900-0G CONNECTOR 1
12 BT-0400251-EA TUBE HOSE, BLUE 0.6
13 E4114-729-000 BU SENSOR DOG 1
14 SL-6041092-TN SCREW 1
15 400-46873 BU HOME SENSOR BRACKET ASM 1
16 400-46962 BU SENSOR BRACKET (1)
17 EA-9500B01-00 CABLE BAND (1)
18 400-02124 BU ORG SENS ASM (1)
19 SL-6061292-TN SCREW 2
20 CM-3002000-03 ATTENTION LABEL 2
21 EA-9500B01-00 CABLE BAND 60
22 EA-9500B02-00 CABLE BAND 150 30
23 HX-0029400-00 FIXED BASE 44
24 SM-4040601-SC SCREW M4X0.7 L=6 44
25 400-46996 RAIL STAND PLATE 2
26 SL-6061692-TN BOLT 4
27 400-46963 SV BRACKET 1
28 SL-6040892-TN BOLT 4
29 SM-4030801-SC SCREW M3 X 8 4
30 HX-0031400-0B TUBE 0.15
31 HX-0009600-0A GROMMET 0.78
32 400-46958 BU COVER A 1
33 400-46959 BU COVER B 2
34 SL-3061232-TN SCREW 8
35 400-46957 BU BASE BAR 2
36 SL-6084092-TN BOLT 4
37 SL-6083092-TN SCREW 4
