- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 400-46954 AWC MOTOR BRACKET 2 2 400-48077 AWC MOTOR ASM 2 3 SL-6041292-TN S CREW 8 4 400-46874 AWC PULLEY A ASM 4 5 SL-6051292-TN B OLT 8 6 E4733-729-000 TIMING BELT …
- -

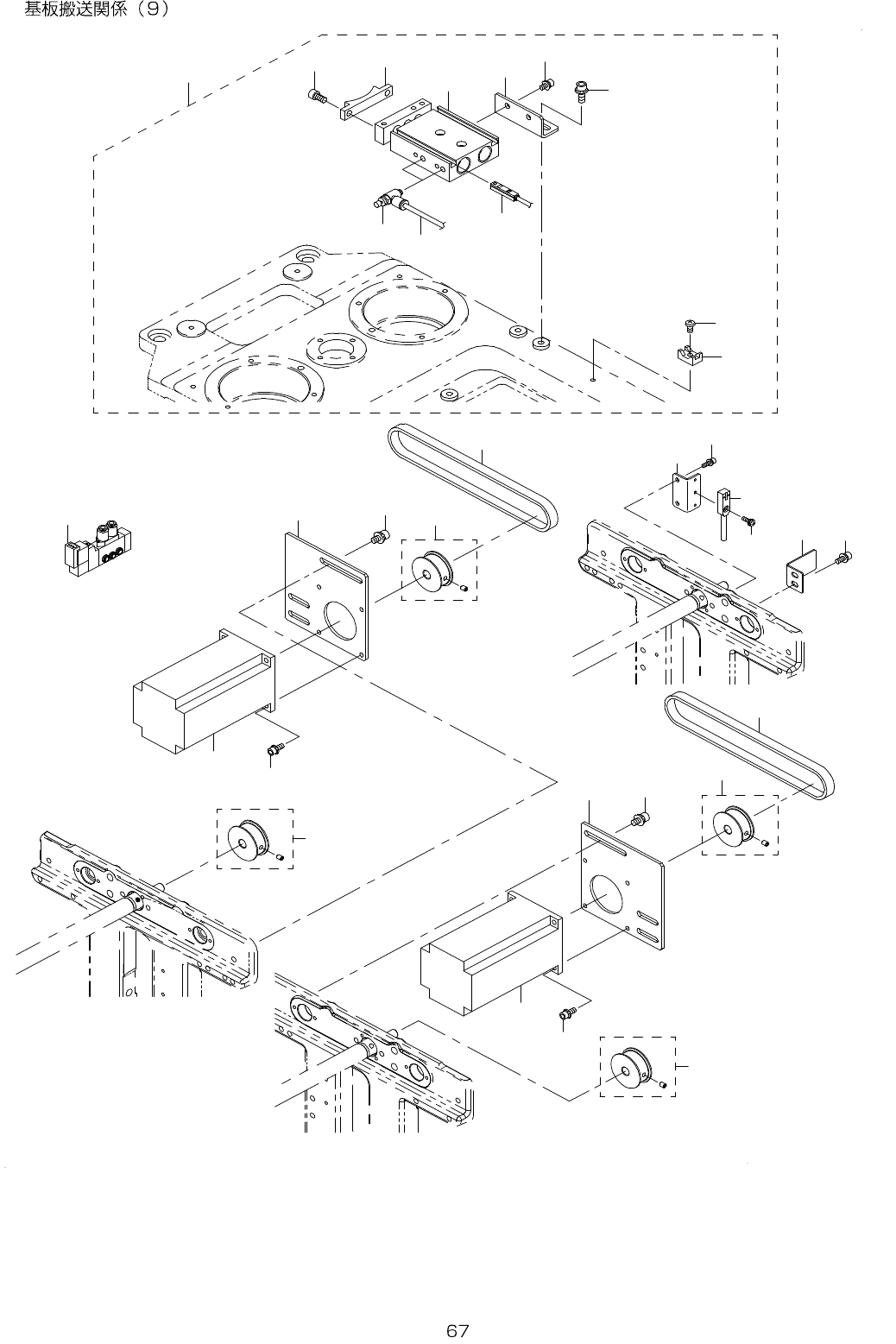

34.PWB CONVEYOR COMPONENTS (9)
1 7
1 8
1 9
1 6
2 1
2 0
2 2
1 4
1 5
2 4
2 3
2 5
4
1
2
3
2
3
1
5
5
6
6
7
1 1
1 2
9
1 0
8
1 3
4
4
4
- -

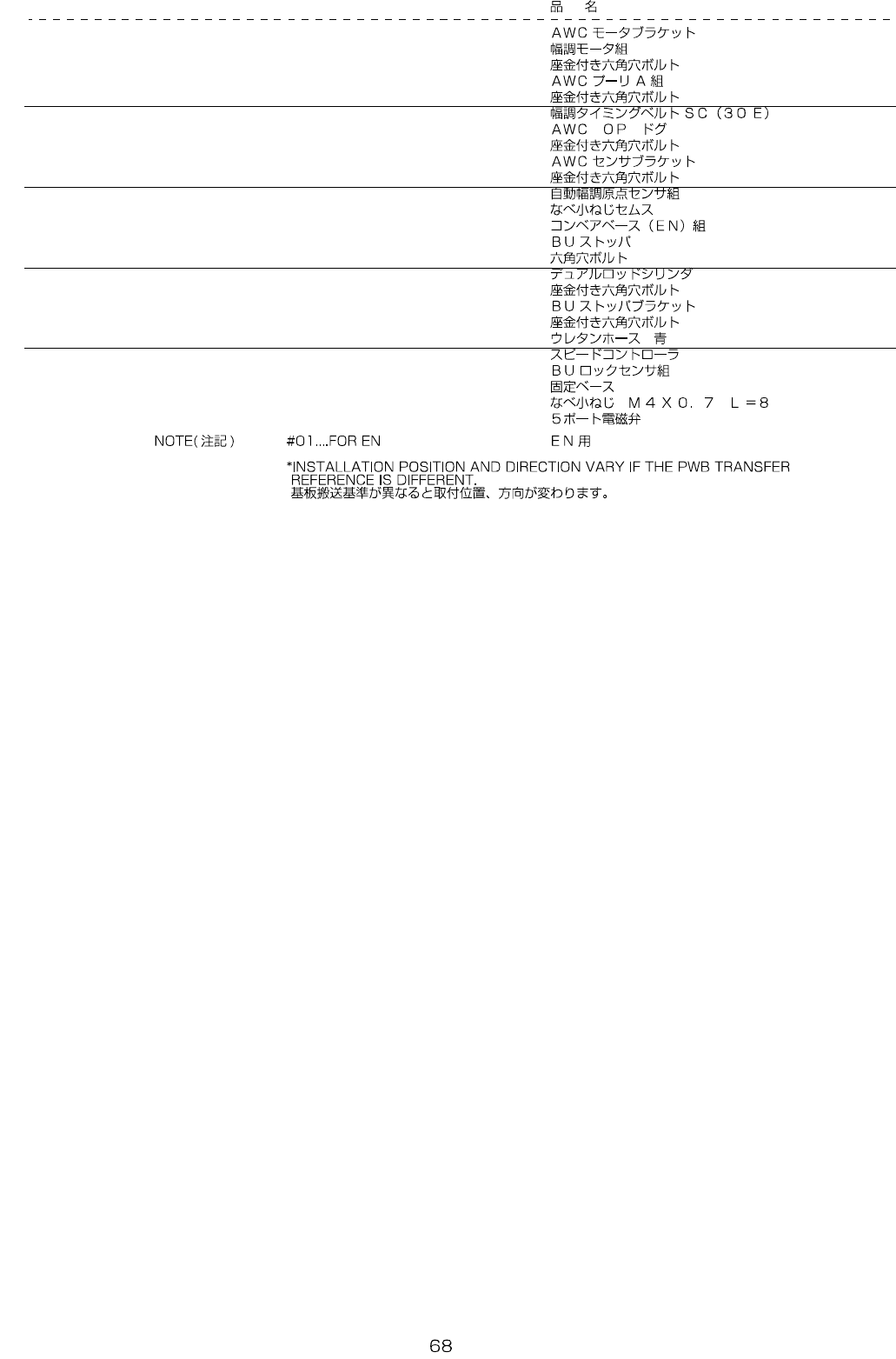

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-46954 AWC MOTOR BRACKET 2
2 400-48077 AWC MOTOR ASM 2
3 SL-6041292-TN SCREW 8
4 400-46874 AWC PULLEY A ASM 4
5 SL-6051292-TN BOLT 8
6 E4733-729-000 TIMING BELT SC (30E) 2
7 400-46952 AWC OP DOG 2
8 SL-6040892-TN BOLT 4
9 400-46953 AWC SENSOR BRACKET 2
10 SL-6030892-TN SCREW 4
11 400-02120 AWC ORG SENS ASM 2
12 SL-4031091-SC SCREW M3 X 10 4
13
#01
400-46885 CONVEYOR BASE(EN) ASSY 2
14 400-00970 BU STOPER(EN) (1)
15 SM-6051002-TN BOLT (2)
16 PA-1501011-00 DUAL ROD CYLINDER (1)
17 SL-6040892-TN BOLT (2)
18 400-00971 BU STOPER BRACKET(EN) (1)
19 SL-6051492-TN BOLT (4)
20 BT-0400251-EA TUBE HOSE, BLUE (2)
21 PC-0105080-00 SPEED CONTROLLER (2)
22 400-02241 BU LOCK SENS ASM (1)
23 HX-0029400-00 FIXED BASE (1)
24 SM-4040801-SC SCREW M4X0.7 L=8 (1)
25 PV-1502090-00 5 PORT SOLENOID VALVE 2
- -
35.PWB CONVEYOR COMPONENTS (10)
3 2
3 6
3 6
2 1
2 2
2 3
1 6
1 7
1 8
1 9
2 0
2 0
1 8
3 3
3 5
3 7
2 5
2 6
2 7
2 8
2 9
3 0
3 4
3 0
2 5
3 7
2 7
2 6
8
1 2
3 8
9
1 0
1 0
1 1
1 3
1 4
1 4
1 5
3 1
2
3
4
1
1
5
5
7
6
2 4
3 9
