FX-3-Rev13(-J)J - 第84页
- - 40. FPI COMPONE NTS 4 9 3 5 3 3 3 2 3 4 3 3 3 2 3 7 3 6 3 9 4 0 3 8 4 1 4 2 4 3 4 4 4 4 4 3 4 2 4 5 5 7 5 6 5 4 5 5 5 5 5 4 4 7 4 6 3 9 3 8 4 0 3 7 3 6 4 8 5 1 5 2 5 6 5 2 5 5 5 4 A 3 7 A 1 7 1 5 7 6 5 6 5 8 9 1 0 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-46824 BMR ASSY 1
2 400-46841 BMR LENS BRACKET A (2)
3 SL-6030692-TN BOLT (1)
4 HD-0013100-30 FIBER UNIT (1)
5 E9638-729-000 FIBER LENS (1)
6 400-46842 BMR LENS BRACKET B (1)
7 SL-6030692-TN BOLT (2)
8 HD-0013100-30 FIBER UNIT (1)
9 E9638-729-000 FIBER LENS (1)
10 400-47981 BAD MARK FIBER AMP ASM (2)
11 SM-6030602-TN HEX SCREW M3 X 6 (4)
12
#02
400-73342 BMR ASSY LR 1
13 400-46842 BMR LENS BRACKET B (1)
14 SL-6030692-TN BOLT (2)
15 HD-0013100-30 FIBER UNIT (1)
16 E9638-729-000 FIBER LENS (1)
17 400-47981 BAD MARK FIBER AMP ASM (1)
18 SM-6030602-TN HEX SCREW M3 X 6 (2)
19
#03
400-73341 BMR ASSY RR 1
20 400-46841 BMR LENS BRACKET A (1)
21 SL-6030692-TN BOLT (2)
22 HD-0013100-30 FIBER UNIT (1)
23 E9638-729-000 FIBER LENS (1)
24 400-47981 BAD MARK FIBER AMP ASM (1)
25 SM-6030602-TN HEX SCREW M3 X 6 (2)
- -

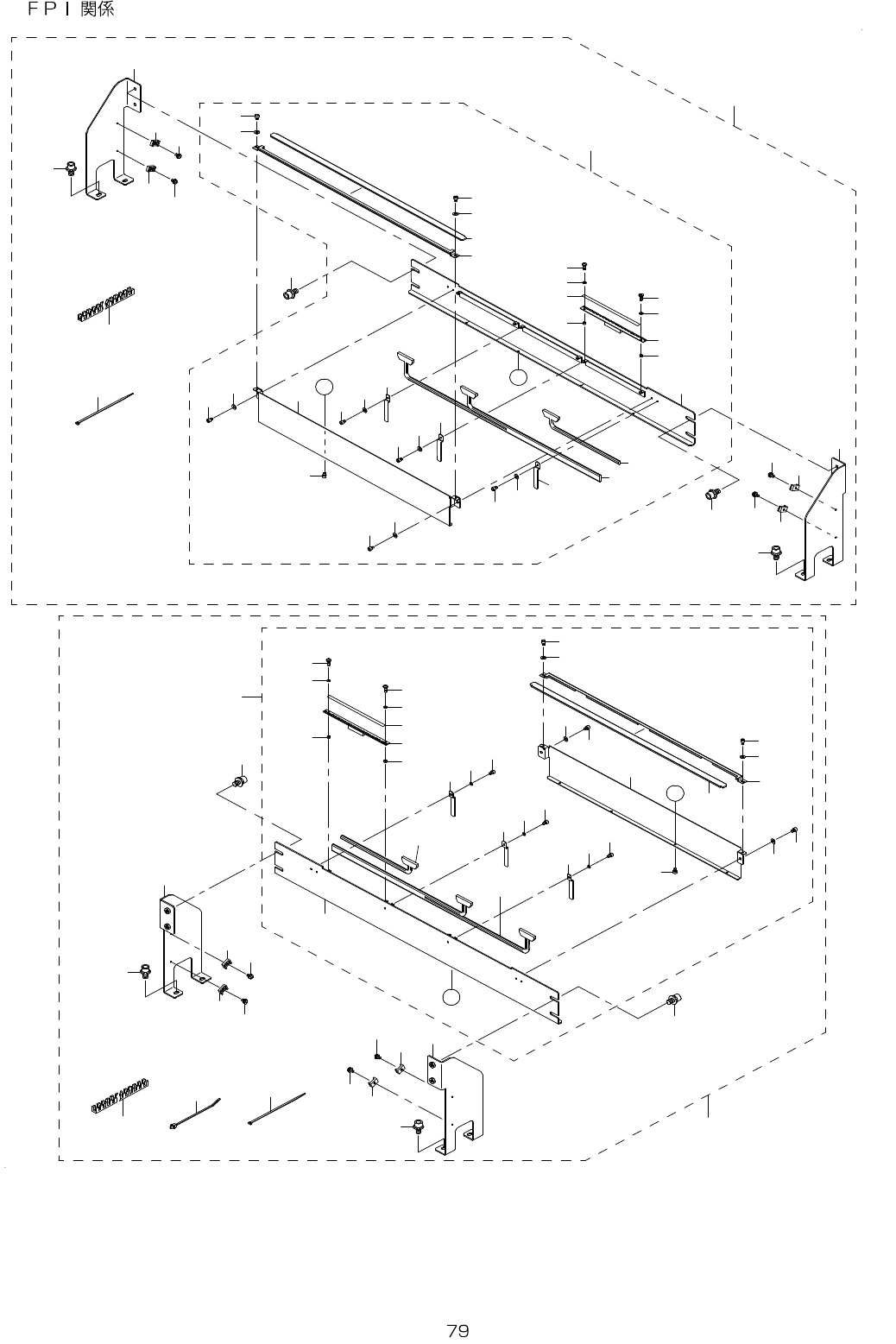

40.FPI COMPONENTS
4 9
3 5
3 3
3 2
3 4
3 3
3 2
3 7
3 6
3 9
4 0
3 8
4 1
4 2
4 3
4 4
4 4
4 3
4 2
4 5
5 7
5 6
5 4
5 5
5 5
5 4
4 7
4 6
3 9
3 8
4 0
3 7
3 6
4 8
5 1
5 2
5 6
5 2
5 5
5 4
A
3 7
A
1 7
1 5
7
6
5
6
5
8
9
1 0
1 0
9
1 4
1 6
1 8
1 5
1 7
1 6
1 1
1 3
1 2
1 2
1 3
1 1
4 0
3 9
3 8
1 2
1 3
1 1
1 9
2 0
2 6
2 6
2 5
2 6
2 5
2 5
5
B
B
4
2 1
2 2
2 3
2 1
3
2 4
2 4
2 5
2 6
1
2
3 0
3 1
5 3
2 7
2 8
2 9
5 0
5 4
5 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-72665 FPI FRONT ASSY 1
2 400-72667 FPI BRACKET FRONT ASSY (2)
3 400-47371 FPI BRACKET (1)
4 E6065-729-000 FPI COVER B30 (1)
5 SM-6030402-TN BOLT M3X4 (6)
6 WP-0320501-SC WASHER M3 (2)
7 E6066-729-000 FPI COVER U30 (1)
8 E6067-729-000 FPI PLATE 30 (1)
9 SM-6030402-TN BOLT M3X4 (2)
10 WP-0320501-SC WASHER M3 (2)
11 E6068-729-000 HARNESS CLAMP (3)
12 SM-6030402-TN BOLT M3X4 (3)
13 WP-0320501-SC WASHER M3 (3)
14 E8626-729-0A0 FPI LED BOARD ASM. (3)
15 SM-5030801-SC SCREW M3X0.5 L=8 (6)
16 E2143-715-000 TIMER SPACER A (6)
17 E4901-760-000 POLY SLIDER THRUST WASHER (6)
18 E6033-729-000 FPI INSULATION SHEET (0.15)
19 400-47993 FPI-LED 1 CABLE(F) ASM (1)
20 400-47994 FPI-LED 2 CABLE(F) ASM (1)
21 SL-6061292-TN SCREW (8)
22 400-84712 FPI BRACKET R (2)
23 400-84711 FPI BRACKET L (2)
24 SL-6061292-TN SCREW (8)
25 HX-0029400-00 FIXED BASE (4)
26 SL-4030691-SC SCREW M3X6 (4)
27 EA-9002B11-00 BUSHING L (0.84)
28 HX-0044000-00 CABLE BAND (4)
29 EA-9500B02-00 CABLE BAND 150 (4)
30 400-72666 FPI REAR ASSY 1
31 400-72668 FPI BRACKET REAR ASSY (2)
32 WP-0320501-SC WASHER M3 (2)
33 SM-6030402-TN BOLT M3X4 (2)
34 E6067-729-000 FPI PLATE 30 (1)
35 E6066-729-000 FPI COVER U30 (1)
36 WP-0320501-SC WASHER M3 (2)
37 SM-6030402-TN BOLT M3X4 (6)
38 E6068-729-000 HARNESS CLAMP (3)
39 SM-6030402-TN BOLT M3X4 (3)
40 WP-0320501-SC WASHER M3 (3)
41 E8626-729-0A0 FPI LED BOARD ASM. (3)
42 SM-5030801-SC SCREW M3X0.5 L=8 (6)
43 E2143-715-000 TIMER SPACER A (6)
44 E4901-760-000 POLY SLIDER THRUST WASHER (6)
45 E6033-729-000 FPI INSULATION SHEET (0.15)
46 400-48172 FPI LED1 CABLE(R) ASM (1)
47 400-48173 FPI LED2 CABLE(R) ASM (1)
48 400-47371 FPI BRACKET (1)
49 E6065-729-000 FPI COVER B30 (1)
50 EA-9500B02-00 CABLE BAND 150 (4)
51 400-84711 FPI BRACKET L (2)
52 SL-6061292-TN SCREW (8)
53 EA-9002B11-00 BUSHING L (0.84)
54 SL-4030691-SC SCREW M3X6 (4)
55 HX-0029400-00 FIXED BASE (4)
56 SL-6061292-TN SCREW (8)
57 400-84712 FPI BRACKET R (2)
