LC2_THREEM_MPL - 第15页
2 7 Main Conveyor2 Conveyor LC2-000-0705 50 45 43 43 46 45 45 35 35 34 47 49 48 1 7 2 3 7 23 41, 42 41, 42 21 26 15 40 21 23 12 27 33 33 33 33 12 15 24 22 22 24 5 36 12 19 16 33 33 13 37 14 4 36 6 20 8 6 20 34 10 9 9 48 …
1
7

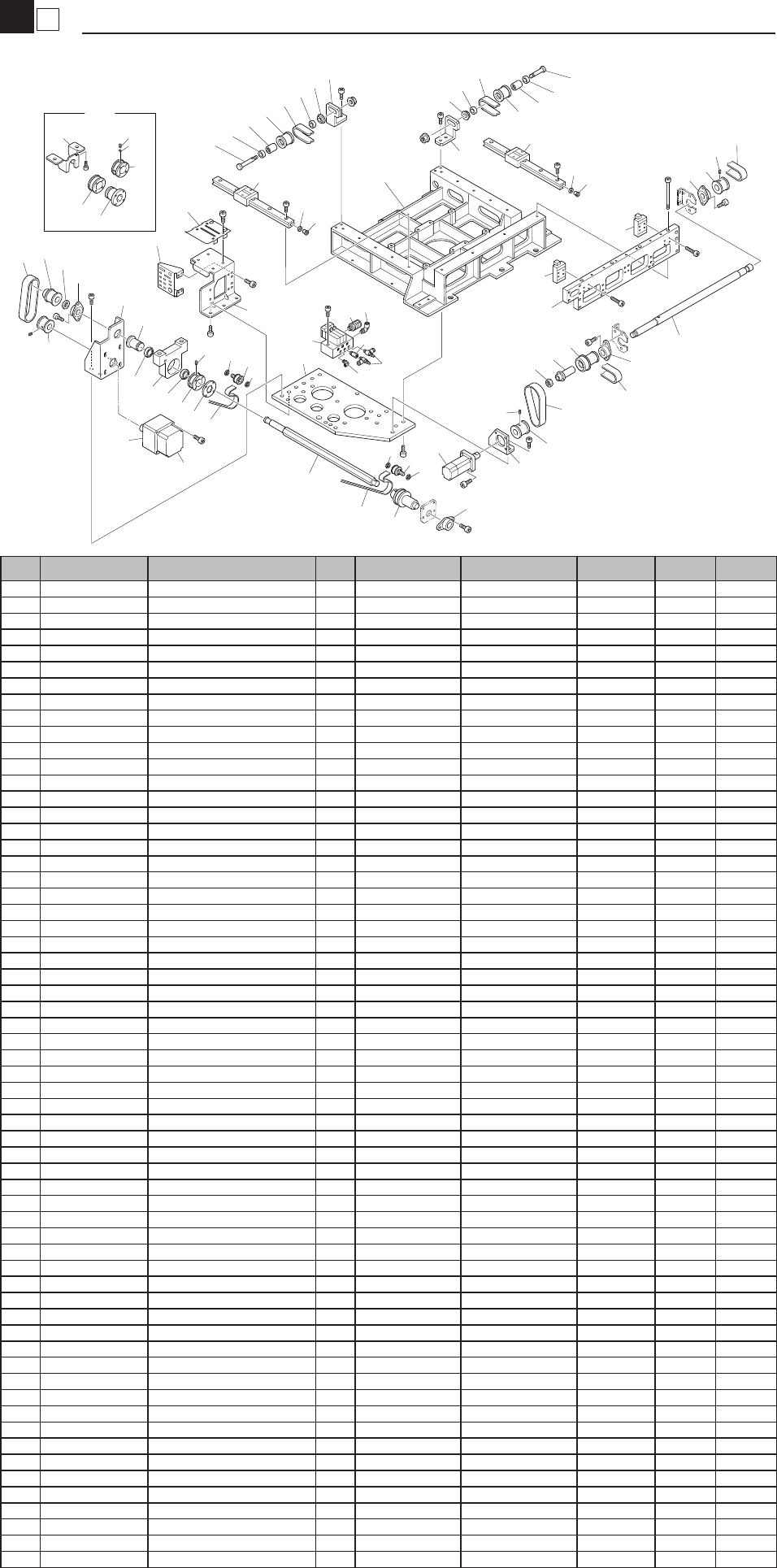

Main Conveyor1
Conveyor
LC2-000-0705
15
15
25
51
11
51
50
25
37
30
29
7
13
42
52
54
54
42
19
22
6
20
21
14
27
26
45
43
44
33
31
3
18
34
32
31
17
18
35
36
4
5
47
9
49
41
10
8
41
36
23
24
38
38
31
32
31
34
18
33
2
1
12
39
28
40
41
16
18
14
27
26
41
46
48
48
54
54
37
52
53
25
11
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1
LC2-M9101-00X BASE, CONVEYOR
1
/
2
LC2-M9104-00X BRACKET, PULLEY 1 /
3
LC2-M910E-00X BRACKET, PULLEY
1
/
4 LC2-M910F-01X BRACKET, MOTOR 1 /
5
90K65-001506 AC SERVO MOTOR 1 B
6 LC2-M910H-00X PULLEY, DRIVE F 1 /
7
LC2-M910J-00X SHAFT, DRIVE
1
/
8
LC2-M910L-00X PULLEY
1
/
9
LC2-M910M-00X BUSH
1
/
10
LC2-M910N-00X SHAFT, MAIN
1
/
11 LC2-M9117-00X HOLDER, PULLEY 1 /
11-1 LC2-M9141-00X HOLDER,PULLEY 1 (2003/5/29) NG /
12
LC2-M911H-10X BRACKET,MOTOR
1
/
13
LC2-M911J-00X PLATE, SUB
1
/
14
LC2-M911K-00X LINEAR GUIDE
1
A
15
LC2-M911M-00X BELT
2
E
16
LC2-M911N-00X BELT (255-3GT-9)
1
B
17
LC2-M911P-00X BELT (B150S3M219)
1
B
18
LC2-M911R-00X BELT (B150S3M789)
2
B
19
LC2-M9121-30X VALVE
1
B
20
$SC4-M5B SPEED CONTROLLER
2
/
21
$EXF JOINT
2
/
22
$KM-11 MUFFLER
1
/
23
LG0-M90AM-00X JOINT
1
/
24
$TL4-M5M JOINT
2
/
25 LC2-M9122-00X PULLEY, DRIVE R 1 /
25-1 LC2-M9142-00X PULLEY,DRIVE 1 (2003/5/29) NG /
25-2 LC2-M9142-01X PULLEY,DRIVE 1 (2004/9/14) NG /
26
LC2-M912B-00X COLLAR
2
/
27
LC2-M912C-00X STOPPER
2
/
28
LC2-M912D-00X PULLEY
1
/
29
LC2-M9131-00X MOTOR
1
B
30
LC2-M9132-00X GEAR HEAD
1
B
31
90933-03J696 BEARING
4
/
32
KB0-M223F-00X COLLAR 3
2
/
33
KB0-M2216-00X WASHER
2
/
34
KB2-M2254-00X PULLEY 4
2
/
35
KC0-M1751-00X PULLEY, 1: P16S3M0150
1
/
36
90152-04J03 SCREW, SET M4X3
2
/
37 KG2-M9108-11X COLLAR, CONVEYOR 1 /
37-1 LC2-M9144-00X GUIDE,PULLEY 1 (2003/5/29) NG /
38 KH2-M1807-00X BOLT DRIVEN PULLEY 2 /
38-1 LC2-M912Y-00X BOLT 2 (2003/9/10) NG /
39
KG7-M9110-01X COLLAR,W
1
/
40
KH2-M9105-11X PULLEY,MOTOR:P30-3GT
1
/
41
KH2-M9121-00X BEARING
4
/
42
KV7-M9140-A0X PULLEY CONV. ASSY
2
/
43
LC2-M11AD-00X CABLE, CLAMP
1
/
44
LC2-M11AJ-00X PANEL, CONNECTOR
1
/
45
LC2-M912P-00X STAY, BASE
1
/
46
LC2-M9102-00X FRAME, FIXED SIDE
1
/
47
LC2-M910K-00X PULLEY
1
/
48
LC2-M911L-00X LINEAR GUIDE
2
A
49
90185-00J00 NUT U (M10)
1
/
50 LC2-M9143-00X SHAFT,PULLEY 1 (2003/5/29) /
50-1 LC2-M9143-01X SHAFT,PULLEY 1 (2004/9/15) OK /
51 LG0-M71B1-00X BALL BEARING 2 (2003/5/29) /
52 90152-04J06 SET SCREW 2 (2003/5/29) /
53 LG0-M90AC-00X PIECE,SET 2 (2003/5/29) /
53-1 Delete (2004/9/14) /
54 92907-05200 WASHER PLAIN 4 /
2
7

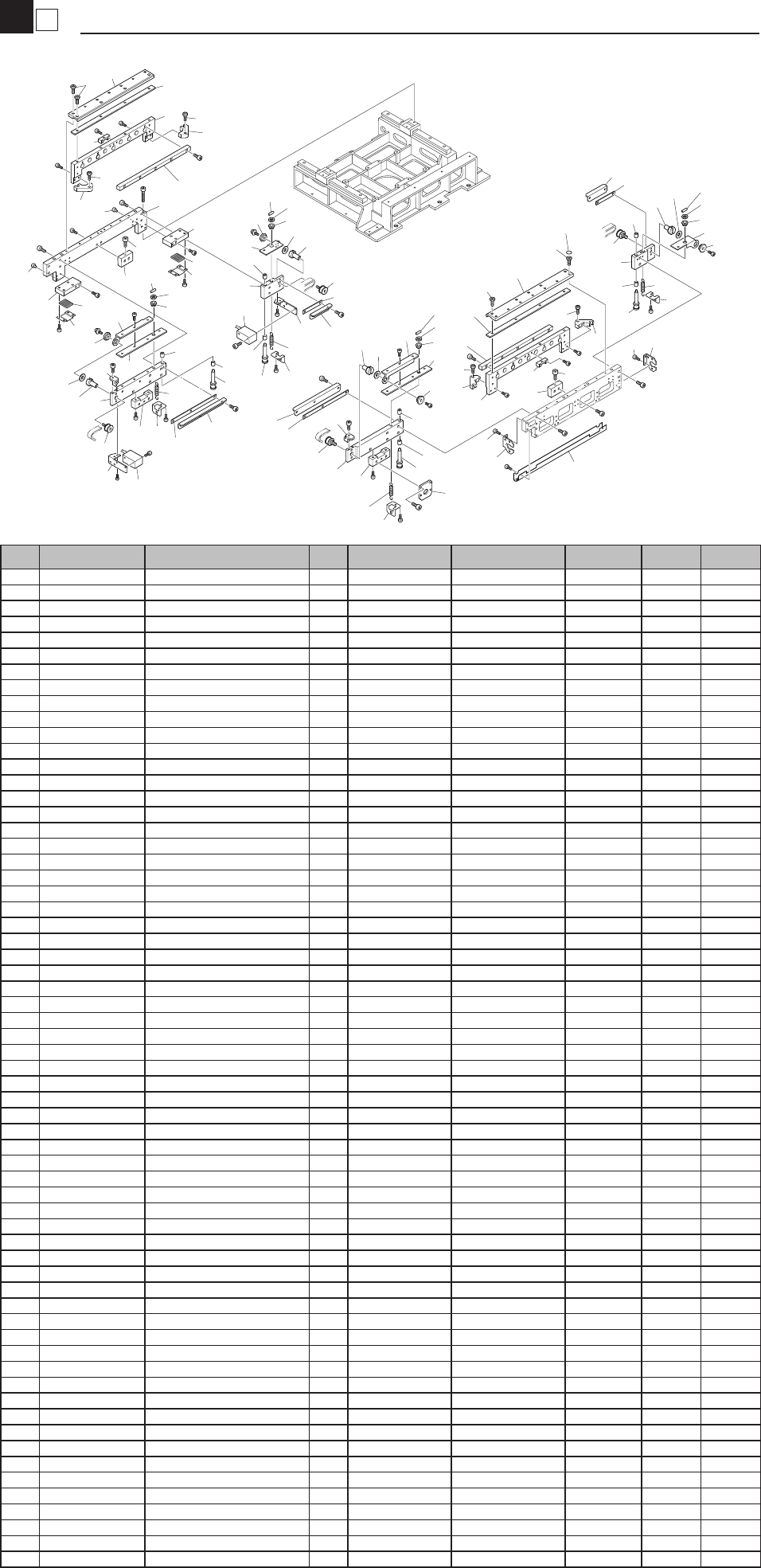

Main Conveyor2
Conveyor
LC2-000-0705
50
45
43
43
46
45
45
35
35
34
47
49
48
1
7
2
3
7
23
41, 42
41, 42
21
26
15
40
21
23
12
27
33
33
33
33
12
15
24
22
22
24
5
36
12
19
16
33
33
13
37
14
4
36
6
20
8
6
20
34
10
9
9
48
47
8
11
11
11
32
19
30
52
18
15
51
43
31
18
51
39
38
15
51
52
18
12
25
33
33
43
51
18
34
49
36
19
19
36
46
17
10
28
44
28
44
34
11
29
13
37
14
13
37
14
13
37
14
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1
LC2-M9103-00X FRAME, MOVING SIDE
1
/
2 LC2-M9105-00X FRAME 1 /
2-1 LC2-M9105-01X FRAME 1 (2003/9/9) NG /
3 LC2-M9106-00X FRAME 1 /
3-1 LC2-M9106-01X FRAME 1 (2003/9/9) NG /
4 LC2-M9107-00X FRAME 1 /
4-1 LC2-M9107-01X FRAME 1 (2003/9/9) NG /
5 LC2-M9108-00X FRAME 1 /
5-1 LC2-M9108-01X FRAME 1 (2003/9/9) NG /
6 LC2-M9109-00X GUIDE 2 /
7 LC2-M910A-00X JOINT 2 /
7-1 LC2-M910A-00X JOINT 1 (2003/5/29) /
8
LC2-M910B-00X PLATE
2
/
9
LC2-M910C-00X KEY
2
/
10 LC2-M911A-00X HOLDER,BELT 2 /
10-1 LC2-M911A-01X HOLDER,BELT 2 (2003/9/10) NG /
11
LC2-M910G-01X HOLDER, PIN
4
/
12
LC2-M910P-00X PIN, PUSHUP
4
/
13
LC2-M910R-00X RING, SPG.
4
/
14
LC2-M910S-00X BUSH, SPG.
4
/
15
LC2-M910T-00X HOLDER, PULLEY
4
/
16
LC2-M910U-00X HOLDER, BRG.
1
/
17
LC2-M910V-00X HOLDER, BRG.
1
/
18
LC2-M910W-00X WASHER
4
/
19
LC2-M910X-00X HOOK
4
/
20
LC2-M910Y-00X GUIDE, PCB
2
/
21
LC2-M9111-00X STAY, BELT
2
/
22
LC2-M9112-00X STAY, BELT
2
/
23
LC2-M9113-00X SPACER, STAY
2
/
24
LC2-M9114-00X SPACER, STAY
2
/
25
LC2-M9116-00X PLATE., BRG.
1
/
26 LC2-M9118-01X BRACKET,SENSOR 1 /
26-1 LC2-M9118-02X BRACKET,SENSOR 1 (2003/9/9) NG /
27 LC2-M9119-01X BRACKET,SENSOR 1 /
27-1 LC2-M9119-02X BRACKET,SENSOR 1 (2003/9/9) NG /
28 LC2-M911A-00X HOLDER,BELT 2 /
28-1 LC2-M911A-01X HOLDER,BELT 2 (2003/9/10) NG /
29 LC2-M911B-01X GUIDE,PCB 1 /
29-1 LC2-M911B-02X GUIDE,PCB 1 (2003/2/19) NG /
30 LC2-M911C-01X GUIDE,PCB 1 /
30-1 LC2-M911C-020 GUIDE,PCB 1 (2003/2/19) NG /
31
LC2-M911D-01X GUIDE, PCB
1
/
32
LC2-M911E-01X GUIDE, PCB
1
/
33
LC2-M911S-00X BUSH
8
/
34
LC2-M911T-01X SCREW, STOPPER
4
/
35
LC2-M911U-00X STOPPER
2
/
36
LC2-M911V-00X SPRING
4
/
37 91690-20010 PIN,SPRING
16 /
38
LC2-M912F-00X DUCT
1
/
39
LC2-M912G-01X GUIDE
2
/
40
LC2-M912H-01X GUIDE
2
/
41
LC2-M653H-00X SENSOR, EXIT
1
B
42
LC2-M653J-00X SENSOR, ENT.
1
B
43
KV1-M9140-A0X PULLEY, CONV. ASSY
4
/
44
LC2-M912L-00X BELT
2
/
45
LC2-M912M-00X LOW HEAD CAP SCREW
22
/
46
LC2-M912N-00X LOW HEAD CAP SCREW
4
/
47
LC2-M912S-00X BLOCK
2
/
48
LC2-M912T-00X STOPPER
2
/
49
LC2-M912U-00X STOPPER
2
/
50
LC2-M912V-00X LABEL
1
/
51
LC2-M912W-00X SHIM
4
/
52
LC2-M912X-00X GUIDE PCB
2
/
3
7

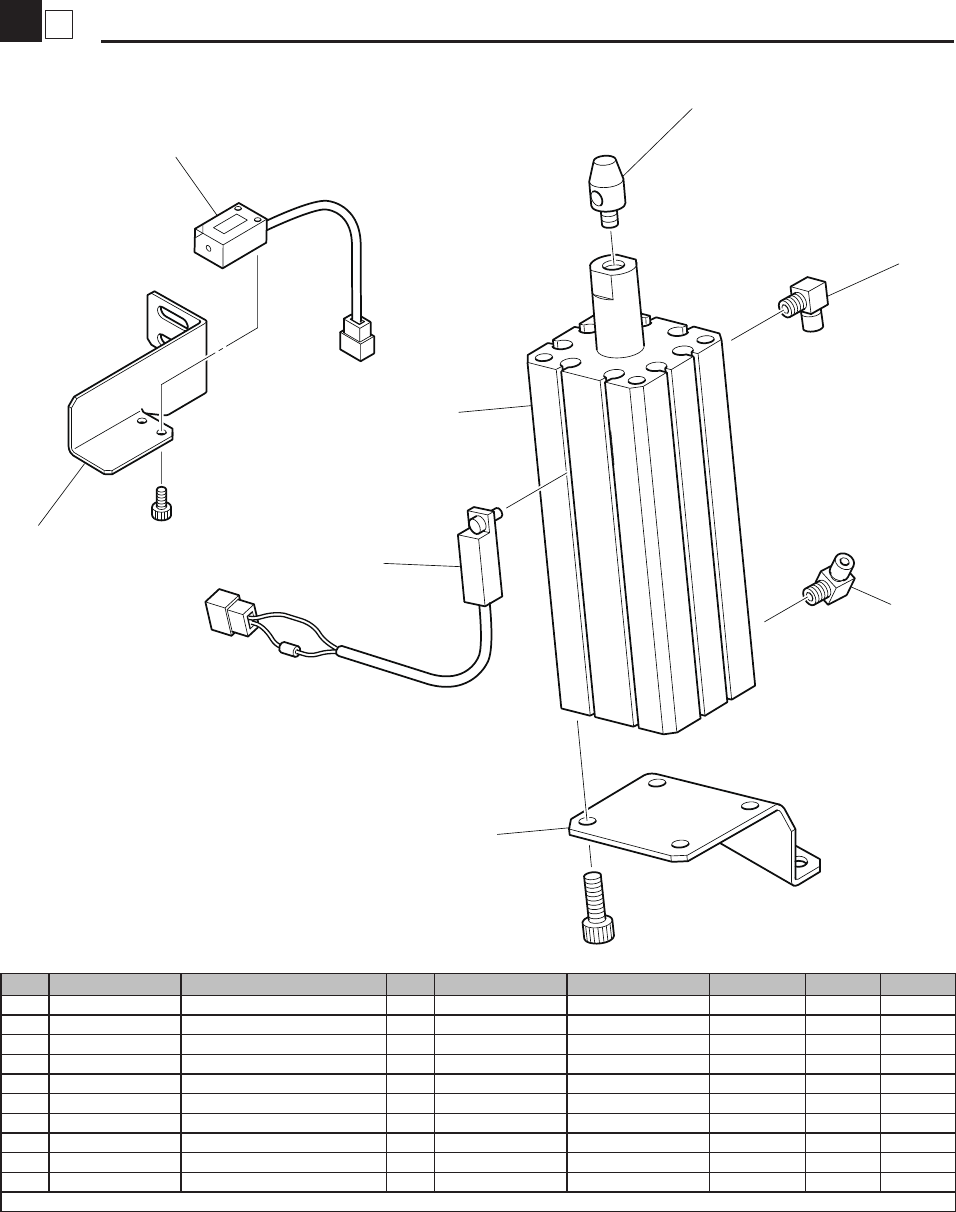

Main Stopper
Conveyor
LC2-000-0705
1
4
3
4
5, 8
2
7
6
No. Part No. Part Name Q'ty Remarks Date Compati. Rank Level
1 LC2-M9161-00X STOPPER 1 /
2 LC2-M9162-01X CYLINDER 1 B
3 LC2-M653F-00X SENSOR, 3 ASSY 1 B
4 LG0-M71AH-00X JOINT 2 /
5 LC2-M9163-00X BRACKET, CYL. 1
* R>L F.Ref , L>R R.Ref
/
6 LC2-M653K-00X SENSOR, SET POSITION 1 B
7 LC2-M9127-00X BRACKET,SENSOR 1 /
7-1 LC2-M9127-01X BRACKET,SENSOR 1 (2003/2/19) OK /
7-2 LC2-M9127-02X BRACKET,SENSOR 1 (2004/12/2) OK /
8 LC2-M9163-10X BRACKET, CYL. 1
*L>R F.Ref , R>L R.Ref
/
* F.Ref : Front reference conveyor R.Ref : Rear reference conveyor
