Minor Maintenance
Maintenance Tasks for DLM 3.1.4 Performing Maintenance Tasks
22 Maintenance Manual SIPLACE Placement Heads DLM3/DLM4
3.1.4.5
3.1.4.5 Inserting the Valve Plungers
Inserting the Valve Plungers
3.1.4.6
3.1.4.6 Replacing the Sleeves
Replacing the Sleeves
► Set the placement head nozzles down in the nozzle changer.
► Open the Safety Cover.
► Insert cleaned of if necessary, new valve
plungers (1).
Grease the valve plungers before inserting them
(see section "3.1.4.4 Greasing the Valve Plungers"
[ ➙ 19]). If they move too easily or are stiff to move,
replace the valve plungers.
CAUTION!
Make sure that the valve plungers are inserted as far as
the stop.
CAUTION
Laboratory gloves
► Do not hold the sleeves in your bare hands. Wear protective gloves when performing main
-
tenance tasks to the sleeve. This helps to avoid unnecessary contamination of the glass or
friction wheel. This contamination could lead to malfunctions (counting errors or overswing).
NOTICE
Sleeves
We recommend that you have a cleaned set of sleeves ready, in case you need to replace con
-
taminated ones.
► (1) Pull the sleeve out of the head.
► (2) Place the sleeves in the vessel provided.
► Turn the star on to the next segment.
► Repeat these steps for all segments, until all sleeves
have been removed.
► Insert the cleaned sleeves into the segments. Use a
very gentle pressure to engage the sleeves to avoid
damaging the retaining springs.
Minor Maintenance
3.1.4 Performing Maintenance Tasks Maintenance Tasks for DLM
Maintenance Manual SIPLACE Placement Heads DLM3/DLM4 23
3.1.4.7
3.1.4.7 Checking, Cleaning and Greasing the Sleeves
Checking, Cleaning and Greasing the Sleeves
► Check the foil for damage.
If the foil is damaged, send the sleeve to the
SIPLACE Sleeve Maintenance team.

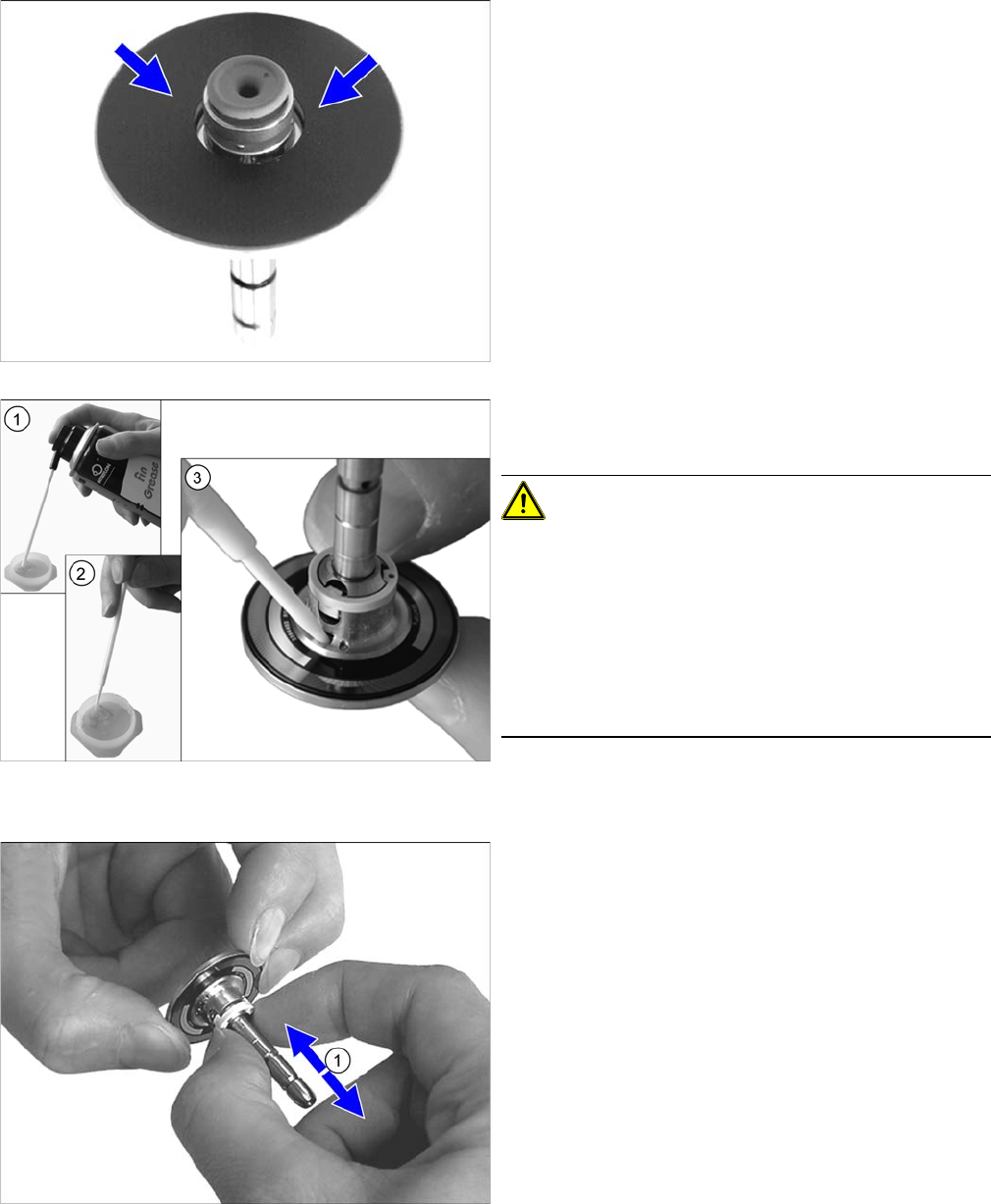

► (1) Spray a little Teflon grease into a suitable vessel.
► (2) Moisten the cottonwool bud with Teflon grease.
CAUTION!
Do not spray Teflon grease directly onto the cottonwool
buds with the spray can. Using a separate vessel helps to
avoid excess application and consequential damage to
the placement head!
Always use either ethanol or Isopropanol for cleaning
purposes. Do not use white spirit, otherwise streaks will
form on the incremental disk!
Do not use silicon-soluble cleaning agents.
► (3) Run the dampened cottonwool bud along the
groove of the anti-rotation element.
► (1) Check that the switching ring moves easily in the
sleeve. The unit that is moved as a result must not
stick or grate. However, if still does stick or grate, de
-
spite greasing, send the sleeve to the SIPLACE
Sleeve Maintenance team.
► Repeat these steps for all sleeves.
Minor Maintenance
Maintenance Tasks for DLM 3.1.4 Performing Maintenance Tasks
24 Maintenance Manual SIPLACE Placement Heads DLM3/DLM4
► Remove the dirt from the longitudinal vacuum hole by
turning the 1.4 mm drill bit clockwise in the hole. Turn
-
ing the bit will remove the dirt from the hole.
► Use the same procedure to remove the dirt from the
transverse vacuum hole using the 1.1 mm drill bit.
► Wear laboratory gloves for this step.
► (1) Check the suction plate for damage. If it is dam
-
aged, replace it.
► (2) Clean the sleeve suction plate using a dry, lint-
free cloth.

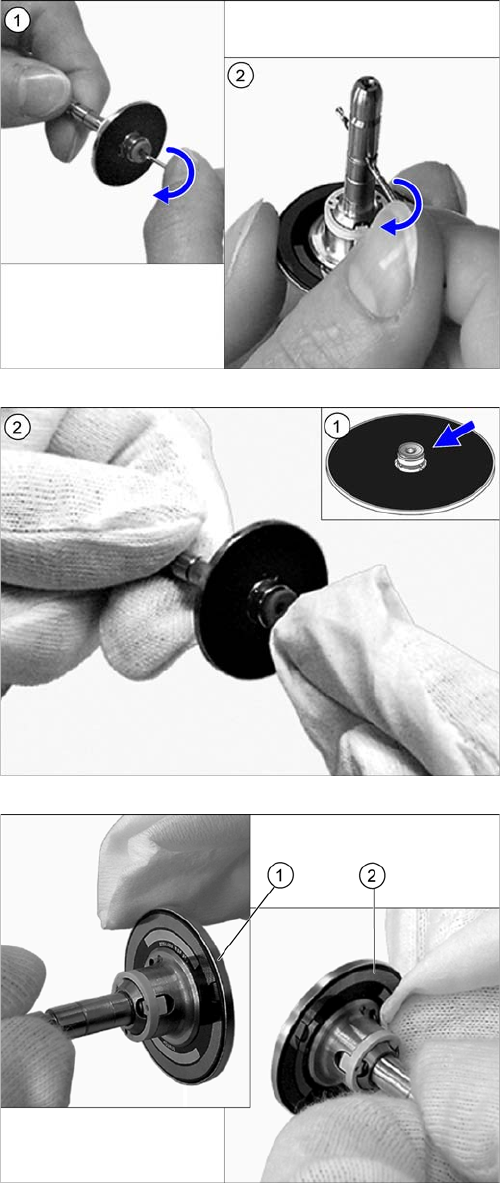

► Clean the edge (1) of the sleeve with a lint-free cloth,
moistened with ethanol.
► Clean the incremental disk (2) of the sleeve with a
lint-free cloth, moistened with ethanol.
