Minor Maintenance
Maintenance Tasks for Nozzles 3.2.5 Performing Maintenance Tasks
32 Maintenance Manual SIPLACE Placement Heads DLM3/DLM4

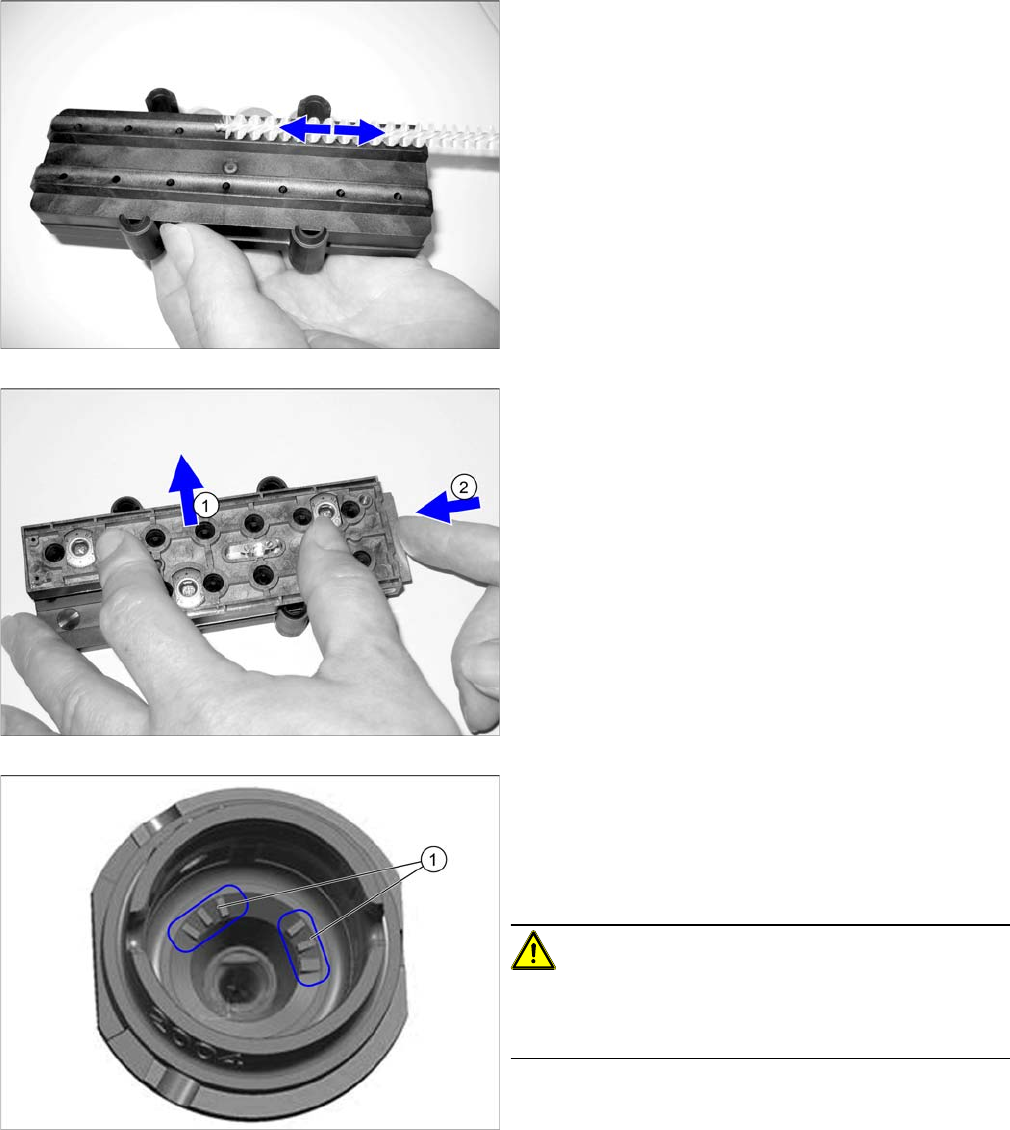

► Apply slight pressure and move the brush back and
forth to remove the partially dissolved dirt and resi
-
dues.
► Check the cleaning result with a magnifying glass or
microscope.
► (1) Remove the brush guidance.
► Place the nozzles in the nozzle magazine and close
the slide (2).
► Dry the nozzles with compressed air.
► If you are using nozzles with a nozzle ID (1), vacuum
the nozzle shaft (dust, components).
If you are unable to clean here, replace the nozzle.
► Place the nozzle magazine back in the nozzle chang
-
er.
CAUTION!
Reinsert the nozzle magazine into the same position in
the nozzle changer as before (when it was removed be
-
fore cleaning).
Minor Maintenance
3.2.5 Performing Maintenance Tasks Maintenance Tasks for Nozzles
Maintenance Manual SIPLACE Placement Heads DLM3/DLM4 33
3.2.5.2
3.2.5.2 Replacing the Plastic Nozzles
Replacing the Plastic Nozzles

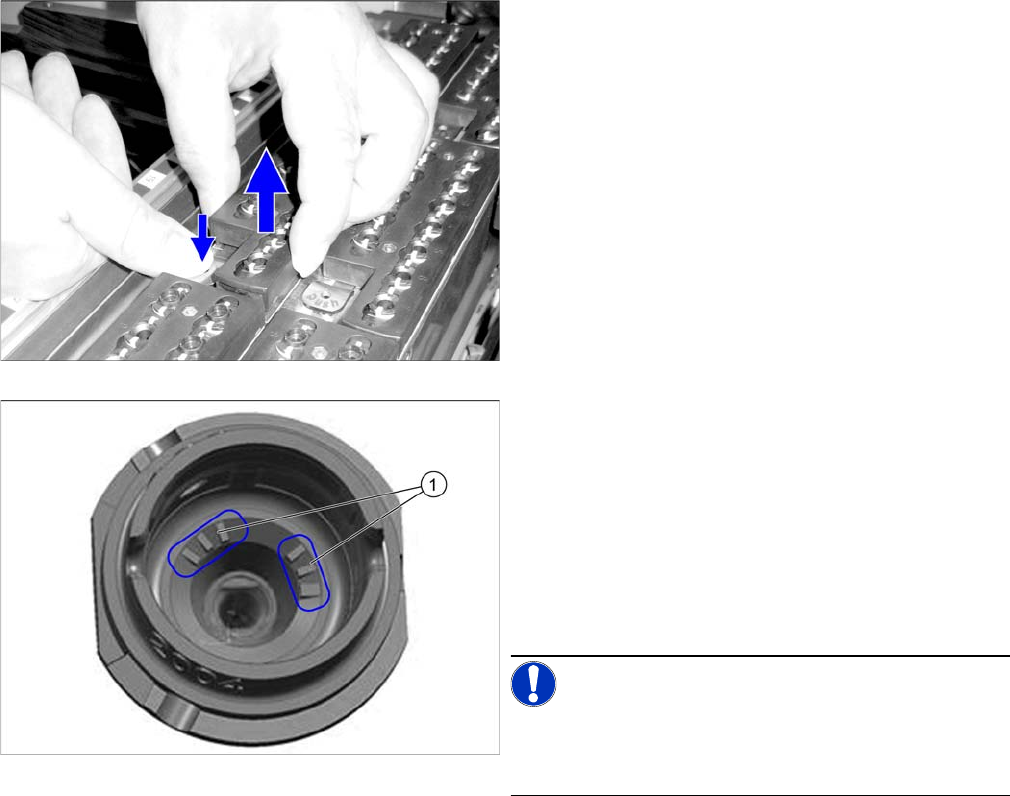

► Remove a full nozzle magazine from the nozzle
changer. When handling a nozzle magazine which is
not full, make a note of the orientation in the nozzle
changer, to ensure correct reinsertion later on.
► Check the nozzles.
Replace damaged nozzles.
► If you are using nozzles with a nozzle ID (1), vacuum
the nozzle shaft (dust, components).
If you are unable to clean here, replace the nozzle.
► Place the nozzle magazine back in the nozzle chang
-
er. When handling a nozzle magazine which is not
full, pay attention to correct orientation in the nozzle
changer.
NOTICE!
Prepare additional nozzle magazines according to the
current nozzle configuration and replace the complete
magazine.
Minor Maintenance
Maintenance Tasks for Nozzles 3.2.5 Performing Maintenance Tasks
34 Maintenance Manual SIPLACE Placement Heads DLM3/DLM4
