5 Printed circuit boar ds 111 0032358 3-030 101ND 3 Com ponen t table con trol boa rd (S h. 1 of 2) 03 00323 583-0 30101N D3 01 01 Compon ent table con trol board, SMD SMD placement system S iplace 80S
5 Printed circuit boards 110

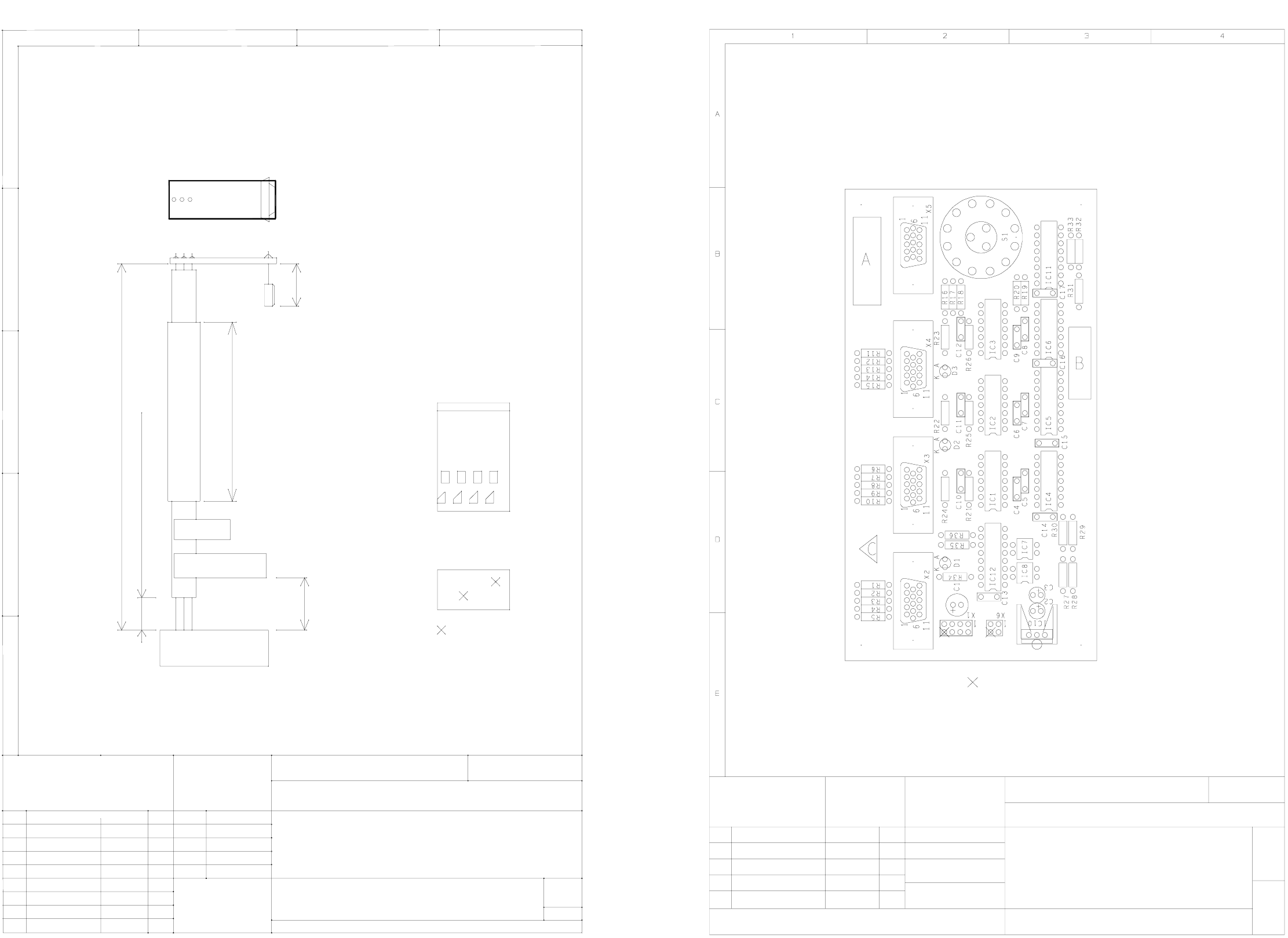

00321524-040101ND4 Sensor, Z-axis, bottom
00322333-010304MD4 Video multiplexer, manually controlled
06.05.1996
Siemens AG
The following labels have to be stuck on!
Maximum component height: 7 mm
Solder cable from mounting side and do not bend.
V1
360 mm
Splice 25 mm
210mm
EE
DD
1.
Zust
1.
321524
Datum
06.05.96
06.05.96Prod. status
Doc. status
Aenderung
TE
TE
Name
Norm
Gepr.
Bearb.
Datum
TE - Ne
AUT-BSM
Mat.-Nr.:
X11
12783
KEY
KEY
B
A
CC
AA
BB
Silicone hose
TE
A: Identification label
B: Inspection label
1122
00321524-040101ND4
View onto cable side
= KEY
SMD Placement System Siplace 80S/20
Sensor z axis bottom
2:1
Massstab
20 mm
1
1
2
Sheet
1
1
Sh.
7
X11
X11
*
BAU
* : refer to 00321524-040101LD4
3. Funct. status 06.05.96 TE
4. Funct. status 01.04.98 bmk
V1
3344
01 Datum
Name
11.10.95
KLOSE
SIEMENS AG
ANL A441 EPGM
Zeichnr.:
1710470-Y1025-000
M 1:1
Pinch off PIN
Video multiplexer
manually controlled
00322333-010304MD4
G32918-F0050-B001-*-17
1-
B = Inspection label
A = Identification label
C = ESD label
Shee
t
Siplace 80S/F
Product status
Doc. status
Function status
Mitteilung Datum NameZust.
11.10.95
11.10.9502
02
KL
KL
5 Printed circuit boards 111

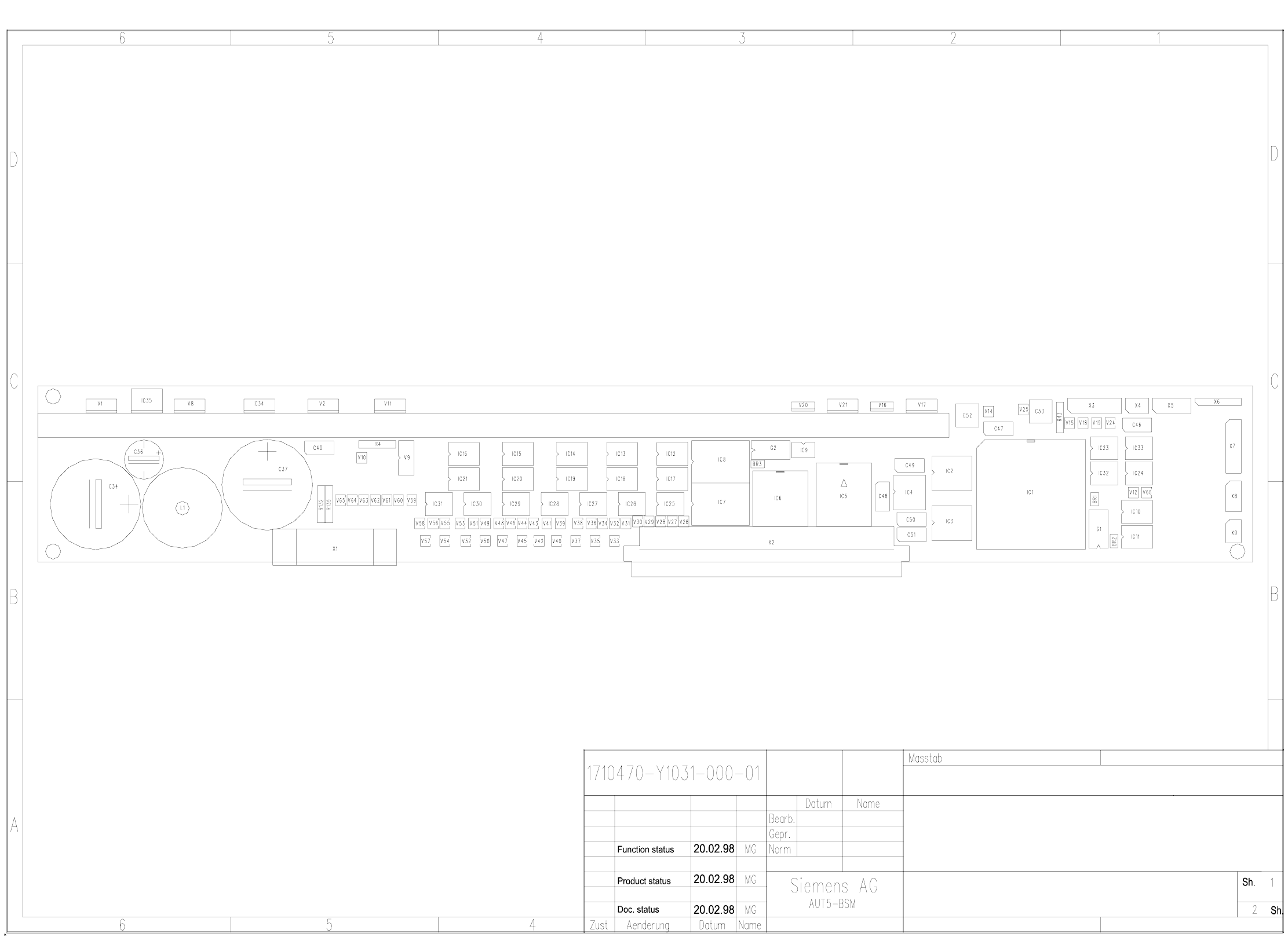

00323583-030101ND3 Component table control board (Sh. 1 of 2)
03
00323583-030101ND3
01
01
Component table control board, SMD
SMD placement system Siplace 80S
5 Printed circuit boards 112

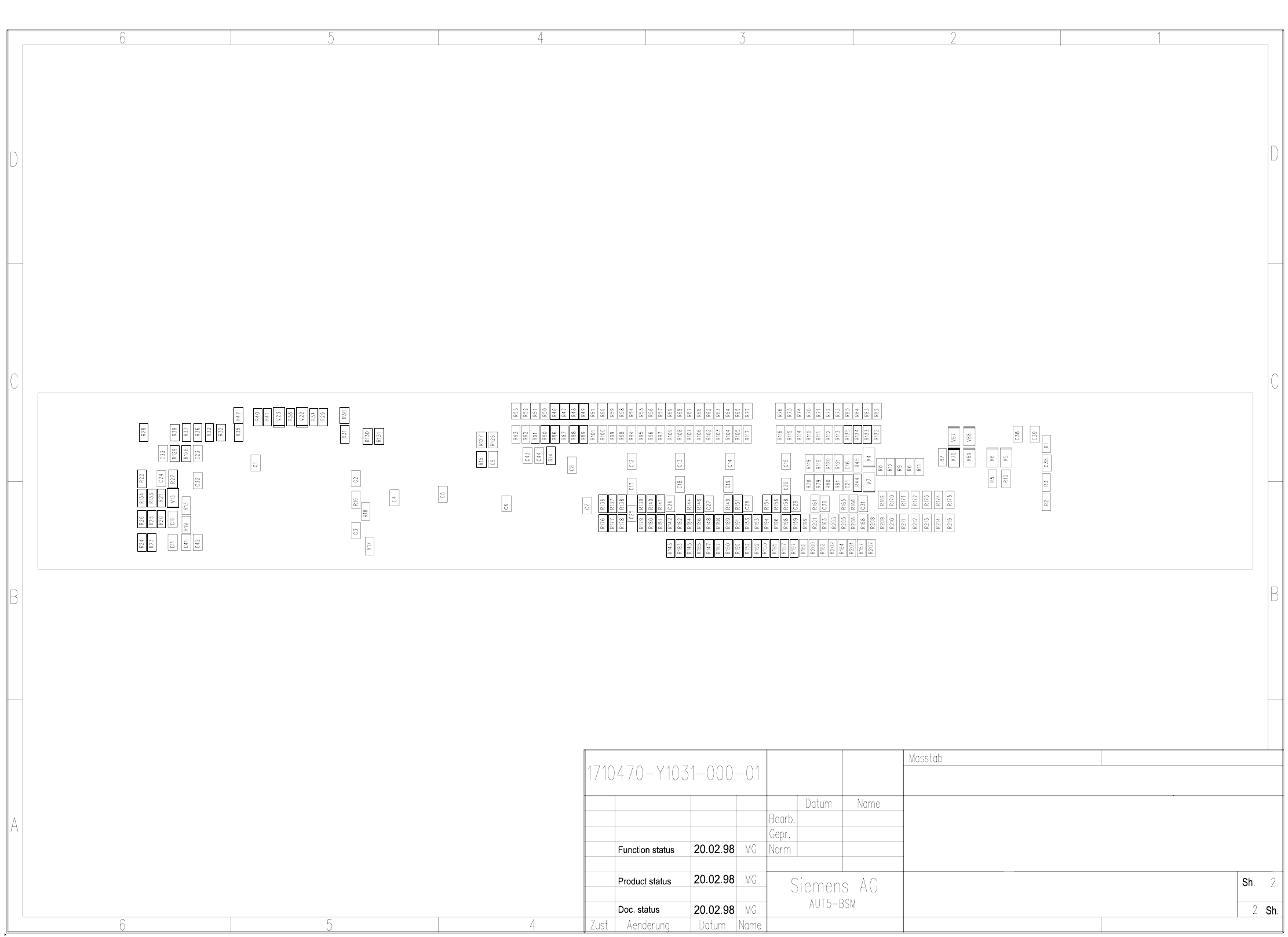

00323583-030101ND3 Component table control board (Sh. 2 of 2)
Component table control board, SMD
SMD placement system Siplace 80S
03
00323583-030101ND3
01
01
