3 Circ uit d iagrams 71 0035621 3-010 101 TD3 S25 HM c ontrol unit ( viewed fr om th e back) (Sh. 2 o f 2) SMD Placement System SIPLACE S25-HM US S25-HM control unit, basic module Bearb . Tekin 28.06.2000 SIEMENS PL EA 1…
3 Circuit diagrams 70
00356213-010101TD3 S25 HM control unit (viewed from the front) (Sh. 1 of 2)
00356213 / FS
Stay bar
X1ue
Fan unit A35 (ue)
SIEMENS PL EA
AA-BBBB-CCCC
40
18
X2tsX1ts
X3ts
* Note
X8svX9sv
A33
010
X1su
X2su
X3su
X4su
X5su
X6su
X7su
X8su
X11su
X12su
SMP bus board
A32
X6rz
X7rz
AMS bus board
X22
X5rz
A36
X99
X23
X24
X25
SV backplane
A25
MVS backplane
Edge protection
X120 X121
X4rz
X3rz
X2rz
X1rz
X20
X21
X17
X19 X18
X1uz
X2uz
X3uz
X9su
X10su
X4uz
Backplane P219
A38
Battery
3.8V
00356213-010101TD3
28.06.00
28.06.00
28.06.00
28.06.00
01.
01.
02.
S25-HM control unit, basic module
(viewed from the front)
A3
1:2Massstab
28.06.2000 Tekin
Tek
Tek
Tek
(Zeichnungsnummer)
Norm
Gepr.
Bearb.
Datum
Name
NameDatumMitteilungZustand
PL EA 1 E2
SIEMENS
Stamm-Nr. FS ES US UA S F
SMD Placement System SIPLACE S25-HM
Function status
Product status
Document status
Sheet
2
Sh.
1
A: Identification label
Apply the following labels on the inside (flush with the front plate):
* Note
Font size 2.5 mm, material Scotchal 3698-E (color AI RAL 9006)
Assembly inscription according to VA-F-510-001
B: Inspection label Identification: testing engineer, month, year
Manufacturer/location according to SN 37040
Date (year/month/day) acc. to SN 01007
Series number
Function status (FS) according to the current parts list
3 Circuit diagrams 71

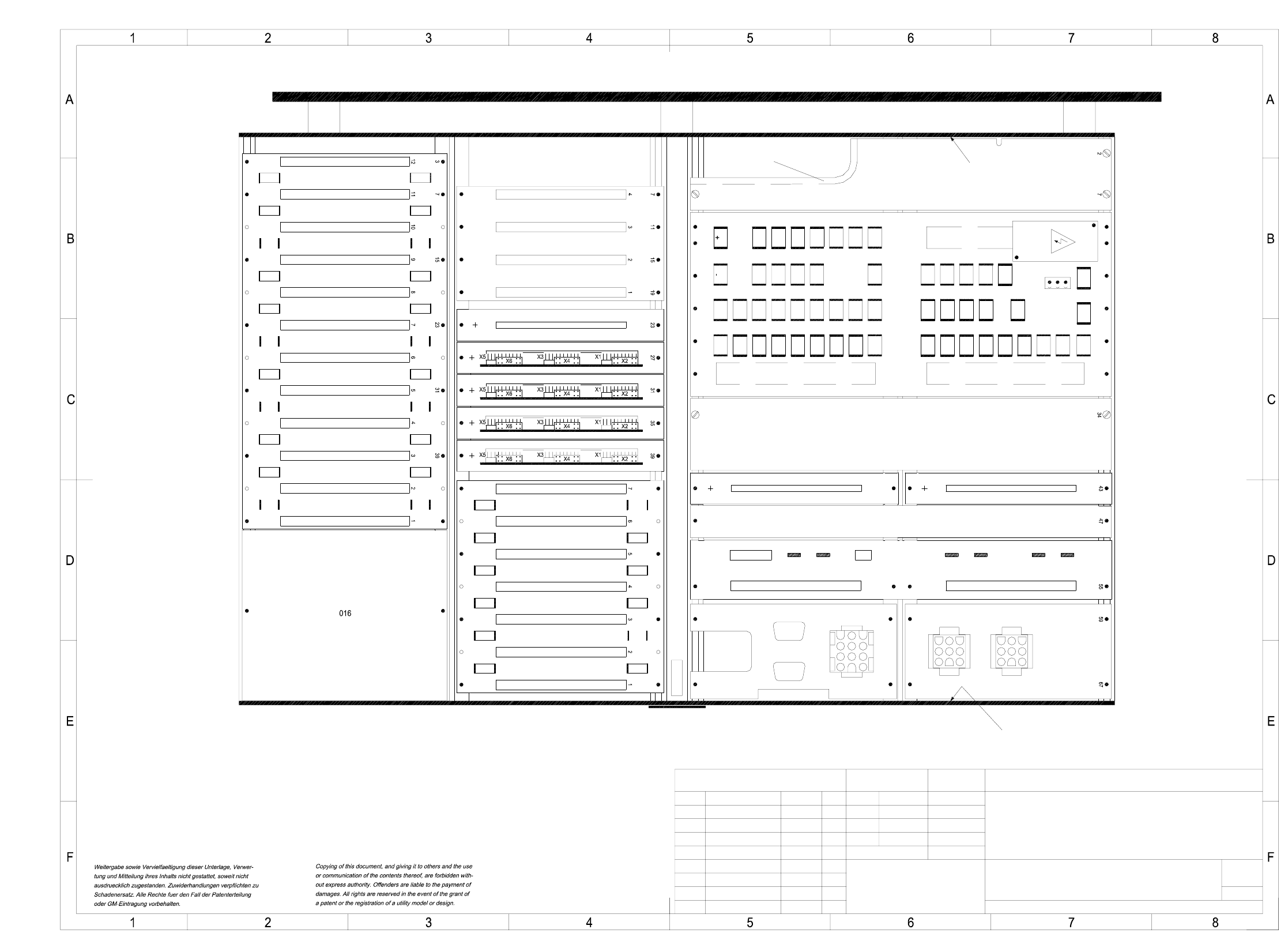

00356213-010101TD3 S25 HM control unit (viewed from the back) (Sh. 2 of 2)
SMD Placement System SIPLACE S25-HM
US
S25-HM control unit, basic module
Bearb.
Tekin28.06.2000
SIEMENS
PL EA 1 E2
Datum
28.06.00
28.06.00
28.06.00
Document status
Product status
Function status
MitteilungZustand
01.
01.
01.
Gepr.
Norm
Name
Tek
Tek
Tek
28.06.00
(Zeichnungsnummer)
(viewed from the back)
00356213-010101TD3
Stamm-Nr. ESFS
1:2Massstab
Datum
Name
A3
Sheet
SUA F
Sh.
2
2
X1ts X2ts
X3ts
PEL1N
X4ts
SENSESENSE
GOOD
PE
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
P5
P5
P5
P5
P5
P5
P5
P5
-15V
-15V
-15V
+24V
+24V
+15V
+15V
+15V
+15V
PE
DC-
-12V
-12V
-12V
-12V
PE
+12V
+12V
+12V
+12V
PF
GNDP5P5+24V
-15V
Ground point
Ground point
Cover up SMP- and AMS rear panel using cover 007.
58
010
SV backplane A25
( ts )
SMP bus A32
008
009
012
015
X10sv
X11sv
X6svX5sv X3sv X4svX2svX1sv
X9sv X8sv
Fan unit Assembly A35 ( ue )
Vision module (ICOS)
Video multiplexer A19
A18
X120 X121
A33
(sv)
Spare
Winchester/floppy
Axis board 1 x AC
Axis board
Axis board 1 x AC
Axis board
Communications assembly
I/O board
Spare
I/O board
Machine controller
0V
0V
SENSE
+5V
+5V 0V
0V
SENSE
0V-12V
+5V0V +5V+12V
AMS bus A36
Baugruppe A30 (ud)
Baugruppe A29 (uc)
Baugruppe A27 (sz)
Baugruppe A28 (ta)
67
-15V
-12V
0V+5V+5V
+15V
+12V
0V+5V0V
+3.3V
+3.3V
0V+5V -15V
-12V
+15V
+12V
0V+5V0V
+3.3V
+5V
0V
+3.3V
+3.3V
SENSESENSE
SENSE SENSE
0V
+3.3V
X99
0V
0V
Machine controller GEM
Winchester/floppy GEM
Spare
I/O board
Spare
Spare
017
X17
X21X20
X18
X19
Edge protection
( rz )
( su )
43
47
5951
292521171311
X1ue
Backplane P219
A38 ( uz )
3 Circuit diagrams 72
00343723-010101LD3 S25 servo unit
F
Leh
PL EA1 E
+15V
+15V
+15V
+15V
-15V
-15V
-15V
-15V
-15V
-15V
1L-
1L-
6L+
Motor
1L+/GND
Voltage +/-15V
Anti-crash board
Tacho
Nom. values
Motor
1L+/GND
Anti-crash board
Voltage +/-15V
Nom. values
Tacho
(va)
A18
(vb)
A19
(vo)
A27 A10
A9A26
(vp)
A25 A8
(vr)
2L+/5L+ SP head
SP head3L+
3L+ SP head
Nom. values
Tacho
Motor
Voltage
Voltage
Motor
Tacho
Nom. values
Voltage
Tacho
Motor
Nom. values
Voltage
Tacho
Motor
Nom. values
Voltage
Motor
Tacho
Nom. values
A21
(vd)
A4
SP head 3L+
3L+SP head
A3 A20
(vf)
Ballast circuit
Anti-crash board
X1
X11
X4vc X3vc X2vc
X1
X1vc
Star
Servo amplifier
(gantry 1)
(gantry 1)
Star
Backplane
(gantry 1)
z axis
Servo amplifier
(gantry 1)
Servo amplifier
dp1 axis
Backplane
(gantry 1)
z axis
(gantry 1)
Backplane
dp1 axis
X4vd X3vd X2vd X2vfX3vfX4vf
gantry 1
Backplane
x axis
X1
X1vd X1vf
X1
X5va
X5va
X4va
X4va
X8va X7va X6va X1vaX2vaX3va
A11 A1
x axis
gantry 1
Dynamic brake Servo amplifier
gantry 1
x axis
Dynamic brake
gantry 2
A13
x axis
gantry 2
A2
x axis
Servo amplifier
X5vm
X5vm
X4vm
X4vm
gantry 2
x axis
Backplane
X8vm X7vm X6vm X3vm X2vm X1vm
X5vb
X5vb X4vb
X4vb
X4vn
X4vnX5vn
X5vn
gantry 1
y axis
Backplane
gantry 2
Backplane
y axis
X1vbX2vbX3vbX6vbX7vbX8vb
X1vnX2vnX3vnX6vnX7vnX8vn
A12 A6A7A14
gantry 1
y axis
Servo amplifierDynamic brake
gantry 1
y axis
gantry 2
Servo amplifier
y axis
gantry 2
Dynamic brake
y axis
X4vp X3vp X2vp
X2vrX3vrX4vr
X1vp
X1
X1vr
X1
gantry 2
z axis
Backplane Backplane
dp1 axis
gantry 2
dp1 axis
gantry 2
Servo amplifierServo amplifier
z axis
gantry 2
Backplane
Star
gantry 2
Servo amplifier
gantry 2
Star
X1vo
X1
X4vo X3vo X2vo
32
Power supply unit
(+/-15V)
OutputInput
30 2628 18202224 10121416 468
X12
=
Datum
Gepr.
Norm
Bearb.
Blatt
Urspr. Ers. f. Ers. d.NameDatumAenderungZustand
SIEMENS AG
Bl.
+
678
12345678
A
B
F
E
D
C
B
A
12345
C
D
E
Leh
Leh
01
01
01
18.09.98
18.09.98
18.09.98
18.09.98
Werner
#
Servo unit, S23
00343723-010101LD3
SMD-Placement System Siplace S23
Product status
Doc. status
Function status
A15A16
GND
150V
a2
a4
a8
a6
X13
c8
c6
c4
c2
Nom. values
A5 A22
(vc)
2L+/5L+SP head
Motor
Tacho
Voltage
Tacho
Nom. values
(vm)
A23
Voltage +/-15V
Anti-crash board
1L+/GND
Motor Motor
1L+/GND
Anti-crash board
Voltage +/-15V
Nom. values
Tacho
(vn)
A24
+15V
A17
+15V
